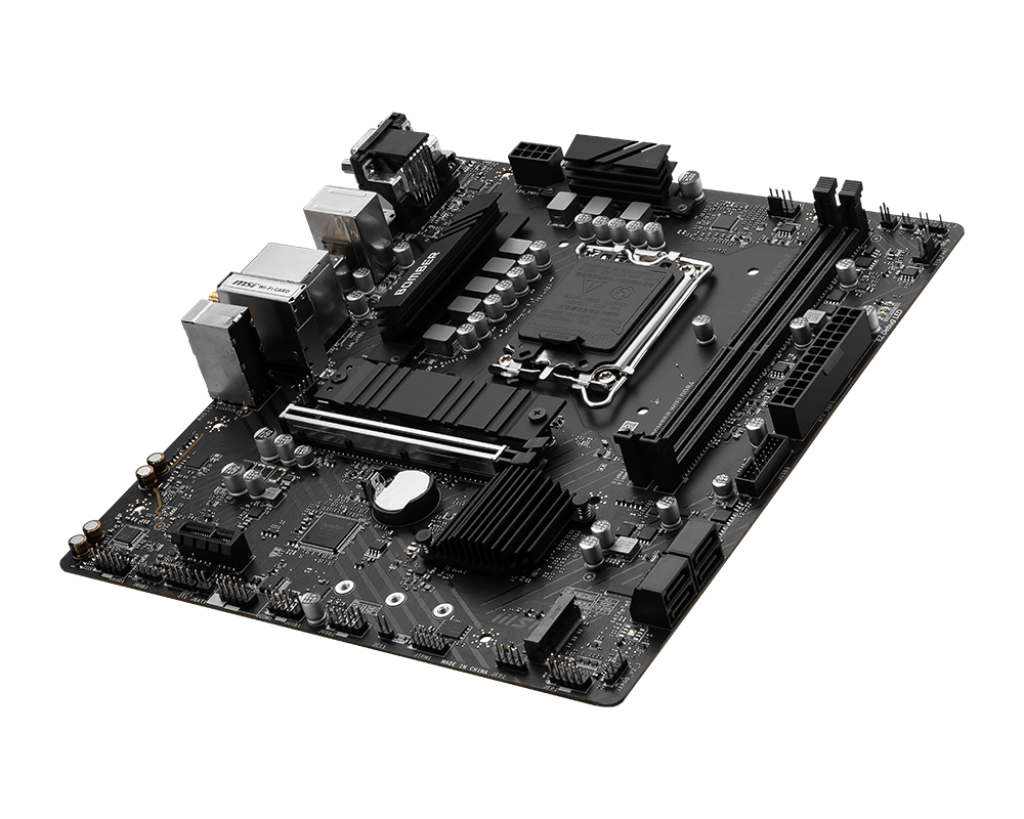

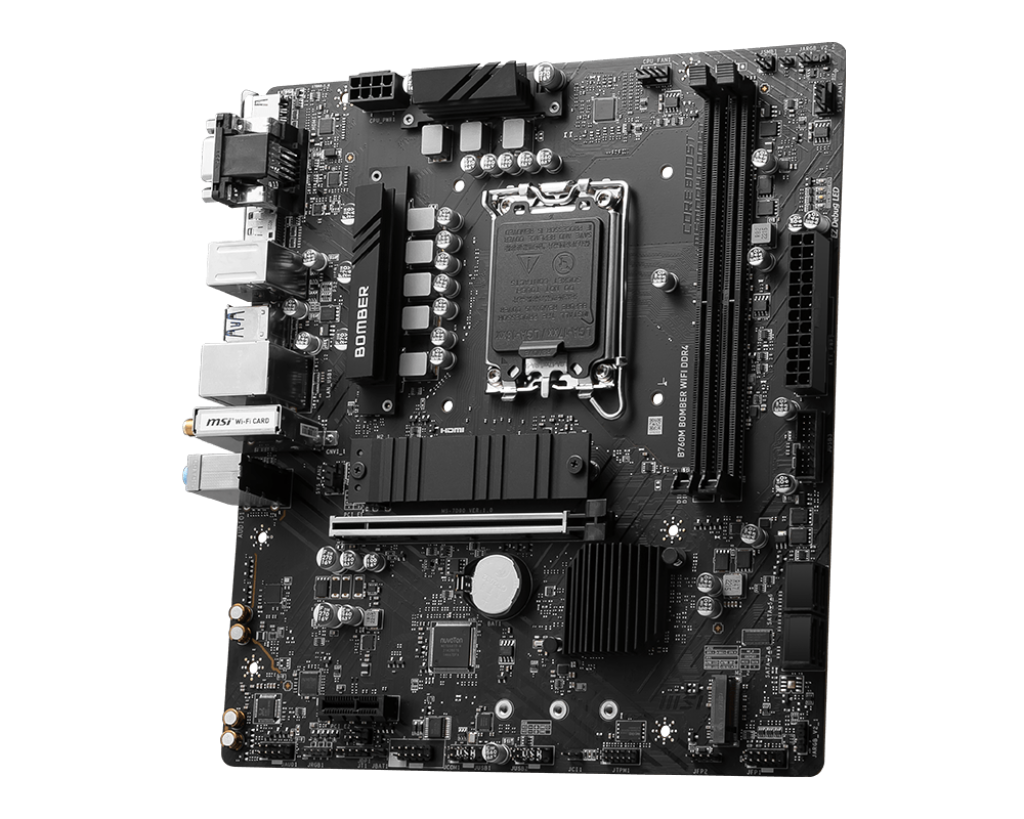

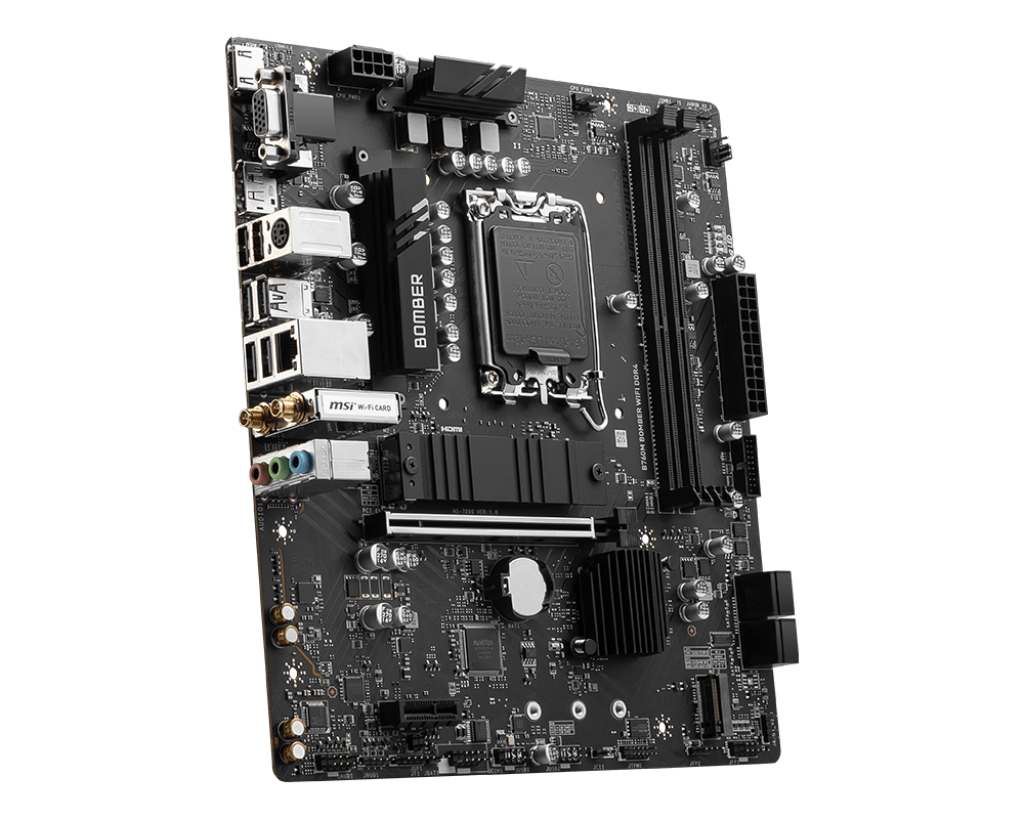

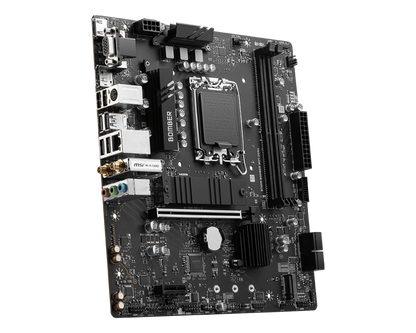

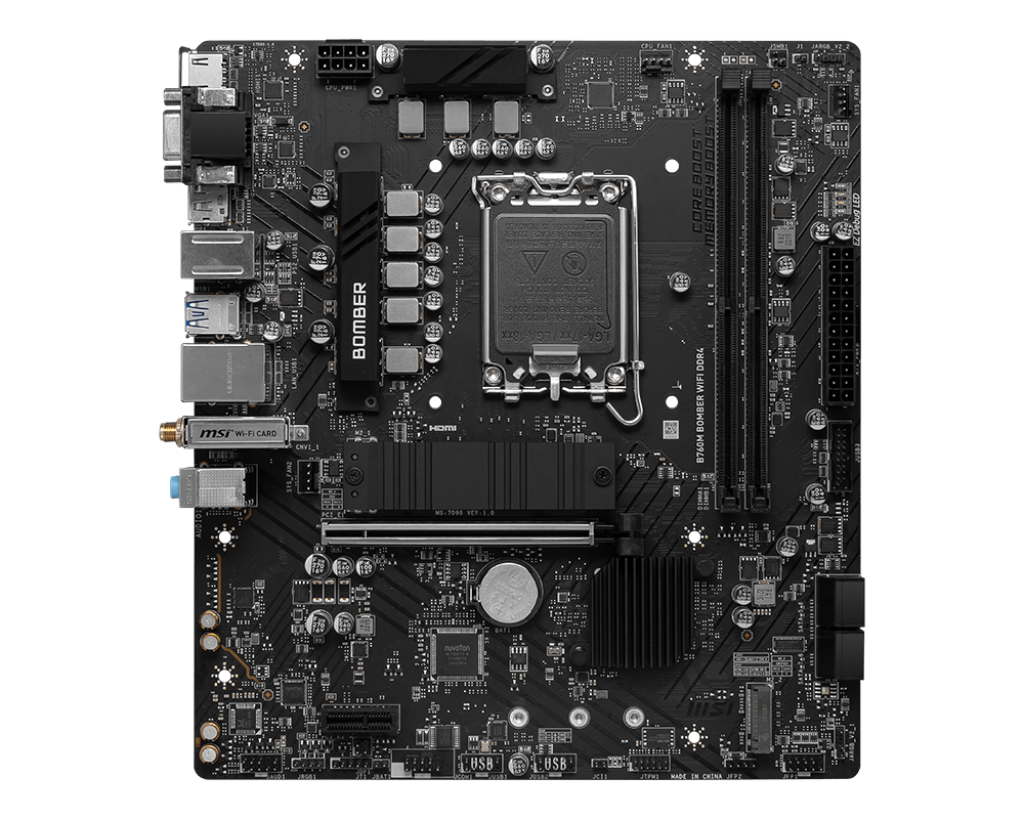

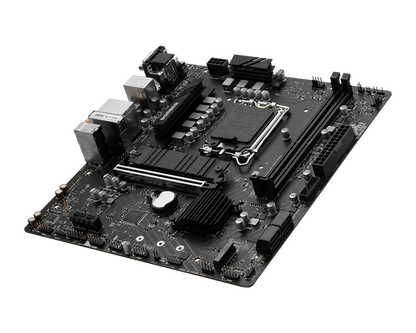

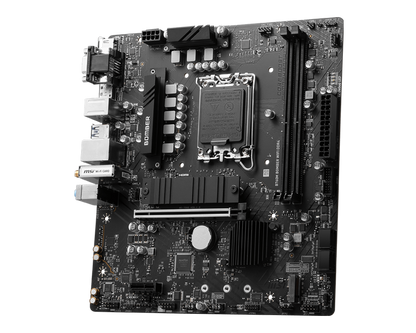

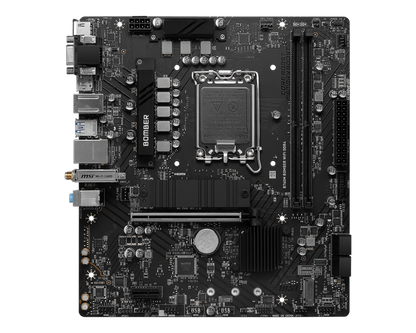

The MSI B760M BOMBER WIFI INTEL LGA1700 DDR4 MOTHERBOARD offers a robust foundation for building your next PC. This motherboard is engineered to support Intel LGA1700 processors and is compatible with DDR4 memory, while also featuring integrated WiFi for convenient wireless connectivity.
Key Features at a Glance
- MSI B760M BOMBER WIFI Motherboard for PC builds.
- Designed for Intel LGA1700 socket processors.
- Supports DDR4 memory modules.
- Features integrated WiFi for wireless networking.
Optimized for Intel LGA1700 Processors
This MSI B760M BOMBER WIFI motherboard is built to seamlessly integrate with Intel LGA1700 processors, providing a solid foundation for your computing needs.
Integrated WiFi Connectivity
Experience convenient wireless networking with the built-in WiFi feature of the MSI B760M BOMBER WIFI Motherboard, allowing for flexible system placement without extra cables.
DDR4 Memory Support
The MSI B760M BOMBER WIFI Motherboard is engineered to support DDR4 memory modules, ensuring compatibility with a widely adopted memory standard for system building.
Technical Specifications
| Chipset | INTEL B760 |
|---|---|
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports Dnon-ECC, un-buffered memory Supports IntelExtreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Audio | RealtekALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | RealtekRTL8125B 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH | IntelWi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |

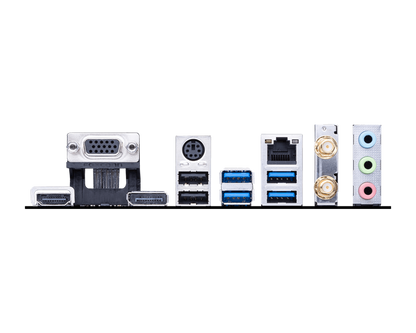

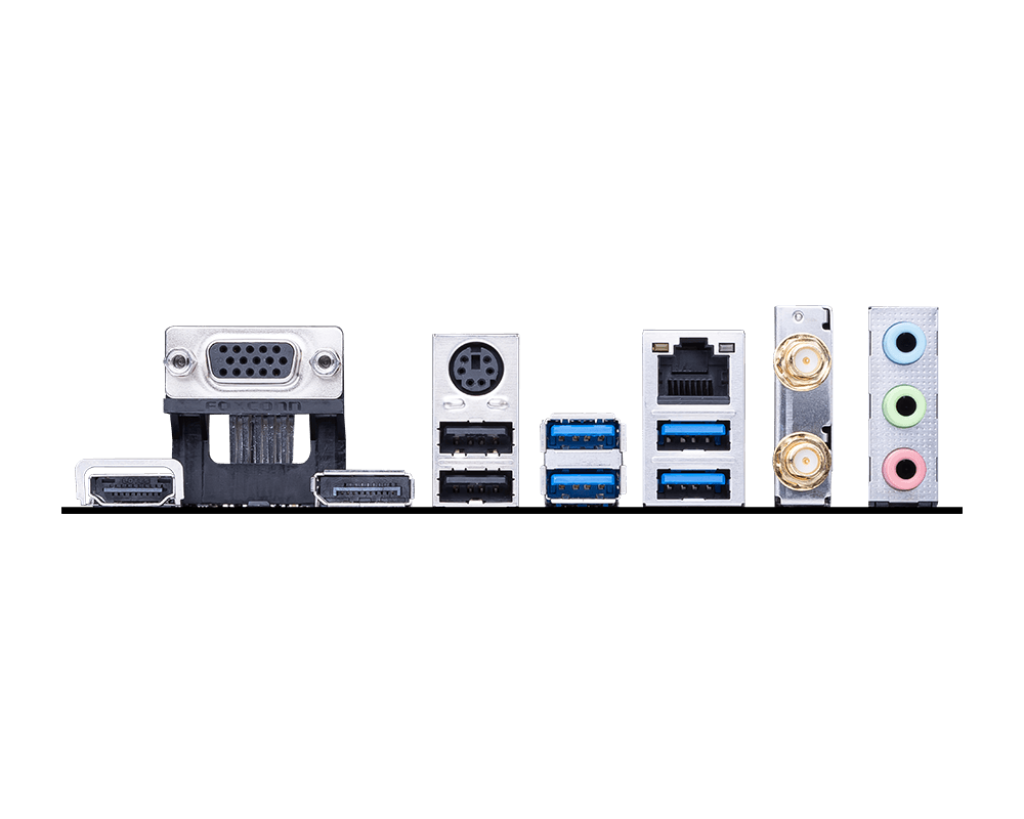

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows11 64-bit, Windows10 64-bit |
| PCB Info | mATX 220mmx243.84mm |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What CPU socket does this motherboard support?
A: The MSI B760M BOMBER WIFI INTEL LGA1700 DDR4 MOTHERBOARD supports Intel LGA1700 processors.
Q: What type of memory does this motherboard use?
A: This motherboard is designed to work with DDR4 memory modules.
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, the MSI B760M BOMBER WIFI Motherboard features integrated WiFi.
