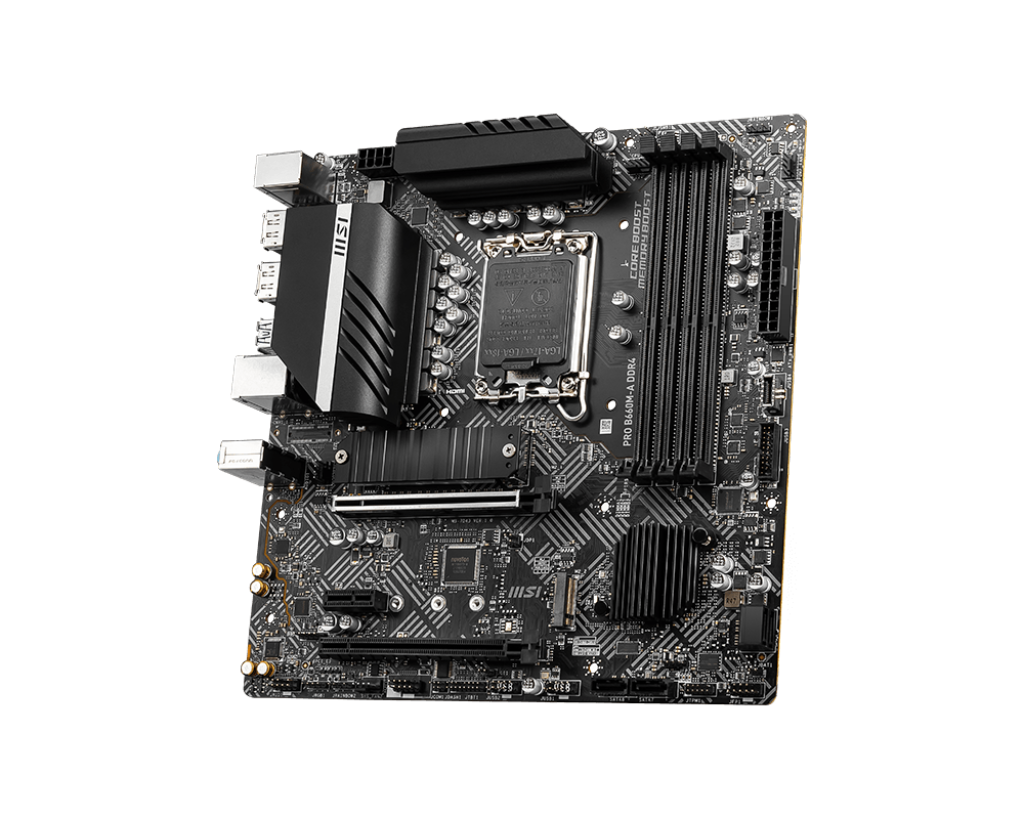

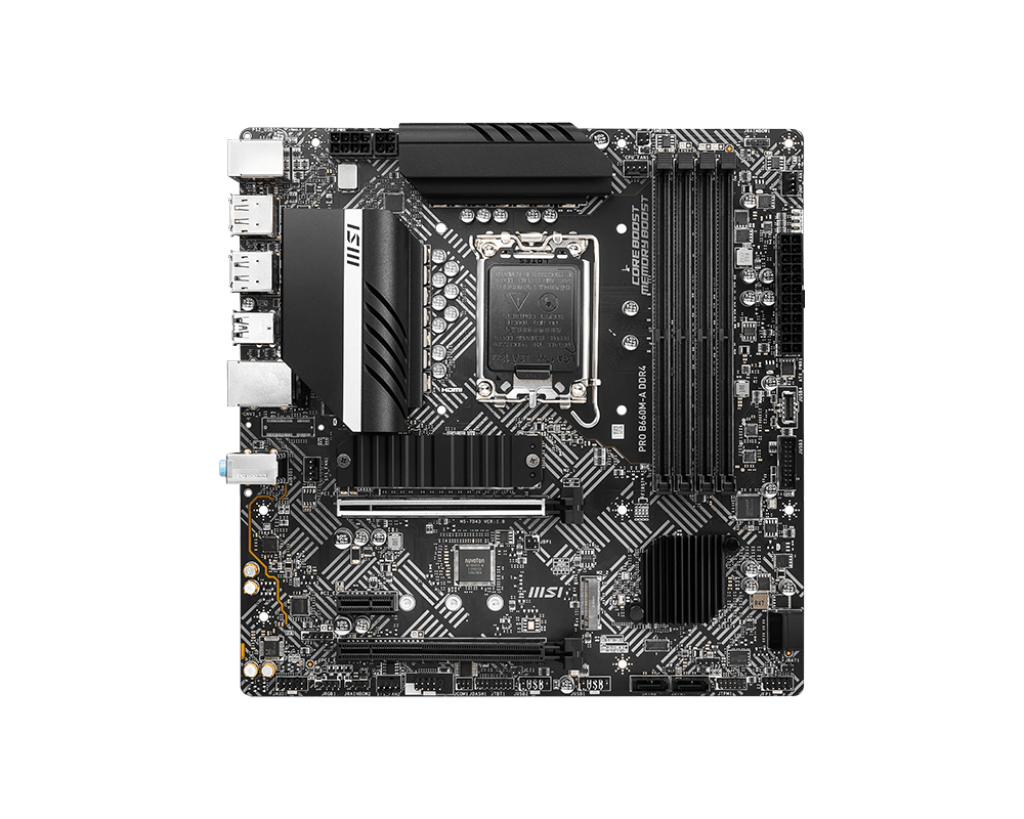

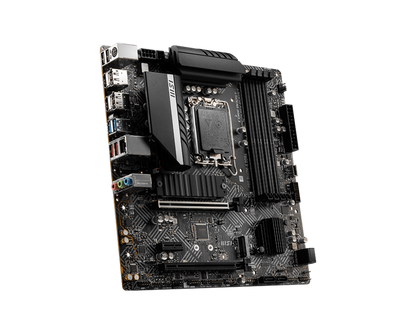

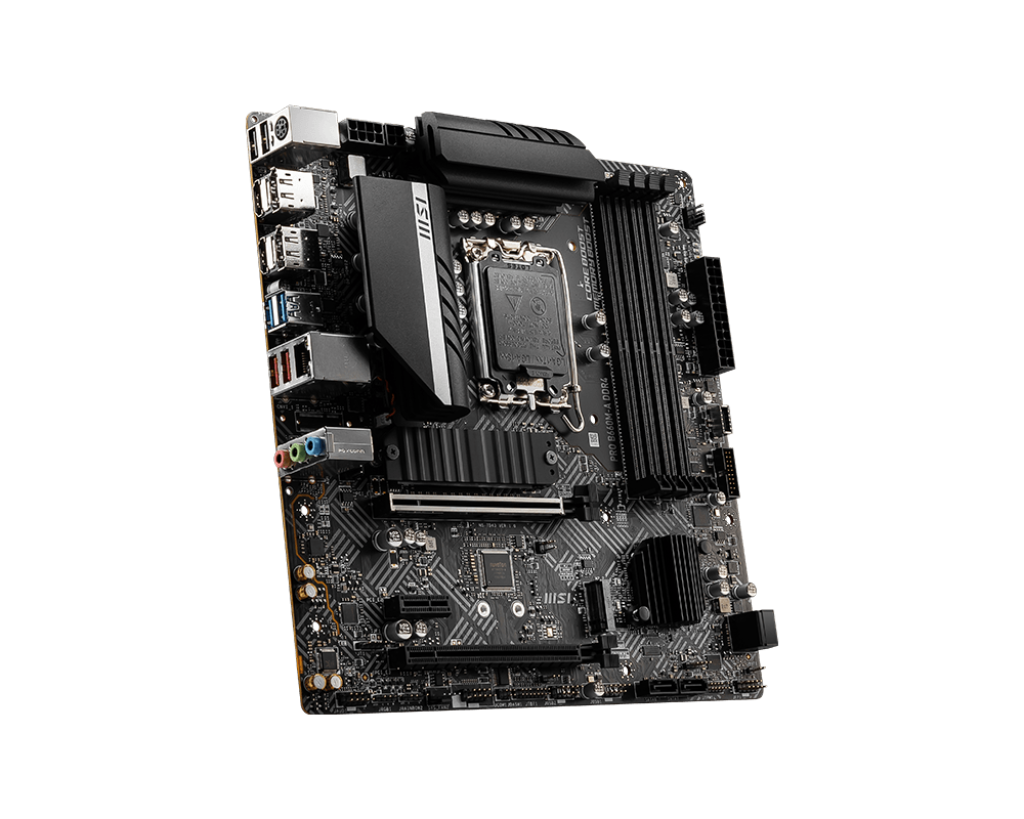

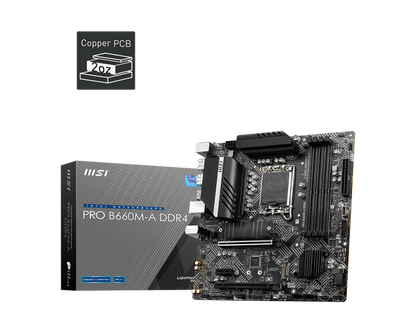

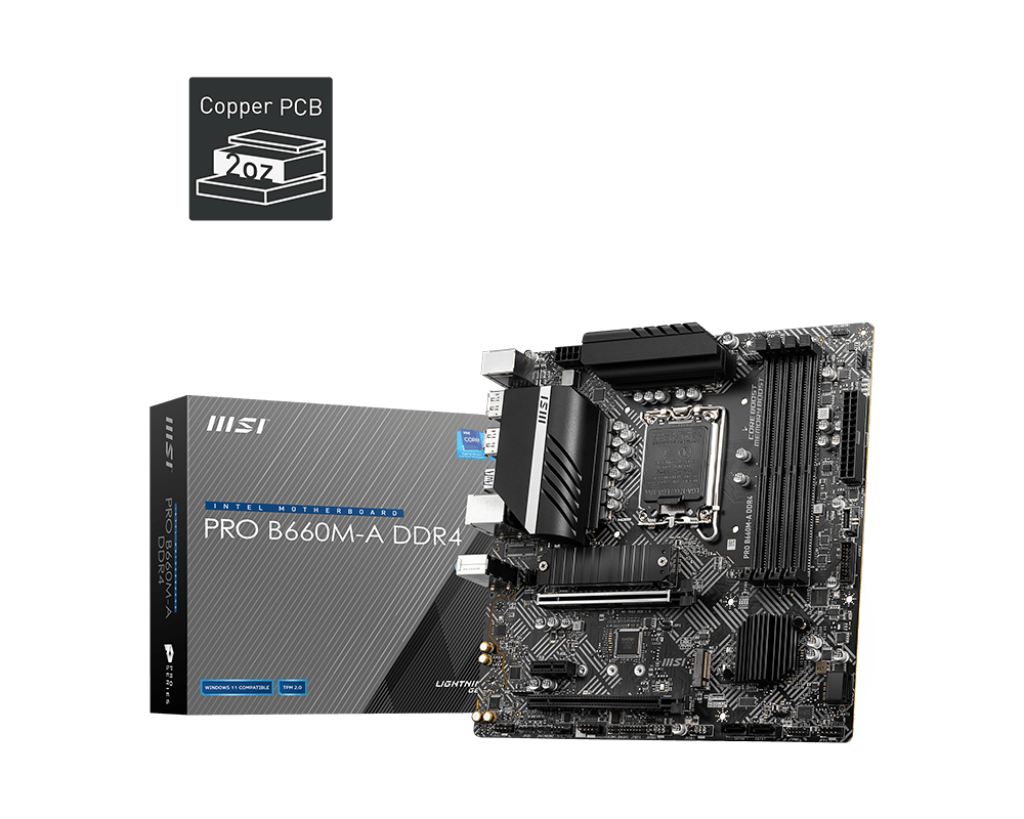

MSI B660M-A PRO DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 12,691.00Regular price
Rs. 18,650.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
- Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
Specifications
| CPU | Supports 12th Gen Intel Core Processors |
| Processor socket LGA1700 | |
| Chipset | Intel B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 |
| Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 4800+ MHz | |
| 1DPC 2R Max speed up to 4000+ MHz | |
| 2DPC 1R Max speed up to 4000+ MHz | |
| 2DPC 2R Max speed up to 3600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| PCI_E1 (From CPU) | |
| Support PCIe 4.0 x16 | |
| PCI_E3 (From B660 chipset) | |
| Support PCIe 3.0 x4 | |
| 1x PCIe 3.0 x1 slot (Fom B660 chipset) | |
| Onboard Graphics | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2 |
| 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2 | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 4x SATA 6Gb/s ports (From B660 chipset) |
| 2x M.2 slots (Key M) | |
| M2_1 slot (From CPU) | |
| Supports up to PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (From B660 chipset) | |
| Supports up to PCIe 4.0 x4 | |
| Supports up to SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Supports Intel Optane Memory | |
| Support Intel Smart Response Technology for Intel Core processors | |
| SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| USB | Intel B660 Chipset |
| 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel | |
| 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) | |
| Asmedia ASM1074 | |
| 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| 1x TBT connector (supports RTD3) | |
| 1x Serial port | |
| 1x Tuning Controller connector | |
| LED Features | 1x 4-pin RGB LED connector |
| 2x 3-pin RAINBOW LED connectors | |
| 4x EZ Debug LED | |

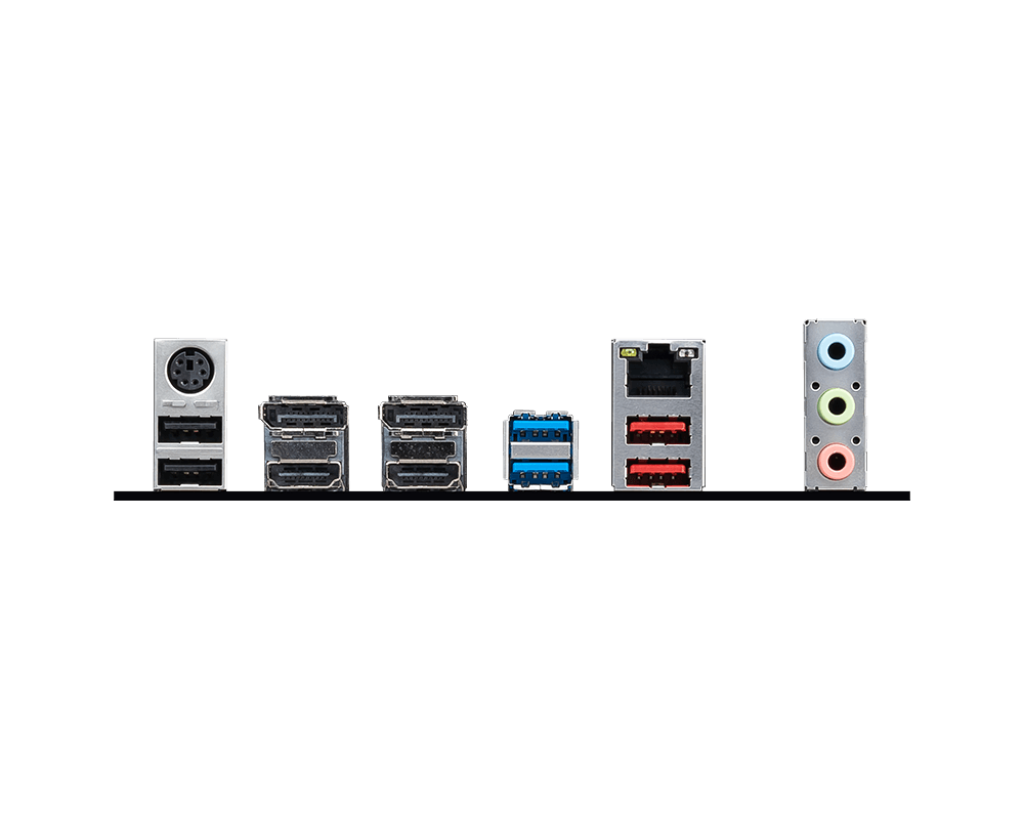

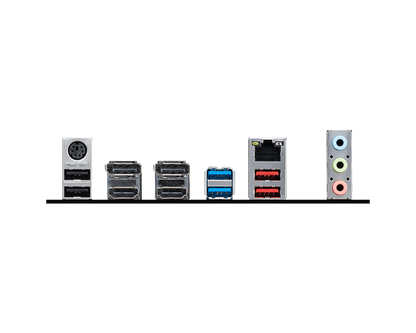

| Back panel ports | Keyboard / Mouse |
| DisplayPort | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| LAN port | |
| Audio connector | |
| USB 2.0 | |
| HDMI | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| Product Dimensions | ?24.38 x 24.38 x 6.35 cm |
| Weight | ?1 kg |
| Warranty | 3 Years |
