| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7600+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

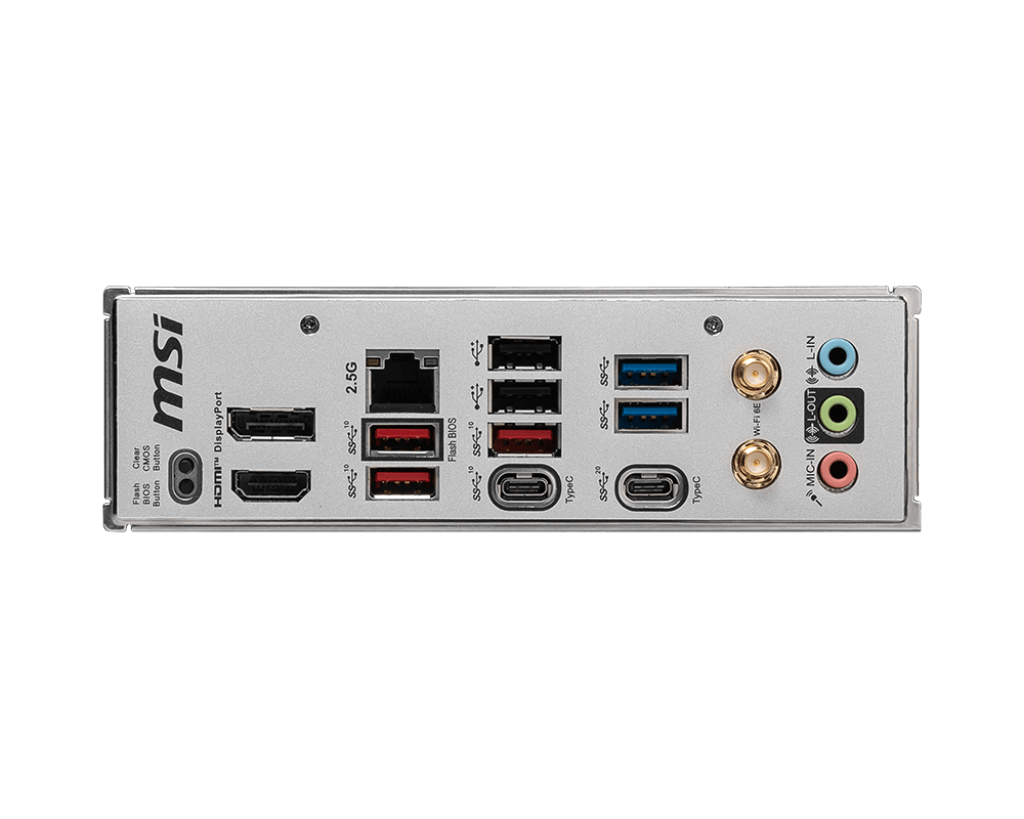

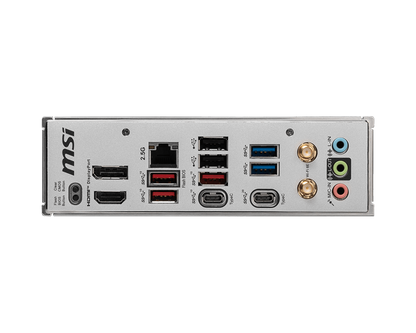

| Back Panel I/O Ports | DisplayPort 2.5G LAN USB 2.0 USB 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 20Gbps (Type-C) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Save 40%

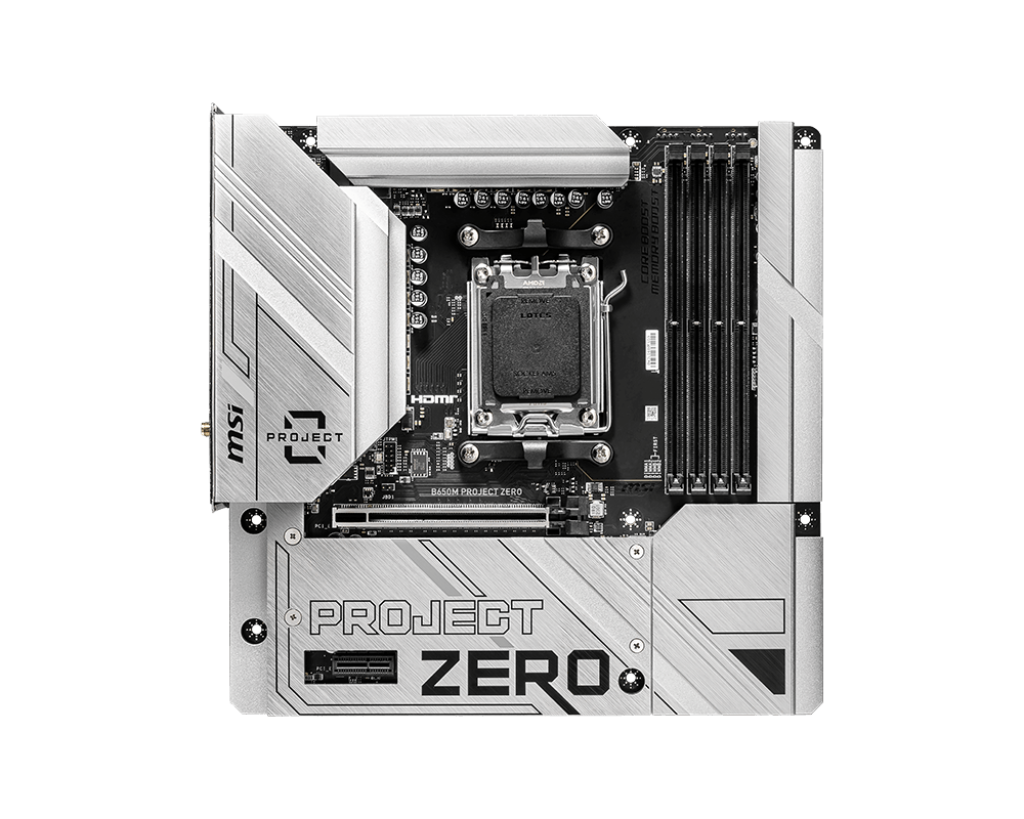

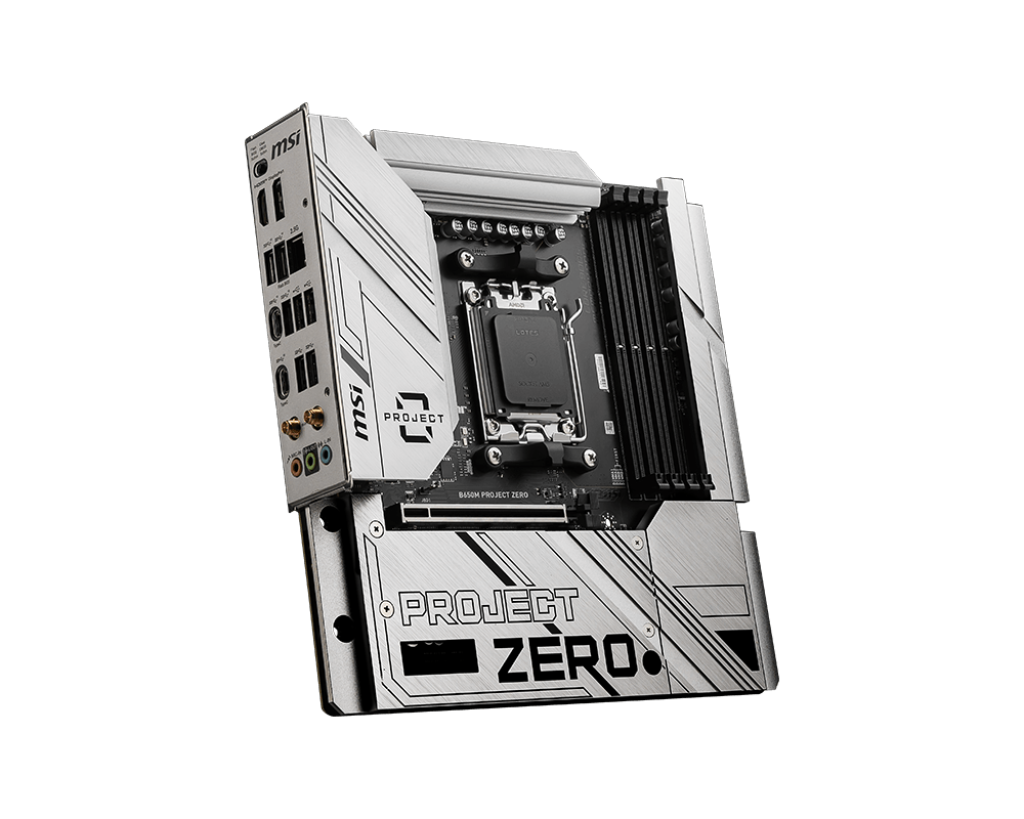

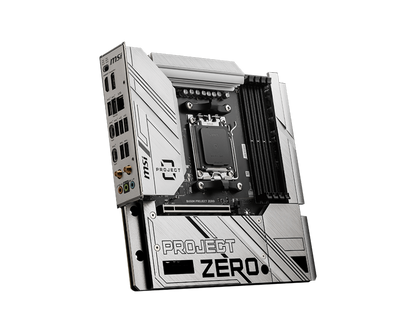

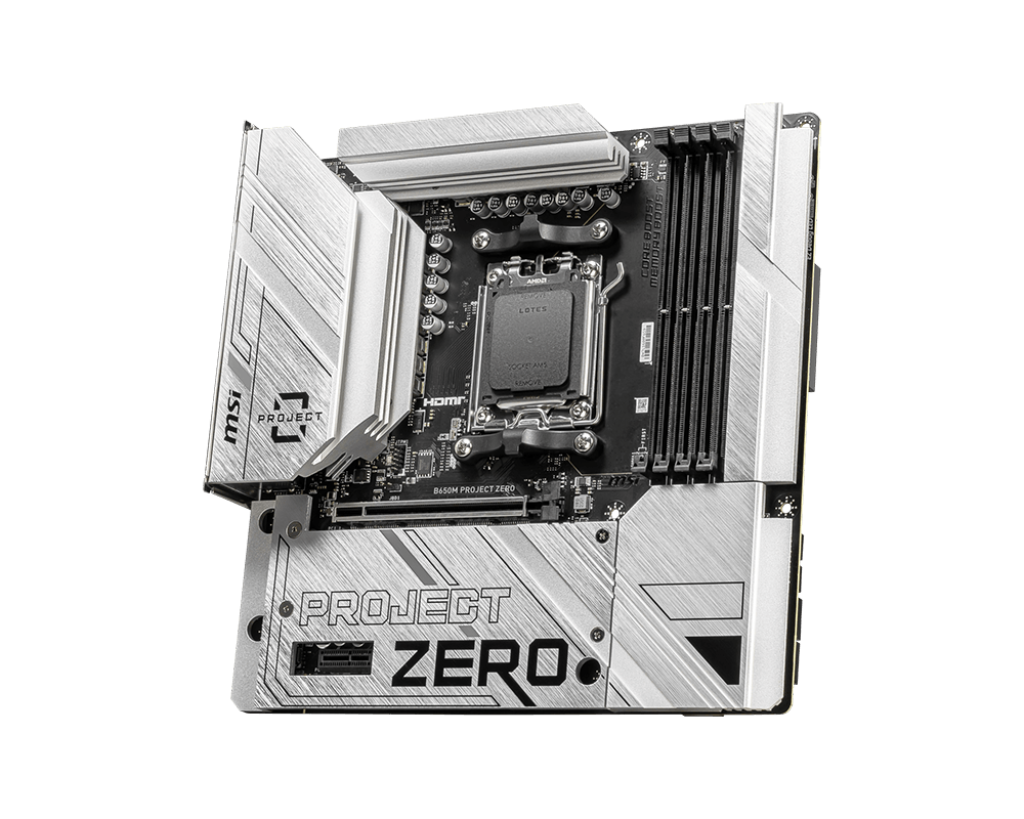

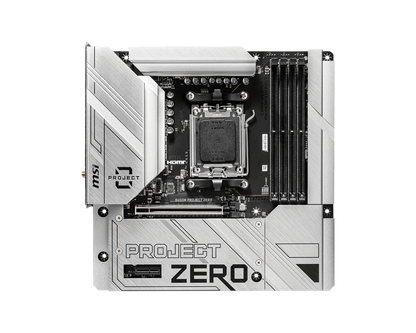

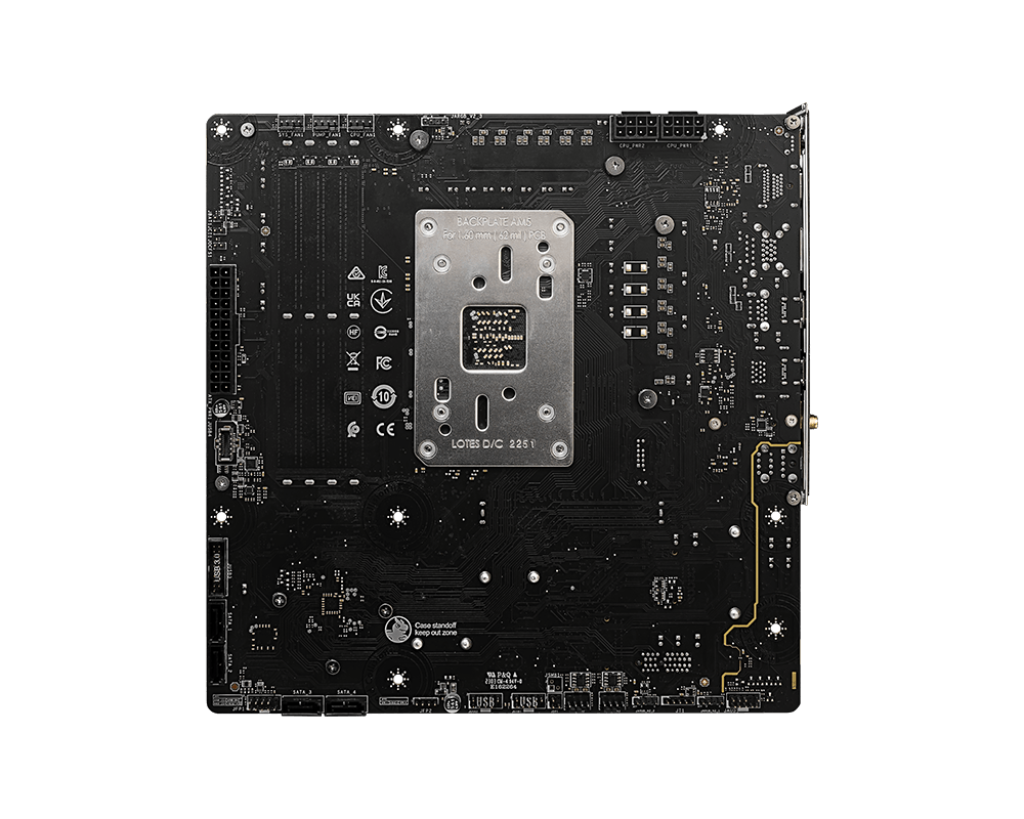

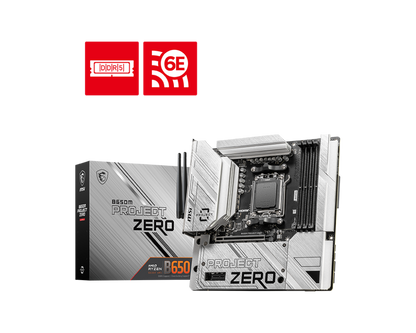

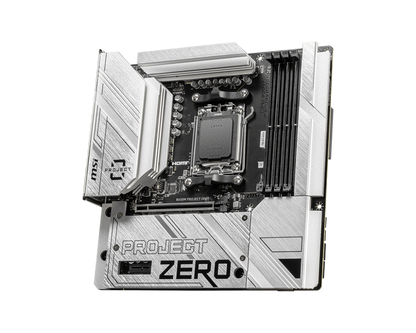

MSI B650M PROJECT ZERO MOTHERBOARD
Sale priceRs. 21,658.00Regular price
Rs. 35,999.00
Hurry, only 10 items left in stock!
MSI B650M PROJECT ZERO MOTHERBOARD
Sale priceRs. 21,658.00Regular price
Rs. 35,999.00
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
About this item
- POWERFUL VRM, Ryzen 7000 READY - The B650M PROJECT ZERO employs a Direct 10+2 VRM Power Design with 80A Power Stage for the AMD B650 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports multi-core overclocking
- INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
- DDR5 MEMORY, PCI-E 4.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6400+ MHz); 1 x PCIe 4.0 x16 slot (64GB/s) support graphics card
- DUAL M.2 CONNECTORS - Premium storage options consist of 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling
- WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 USB High Performance Audio with Audio Boost (supports S/PDIF output)
Technical Details
