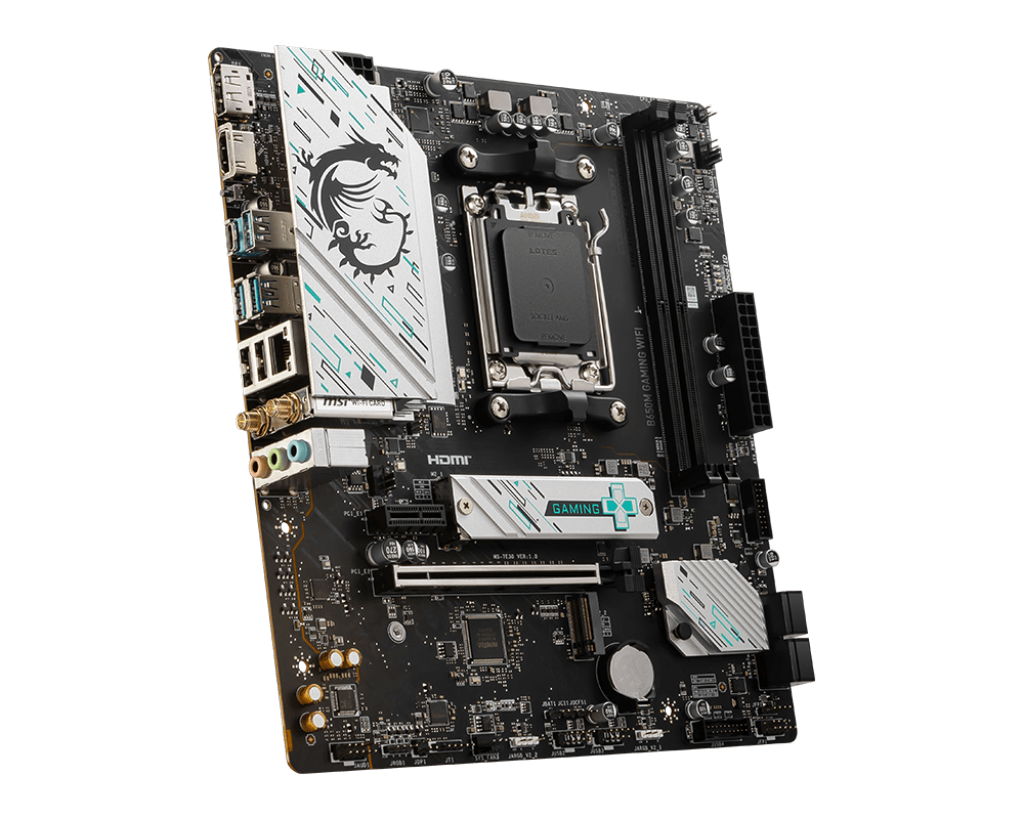

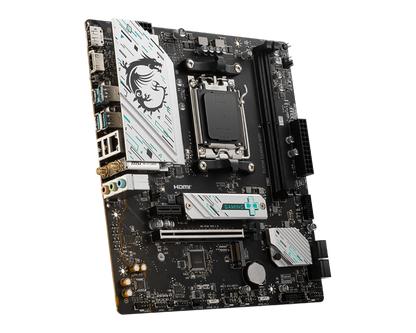

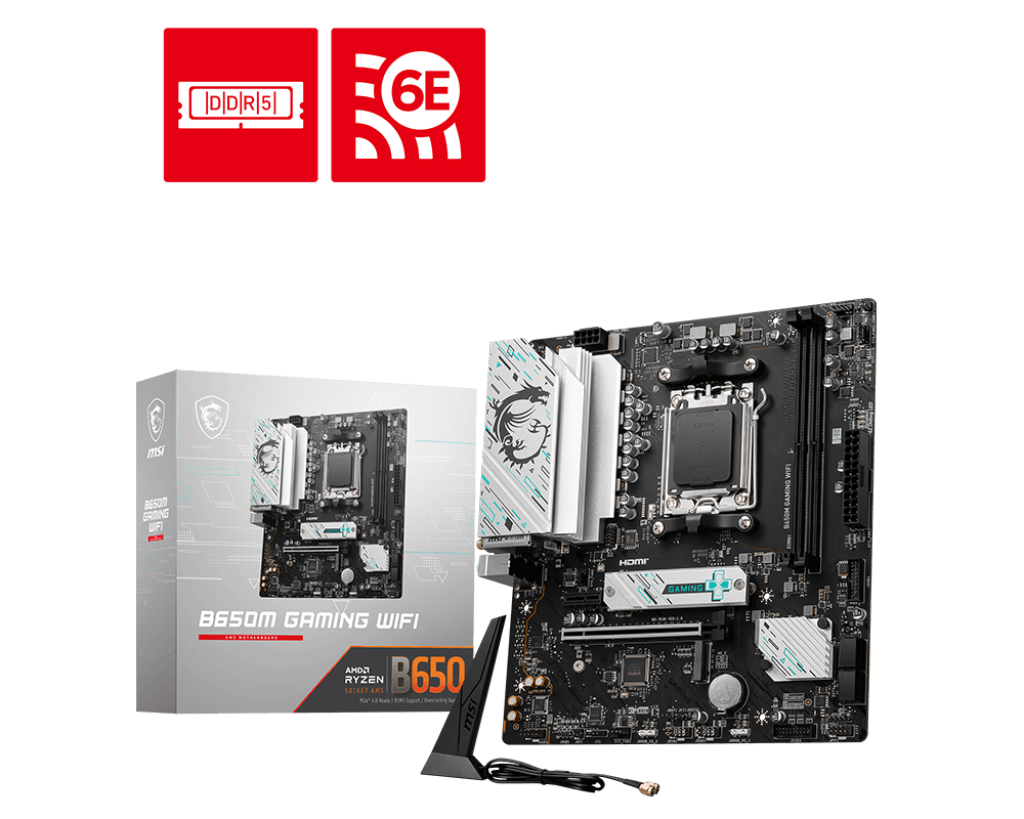

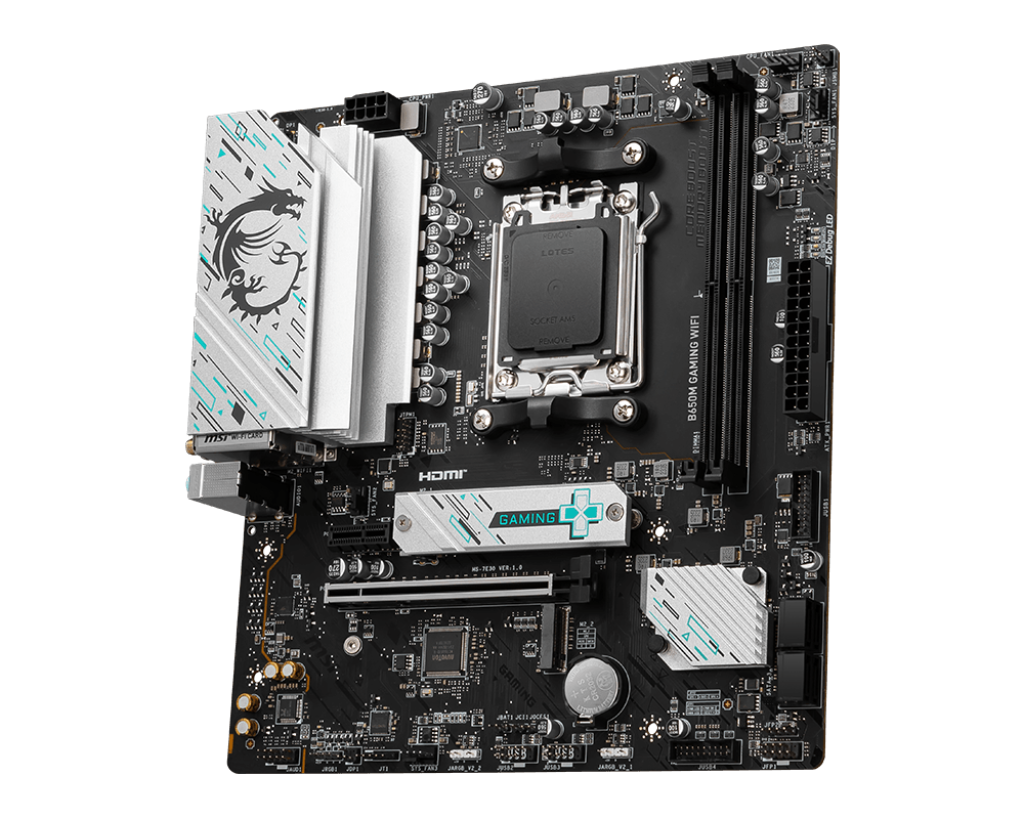

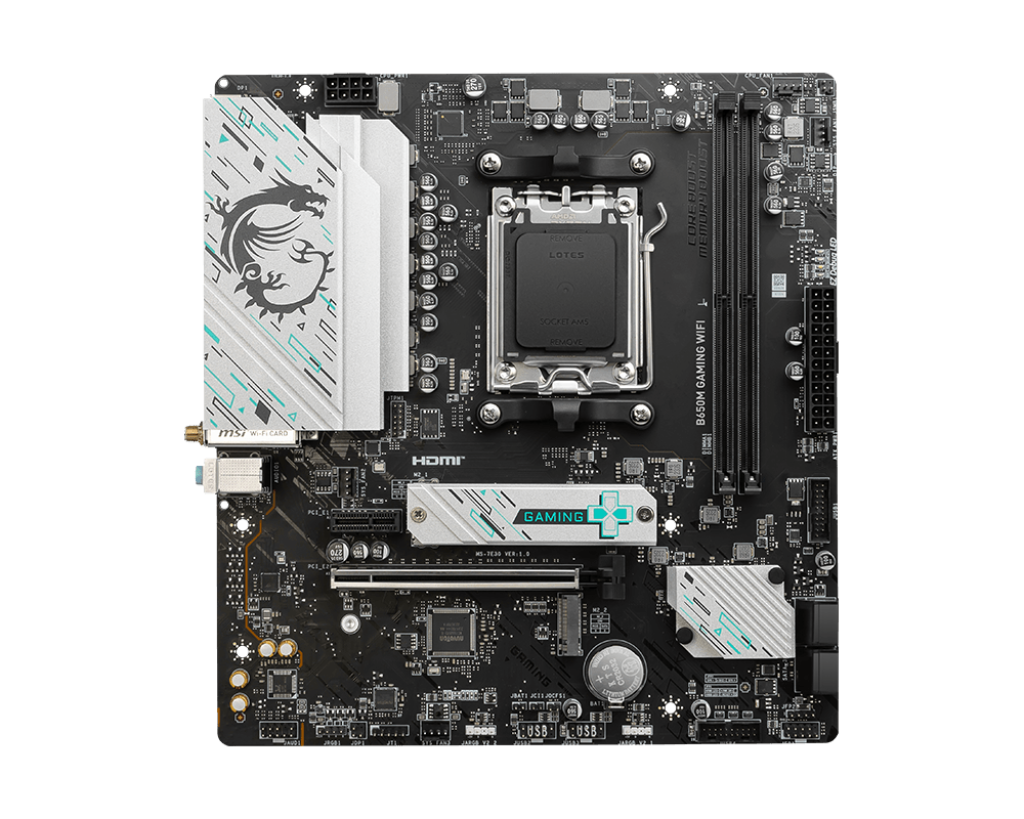

MSI B650M GAMING WIFI DDR5 MOTHERBOARD

Name: MSI B650M GAMING WIFI DDR5 MOTHERBOARD
Brand: MSI
SKU: 1088034
Price: 10450.00 INR
Availability: OutOfStock

Rs. 10,450.00 Rs. 21,999.00

Product variants

Out of stock

Elevate your gaming and computing experience with the MSI B650M GAMING WIFI DDR5 MOTHERBOARD. Designed for AMD Ryzen 7000 series processors, this mATX motherboard features an AM5 socket and AMD B650 chipset, providing a powerful foundation with high-speed DDR5 memory support and cutting-edge Wi-Fi 6E connectivity.

Key Features at a Glance

Ready for AMD Ryzen 7000 series processors with AM5 socket and AMD B650 chipset.
Supports DDR5 memory with two DIMM slots, offering overclocking up to 7800+ MHz.
Integrated cooling solutions include VRM heatsink, M.2 Shield Frozr, and 6-layer PCB.
Features dual M.2 Gen4 64Gbps connectors for hyper-fast SSD access.
Equipped with AMD Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN for comprehensive connectivity.
Primary PCIe 4.0 x16 slot includes Steel Armor for enhanced durability.

Unleash AMD Ryzen 7000 Performance

Engineered with an AM5 socket and AMD B650 chipset, the MSI B650M GAMING WIFI motherboard is ready for AMD Ryzen 7000 series processors. MSI Core Boost technology enhances CPU performance and stability, providing a robust platform for demanding applications and gaming.

Advanced Cooling for Sustained Power

Maintain optimal system performance with comprehensive integrated cooling. This motherboard features VRM cooling with 7W/mK MOSFET thermal pads and an extended heatsink, a dedicated chipset heatsink, and M.2 Shield Frozr to prevent thermal throttling. A 6-layer PCB with 2 oz. thickened copper further contributes to heat dissipation, ensuring stable operation.

Blazing-Fast Memory and Storage

Experience superior speed with DDR5 memory support, featuring two DIMM slots with Memory Boost isolated circuitry for overclocking beyond 7800+ MHz. Storage is equally impressive with dual M.2 Gen4 64Gbps slots, designed to prevent thermal throttling during hyper-fast SSD access. The primary PCIe 4.0 x16 slot includes Steel Armor for enhanced durability, while a secondary PCIe x1 slot supports PCIe 3.0.

Next-Generation Connectivity

Stay connected with an AMD Wi-Fi 6E module and Bluetooth 5.3, alongside 2.5Gbps LAN for incredibly fast wired networking. Rear ports offer versatility, including USB 3.2 Gen 1 Type-C (5Gbps), HDMI 2.1, DisplayPort 1.4, and immersive 7.1 HD Audio with Audio Boost.

Technical Specifications

Model	B650M GAMING WIFI
Chipset	AMD B650
CPU	Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 3.2 Gen1 Type A (Rear) 1x USB 3.2 Gen1 Type C (Rear) 4x USB 3.2 Gen1 Type A (Front)
LAN	Realtek RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

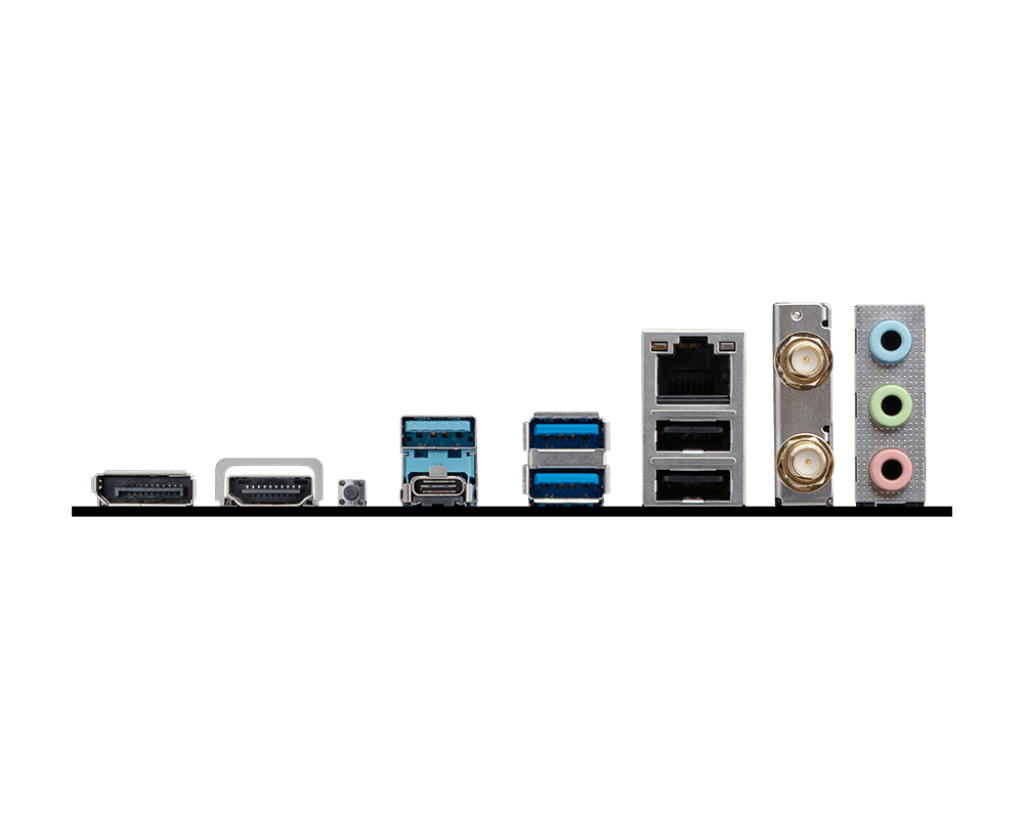

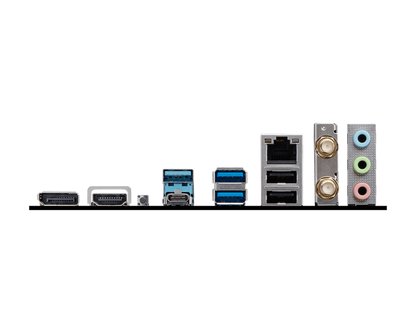

BACK PANEL PORTS	DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	mATX 226mmx243.84mm
Warranty	3 Years

Frequently Asked Questions

Q: What processors are compatible with this motherboard?

A: The MSI B650M GAMING WIFI DDR5 MOTHERBOARD is ready for AMD Ryzen 7000 series processors, featuring an AM5 socket.

Q: What type of memory does this motherboard support?

A: This motherboard supports DDR5 memory across two DIMM slots, with Memory Boost isolated circuitry for overclocking up to 7800+ MHz.

Q: Does this motherboard include built-in Wi-Fi and Bluetooth?

A: Yes, it features an AMD Wi-Fi 6E module with Bluetooth 5.3, along with 2.5Gbps LAN.
