Save 65%

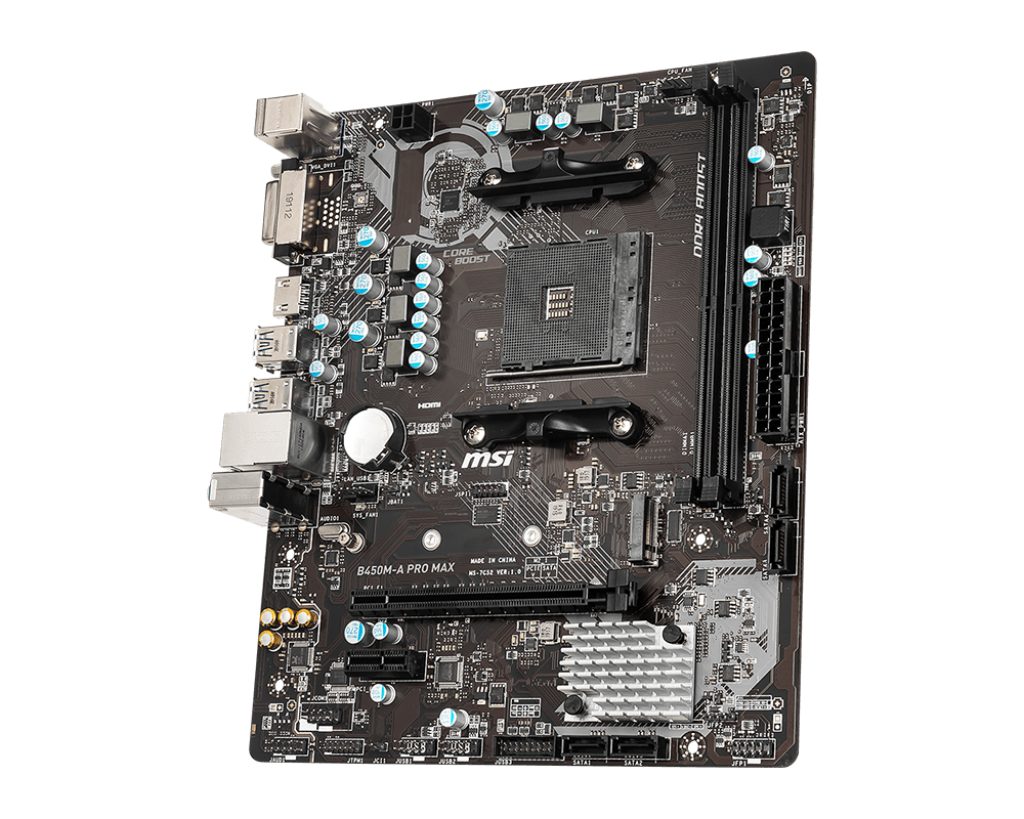

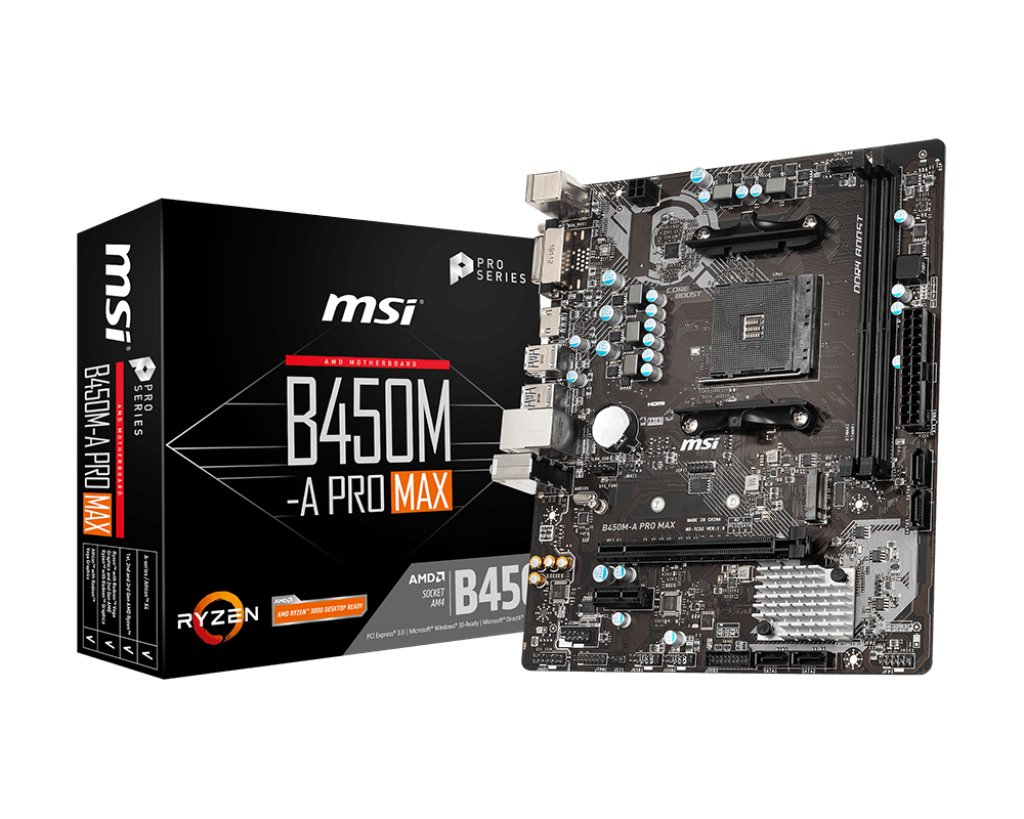

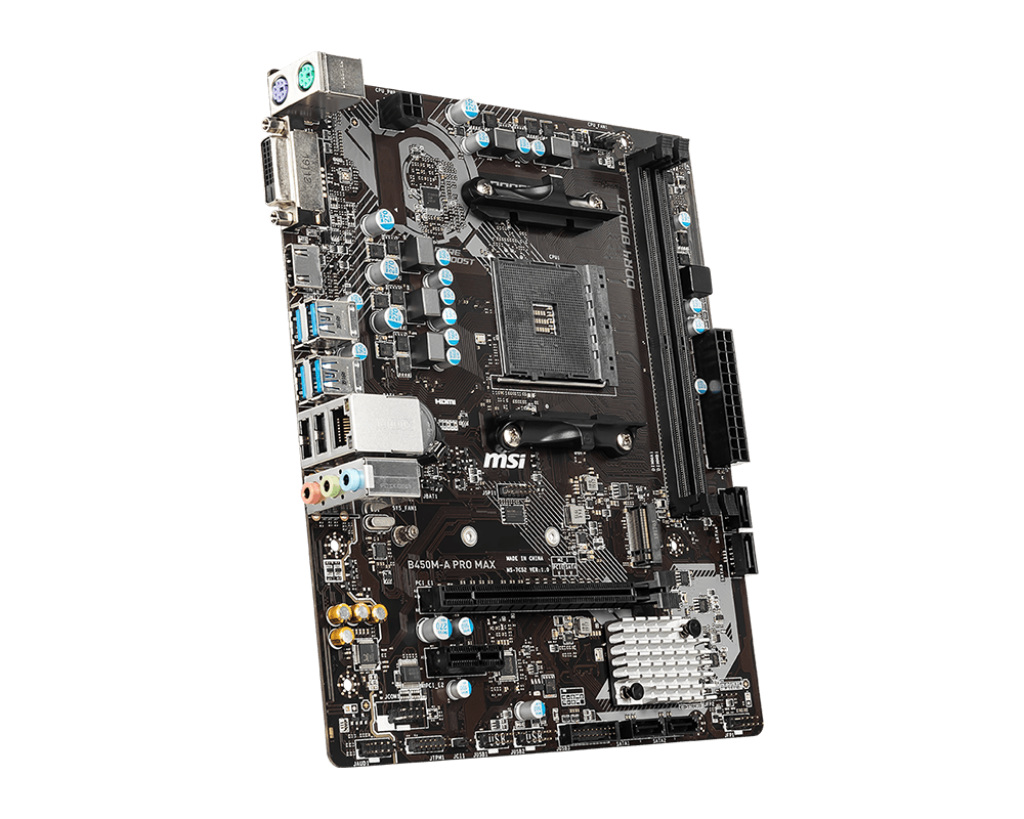

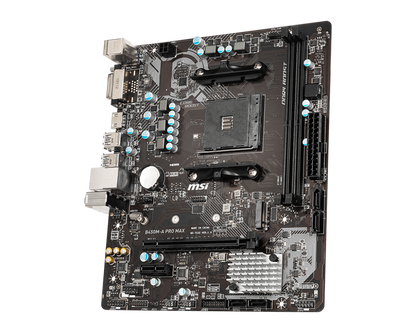

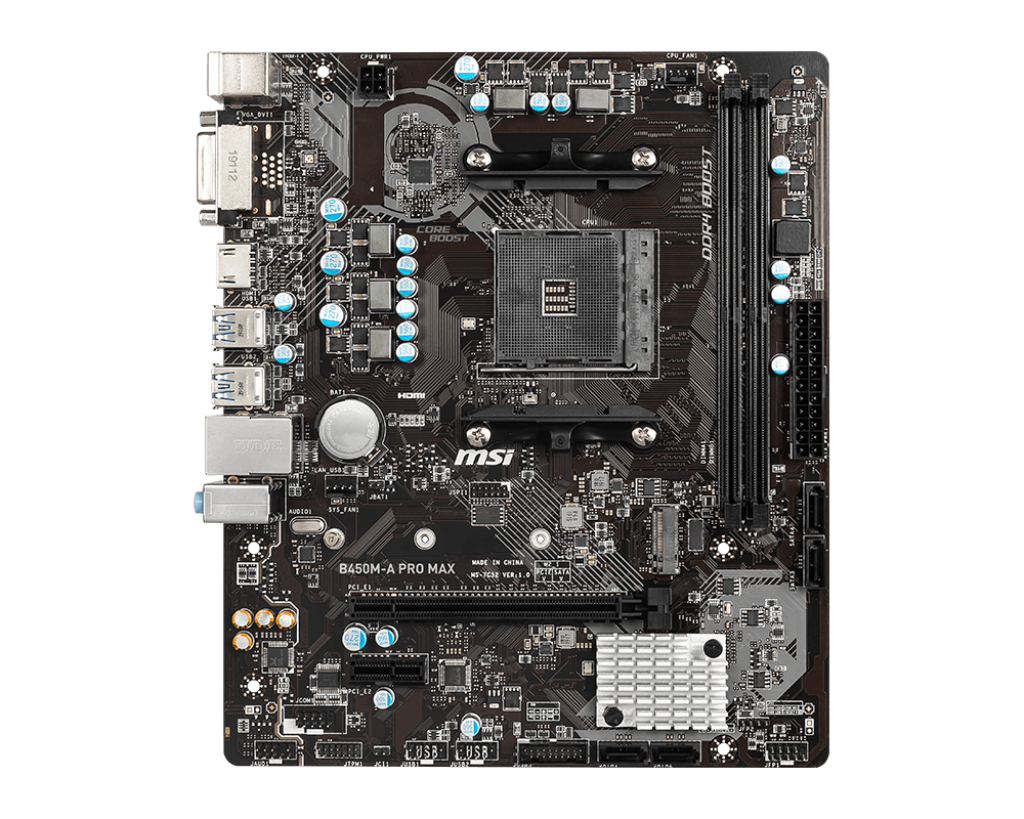

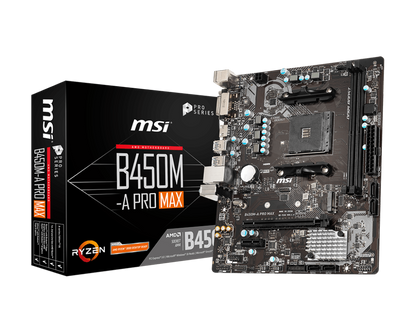

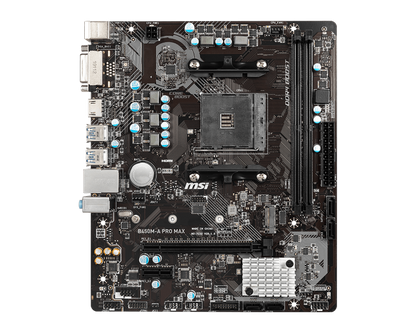

MSI B450M-A PRO MAX AMD AM4 MOTHERBOARD
Sale priceRs. 4,449.00Regular price
Rs. 12,750.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | B450M-A-PRO-MAX |
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzenô / Ryzenô with Radeonô Vega Graphics and 2nd Gen AMD Ryzenô with Radeonô Graphics / Athlonô with Radeonô Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Chipset | AMDÃB450 Chipset |
| Memory | 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required. |
| Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC) | |
| For AMD Ryzen Gen3 (R5/R7/R9) | |
| 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) | |
| For AMD Other CPU | |
| 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) | |
| Dual channel memory architecture | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Support non-ECC UDIMM memory | |
| Slots |
1 x PCIe 3.0 x16 slot |
| Supports x16 speed | |
| 1st, 2nd and 3rd Gen AMD Ryzenô | |
| Supports x8 speed | |
| Ryzenô with Radeonô Vega Graphics | |
| 2nd Gen AMD Ryzenô with Radeonô Graphics | |
| A-series | |
| Athlonô X4 | |
| Supports x4 speed | |
| AMDÃAthlonô with Radeonô Vega Graphics | |
| PCIe 2.0 x1 slot | |
| Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 |
| 1 x HDMIô 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 | |
| 1. Only support when using the processor with Graphicss | |
| 2. Maximum shared memory of 2048 MB | |
| Storage | AMDÃ B450 Chipset |
| 4 x SATA 6Gb/s ports | |
| Supports RAID 0, RAID1 and RAID 10 | |
| 1x M.2 slot (Key M) | |
| Supports PCIe 3.0 x4 and SATA 6Gb/s | |
| 1st, 2nd and 3rd Gen AMD Ryzenô | |
| Ryzenô with Radeonô Vega Graphics | |
| 2nd Gen AMD Ryzenô with Radeonô Graphics | |
| Supports PCIe 3.0 x2 and SATA 6Gb/s | |
| AMDÃAthlonô with Radeonô Vega Graphics | |
| A-series | |
| Athlonô X4 | |
| Supports 2242/2280/22110 storage devices | |
| USB | AMDÃ B450 Chipset |
| 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) | |
| 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) | |
| Audio |
Realtekà ALC892 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1 x RealtekÃ8111H Gigabit LAN controller |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 4-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin system fan connector | |
| 1x Front panel audio connector | |
| 2x Front panel connectors | |
| 1x TPM module connector | |
| 1x Chassis Intrusion connector | |
| 1x Serial port connector | |
| 1x Clear CMOS jumper | |

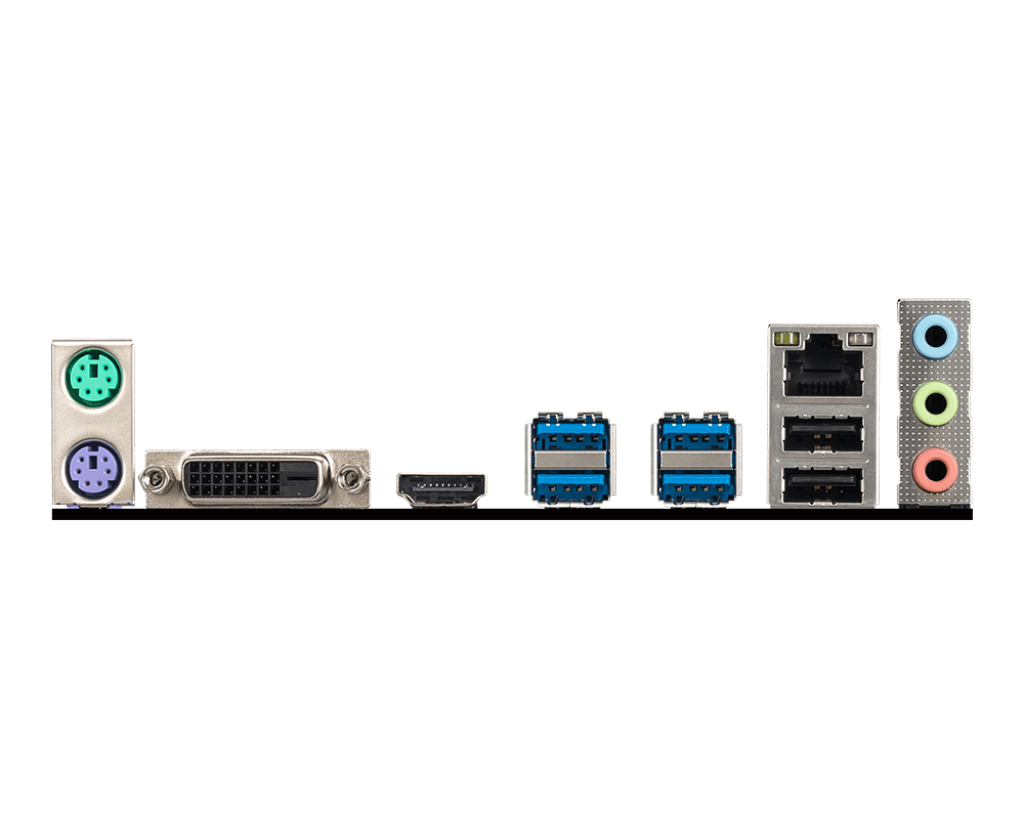

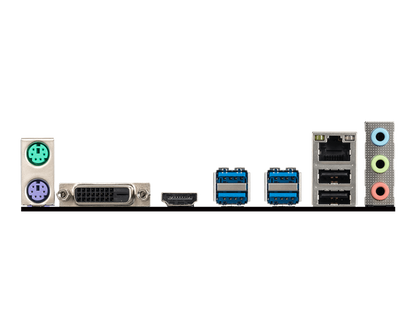

| Back Panel Ports | 1. Mouse |
| 2. DVI-D Port | |
| 3. USB 3.2 Gen1 | |
| 4. LAN Port | |
| 5. Keyboard | |
| 6. HDMI Port | |
| 7. USB 2.0 Ports | |
| 8. HD Audio Connectors | |
| Dimensions | 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) |
| m-ATX Form Factor | |
| Mounting | 6 mounting holes |
| Operating System | Support for WindowsÃ10 64-bit |
| Support for WindowsÃ7 64-bit | |
| * To support WindowsÃ7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
| Warranty | 3 Years |
