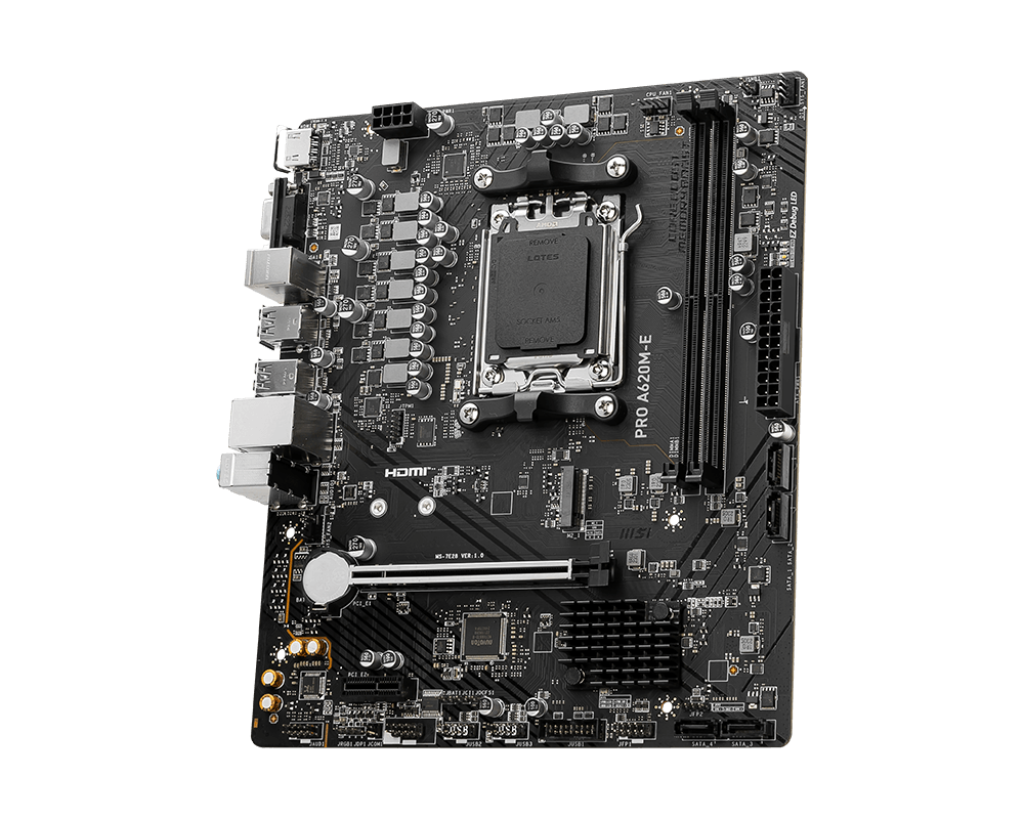

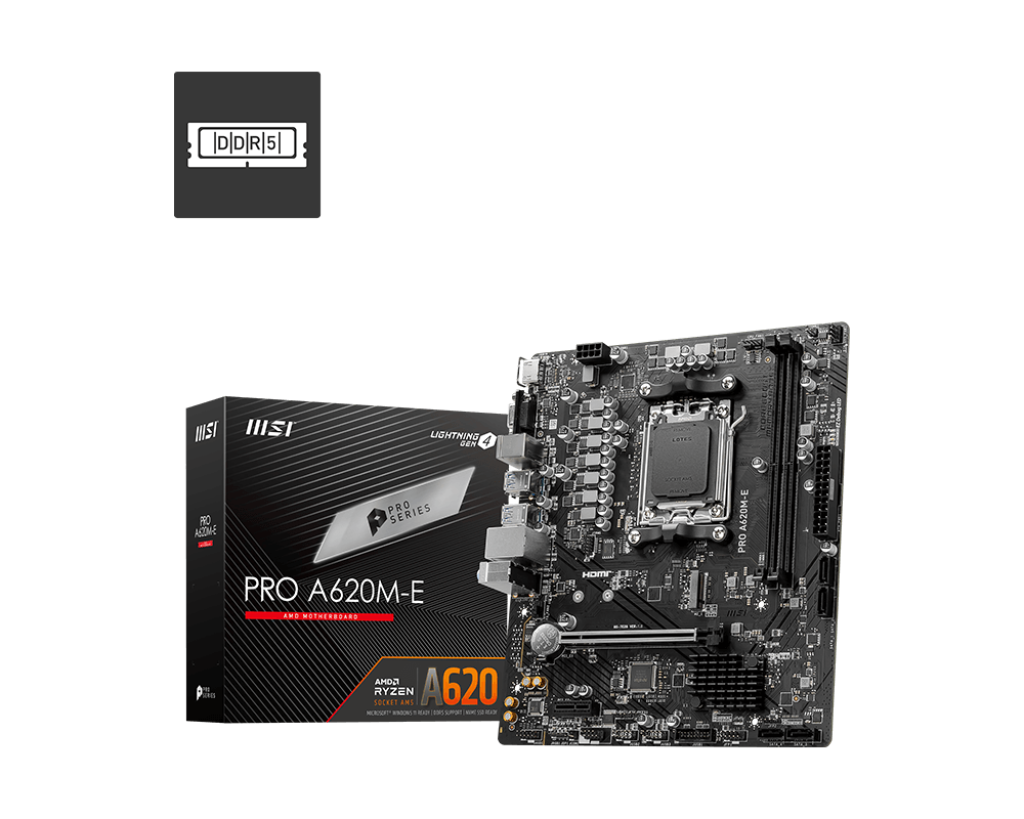

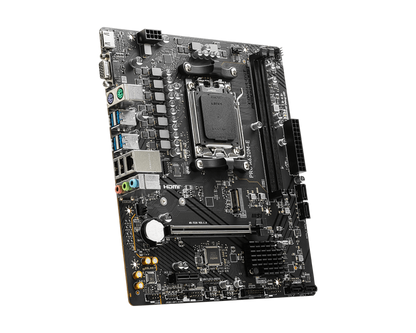

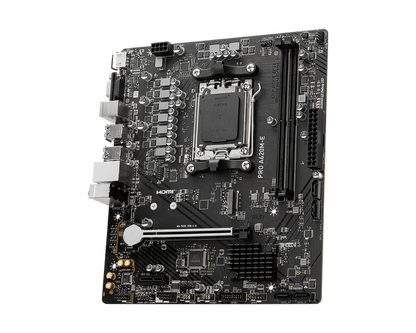

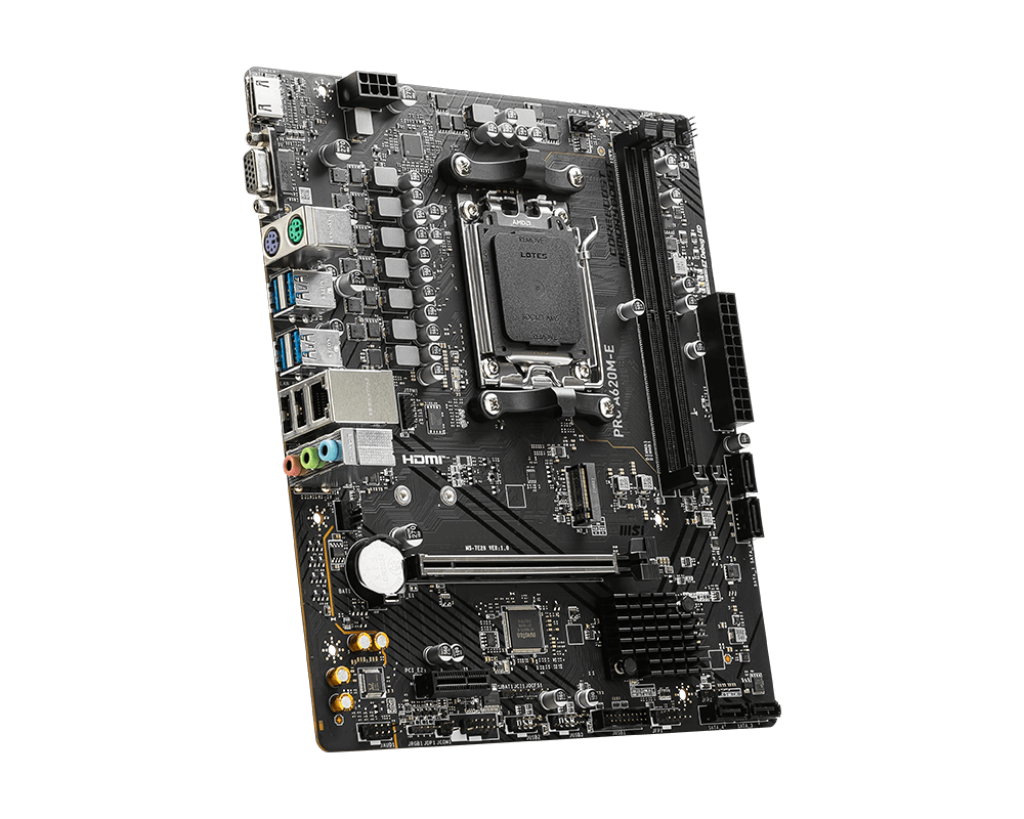

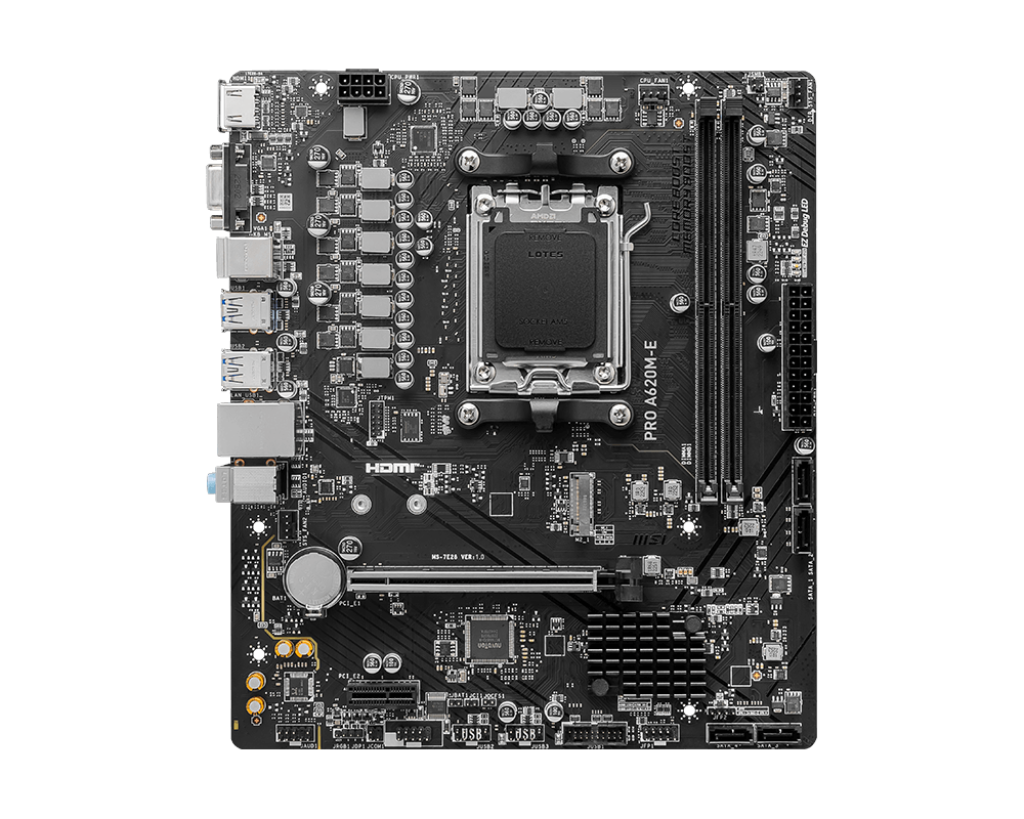

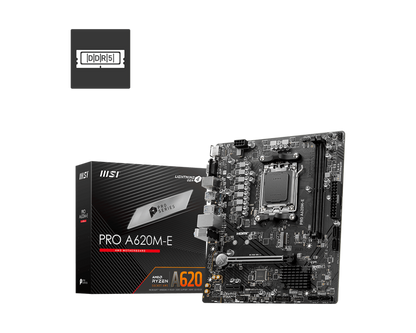

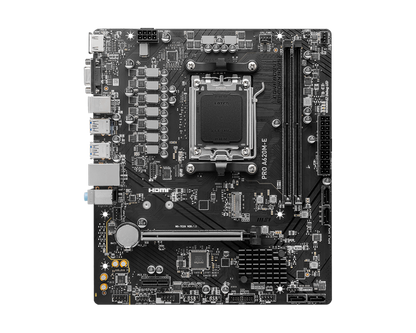

MSI A620M-E PRO AMD AM5 MOTHERBOARD
MSI A620M-E PRO AMD AM5 MOTHERBOARD
Regular price
Rs. 7,018.00
Sale price
Rs. 7,018.00
Regular price
Rs. 15,999.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| Chipset | AMD A620 |
| CPU Support | Supports AMD Ryzenô 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB |
| Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 6000+ MHz | |
| ï 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| Onboard Graphics | 1x HDMIô |
| Support HDMITM2.1, maximum resolution of 4K 60Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 20481536 50Hz, 20481280 60Hz, 19201200 60Hz | |
| Expansion Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 1x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | RealtekÃRTL8111H Gigabit LAN |
| Audio | RealtekÃALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| LED Feature | 4x EZ Debug LED |

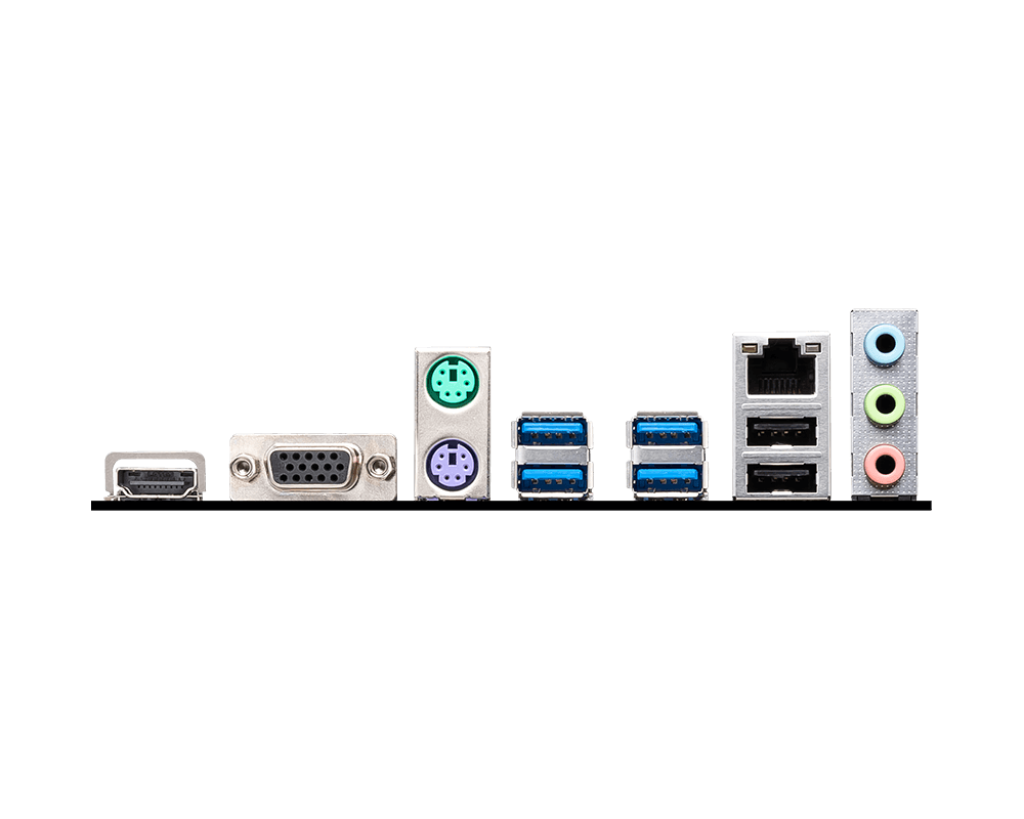

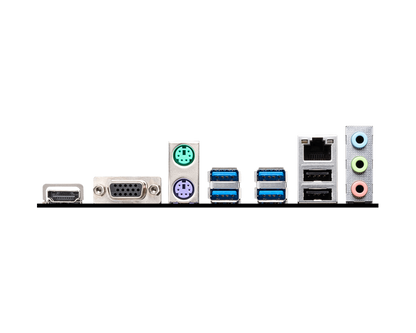

| Back Panel Ports | 1. HDMIô |
| 2. VGA | |
| 3. Keyboard/Mouse | |
| 4. USB 3.2 Gen 1 5Gbps (Type-A) | |
| 5. LAN port | |
| 6. Audio connectors | |
| 7. USB 2.0 | |
| Operating System | Support for WindowsÃ11 64-bit, WindowsÃ10 64-bit |
| PCB Dimension | mATX |
| 211mmx243.84mm | |
| Warranty | 3 Years |
