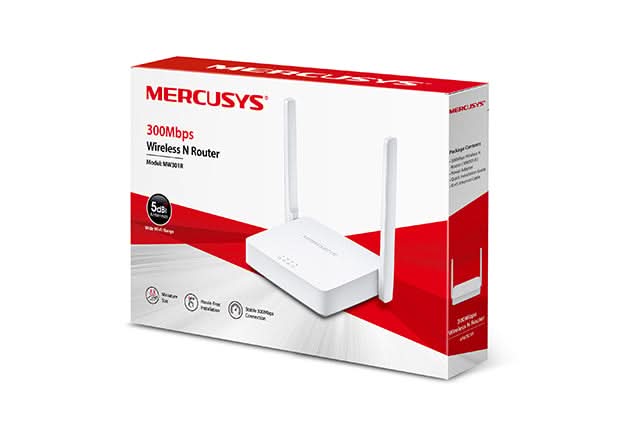

MERCUSYS WIRELESS N300 ROUTER MW301R
MERCUSYS WIRELESS N300 ROUTER MW301R
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Experience dependable internet connectivity with the MERCUSYS WIRELESS N300 ROUTER MW301R. Designed for everyday home use, this router provides a 300Mbps wireless transmission rate, ensuring smooth performance for your basic online tasks. Its two high-gain antennas deliver broad wireless coverage throughout your space, while the intuitive setup process gets you online in minutes.
Key Features at a Glance
- 300Mbps wireless transmission rate
- Two 5dBi antennas for broad coverage
- Intuitive webpage for quick setup
Fast & Reliable Wireless Connection
The MERCUSYS WIRELESS N300 ROUTER MW301R delivers a 300Mbps wireless transmission rate. This speed is perfectly suited for basic internet activities such as web browsing, email, and streaming standard-definition content, providing a stable connection for your essential tasks.
Extended Coverage for Your Home
Equipped with two powerful 5dBi antennas, this router ensures broad wireless coverage across your home or office. Enjoy a strong and consistent Wi-Fi signal in more areas, reducing dead zones and keeping your devices connected.
Effortless Setup & Management
Setting up your new MERCUSYS router is simple and quick. An intuitive webpage interface guides you step-by-step through the installation process, allowing you to get your network up and running in just minutes without any complicated procedures.
Technical Specifications
| Wireless | Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4 - 2.4835GHz | |
| Signal Rate | 11n: Up to 300Mbps (Dynamic) | |
| 11g: Up to 54Mbps (Dynamic) | ||
| 11b: Up to 11Mbps (Dynamic) | ||
| Reception Sensitivity | 270M: -70dBm@10% PER | |
| 130M: -74dBm@10% PER | ||
| 108M: -77dBm@10% PER | ||
| 54M: -76dBm@10% PER | ||
| 11M: -90dBm@8% PER | ||
| 6M: -92dBm@10% PER | ||
| 1M: -97dBm@8% PER | ||
| Transmission Power | <20dBm | |
| Wireless Security | WPA-PSK / WPA2-PSK | |
| Wireless Functions | WDS bridge | |
| Software | WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Parental Control | |
| Access control | ||
| Local management | ||
| Remote management | ||
| DHCP | Server | |
| Port Forwarding | Virtual server, UPnP, DMZ | |
| Dynamic DNS | DynDNS?NO-IP | |
| Firewall Security | IP and MAC address binding | |
| Protocols | IPv4, IPv6 | |
| Guest Network | 2.4GHz guest network | |
| Hardware | Dimensions (W X D X H) | 114x94x26 mm |
| Interfaces | 2 10/100Mbps LAN ports | |
| 1 10/100Mbps WAN port | ||
| Button | RESET | |
| External Power Supply | 5VDC/0.6A | |
| Antenna Type | 2 x 5dBi fixed omni directional antennas | |
| Others | Certifications | CE, ROHS |
| Package Contents | 300Mbps Wireless N Router | |
| MW301R | ||
| Power adapter | ||
| Quick Installation Guide | ||
| Ethernet cable | ||
| Environment | Operating temperature: 0?C ~ 40?C (32?F ~ 104?F) | |
| Storage temperature: -40?C ~ 70?C (-40?F ~ 158?F) | ||
| Operating humidity: 10% ~ 90%, non-condensing | ||
| Storage humidity: 5% ~ 90%, non-condensing |
Frequently Asked Questions
Q: What is the wireless speed of the MERCUSYS MW301R?
A: The MERCUSYS WIRELESS N300 ROUTER MW301R offers a 300Mbps wireless transmission rate, which is ideal for basic internet activities.
Q: How many antennas does this router have?
A: It is equipped with two 5dBi antennas, designed to provide broad wireless coverage.
Q: Is the MERCUSYS MW301R easy to set up?
A: Yes, its intuitive webpage interface guides you through the setup process, enabling you to get online in minutes.
