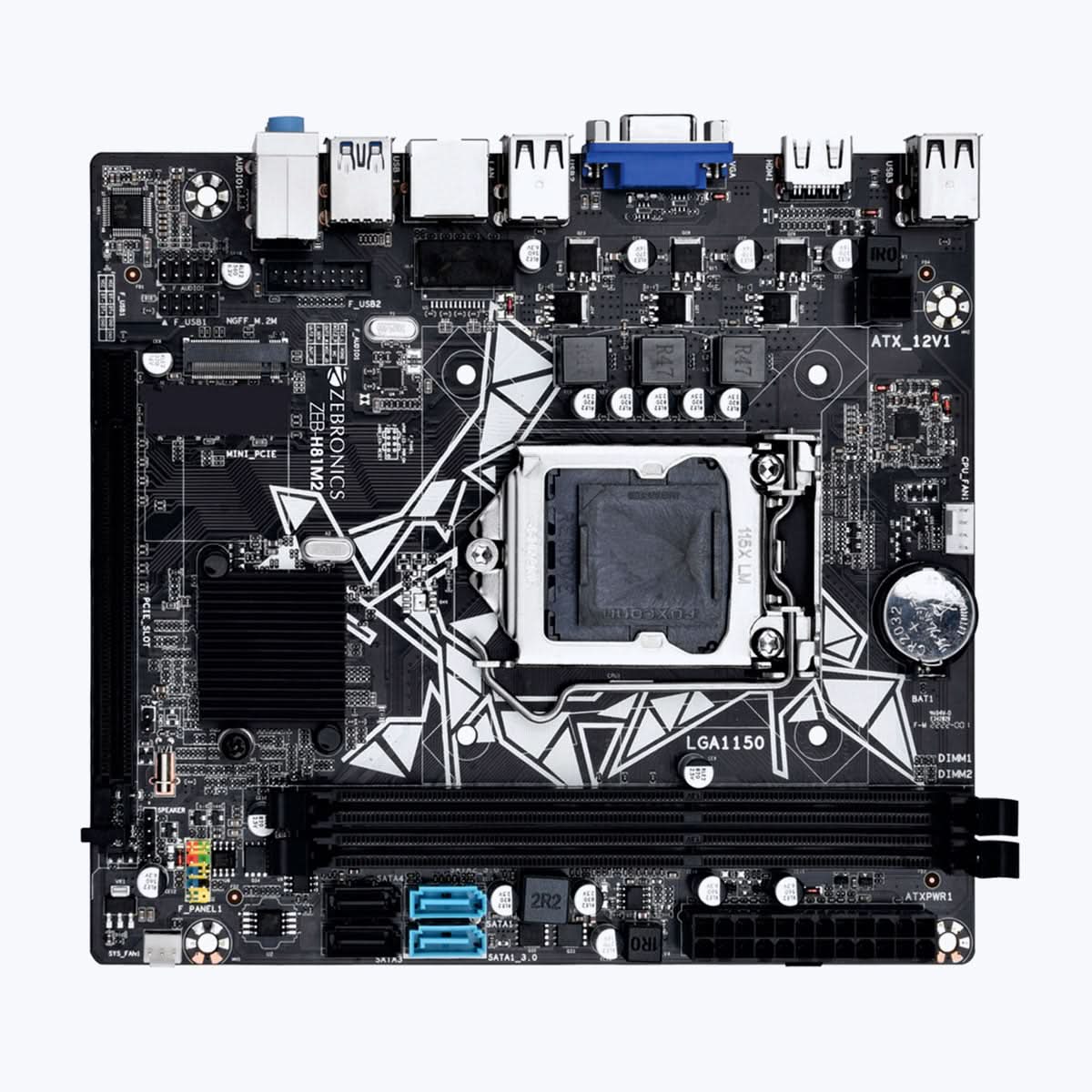

Welcome to the product page for the MBD ZEBRONICS H81 NVME M.2. This motherboard is designed to serve as a reliable foundation for your computing needs, featuring the H81 chipset and integrated support for fast NVMe M.2 storage solutions.
Key Features at a Glance
- Trusted Zebronics brand.
- Features the H81 chipset.
- Integrated support for NVMe M.2 storage.
- Reliable motherboard architecture.
Modern Storage Capabilities
Benefit from modern storage technology with built-in NVMe M.2 support. This feature allows for faster data transfer speeds compared to traditional storage interfaces, enhancing overall system responsiveness for compatible devices.
Stable H81 Chipset Foundation
The H81 chipset provides a stable and efficient platform for essential computing tasks. It forms a solid basis for building a dependable system, ensuring compatibility and functionality for core components.
Technical Specifications
| Supported CPU |
Socket 1150 / Intel Pentium / Celeron / i3 / i5 / i7 (4th & 5th Generation) Series Processors |
|
| Chipset |
Intel H81 Chipset | |
| Memory supported |
2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory |
|
| BIOS |
AMI BIOS | |
| I/O Interface |
1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x Rj45, 1x 3-in-1 Audio Jacks | |
| Onboard interface |
1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB 2.0 Header, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU fan connector, 1 x SYS Fan Connector, 2 x SATA 2.0 Ports, 2 x SATA3.0 Ports , 1 x clear CMOS Connector., 1x M.2 Slot |
|
| Integrated Sound |
With 5.1-Channel HD Audio | |
| Integrated LAN |
Supports RTL8106E 10/100 Mbps Ethernet LAN | |
| Expansion Slot |
1 x PCI Express 2.0 x16 size slot | |
| Form factor |
Micro-ATX | |
| Country of Origin | People's Republic of China | |
|
||
| H81M2 Motherboard | 1 U | |
| SATA Cable |
1 U | |
| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U |
Frequently Asked Questions
Q: What type of product is the MBD ZEBRONICS H81 NVME M.2?
A: This product is a motherboard (MBD) from the Zebronics brand.
Q: Which chipset does this motherboard utilize?
A: The MBD ZEBRONICS H81 NVME M.2 features the H81 chipset.
Q: Does this motherboard support NVMe M.2 storage devices?
A: Yes, this motherboard is equipped with integrated NVMe M.2 support.
