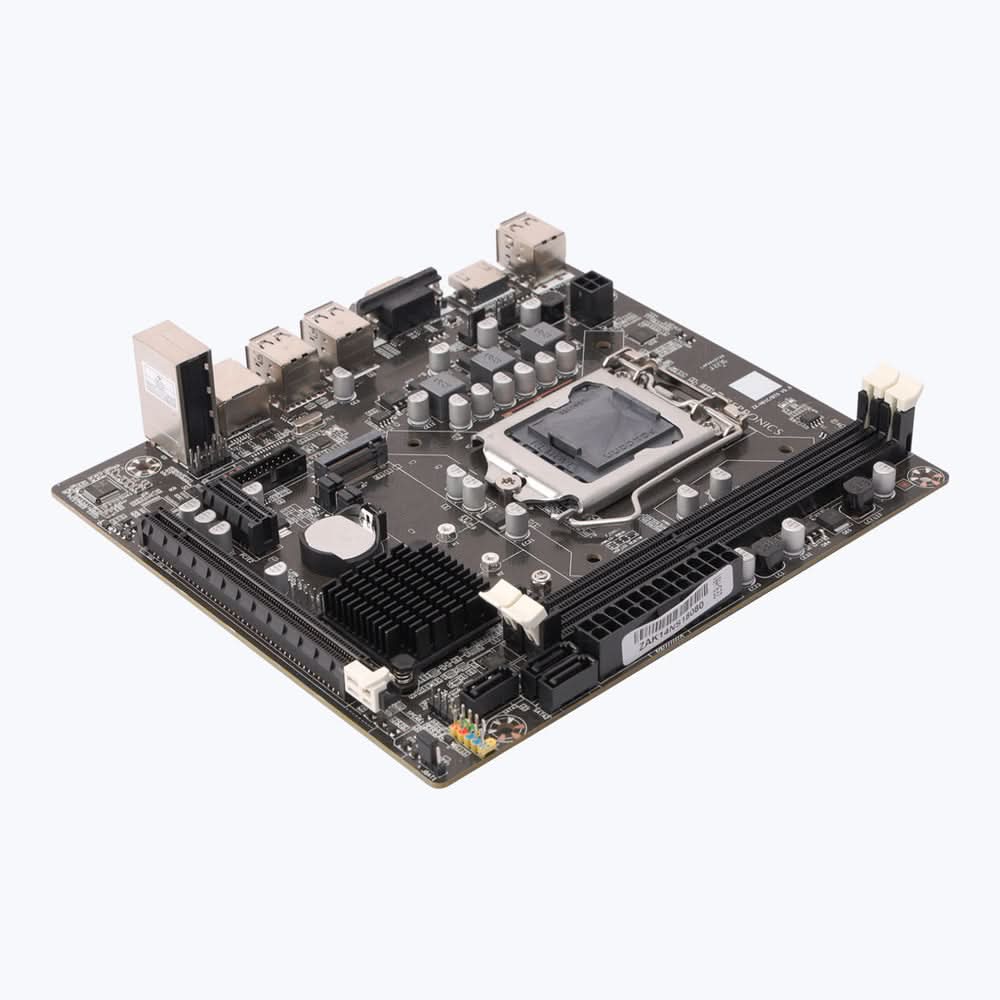

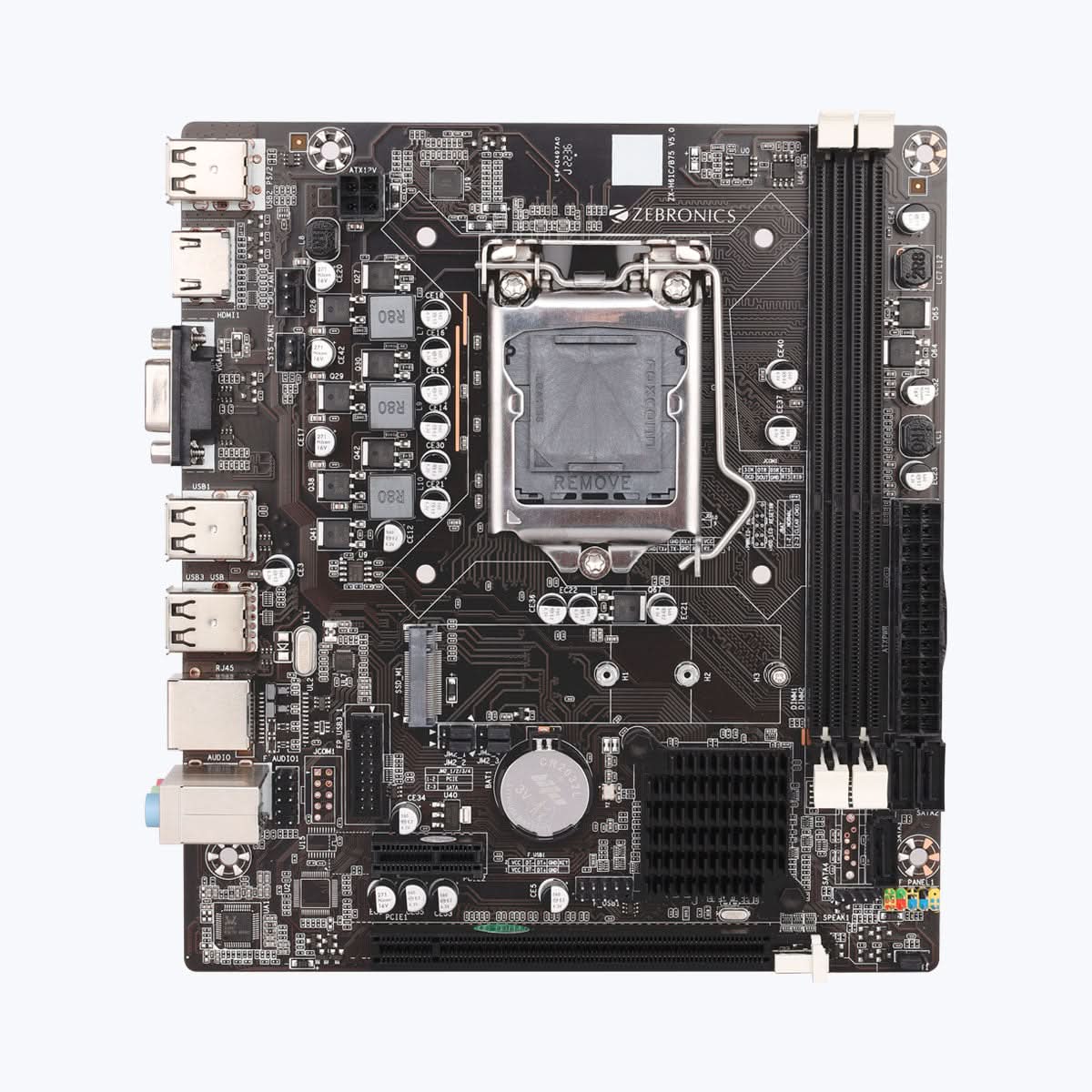

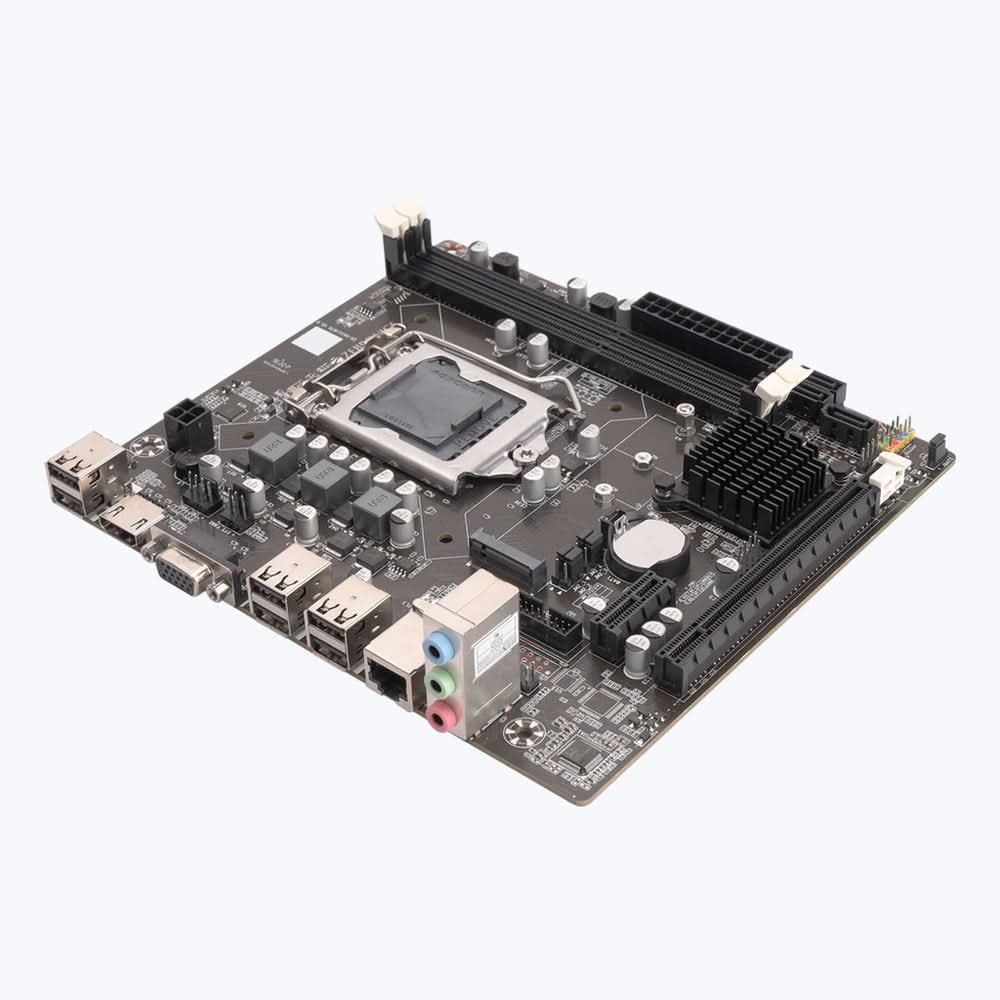

ZEBRONICS H61-NVMe Micro-ATX Motherboard
ZEBRONICS H61-NVMe Micro-ATX Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The ZEBRONICS H61-NVMe Micro-ATX Motherboard provides a solid foundation for your compact PC build. Designed with the H61 chipset and featuring NVMe support, this Micro-ATX motherboard is ready for essential computing tasks and modern storage solutions.
Key Features at a Glance
- Micro-ATX form factor for space-saving builds.
- Equipped with the H61 chipset.
- Supports NVMe storage for faster data access.
- Ideal for building compact and efficient systems.
Optimized for Compact Builds
The Micro-ATX form factor allows for the creation of smaller footprint PCs, perfect for desks with limited space or for users seeking a more discreet setup without compromising on essential performance.
Enhanced Storage Capabilities
Benefit from quicker boot times and application loading thanks to integrated NVMe support. This feature enables you to utilize high-speed solid-state drives, enhancing the overall responsiveness of your system.
Reliable H61 Chipset Foundation
Built around the dependable H61 chipset, this motherboard offers the necessary stability and connectivity for everyday computing needs. It provides a robust platform for your processor, memory, and other peripherals.
Technical Specifications
| Supported CPU |
Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155 |
| Chipset |
Intel H61/H67 |
| Memory Supported |
2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory |
| BIOS |
AMI BIOS |
| I/O Interface |

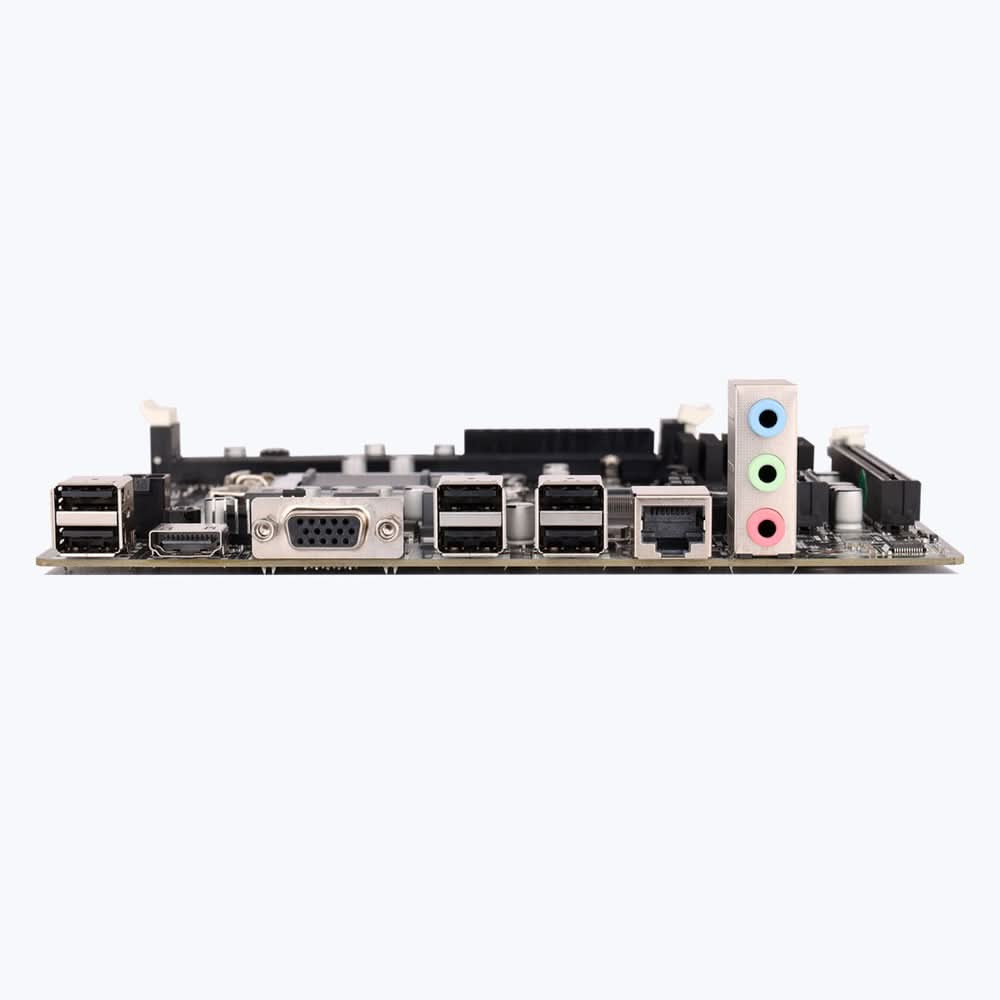

1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio |
| Onboard Interface |
1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports, 1 x 3pin CMOS Header, m.2 Slot |
| Integrated Sound |
With 6-Channel HD Audio Codec onboard |
| Integrated LAN |
Supports Realtek 8106E 10/100 Mbps |
| Expansion Slot |
1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot |
| Form Factor |
Micro-ATX |
| Country of Origin | People's Republic of China |
Frequently Asked Questions
Q: What is the form factor of the ZEBRONICS H61-NVMe Motherboard?
A: This motherboard features a Micro-ATX form factor, ideal for compact PC builds.
Q: Does the ZEBRONICS H61-NVMe Motherboard support NVMe storage?
A: Yes, it is designed with NVMe support for high-speed storage devices.
Q: Which chipset does this ZEBRONICS motherboard utilize?
A: It is built with the H61 chipset, providing a reliable foundation for your system.
