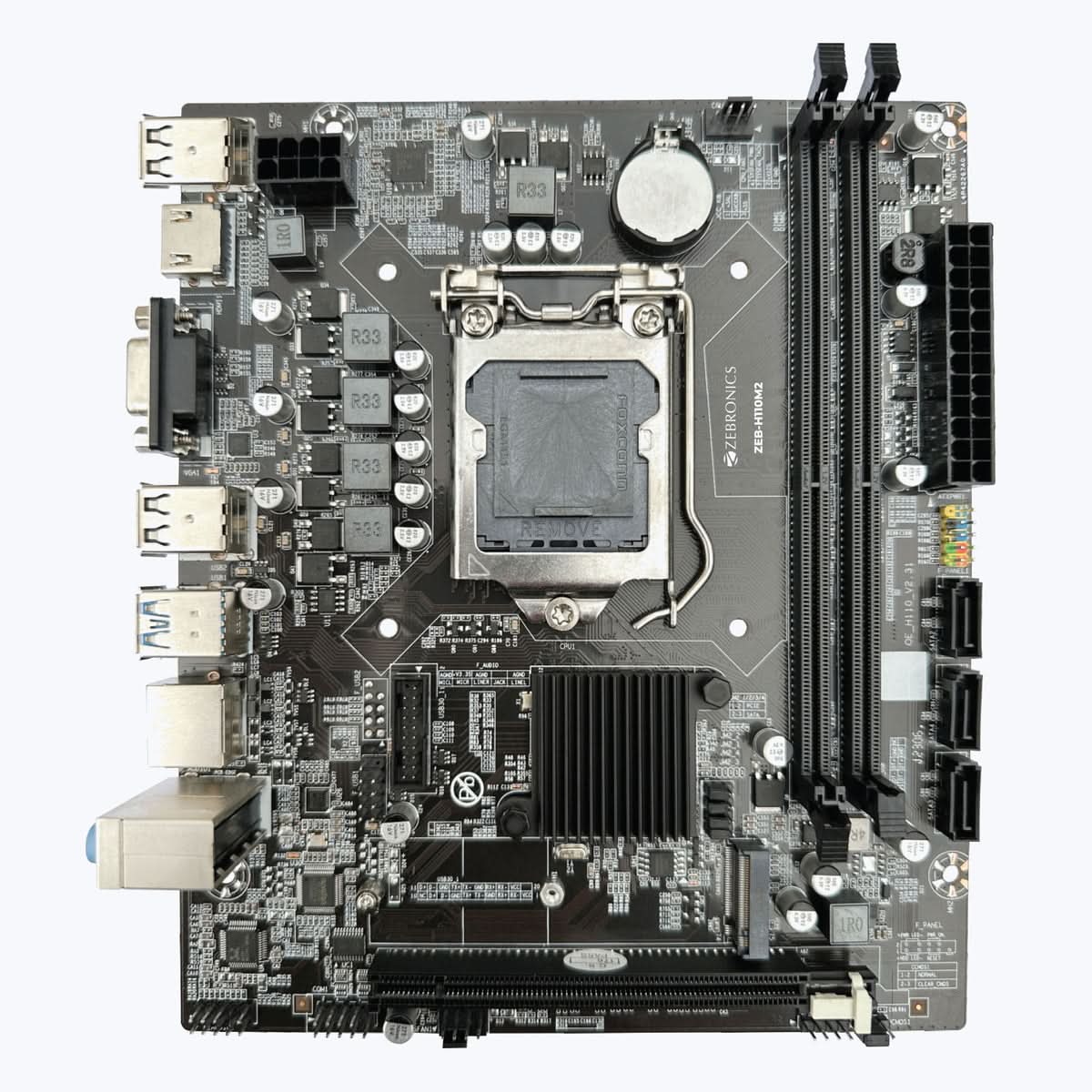

Discover the MBD ZEBRONICS H110 NVME M.2 motherboard, an essential foundation for building or upgrading your desktop PC. Designed to provide reliable performance and versatile connectivity, this motherboard integrates key features to support a range of computing needs.

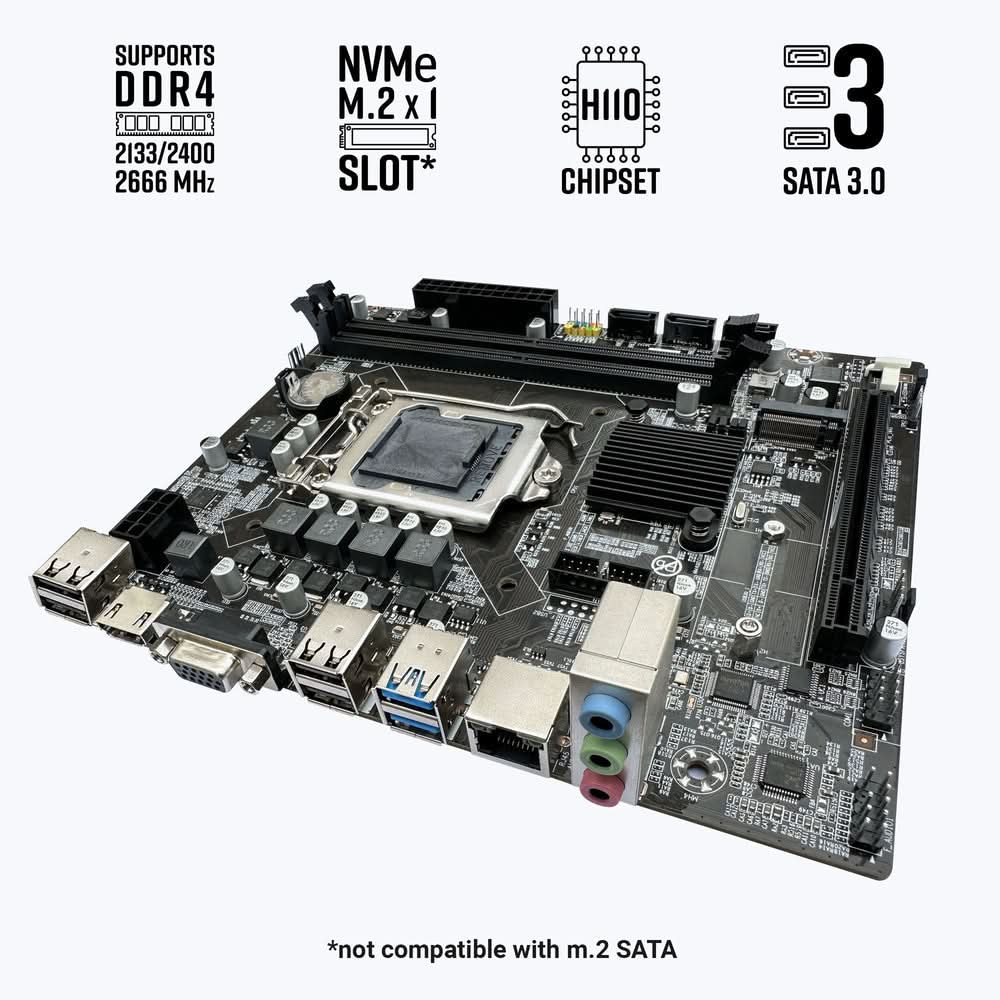

Key Features at a Glance
- H110 Chipset
- DDR4 Memory Support (2133/2400/2666 MHz)
- 3 SATA 3.0 Ports
- Integrated NVMe M.2 Slot
- USB 3.0 Connectivity
- 5.1 Audio and 10/100 Mbps LAN
Solid Foundation with H110 Chipset
At its core, this motherboard features the H110 chipset, providing a stable and reliable platform for your system. It supports DDR4 memory across various speeds, including 2133, 2400, and 2666 MHz, ensuring compatibility with modern memory modules.
High-Speed Storage and Connectivity
Benefit from enhanced data transfer with an integrated NVMe M.2 slot, ideal for fast SSDs. Additionally, three SATA 3.0 ports are available for connecting traditional hard drives or SATA SSDs. USB 3.0 support ensures quick data transfer with compatible peripherals.
Integrated Audio and Networking
Experience immersive sound with 5.1 audio support, perfect for multimedia and gaming. The integrated 10/100 Mbps LAN provides essential network connectivity for internet access and local network communication.
Technical Specifications
| Supported CPU |
Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th Generation) Series Processors in LGA 1151 |
|
| Chipset |
Intel H110 | |
| Memory Supported |
"2 x DDR4 DIMM Memory Slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory" |
|
| BIOS |
AMI BIOS | |
| I/O Interface |
1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio |
|

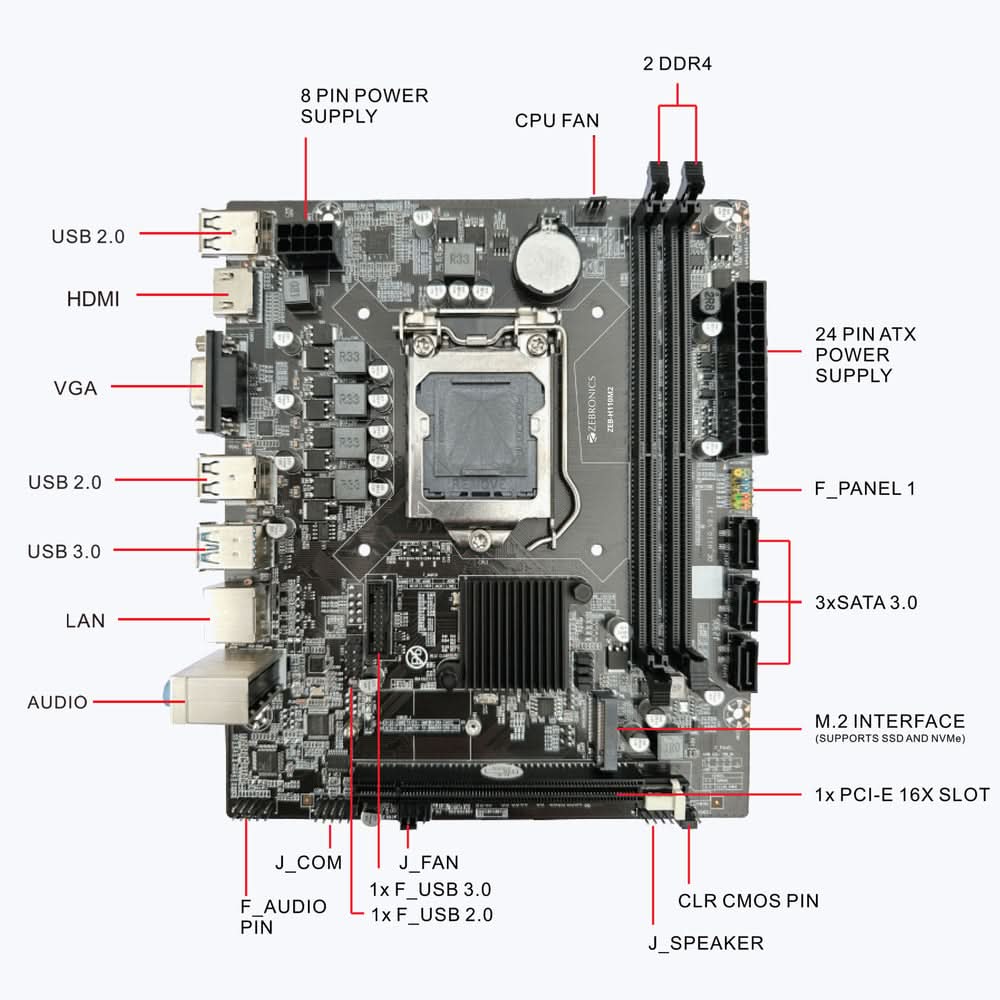

| Onboard Interface |
1 x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel connector, 1 x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 1 x SYS Fan Connector, 1 x clear CMOS Connector,3 x SATA 3.0. |
|
| Integrated LAN |
Supports RTL 8111G 10/100/1000 Mbps Ethernet LAN | |
| Integrated Sound |
With 5.1-Channel HD Audio | |
| Expansion Slot | 1 x PCI Express x16 slot,1 x NVMe M.2 slot | |
| Form Factor |
Micro-ATX | |
| Country of Origin | China | |
| Package Contents | ||
| Motherboard |
1 U | |
| SATA Cable |
1 U | |
| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U |
Frequently Asked Questions
Q: What chipset does the MBD ZEBRONICS H110 NVME M.2 motherboard use?
A: This motherboard features the H110 chipset.
Q: Does this motherboard support DDR4 memory?
A: Yes, it supports DDR4 memory at speeds of 2133, 2400, and 2666 MHz.
Q: Is there an NVMe M.2 slot on this motherboard for storage?
A: Yes, the MBD ZEBRONICS H110 NVME M.2 motherboard is equipped with an NVMe M.2 slot.
