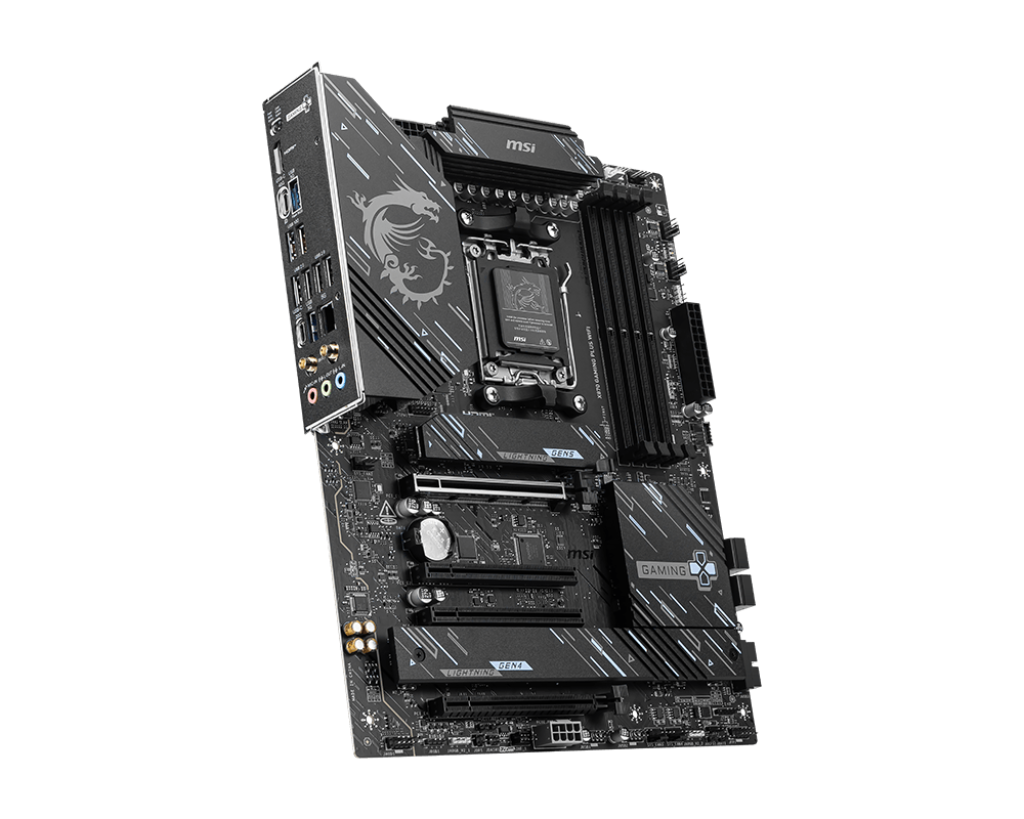

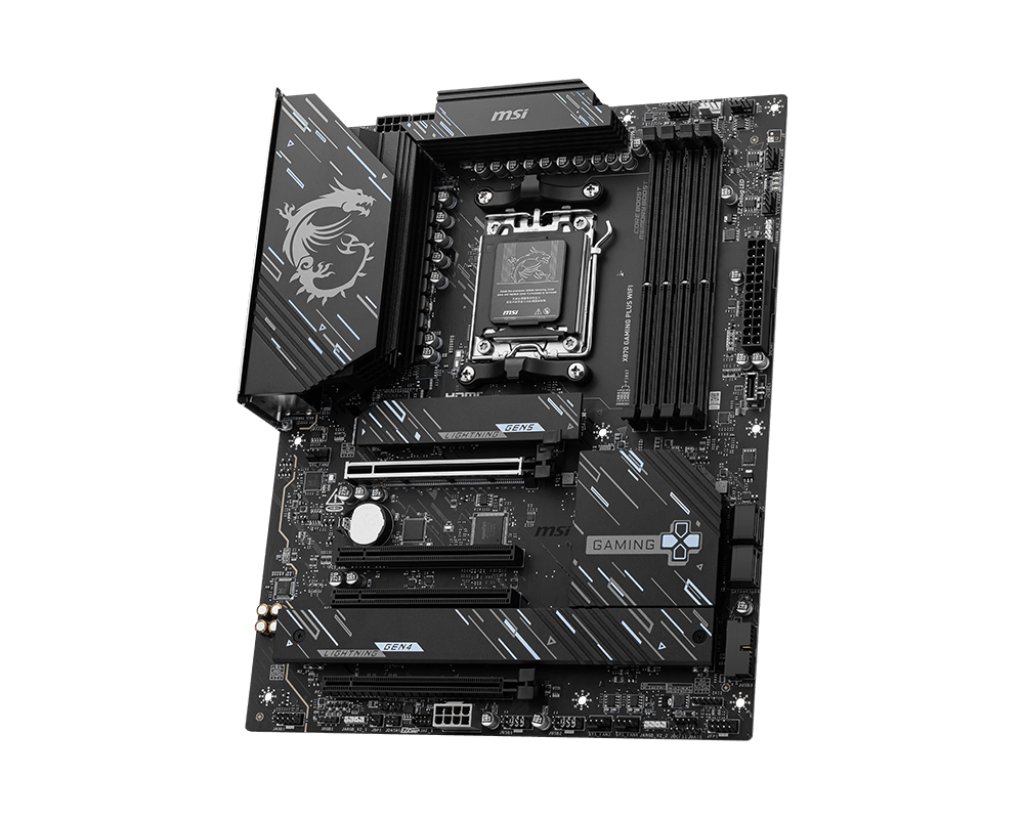

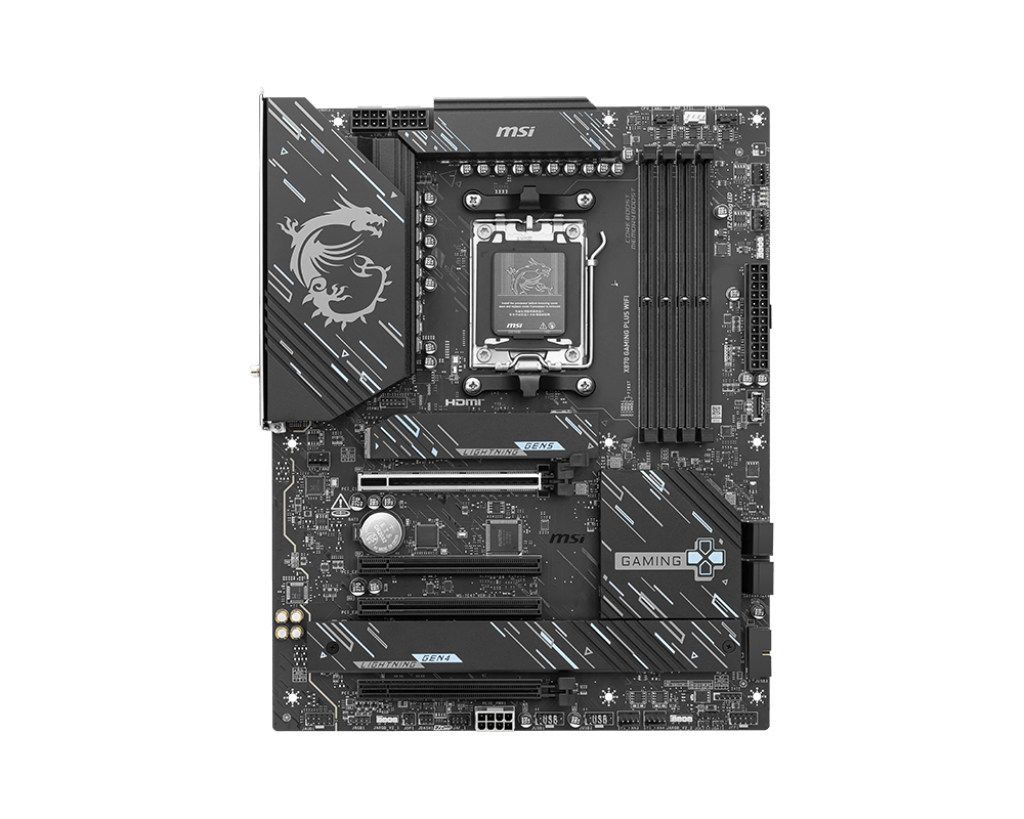

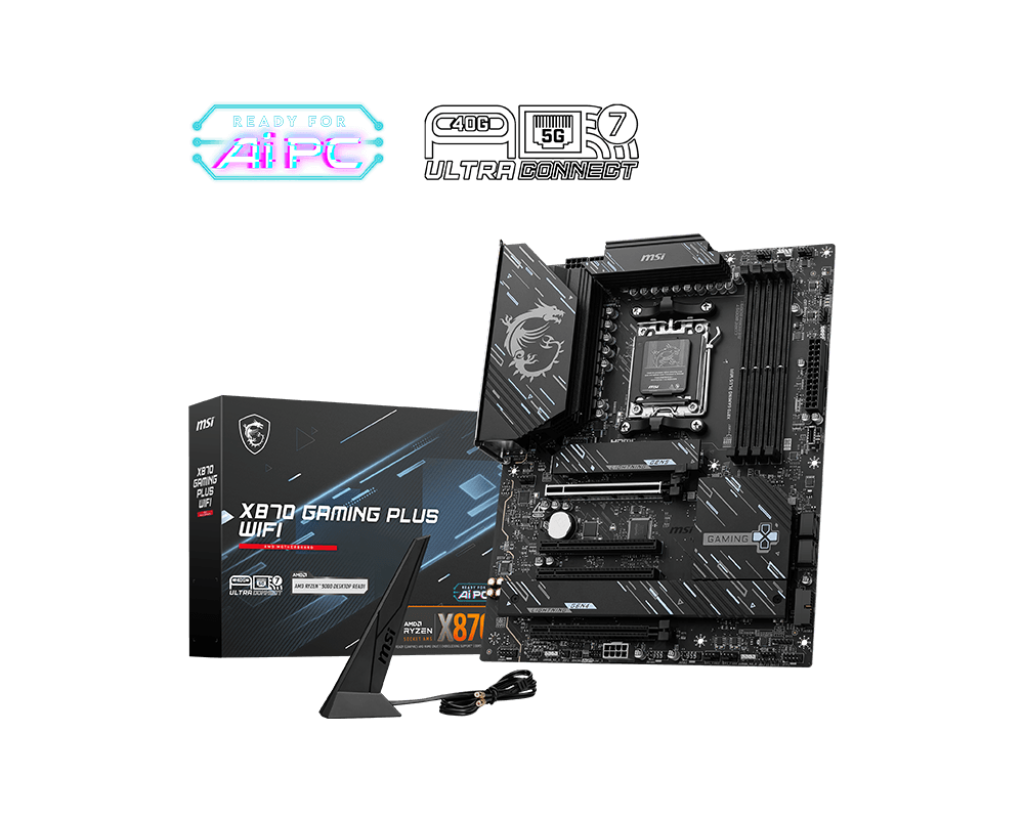

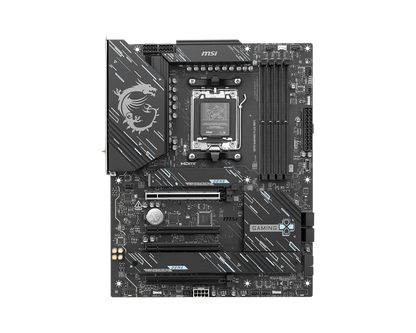

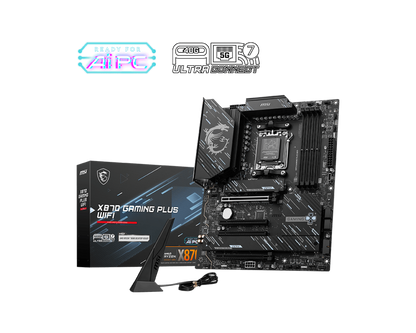

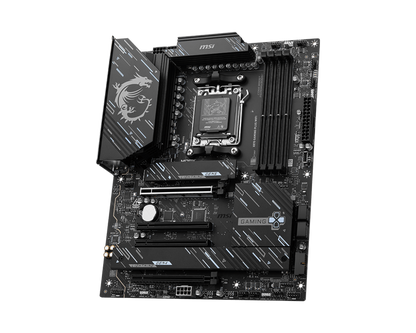

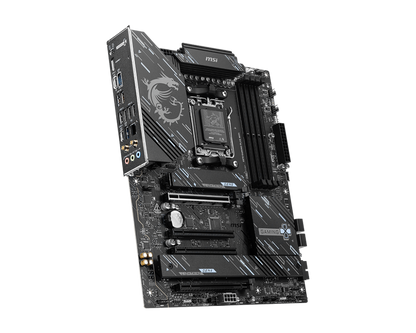

MSI X870 GAMING PLUS WI-FI MOTHERBOARD

The MSI X870 GAMING PLUS WI-FI Motherboard serves as the essential foundation for your custom computer build. Designed by MSI, this motherboard incorporates features for a gaming-oriented setup, alongside convenient integrated wireless connectivity.

Key Features at a Glance

• MSI brand motherboard
• Features X870 series (implied from product name)
• Designed for gaming setups
• Integrated Wi-Fi functionality
• PLUS series offering
• Core component for PC assembly

Foundation for Your PC Build

As an MSI motherboard, this component provides the essential base for connecting all other hardware in your system, ensuring a cohesive and functional computer.

Gaming-Ready Design

The "GAMING" designation indicates its focus on performance for gaming applications, making it a suitable choice for enthusiasts building a dedicated gaming machine.

Integrated Wireless Connectivity

With "WI-FI" included in its name, this motherboard offers built-in wireless networking capabilities, providing convenient internet access without additional adapters.

Technical Specifications

Chipset	AMD X870
CPU	Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen„ 9000 Series Processors max. overclocking frequency: € 1DPC 1R Max speed up to 8200+ MT/s € 1DPC 2R Max speed up to 6400+ MT/s € 2DPC 1R Max speed up to 6400+ MT/s € 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. € The DIMM slots on this motherboard have double-sided latches. € Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product€™s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI„ Support HDMITM2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot € Supports PCIe 5.0 x16 (For Ryzen„ 9000/ 7000 Series processors) € Supports PCIe 4.0 x8 (For Ryzen„ 8700/ 8600/ 8400 Series processors) € Supports PCIe 4.0 x4 (For Ryzen„ 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio	RealtekALC897 7.1-Channel High Definition Audio
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot € Supports up to PCIe 5.0 x4 (For Ryzen„ 9000/ 7000 Series processors) € Supports up to PCIe 4.0 x4 (For Ryzen„ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	€€Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *SATA_A1~A4 do not support RAID function. *RAID 5 configuration is only supported by Ryzen„ 9000 series processors.
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN	Realtek8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth5.4**, MLO, 4KQAM * 6GHz band support may depend on every country€™s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor€™s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED

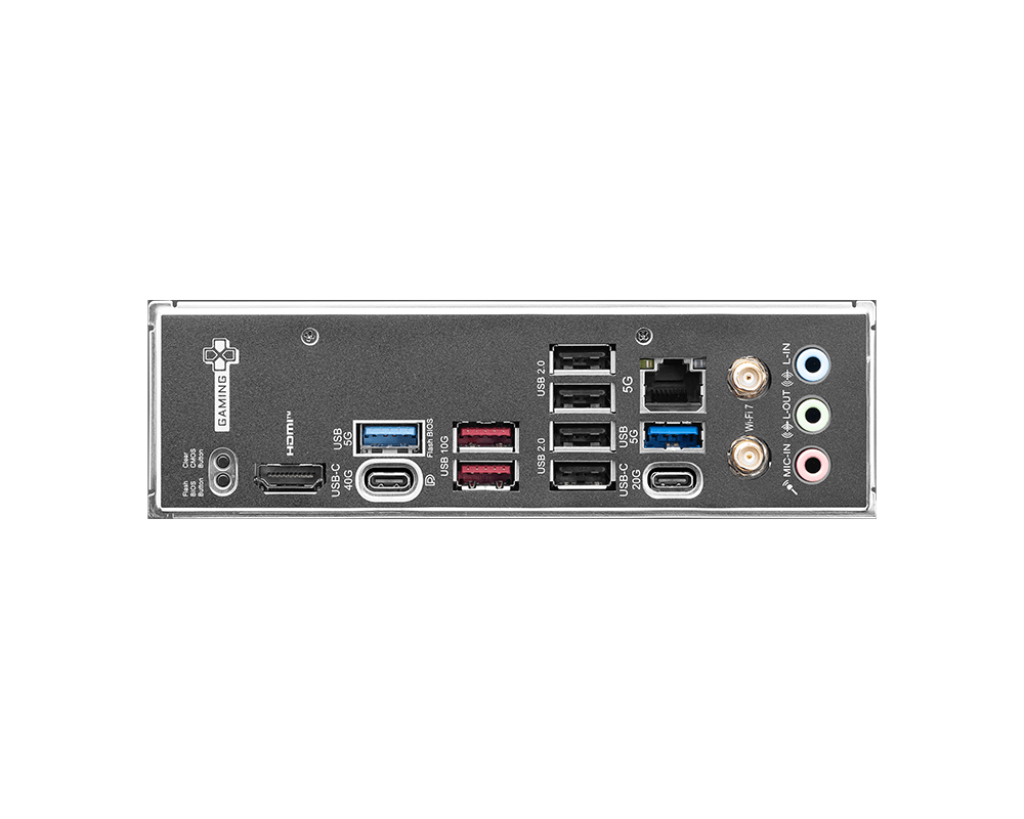

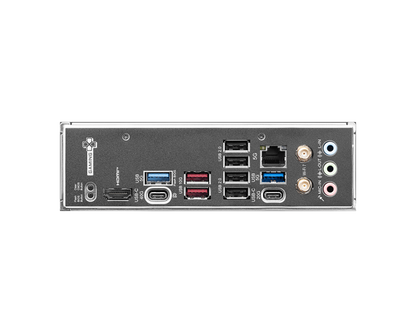

BACK PANEL PORTS	Clear CMOS Button USB 5Gbps Type-A USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI„ USB 40Gbps Type-C USB 2.0 USB 20Gbps Type-C USB 5Gbps Type-A
OPERATING SYSTEM	Support for Windows11 64-bit

Frequently Asked Questions

Q: What type of product is the MSI X870 GAMING PLUS WI-FI Motherboard?

A: It is a motherboard, which is a primary circuit board that connects all components of a computer.

Q: Does this motherboard support wireless internet?

A: Yes, the "WI-FI" in its name indicates that it has integrated wireless internet capabilities.

Q: Is this product suitable for building a gaming PC?

A: The "GAMING" designation within its name suggests that it is designed with features beneficial for gaming computer builds.
