Elevate your PC build with the MSI MAG X870E TOMAHAWK WIFI DDR5 Motherboard, engineered to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. This motherboard is designed for enthusiasts seeking robust performance and advanced connectivity for both gaming and professional applications, featuring DDR5 memory support and comprehensive cooling solutions.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- Features Dual Channel DDR5 Memory, with speeds up to 8400+ MT/s (OC).
- Built with a 14+2+1 Duet Rail Power System and an 8-layer PCB.
- Includes Frozr Guard cooling with Extended Heatsink and 7W/mK MOSFET thermal pads.
- Offers Lightning Fast Game experience with a PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
- Provides Ultra Connect with USB4, 5G LAN, and Wi-Fi 7 Solution.
Optimized Performance for AMD Ryzen
Designed to unlock the full potential of your system, the MSI MAG X870E TOMAHAWK WIFI DDR5 Motherboard is ready to power AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. Experience exceptional speed and multitasking capabilities with Dual Channel DDR5 Memory, supporting overclocked speeds of 8400+ MT/s for demanding applications and games.
Robust Power Delivery and Cooling
Engineered for stability and peak performance, this motherboard features a 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors. Its 8-layer PCB, made with 2oz thickened copper and server-grade level material, ensures efficient power delivery. The Frozr Guard cooling, including an Extended Heatsink and 7W/mK MOSFET thermal pads, maintains optimal temperatures for a high-performance, non-stop experience.
Lightning-Fast Connectivity
Experience rapid data transfer and network speeds with the MSI MAG X870E TOMAHAWK WIFI DDR5 Motherboard. It includes a PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for ultra-fast storage, alongside Ultra Connect features such as USB4, 5G LAN, and the latest Wi-Fi 7 Solution. This ensures secure, stable, and high-speed networking and data transmission for professional and multimedia use.
User-Friendly Design and Immersive Audio
Simplify your build process and enhance your auditory experience with user-friendly EZ DIY features like EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna. The integrated Audio Boost 5 system delivers studio-grade sound quality, providing an immersive experience for gaming and multimedia content.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870 |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard have double-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit Brand Website. |
| Graphics Port | 1x HDMI,2x Type-C DisplayPort |
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

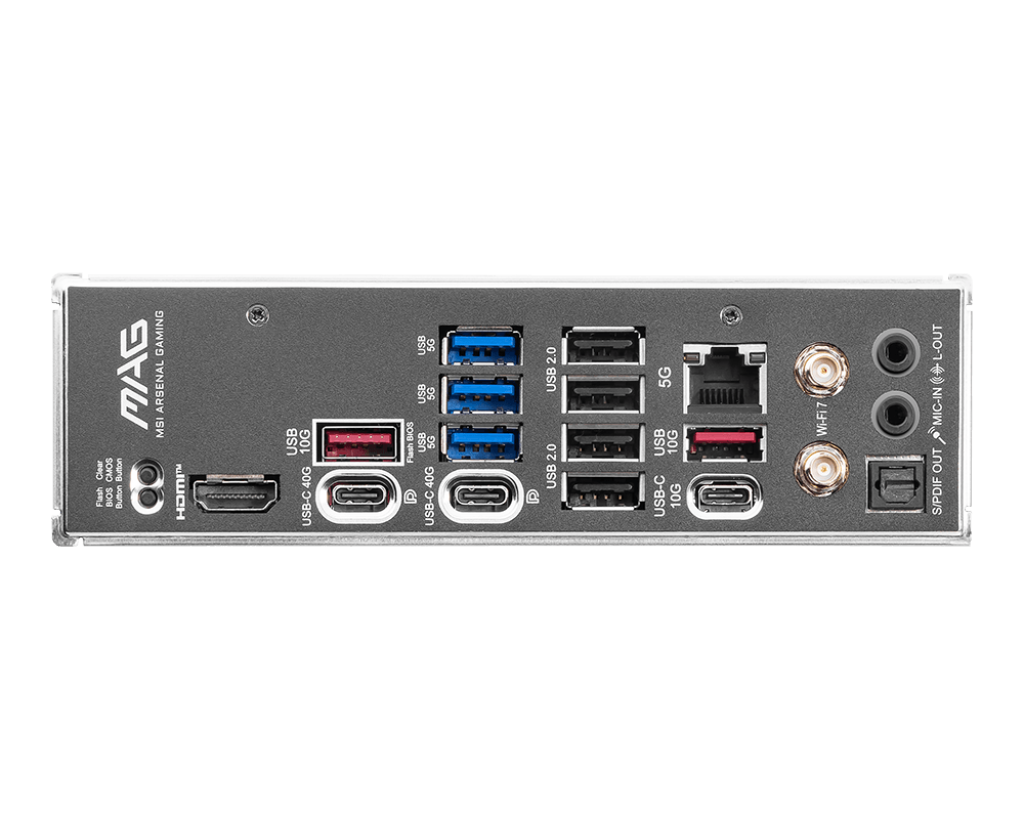

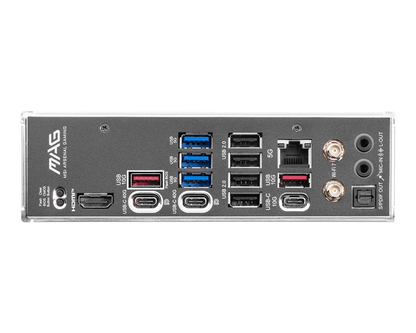

| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: The MSI MAG X870E TOMAHAWK WIFI DDR5 Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory does the motherboard support?
A: It supports Dual Channel DDR5 Memory, with overclocked speeds of 8400+ MT/s.
Q: What advanced connectivity features are included?
A: The motherboard features a PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB4, 5G LAN, and Wi-Fi 7 Solution for comprehensive high-speed connectivity.
