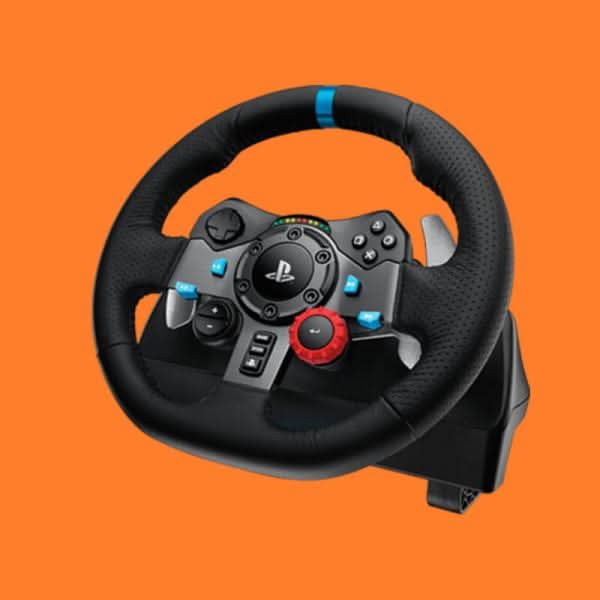

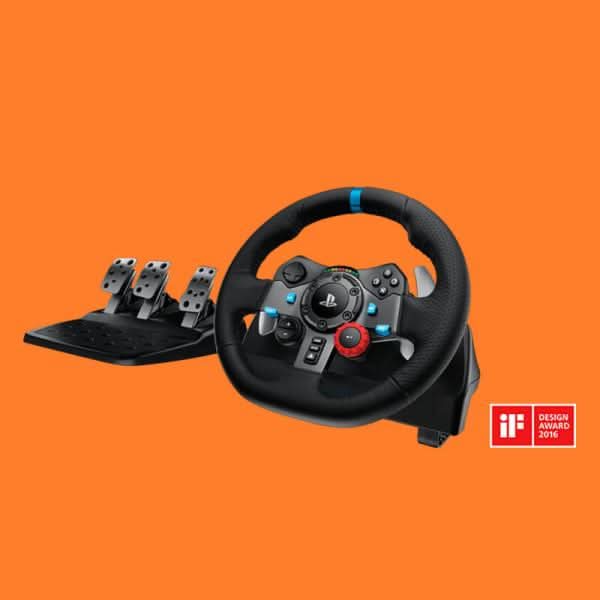

LOGITECH G29 DRIVING FORCE RACING GAMING WHEEL

MODEL NUMBER

G29-DRIVING-FORCE

PART NUMBER

Black: 941-000143

Wheel

Height: 10.63 in (270 mm)

Width: 10.24 in (260 mm)

Length: 10.94 in (278 mm)

Weight without cables: 4.96 lb (2.25 kg)

Pedal

Height: 6.57 in (167 mm)

Width: 16.87 in (428.5 mm)

Depth: 12.24 in (311 mm)

Weight without cables: 6.83 lb (3.1 kg)

TECHNICAL SPECIFICATIONS

Software Support (at release): Logitech Gaming Software

Connection Type: USB

USB VID_PID: 046D_C24F (PC Mode)

USB Protocol: USB 2.0

USB Speed: Full Speed

Indicator Lights (LED): Yes

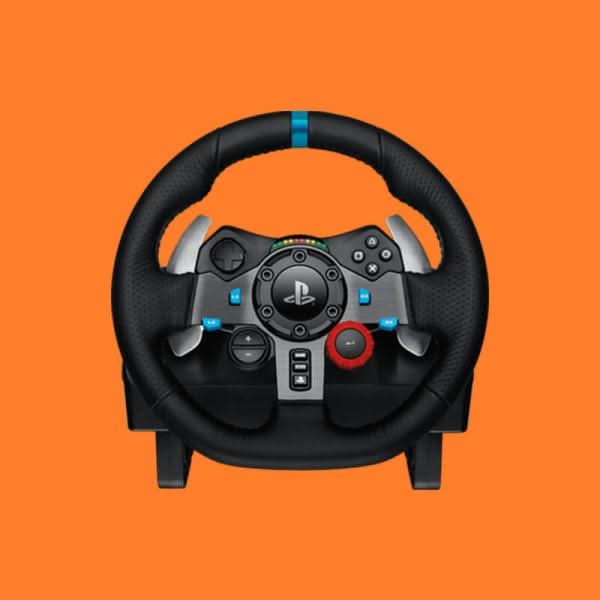

Wheel

Rotation: 900 degrees lock-to-lock

Hall-effect steering sensor

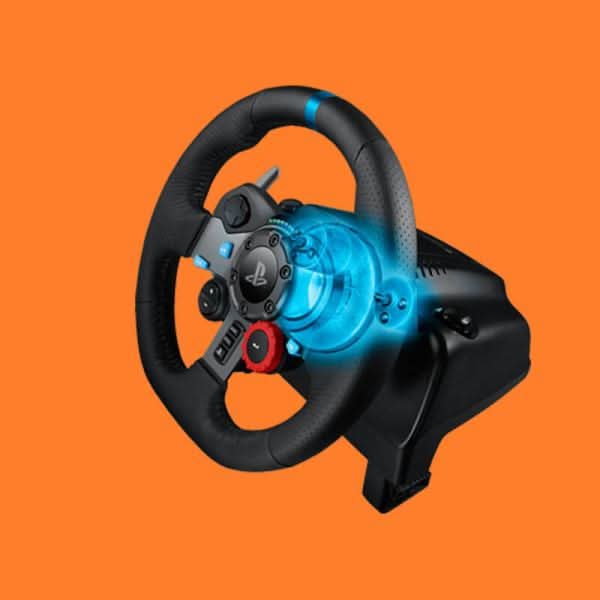

Dual-Motor Force Feedback

Overheat safeguard

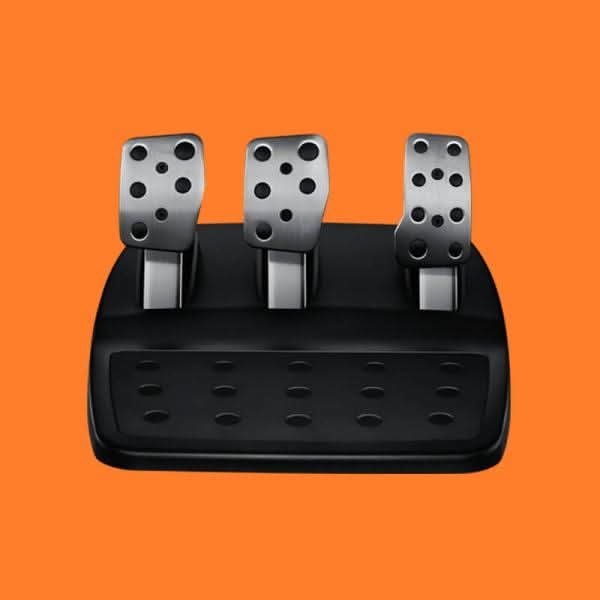

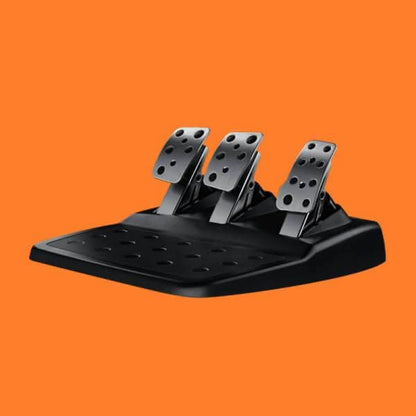

Pedals

Nonlinear brake pedal

Patented carpet grip system

Textured heel grip

Self-calibrating

Materials

Wheel spokes: Anodized aluminum

Wheel cover Hand-stitched leather

Steering shaft: Steel

Shifter paddles: Brushed stainless steel

Mounting clamps: Glass-filled nylon

Pedal frames and arms: cold rolled steel

Pedal faces: Brushed stainless steel

Pedal piston sleeves: Polyoxymethylene thermoplastic (POM)

SYSTEM REQUIREMENTS

Playstation4 or Playstation3

Powered USB port

OR

Windows 10, 8.1, Windows 8 or Windows 7

Mac OS 10.10+

Powered USB Port

Internet connection and 150MB hard drive space (for optional software download)

Games that support Logitech force feedback racing wheel

WARRANTY

2 Years Limited Hardware Warranty
