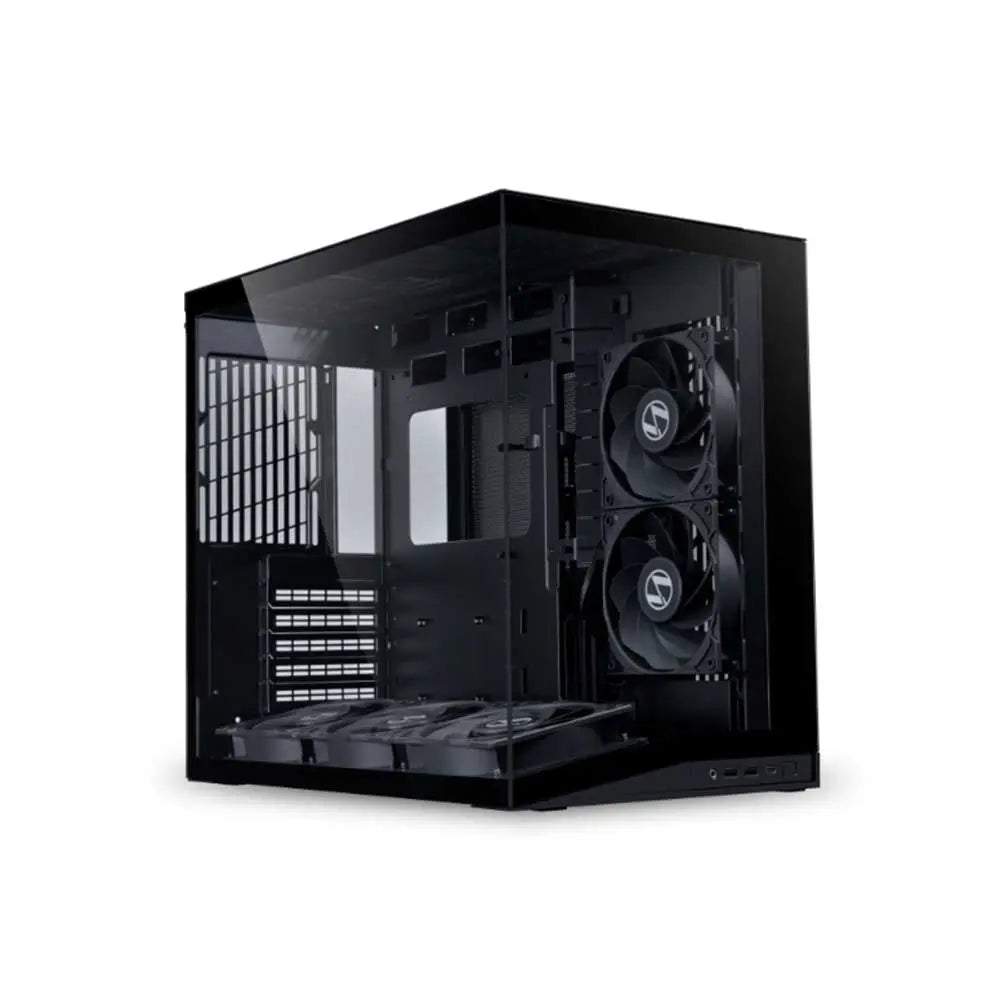

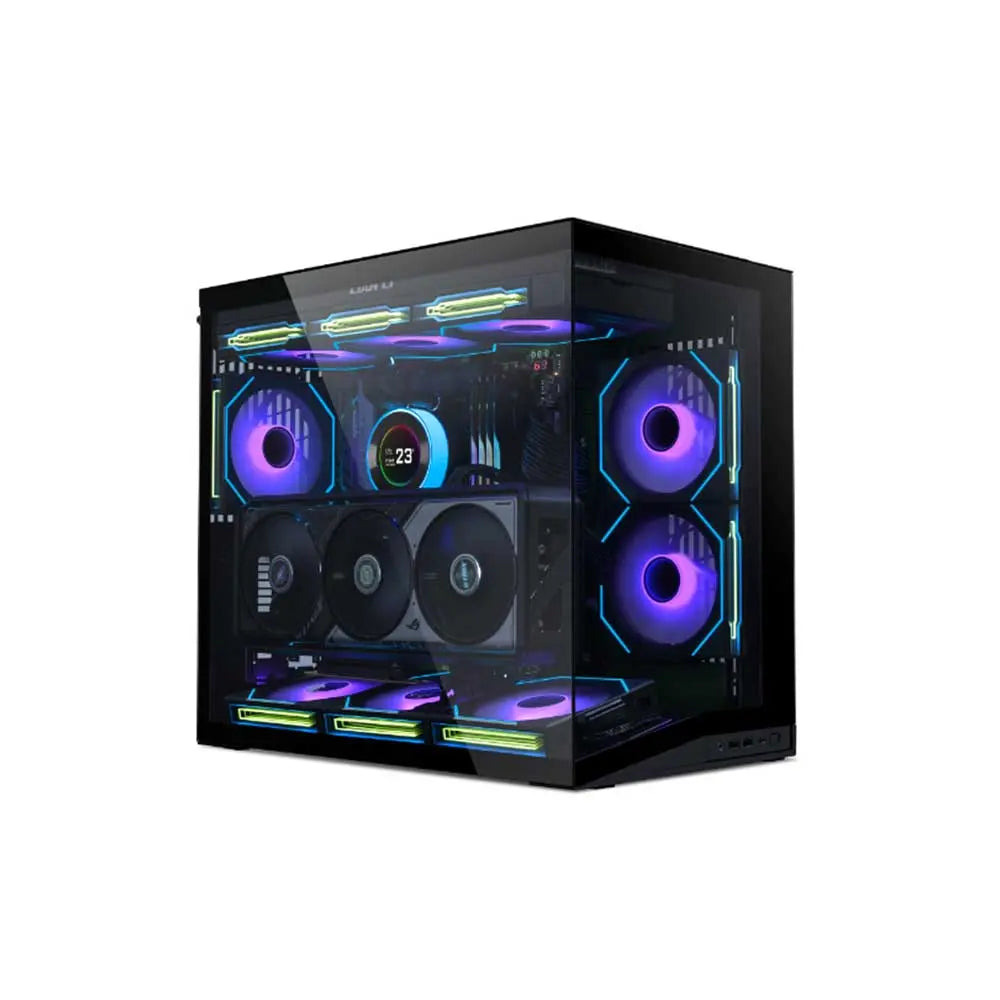

Features of LIAN Li O11 Dynamic Mini V2 Flow ATX Mid Tower Cabinet ( Black )

• Precision resized 45.38L chassis offers expanded hardware support with a compact footprint
• Pillar-less tempered glass front and side panels for an unobstructed internal view
• 10° slanted bottom improves GPU airflow and aesthetic presentation
• Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards
• Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)
• Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fans
• Includes horizontal and vertical GPU anti-sag brackets for heavy GPU support

SLIGHTLY BIGGER CASE, WAY MORE CAPACITY

Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.

SIDE MESH EXTENSION FOR A LARGER PSU

An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width.

ATX BACK-CONNECT MOTHERBOARD SUPPORT

The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.

ANGLED BASE FOR DIRECT GPU AIRFLOW

A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.

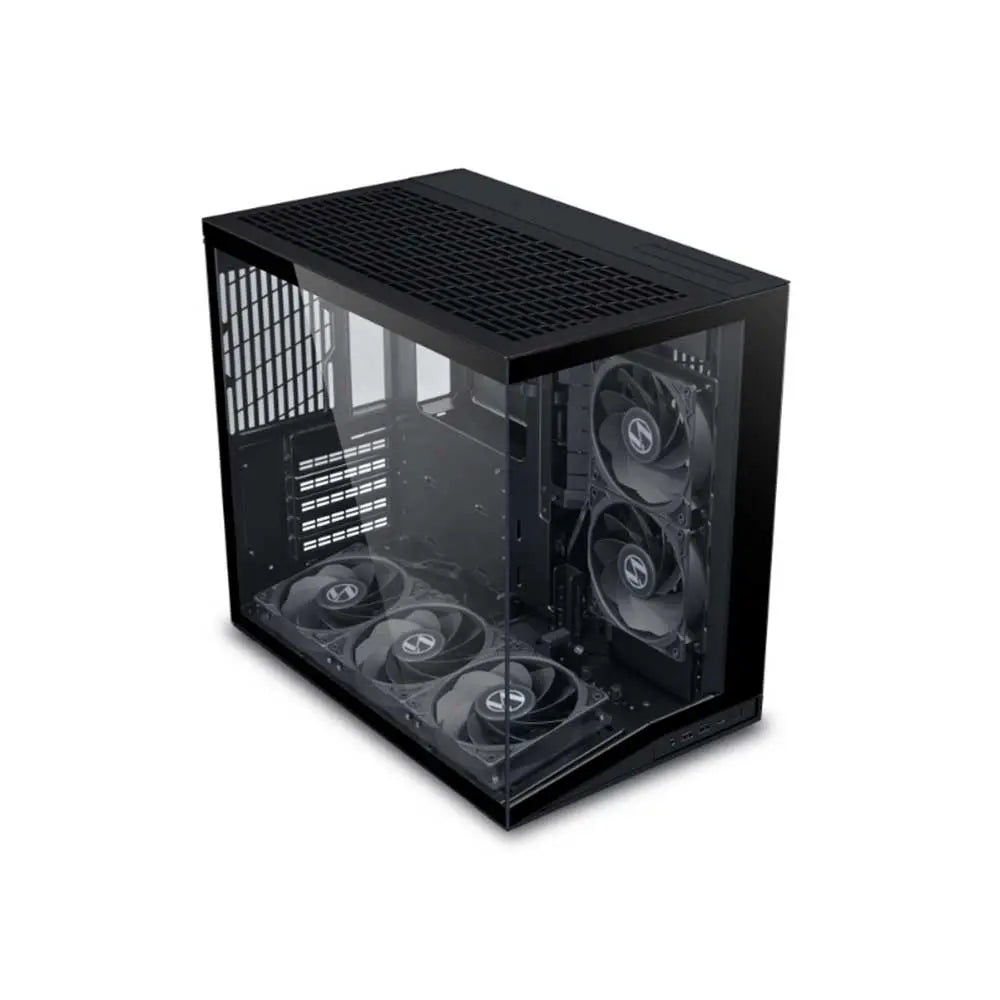

THE FLOW EDITION IS PRE-INSTALLED WITH FIVE REVERSE-BLADE FANS

Flow versions come with five reverse blade PWM fans—three at the bottom and two on the side, for strong, silent airflow right out of the box.

OPTIMIZED FOR GPU COOLING

The slanted bottom design and pre-installed fans channel airflow directly to the GPU, enhancing cooling efficiency. In thermal testing under identical noise levels, the O11D MINI V2 FLOW achieved significantly better GPU thermals, registering a 3.1°C improvement over the LANCOOL 207, or approximately 6% better GPU cooling performance.

ADJUSTABLE MOTHERBOARD STANDOFFS FOR RADIATOR FLEXIBILITY

This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.

PREPPED FOR PERFORMANCE, BUILT FOR EASE

Install fans or radiators outside the case, then drop in the entire bracket, simplifying the build process. The removable design also integrates a dust filter, keeping your system clean while making maintenance easy.

Specifications of LIAN Li O11 Dynamic Mini V2 Flow ATX Mid Tower Cabinet ( Black )
