Features:

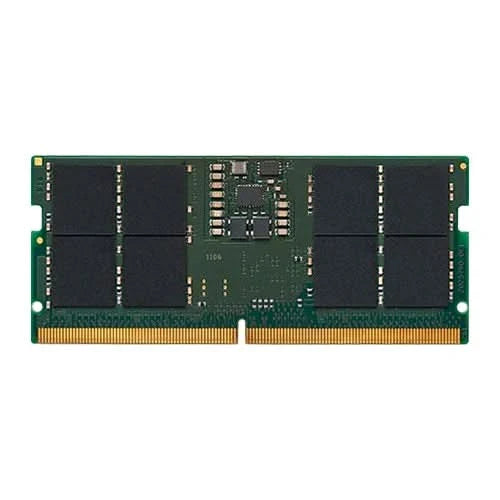

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM),1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

  Memory-(Ram)
  Model	KVR56S46BS8-16
  Product Series	VALUE
  Memory Type	DDR5
  Capacity	16GB
  Lighting	N/A
  Kit Type	16GB x 1
  Speed	5600 MHz
  Tested Latency	46-45-45
  Tested Voltage	1.1 V
  Dimm Type	SODIMM
  Warranty	Limited Lifetime
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
