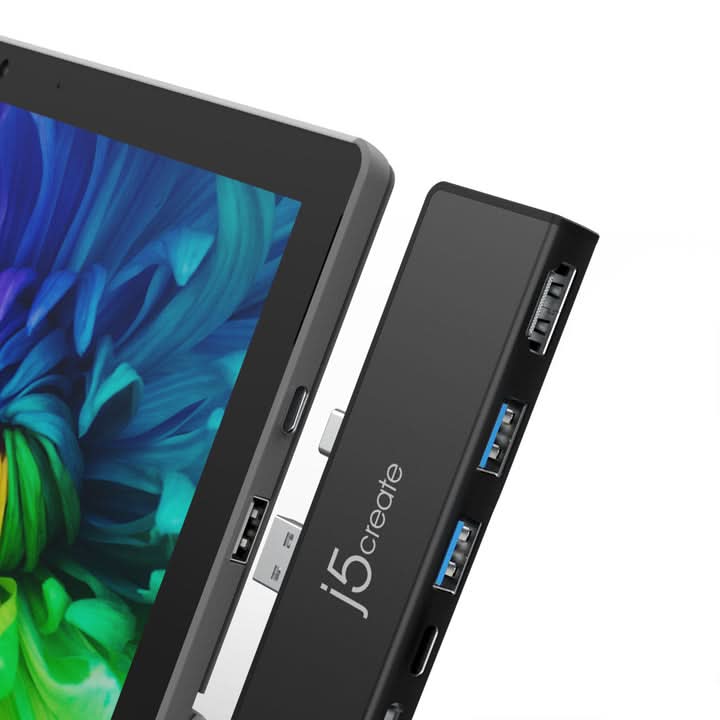

Elevate your Microsoft Surface™ Pro 7 experience with the J5Create ULTRADRIVEMINIDOCK for Surface Pro 7 JCD324B. This versatile 7-in-1 docking station is designed to seamlessly integrate with your device, expanding its connectivity and potential through high-speed data transfer, stunning video output, and convenient power delivery.
Key Features at a Glance
- Designed to sit flush against the Surface™ Pro 7 for a clean look.
- Two SuperSpeed+ USB™ 3.1 Gen 2 ports provide up to 10 Gbps data transfer speeds.
- HDMI™ output supports 4K @ 60 Hz resolutions with HDR and 3D vision.
- USB-C™ 3.1 Gen 2 with Power Delivery 3.0 offers up to 60W charging and data.
- Memory card reader/writer supports microSD™ and SD™ 3.0 UHS-I up to 2 TB.
- Plug-and-play operation with no driver installation required.
Seamless Integration & High-Speed Data
Specifically engineered for the Surface™ Pro 7, this ULTRADRIVEMINIDOCK™ sits flush against your device, creating a unified and streamlined extension. Benefit from two SuperSpeed+ USB™ 3.1 Gen 2 ports, offering blazing-fast data transfer speeds of up to 10 Gbps, which is significantly faster than older USB standards for efficient workflow.
Stunning Visuals & Power Delivery
Connect to an external display with HDMI™ output that supports crisp 4K resolution at 60 Hz, complete with High Dynamic Range (HDR) and 3D vision capabilities for an immersive viewing experience. The integrated USB-C™ 3.1 Gen 2 port with Power Delivery 3.0 not only facilitates high-speed data transfer but also delivers up to 60W of charging power to keep your Surface™ Pro 7 powered throughout your day.
Expanded Storage & Effortless Setup
Gain convenient access to your files and expand your storage options with dedicated memory card reader/writer slots. These slots support both microSD™ and SD™ 3.0 UHS-I cards, handling capacities up to 2 TB with data transfer speeds up to 104 Mbps. Designed for ultimate convenience, this ULTRADRIVEMINIDOCK™ is truly plug-and-play, requiring no driver installation for immediate use.
Technical Specifications
| Hardware | |
|
audio supported
|
Yes |
|
host connector
|
1 - USB-C™ 3.1 male 1 - USB™ Type-A male |
| network interface | N/A |
|
ports
|
2 - USB™ 3.1 Gen 2 Type-A
1 - USB-C™ 3.1 Gen 2 (PD 3.0 + Data Transfer) 1 - microSD™ & SD™ card reader/writer 1 - HDMI™ |
|
power source
|
Bus-powered or self-powered |
|
video output
|
1 - HDMI™ Female |
|
warranty
|
2-Year Limited |
| Performance | |
|
audio channel
|
2.1 via HDMI™ |
|
compatible networks
|
N/A |
|
displays supported
|
1 |
|
max data transfer rate
|
10 Gbps |
|
max display refresh rate
|
60 Hz |
|
max display resolution
|
3840 x 2160 |
| Power | |
|
input current
|
Up to 3A |
|
input voltage
|
Up to 20V |
|
output current
|
Up to 3A |
|
output voltage
|
Up to 20V |
|
power consumption
|
≤ 400 mA |
|
power delivery
|
Up to 60W via USB-C™ |
| Physical Specifications | |
|
cable length
|
N/A |
|
color
|
Black or Silver |
|
enclosure type
|
Aluminum |
|
operating humidity
|
< 85% non-condensing |
|
operating temperature
|
30 to 116°F (-1 to 41°C) |
|
product depth
|
0.37 in. (9.5 mm) |
|
product height
|
4.65 in. (118 mm) |
|
product weight
|
Silver: 1.57 oz (44.5g) Black: 1.68 oz (47.5g) |
|
product width
|
1.44 in. (36.5 mm)
|
|
storage humidity
|
< 85% non-condensing
|
|
storage temperature
|
0 to 155°F (-17 to 68°C)
|
Frequently Asked Questions
Q: What devices is this ULTRADRIVEMINIDOCK designed for?
A: It is specifically designed to sit flush against the Microsoft Surface™ Pro 7.
Q: What kind of display resolution does the HDMI port support?
A: The HDMI port supports resolutions up to 4K @ 60 Hz, including High Dynamic Range (HDR) and 3D vision.
Q: Is driver installation required to use this docking station?
A: No, the J5Create ULTRADRIVEMINIDOCK is plug-and-play, meaning no driver installation is required for its functionality.
