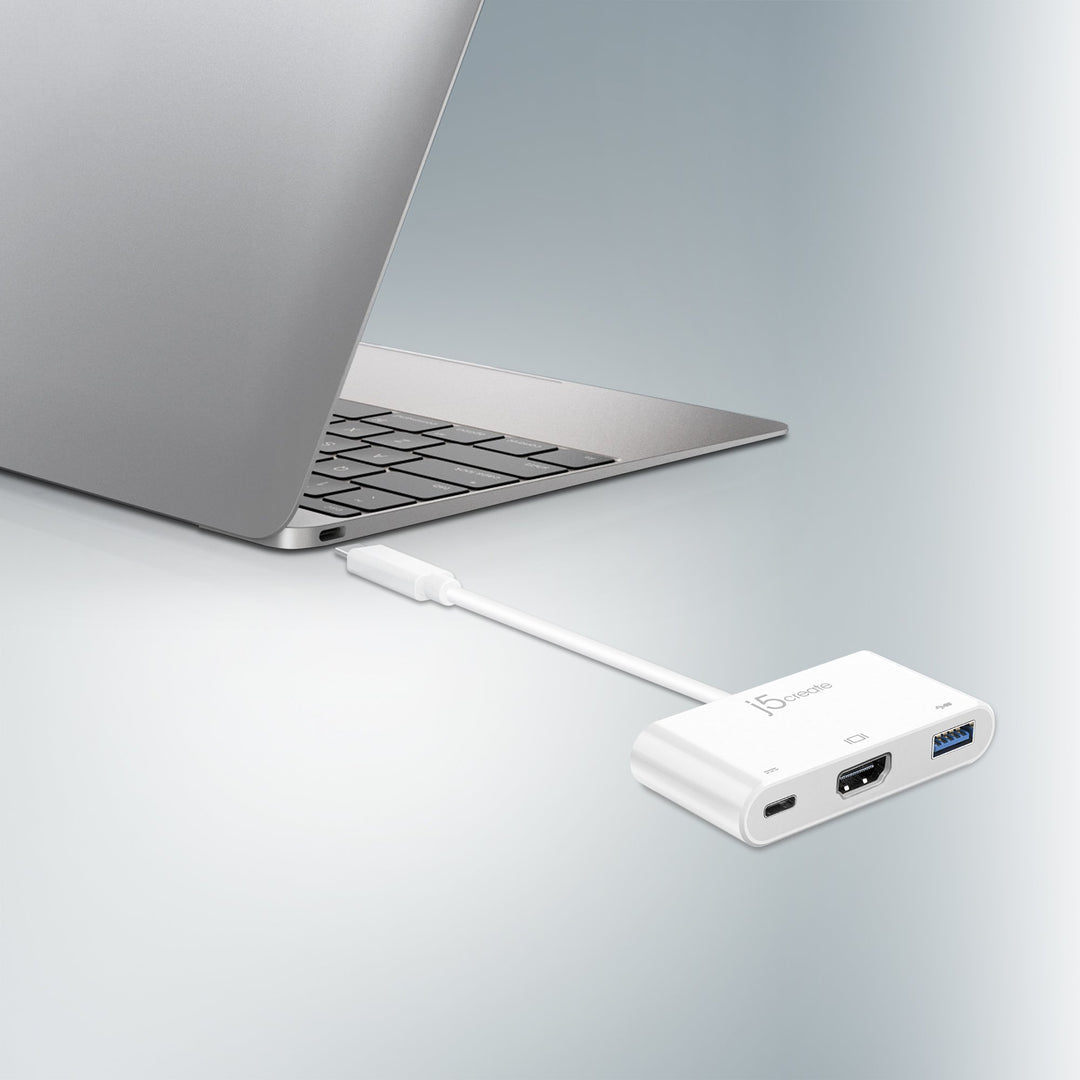

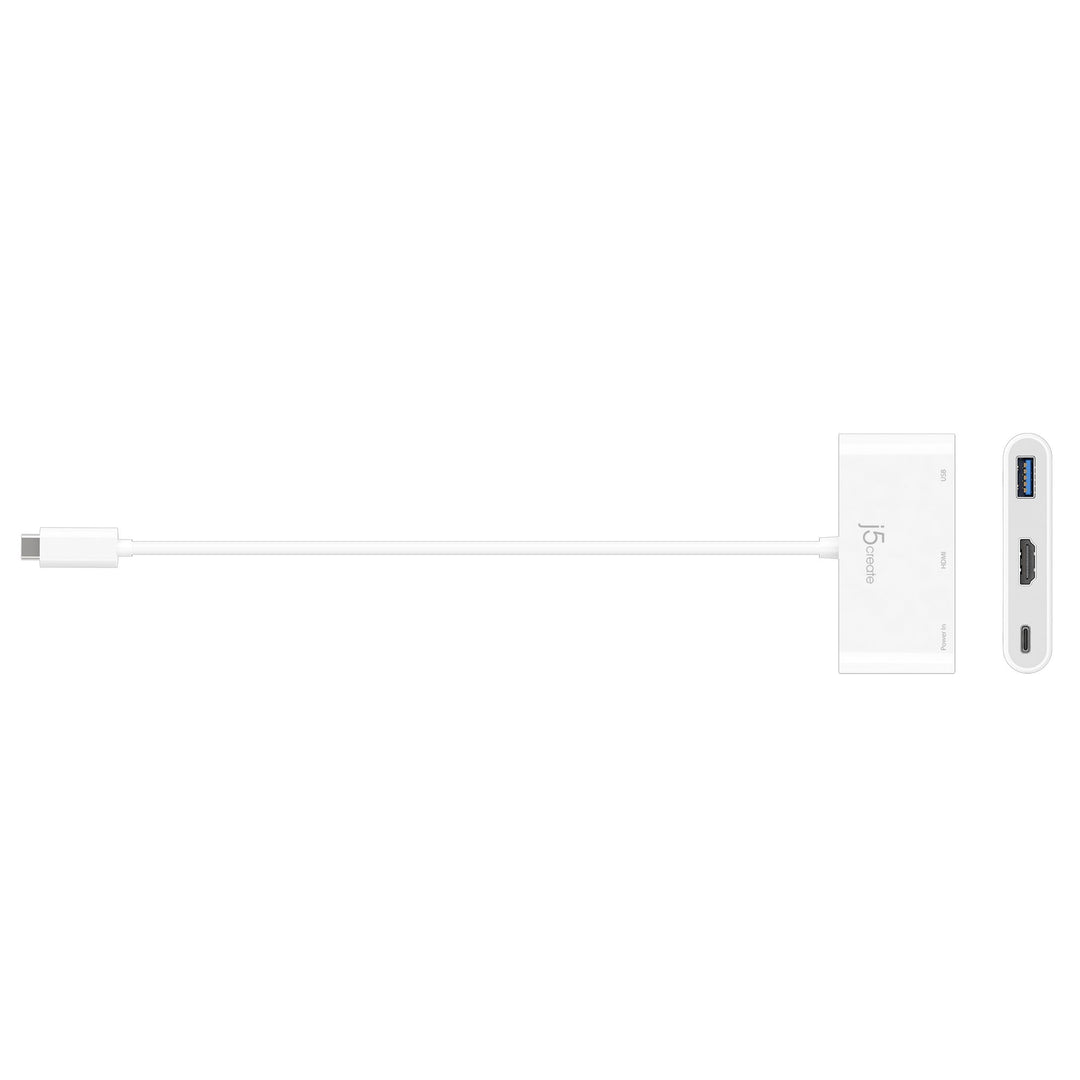

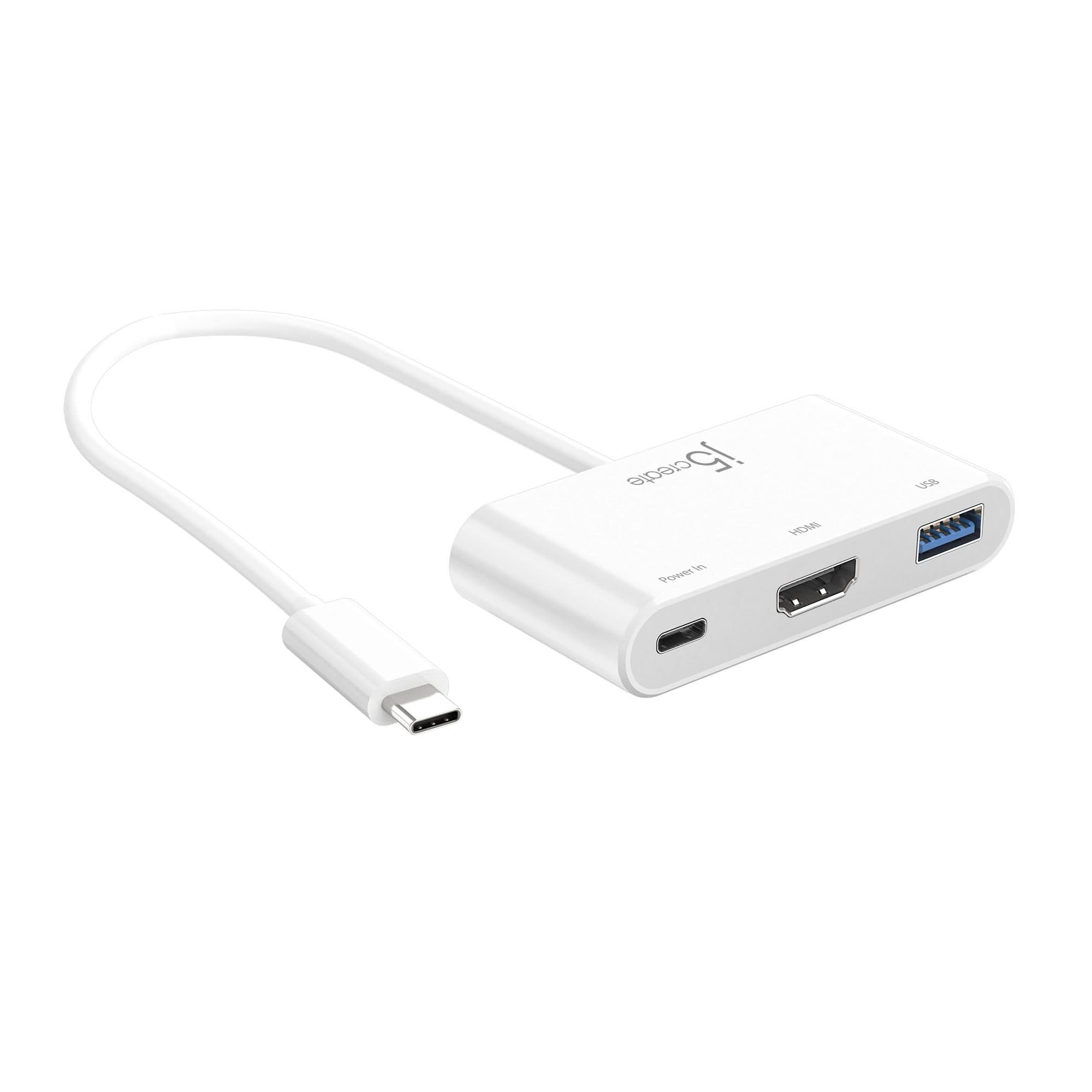

Enhance your laptop's connectivity with the J5CREATE USB TYPE-C TO HDMI & USB 3.0 WITH POWER DELIVERY. This versatile adapter (JCA379) adds an essential HDMI monitor port, a SuperSpeed USB 3.0 port, and a USB-C port for power delivery, all through a single USB-C connection.
Key Features at a Glance
- Connects via available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
- Adds HDMI output for an external monitor
- Adds a SuperSpeed USB 3.0 port with data transfer rates up to 5 Gbps
- Supports Power Delivery 2.0 for upstream charging
- Plug and play functionality – no software or drivers required
- Supports resolutions up to 4K @ 30 Hz (3840 x 2160 @ 30 Hz)
- Hot-swappable connection/disconnection without powering down
Expand Your Visual Workspace
Seamlessly extend or mirror your display to an external HDMI monitor. The adapter supports resolutions up to 4K @ 30 Hz, providing crisp visuals for productivity or entertainment across Primary, Extended, and Mirrored display modes.
Fast Data Transfer & Convenient Connectivity
Experience rapid data transfers with the integrated USB 3.0 SuperSpeed port, offering speeds up to 5 Gbps. Connect peripherals like external hard drives, keyboards, or mice with ease, ensuring hot-swappable connection and disconnection without powering down.

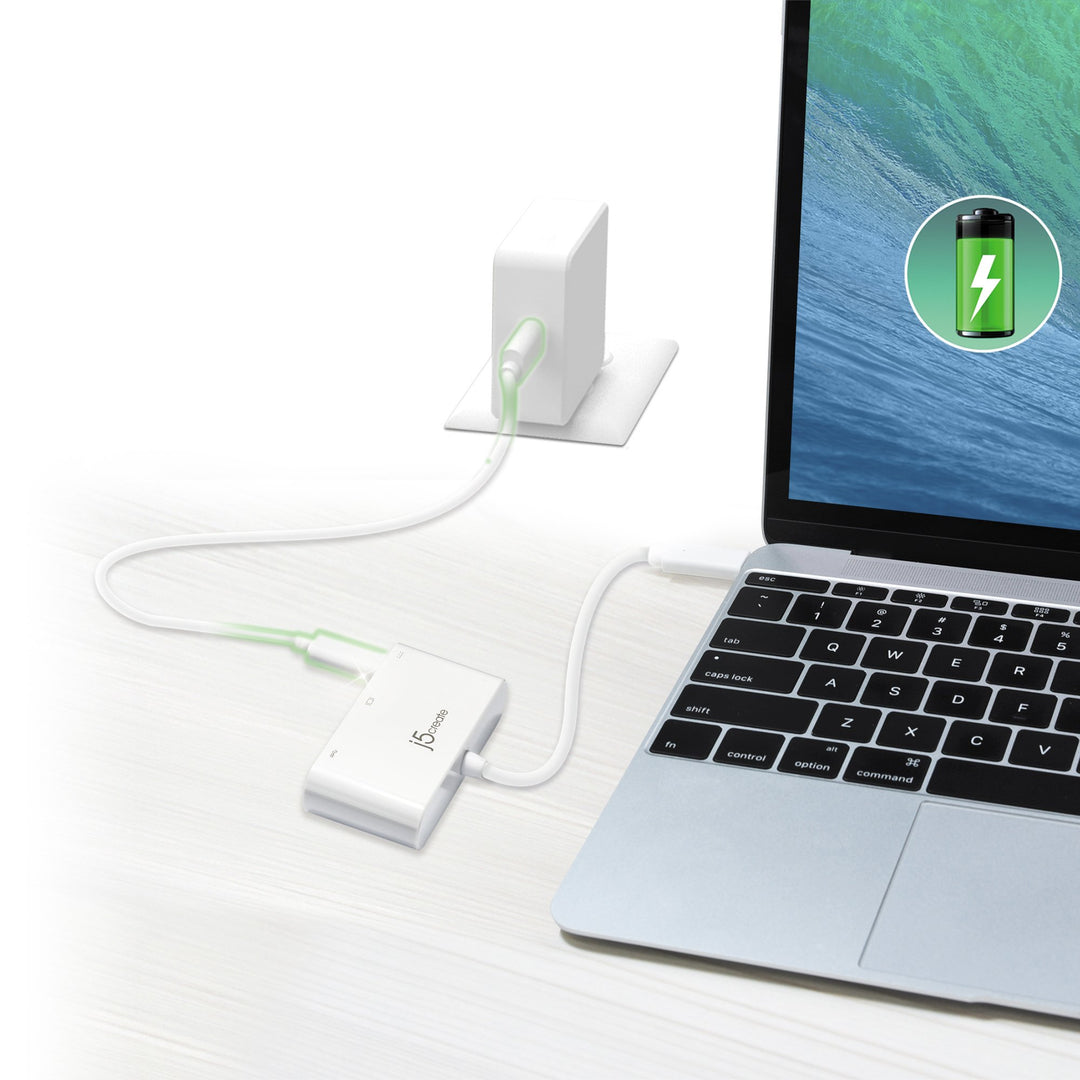

Power Your Setup While You Work
Keep your connected laptop powered up with upstream charging and Power Delivery 2.0. This feature ensures that your device remains charged even when utilizing multiple peripherals through the adapter, optimizing your workflow without interruption.
Technical Specifications
|
Hardware |
|
|
Warranty |
2-Year Limited |
|
Host Connector |
USB-C™ Male |
|
Video Output |
HDMI™ |
|
Power Source |
Bus-powered or self-powered |
|
Audio Supported |
Yes |
| Ports |
1 - USB-C® PD for upstream charging |
|
Performance |
|
|
Maximum Display Resolution |
3840 x 2160 |
|
Maximum Display Refresh Rate |
30 Hz |
|
Maximum Data Transfer Rate |
5 Gbps |
|
Displays Supported |
1 |
|
Audio Channel |
HDMI™ 2.1 |
|
Power |
|
|
Power Delivery |
Up to 100W via USB-C® |
|
Power Consumption |
≥ 350 mA |
|
Input Current |
Up to 5A |
|
Input Voltage |
Up to 20V |
|
Output Current |
Up to 4.25A |
|
Output Voltage |
Up to 20V |
|
Physical Specifications |
|
|
Color |
Silver |
|
Enclosure Type |
ABS Plastic |
|
Cable Length |
7.87 in. (20 cm) |
|
Product Height |
2.96 in. (75.4 mm) |
| Product Width |
1.48 in. (37.8 mm) |
| Product Depth |
0.59 in. (15.2 mm) |
| Product Weight |
1.43 oz (40.8g) |
| Storage Temperature |
14 to 140°F (-10 to 65°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
32 to 118°F (0 to 47°C) |
|
Operating Humidity |
< 85% non-condensing |
Frequently Asked Questions
Q: Does this adapter require any special software or drivers to work?
A: No, the J5CREATE USB TYPE-C TO HDMI & USB 3.0 WITH POWER DELIVERY is plug and play, meaning no additional software or drivers are required for operation.
Q: What display resolutions does the HDMI port support?
A: The HDMI port supports DisplayPort Alt Mode and resolutions up to 4K @ 30 Hz (3840 x 2160 @ 30 Hz), allowing for Primary, Extended, and Mirrored display modes.
Q: Can I charge my laptop while using this adapter?
A: Yes, the adapter supports upstream charging and Power Delivery 2.0, allowing your connected laptop to stay powered up while the adapter is in use. For maximum performance, it is advised to use a computer and USB-C power adapter equipped with PD 3.0.
