The J5CREATE USB TYPE-C MULTI-ADAPTER (8 IN 1) is a versatile, pocket-sized solution designed to maximize your productivity. This sleek multi-adapter, model JCD383, offers 9 essential functions, enabling seamless connection to a 4K or ultrawide monitor, along with comprehensive peripheral support, fast mobile device charging, wired network access, and direct SD & microSD card access.
Key Features at a Glance
- Offers 8 ports with 9 essential functions in one compact device.
- Provides USB-C Power Delivery 3.0 for simultaneous charging and data transfer.
- Supports 4K HDMI video output for connecting to high-resolution displays.
- Ensures reliable internet access with a Gigabit Ethernet port.
- Features 2 USB Type-A ports, including one with BC 1.2 for fast-charging mobile devices.
- Allows direct access to SD™ and microSD™ memory cards for data management.
Expand Your Display and Peripherals
Effortlessly connect your laptop to a stunning 4K monitor or an ultrawide display, transforming your workspace. With two USB Type-A ports for additional peripherals, you can easily attach your keyboard, mouse, or other essential devices, enhancing your setup for any task.
Stay Charged and Connected
Benefit from USB-C Power Delivery 3.0, which allows for both upstream and downstream charging when connected to a USB-C power adapter. The dedicated USB Type-A port with BC 1.2 ensures your mobile devices fast-charge, while the Gigabit Ethernet port provides reliable, high-speed wired network access.

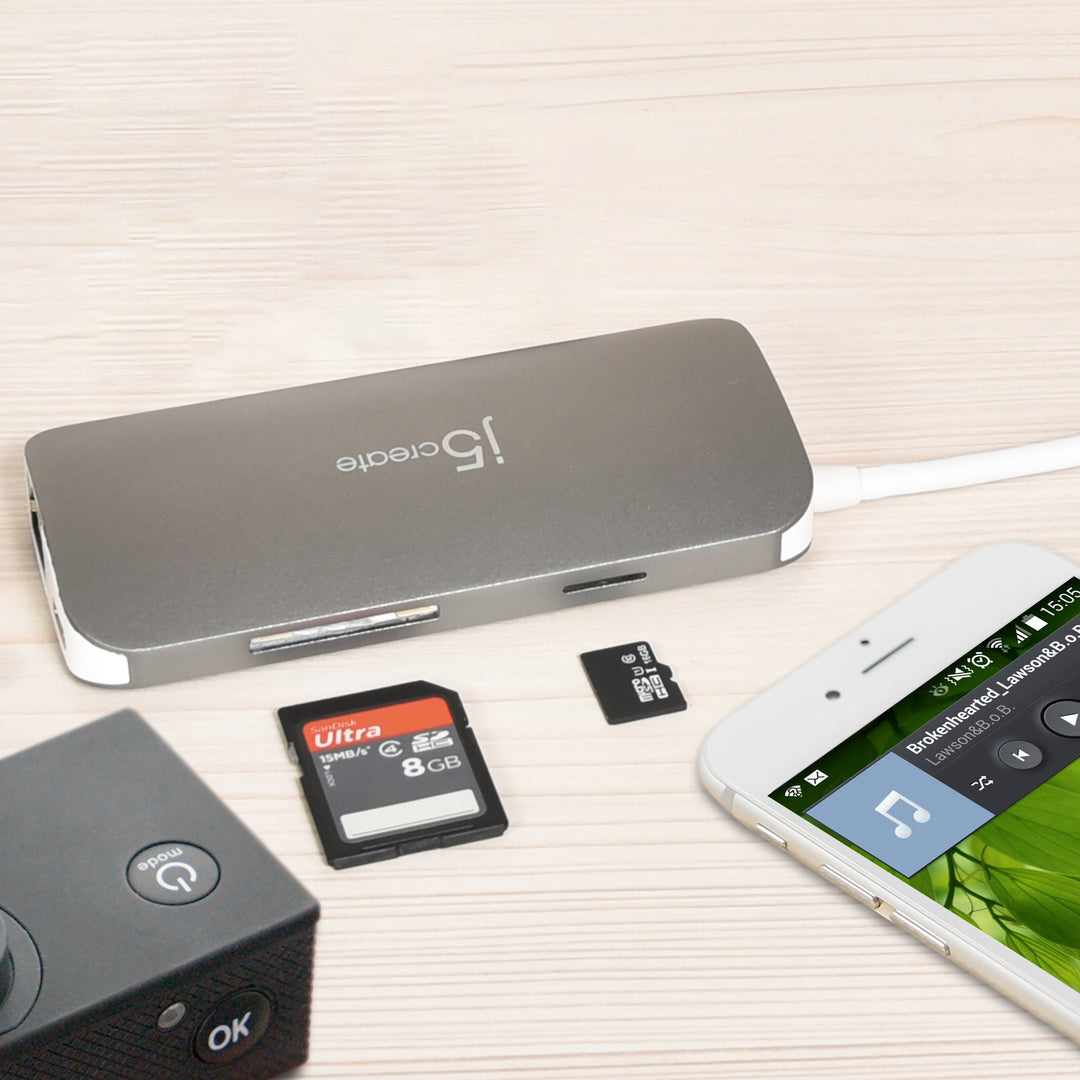

Effortless Data Management On-the-Go
Designed for convenience, this multi-adapter provides direct access to your SD™ and microSD™ memory cards. Quickly transfer photos, videos, and files without the need for additional card readers. Its compact design makes it perfect for small workspaces, home offices, and essential for productivity while traveling.
Technical Specifications
| Hardware | |
| Warranty | 2-Year Limited |
| Host Connector | 1 - USB-C™ Male |
| Video Output | 1 - HDMI™ Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports | 1 - USB-C™ 3.0 (upstream & downstream charging, power delivery 3.0 and data transfer) 2 - USB™ Type-A 3.1 Gen 1 1 - USB™ Type-A 3.1 Gen 1 with BC 1.2 1 - SD™ & microSD™ 1 - 4K HDMI™ 1 - RJ45 Gigabit Ethernet |
|
Performance |
|
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | 30 Hz |
| Maximum Data Transfer Rate | 5 Gbps |
| Displays Supported | 1 |
| Compatible Networks | 10/100/1000 Base-T, auto-negotiating |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | 100W |
| Power Consumption | ≤ 500 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
|
Physical Specifications |
|
| Color | Silver |
| Enclosure Type | Aluminum |
| Cable Length | 5.4 in. (137 mm) |
| Product Height | 4.13 in. (105 mm) |
| Product Width | 1.97 in. (50 mm) |
| Product Depth | 0.65 in. (16.5 mm) |
| Product Weight | 2.75 oz (78g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Operating Humidity | < 85% non-condensing |
System Requirements
- Requires an available USB-C™ port that supports DisplayPort™ Alt Mode.
- Requires an available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0.
Package Contents
- 1 x JCD383 USB-C™ 9-in-1 Multi Adapter
- 1 x Quick Installation Guide
Frequently Asked Questions
Q: Can I use this adapter with a USB-C port that does not support Power Delivery?
A: Yes, the adapter can connect to a USB-C port that doesn't support Power Delivery; however, it will not pass power through to the connected device.
Q: What is required to achieve 4K (3840 x 2160) resolution?
A: To obtain the 3840 x 2160 resolution, a 4K-capable display is required.
Q: Why might the device become warm during use?
A: The device may become warm to moderately hot while transferring bulk data or when a USB-C™ power supply is plugged in, which is normal operation.
