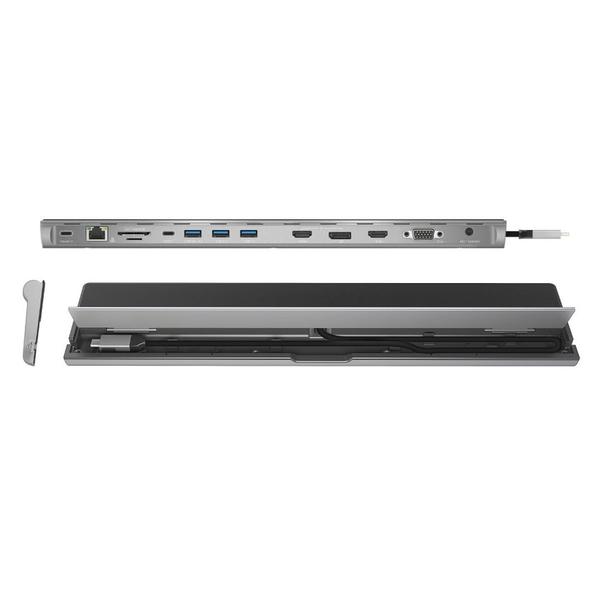

J5CREATE USB-C TRIPLE MONITOR DOCKING STATION
J5CREATE USB-C TRIPLE MONITOR DOCKING STATION
Regular price
Rs. 11,091.00
Sale price
Rs. 11,091.00
Regular price
Rs. 15,090.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About This Product

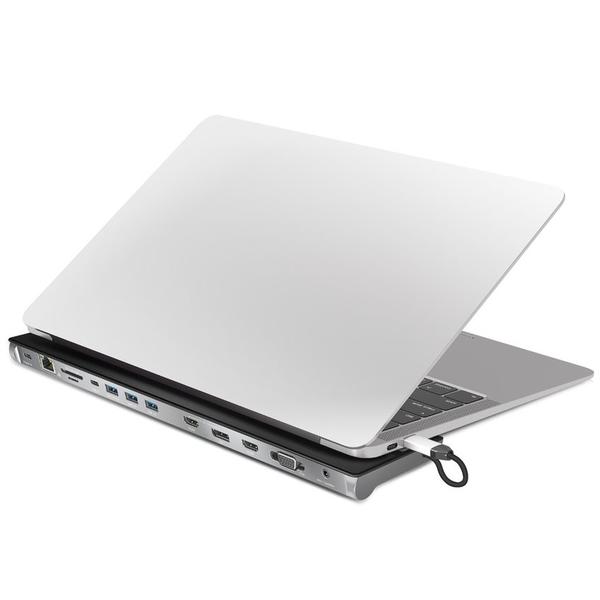

The USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
Features:
• USB-C™ power delivery 100W pass-through
• USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
• USB™ Type-A downstream port Gen 1 5G x3
• DisplayPort™ Alt mode supported
• DisplayPort™/HDMI™ output 4K @ 30 Hz
• Dual output through USB™ graphic HDMI™ with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080 (download driver here)
• RJ45 Gigabit Ethernet
• SD™/microSD™ card slots allow for external memory access
• Combo audio jack mic/speaker
• Cable length 1.5 ft/45 cm
| Interface | |
|
Host Interface |
USB-C™ male connector with cable |
|
Video Interface |
HDMI™ female connector x 2 DisplayPort™ female connector x 1 VGA female connector x 1 |
|
USB-C™ Port |
USB-C™ downstream port female connector x 1 USB-C™ power in port female connector x1 |
|
Ethernet Port |
RJ45 female connector (Gigabit Ethernet) x 1 |
|
USB™ Port |
USB™ Type-A 3.1 5G female connector x 3 |
|
Card Slots |
SD™ 3.0 x 1 Slot microSD™ 3.0 x 1 Slot |
|
Combo Audio Jack |
Microphone and speaker |
| Power | |
|
Power Mode |
Bus-powered or self-powered |
| Functions | |
|
DisplayPort™ Alt Mode |
Display resolution: 4K @ 30 Hz |
|
HDMI™ |
Display resolution: 4K @ 30 Hz |
|
VGA |
Display resolution: 1920 x 1080 @ 60 Hz |
|
USB-C™ |
Power delivery 3.0 x 1 USB-C™ 3.1 port x 1 |
|
USB™ |
USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps) BC 1.2 port x 1 |
|
Ethernet |
Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes:
|
| Physical Specifications | |
|
Dimensions |
Main body: 3.24 (W) x 0.92 (H) x 13.78 (D) in. 82.5 (W) x 23.4 (H) x 350 (D) mm USB-C™ cable length: 1.5 ft/450 mm |
|
Weight |
Main body: Approximately: 0.66 lbs./300g |
| Environmental | |
|
Storage Temperature |
-10 – 65°C |
|
Storage Humidity |
< 85% non-condensing |
|
Operation Temperature |
0 – 40°C |
|
Operation Humidity |
< 85% non-condensing |
System Requirements
- Available USB-C™ DisplayPort™ Alt mode
- Available USB-C™ port (USB™ 3.0 is recommended)
- Available USB™ power delivery over USB-C™ to support upstream charging
- 4K capable graphics card
- Microsoft® Windows® 10 or later
- macOS® 10.14 or later
