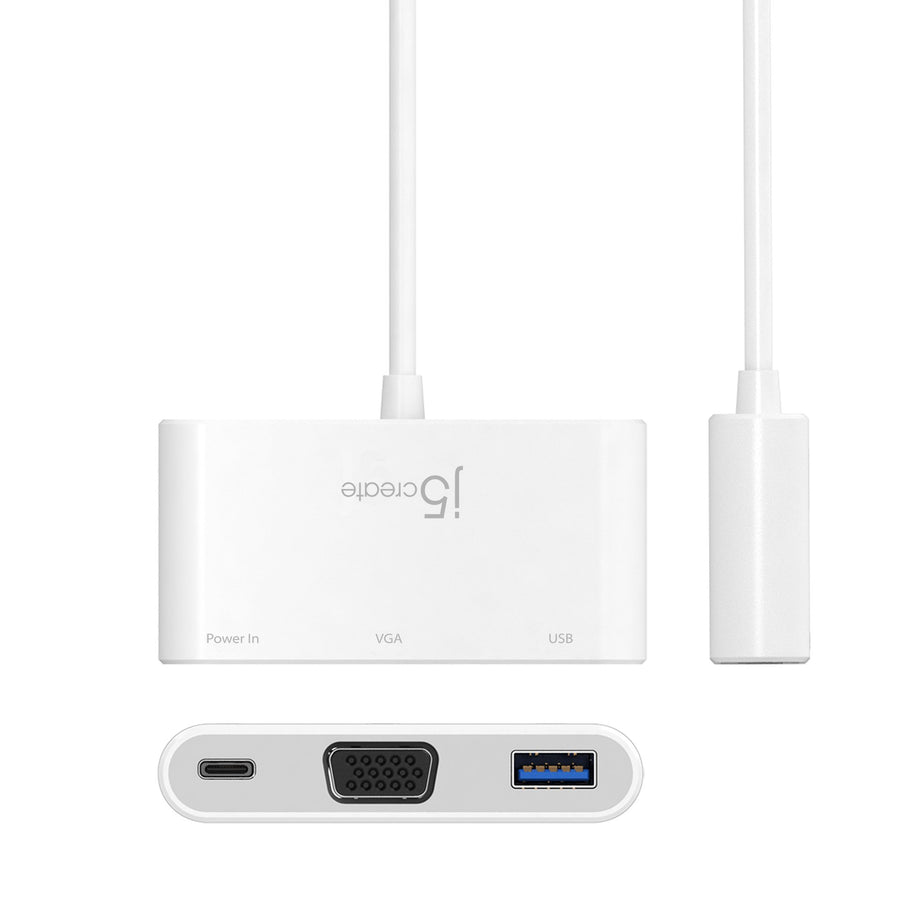

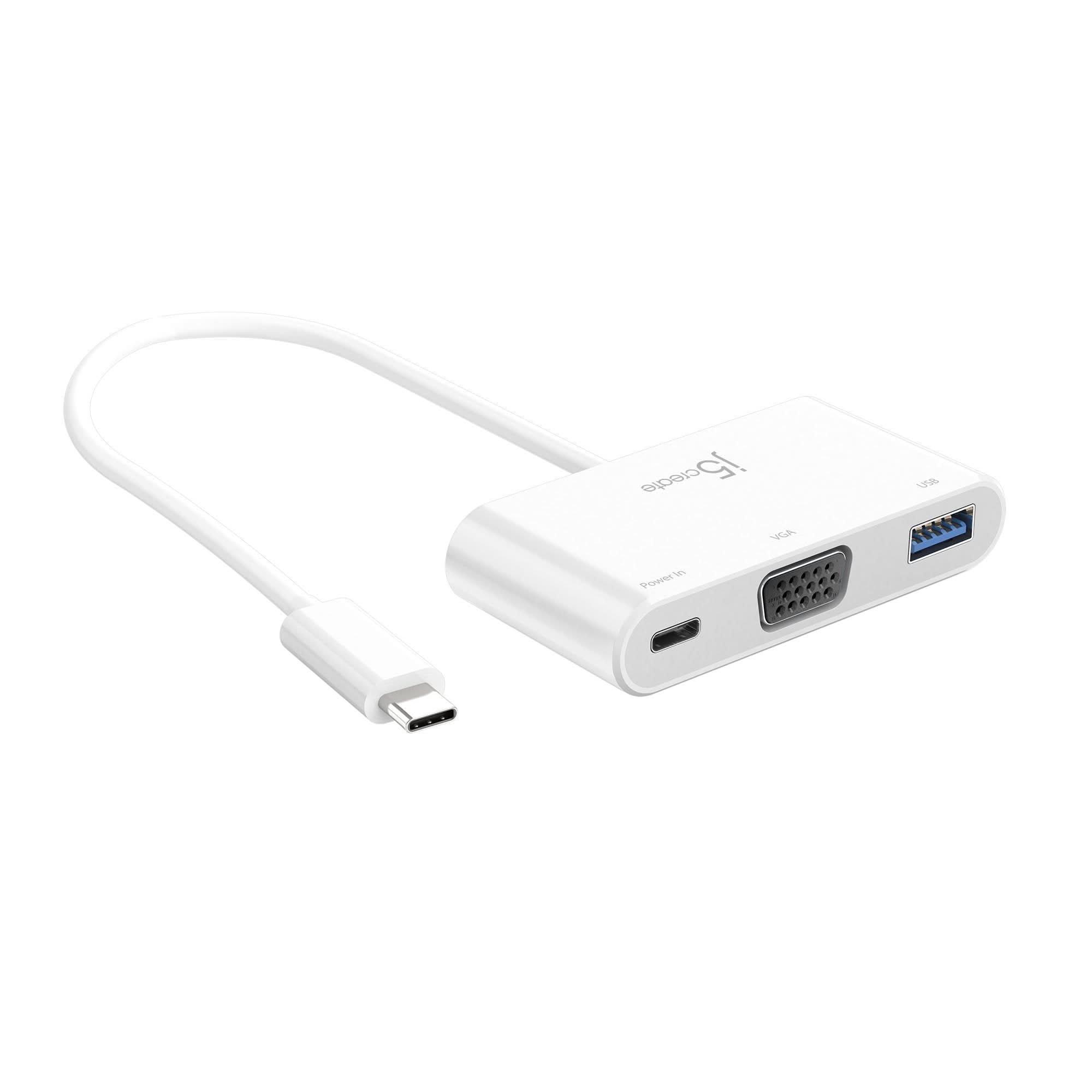

The JCA378 USB-C™ to VGA & USB™ 3.0 Power Delivery provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB™ 3.0 port, VGA Monitor and USB Type-C™.

For ultimate functionality, use the JCA378 USB-C™ to VGA & USB™ 3.0 Power Delivery Adapter with j5create's JUP4275 for laptops/tablets, and/or use the JUP1230 for mobile devices.

USB Type‐C™ is the new standard for connecting desktops and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. The USB Type‐C™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type‐C™ offers greater power delivery and faster data transfer rates up to 10 Gbps.

Features

• 2 USB™ 3.0 SuperSpeed ports
• Transfer rates up to 5 Gbps enables bulky file backup
• Backwards compatible with USB™ 2.0 and USB™ 1.0 devices
• Hot-swapping connection/disconnection without powering down
• DisplayPort™ Alt Mode for VGA
• Supports display max resolution: 1920 x 1200 @ 60 Hz
• Supports 1080p Video Playback
• Supports Display Modes: Primary, Extended, Mirror
• Display Rotation: 0°, 90°, 180°, 270°

SYSTEM REQUIREMENTS

• Your host USB-C^™ port (USB^™ 3.0 is recommended) must support USB™ Power Delivery and DisplayPort^™ alt mode to ensure full functionality.


• Your mobile device might require more power than your charger can allow to use the adapter and charge your device simultaneously. To ensure the JCA378 powers and charges your mobile device while in use, a higher wattage power adapter may be required.


•  DisplayPort^™ v1.2 required on graphics card or video source to support 1920 X 1200 @ 60 Hz resolution.


• macOS^® X 10.8 or later



Special Notes:

• If you are using a high-powered USB^™ device please attach an USB-C^™ power adapter to the JCA378 power delivery port for maximum performance.


• To ensure files copy completely, do not remove the USB-C^™ power adapter while copying files.


• For more information about Power Delivery & graphic cards for your device, refer to the manufacturer of your hardware.



Package Contents

• JCA378 USB Type-C^™ to VGA & USB^™ 3.0 with Power Delivery
• Quick Installation Guide
