Product Description

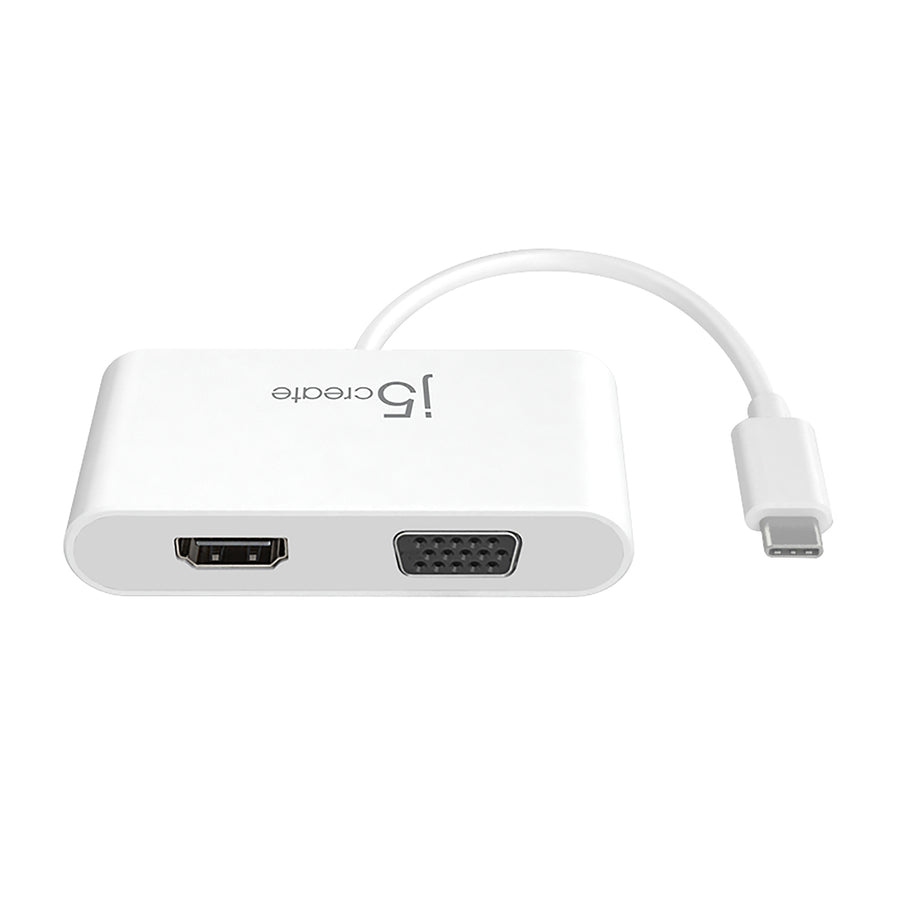

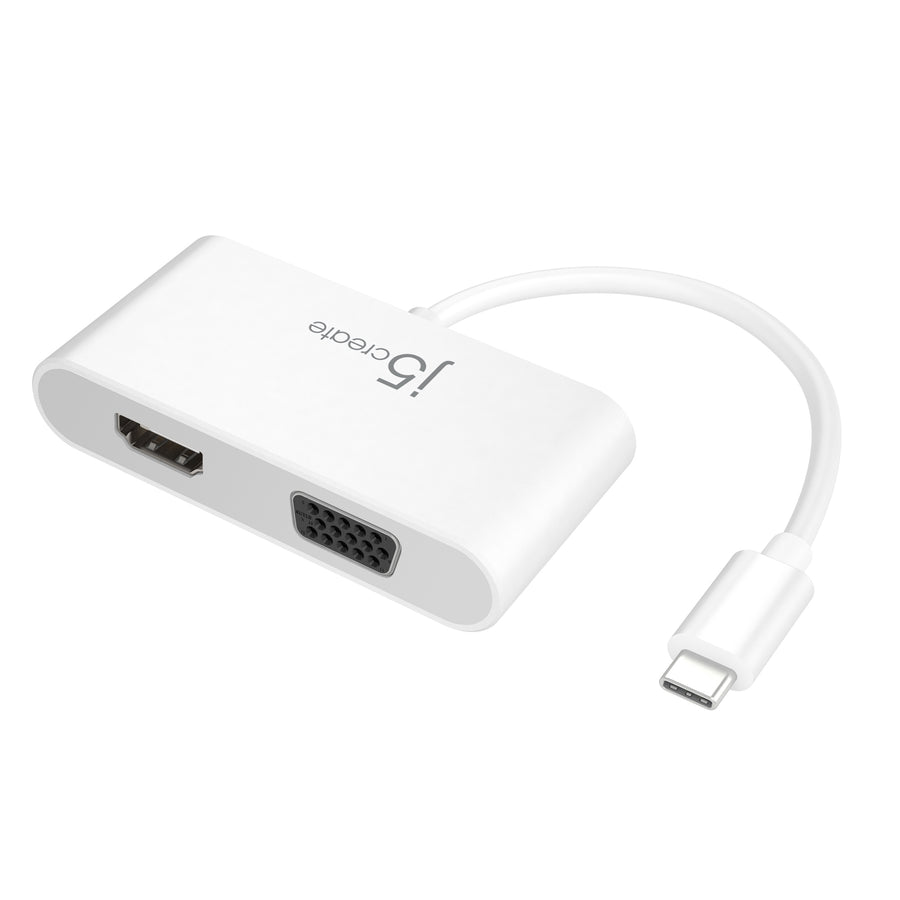

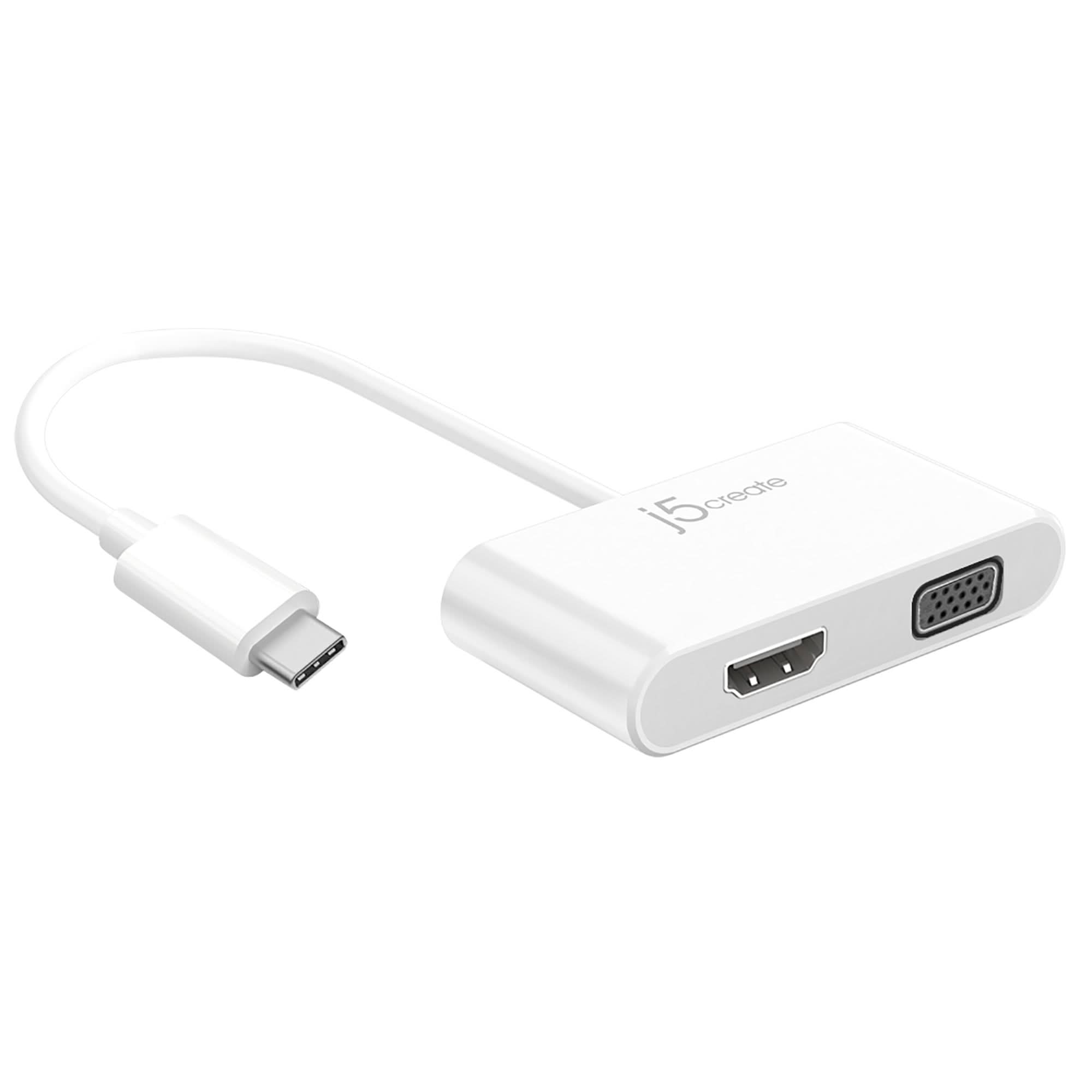

• The JCA174 is a lightweight and portable adapter that connects a USB Type-C to an HDMI and VGA monitor or projector through an HDMI and a VGA cable. It supports HDMI resolutions up to 4K (3840 x 2160 @ 60 Hz) and VGA resolutions up to 1080P (1920 x 1080 @ 60 Hz) when they are used separately, which allows you to capture every detail of an image and gives you audio output to your external display screen through HDMI. Both Mirror mode and Extended mode are supported when the HDMI or VGA port is used separately. When the two output ports are used simultaneously, the maximum resolution of both of them together is 1080P @ 60 Hz and only Mirror mode is supported.

  Plug-and-play, no drivers or software required. No external power supply needed. You can use it anytime, anywhere. 2-in-1 ports enable you to add devices such as an external monitor, TV or projector simultaneously for extending your HDMI or VGA input terminals. Portable for easy carrying when traveling. Great for use in the office, home theater, teaching, etc.




  Features

  • • Dual screen display
  • • Supports HDMI resolutions up to 4K at 3840 x 2160 @ 60 Hz; VGA resolutions up to 1920 x 1200 or 1080P @ 60 Hz. Supports Mirror and Extended modes.
  • • When connected to both the VGA and HDMI, only Mirror mode is supported with a resolution up to 1920 x 1080 @ 60 Hz; Extended mode is not supported.
  • • The HDMI port transfers audio and video, the VGA port transfers video.
  • • No software/drivers required





  Interface
  Interface	USB-C male connector
  Video Interface	HDMI female connector VGA female connector
  Functions
  Display	HDMI display resolution: 3840 X 2160 @ 60 Hz VGA display resolution:1920 X 1200 @ 60 Hz
  Physical Specifications
  Housing Material	Plastic
  Dimensions	Main body: 75.4 (H) x 37.8 (W) x 15.2 (D) mm Cable Length: 5.90 in./15 cm
  Weight	Approximately 38.5g


  System Requirements

  • Available DisplayPort Alt Mode over USB-C port


  Package Contents

  • USB-C to Dual VGA & HDMI Multi-Display Adapter
  • Quick Installation Guide
