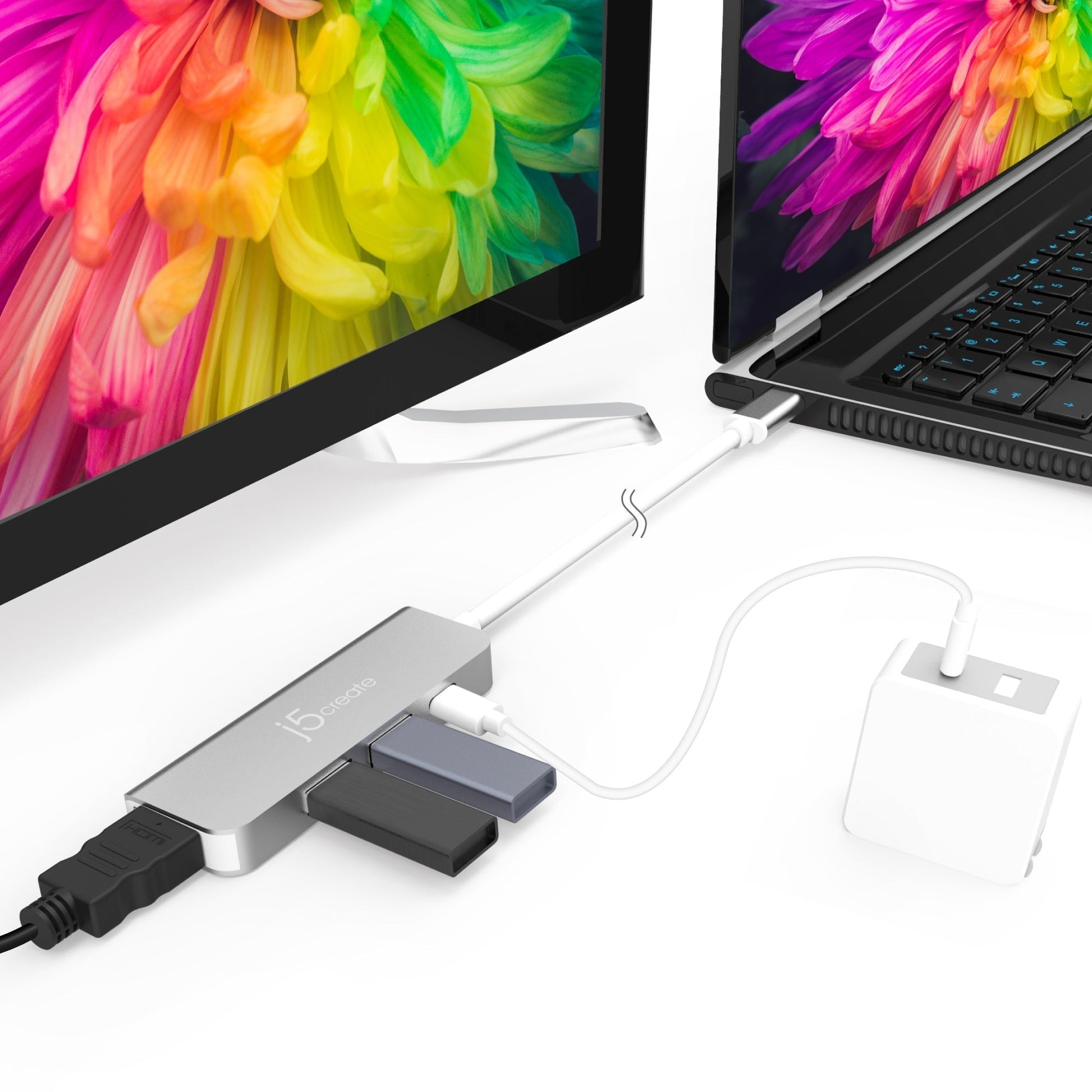

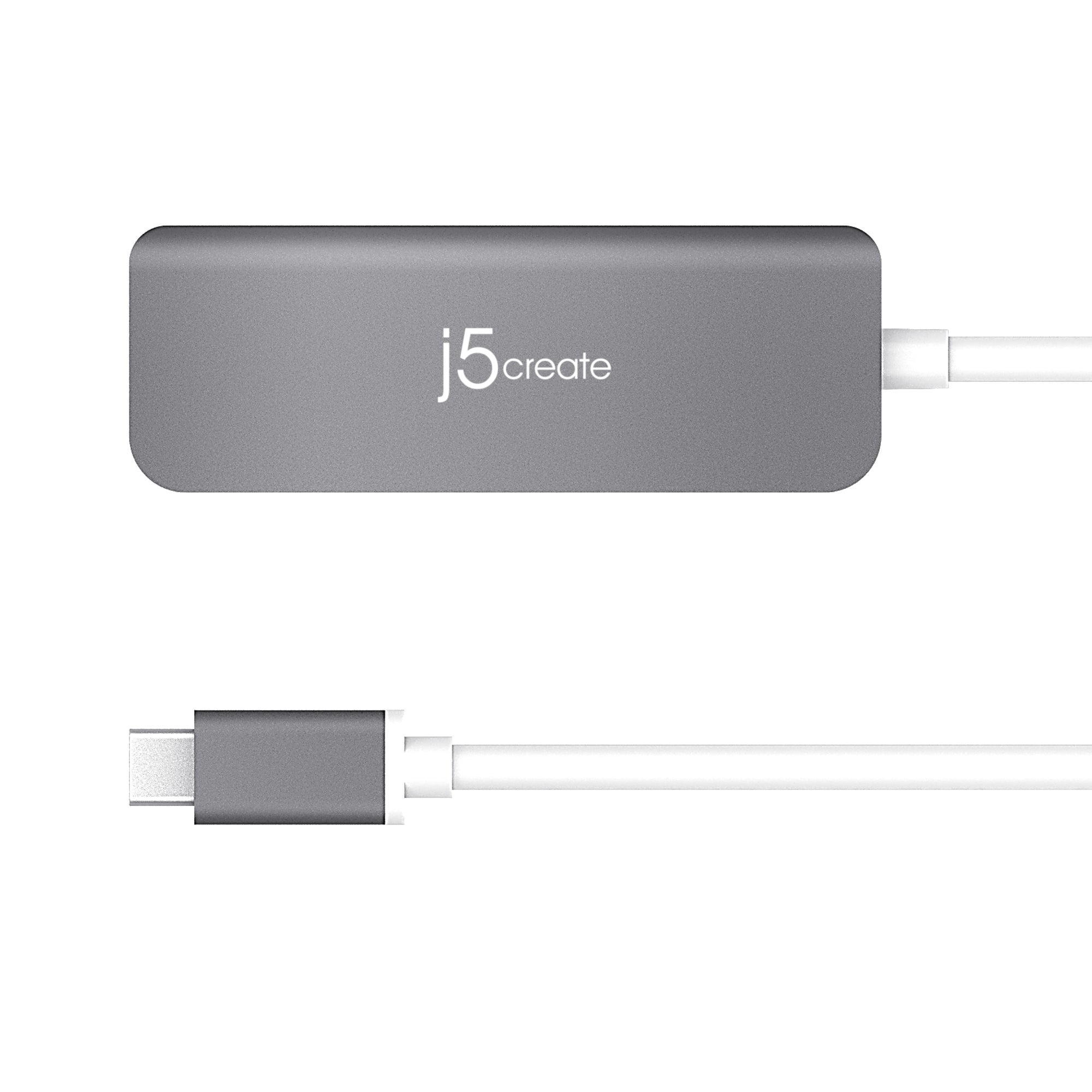

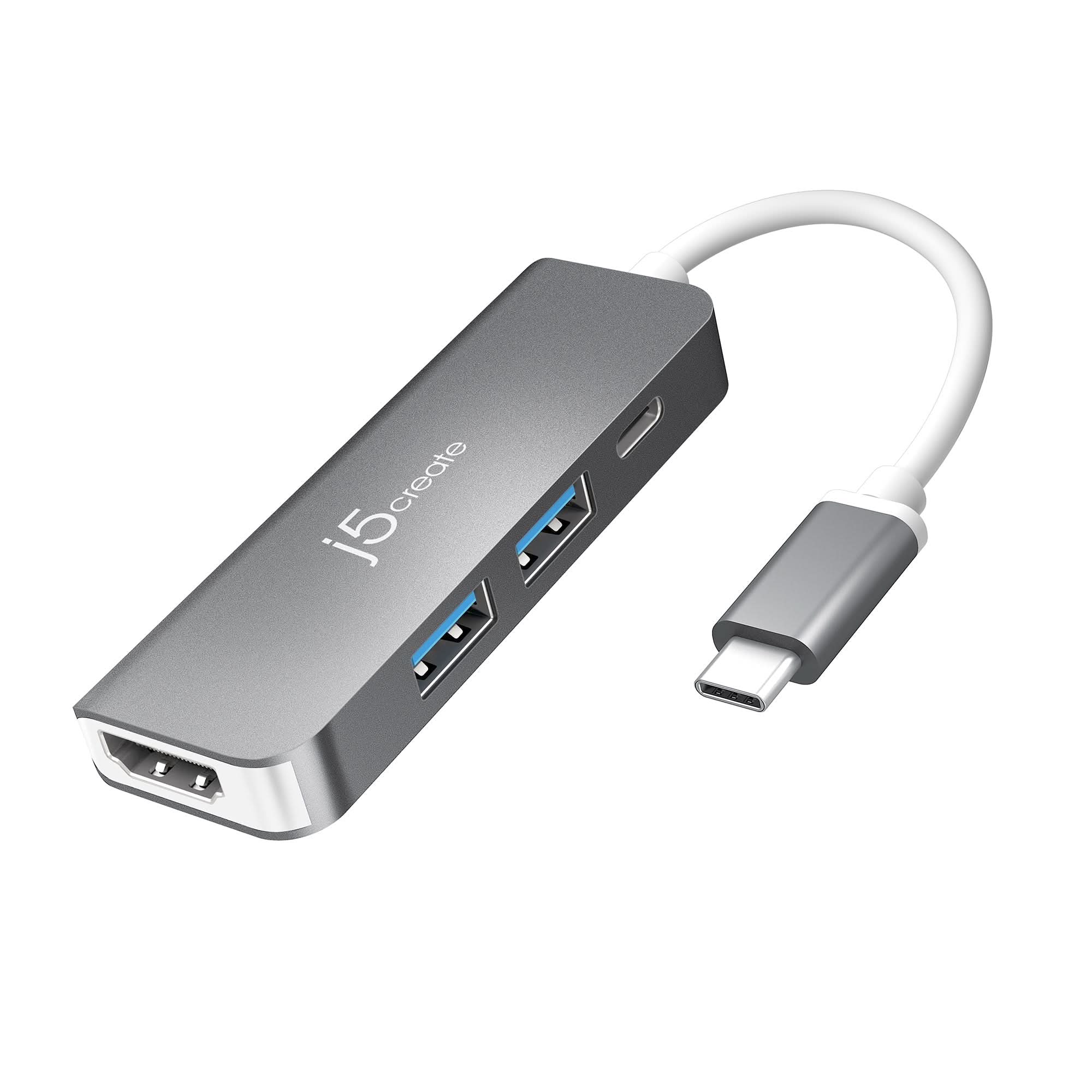

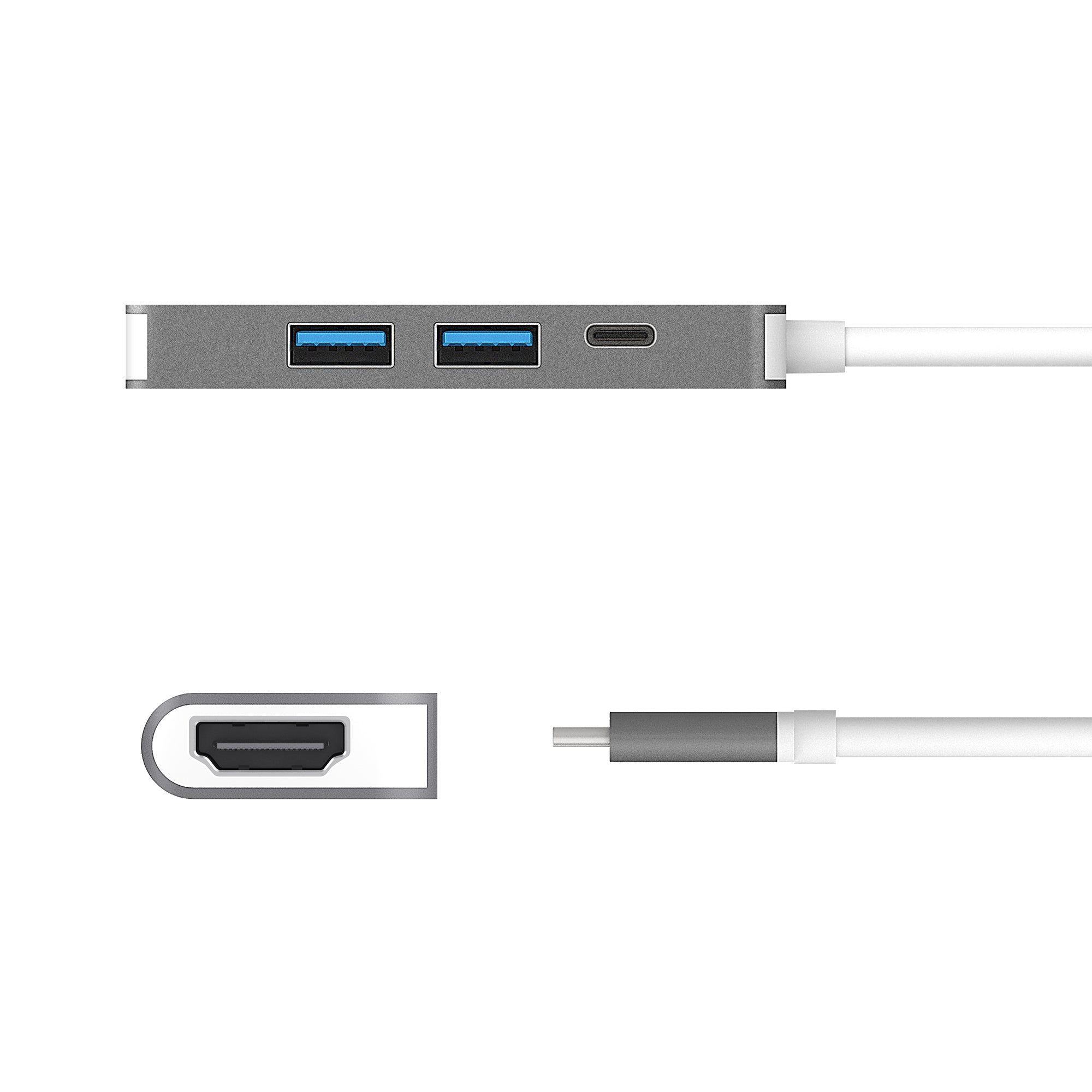

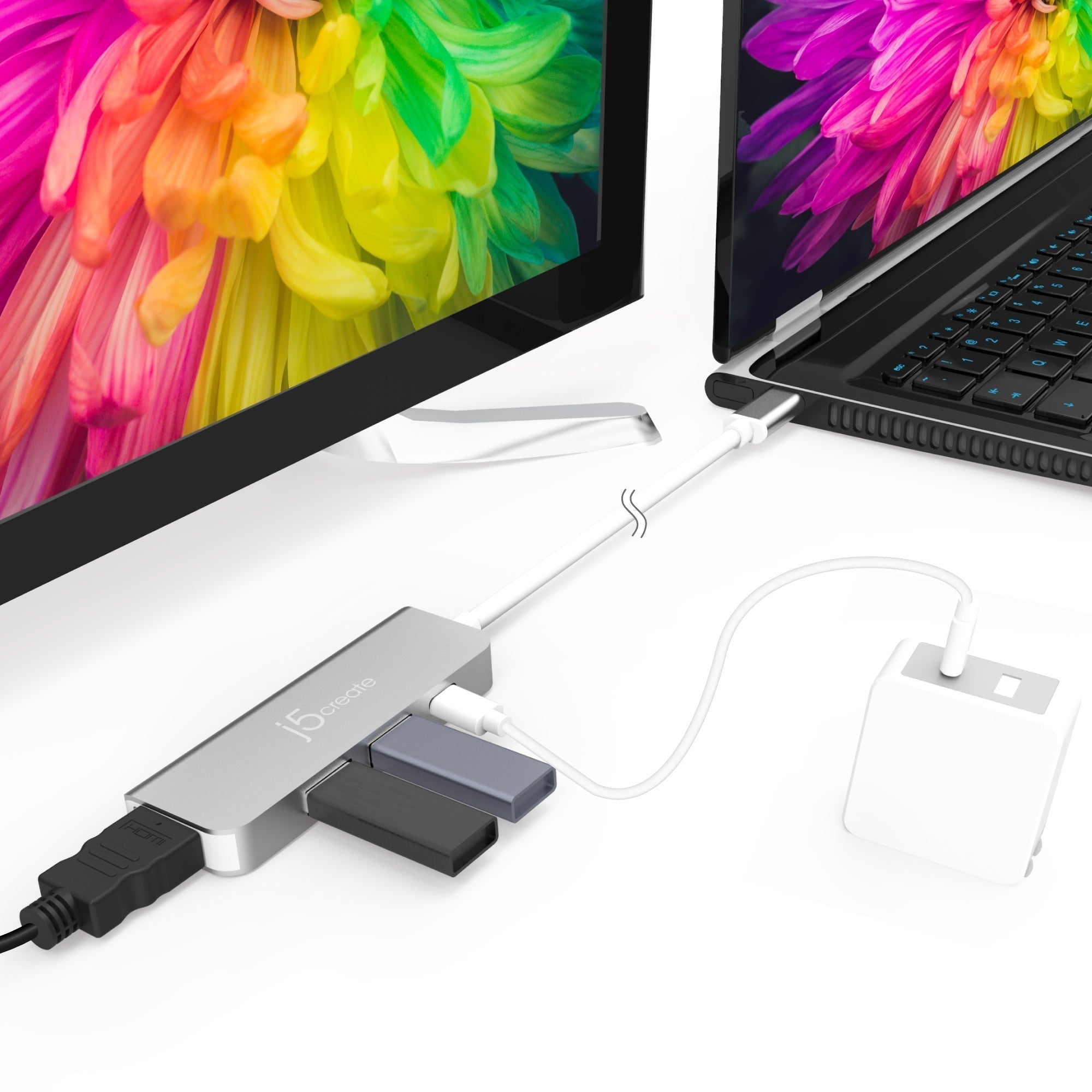

Expand your connectivity with the J5CREATE USB-C TO HDMI & USB 3.0 2-PORT WITH POWER DELIVERY adapter. This versatile device provides essential ports for modern setups, ensuring seamless integration and efficient power delivery for your USB-C enabled devices.
Key Features at a Glance
- Supports HDMI™ resolutions up to 4K.
- Two USB™ 3.1 Type-A ports with 5Gbps transfer rates.
- USB-C® charging port with upstream charging and Power Delivery 2.0.
- Plug-and-play functionality, no drivers required.
Experience Stunning 4K Displays
Connect your device to an external monitor or TV and enjoy crystal-clear visuals with HDMI™ resolutions up to 4K. This feature is perfect for presentations, movie watching, or expanding your workspace with vibrant clarity.
Connect Peripherals with High-Speed USB
Utilize two USB™ 3.1 Type-A ports to connect your essential peripherals like keyboards, mice, or external drives. Benefit from fast data transfer rates of up to 5Gbps, making file transfers quick and efficient.
Efficient Power Delivery and Upstream Charging
The integrated USB-C® charging port supports both upstream charging and Power Delivery 2.0. This allows you to power your host device while simultaneously using the adapter's other functions, helping you stay charged and productive.
Effortless Setup and Use
Enjoy immediate functionality without the hassle of software installations. This adapter features a convenient plug-and-play design, meaning no drivers are needed, allowing for instant use right out of the box.
Technical Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Audio Supported | Yes |
| Host Connector | 1 - USB-C® Male |
| Network Interface | N/A |
| Ports | 2 - USB™ Type-A 3.1 Gen 2 |
| 1 - USB-C® Power Delivery 2.0 | |
| 1 - 4K HDMI™ | |
| Power Source | Bus-powered or self-powered |
| Video Output | 1 - HDMI™ Female |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Compatible Networks | N/A |
| Displays Supported | 1 |
| Max Data Transfer Rate | 5 Gbps |
| Max Display Refresh Rate | 30 Hz |
| Max Display Resolution | 3840 x 2160 @ 30 Hz |
| Power | |
| Power Consumption | ≤ 500 mA |
| Power Delivery | Up to 60W via USB-C® |
| Physical Specifications | |
| Cable Length | 3.94 in. (100 mm) |
| Color | Space Grey |
| Enclosure Type | Aluminum, ABS Plastic |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 106°F (-1 to 41°C) |
| Product Depth | 0.4 in. (10 mm) |
| Product Height | 3.11 in. (79 mm) |
| Product Weight | 1.13 oz (32 g) |
| Product Width | 0.9 in. (23 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
| Package Contents | |
| 1 - JCD371 USB-C® to HDMI™ & USB™ 3.1 2-Port with Power Delivery | |
| 1 - Quick Installation Guide (QIG) |
Frequently Asked Questions
Q: What is the maximum resolution supported for HDMI output?
A: The adapter supports HDMI™ resolutions up to 4K.
Q: How many USB Type-A ports does this adapter have and what are their transfer speeds?
A: It features two USB™ 3.1 Type-A ports with transfer rates of up to 5Gbps.
Q: Is driver installation required to use this adapter?
A: No, this is a plug-and-play device, so no driver installation is required.
