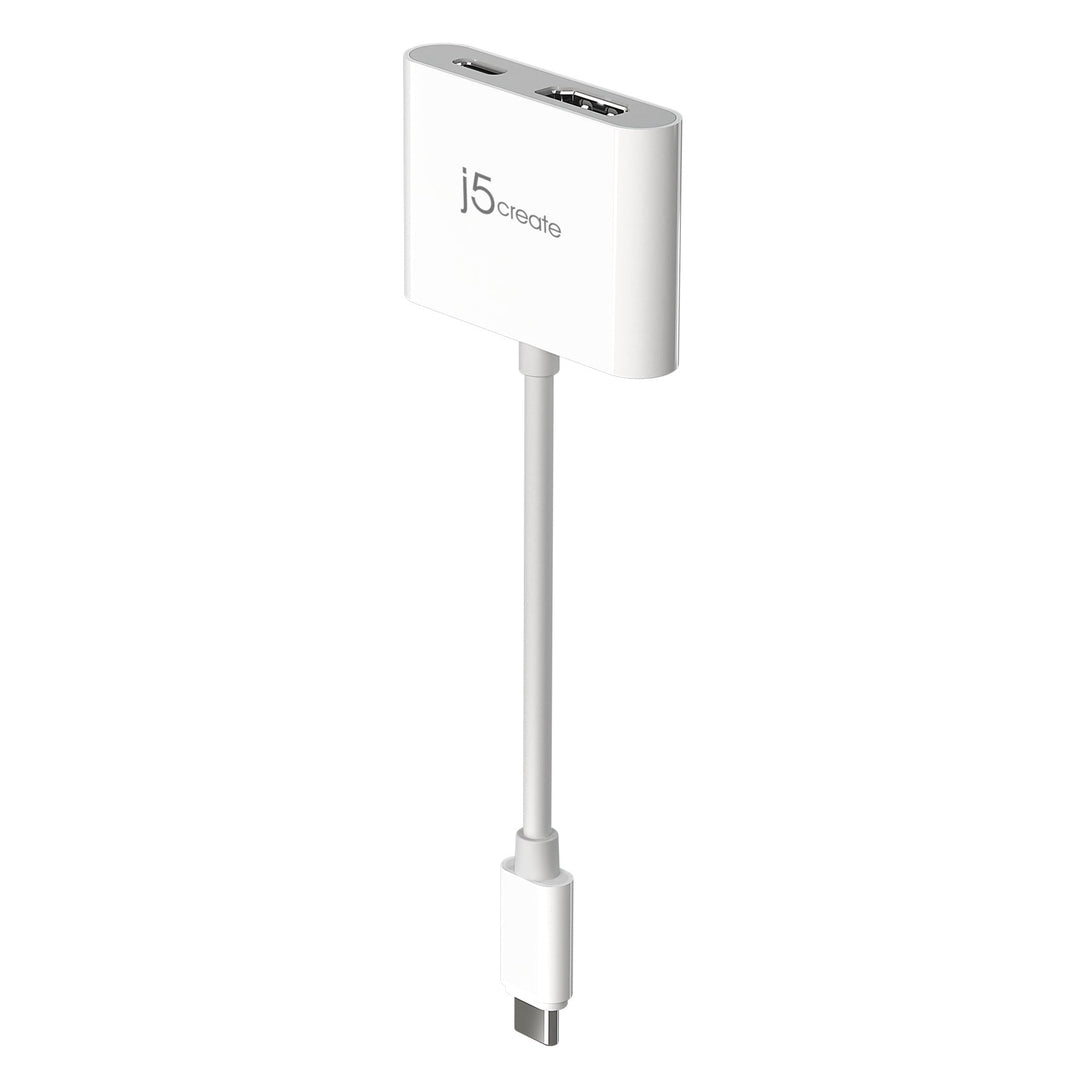

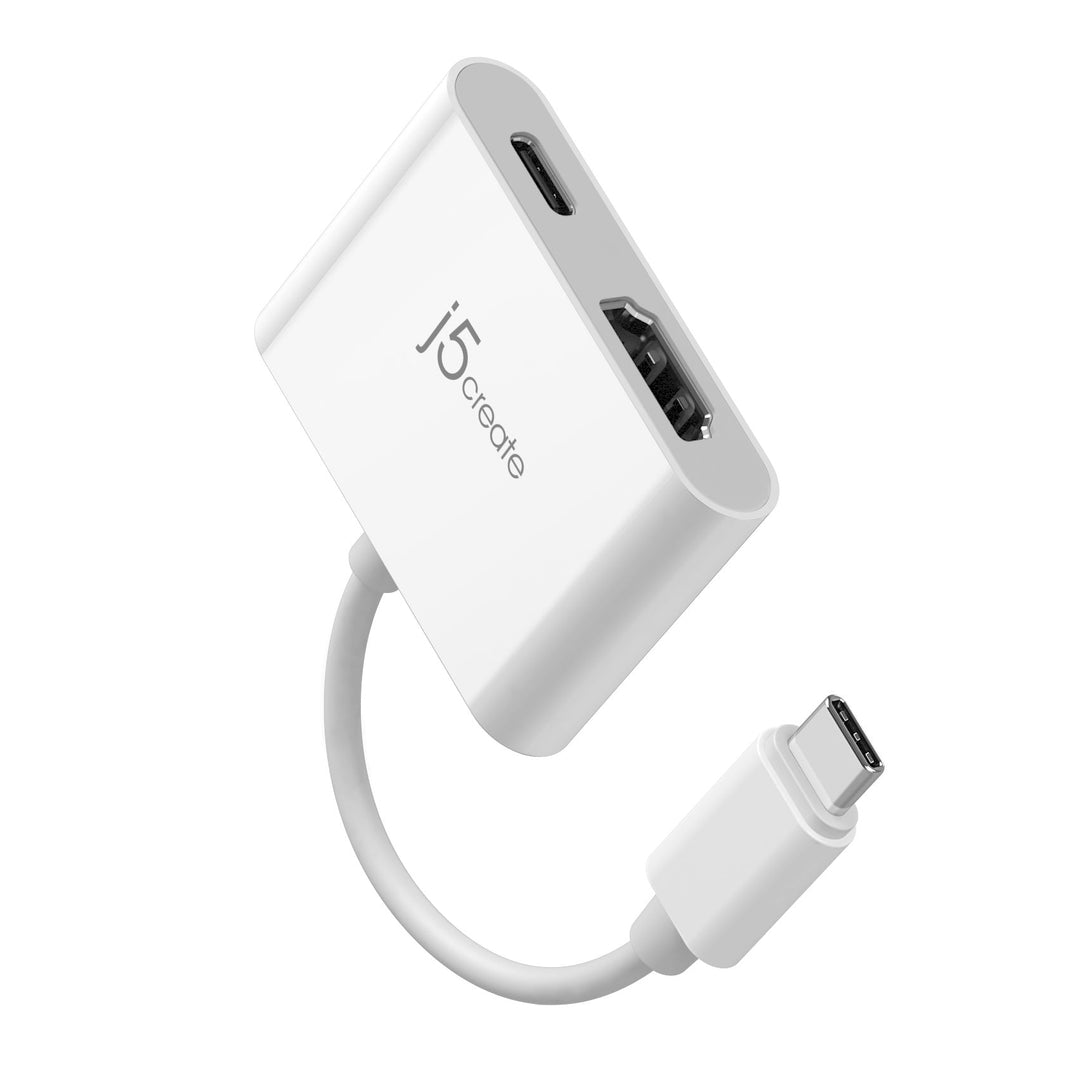

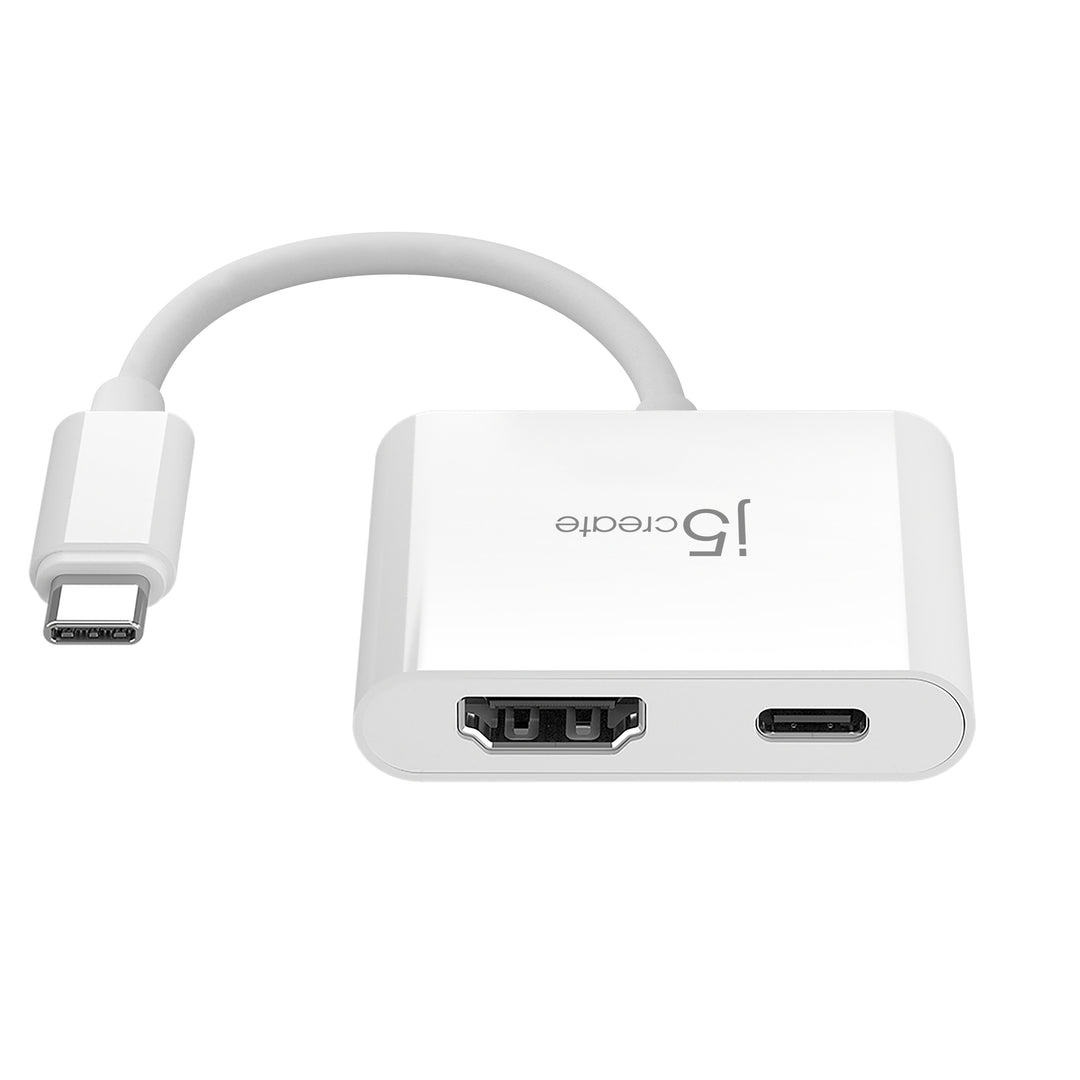

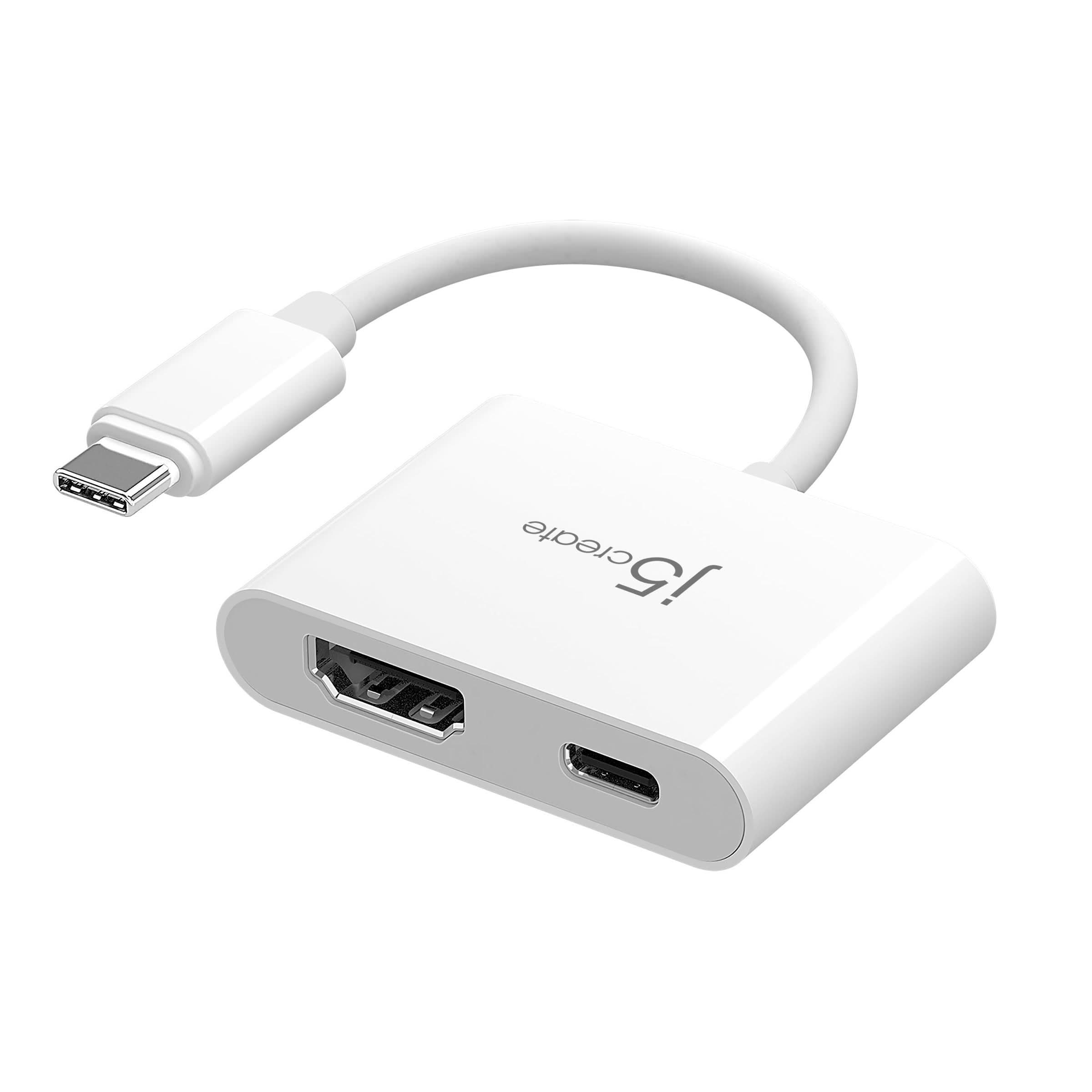

J5CREATE USB-C TO 4K HDMI WITH POWER DELIVERY ADAPTER
J5CREATE USB-C TO 4K HDMI WITH POWER DELIVERY ADAPTER
Regular price
Rs. 3,227.00
Sale price
Rs. 3,227.00
Regular price
Rs. 4,390.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About This Product
Add extra functionality to your smartphone or laptop with the JCA152 USB-C® to 4K HDMI™ Adapter with Power Delivery. This device allows you to connect to a monitor, TV, or projector with the HDMI™ port and includes a USB-C® port that offers charging up to 100W when a USB-C® power adapter is connected. The HDMI port supports 4K UHD resolution for clear picture quality and DisplayPort™ Alternate Mode for plug and play functionality. Equipped with a USB-C® Power Delivery 3.0 charging port, it offers charging up to 100W when connected to a USB-C® power adapter.
Features
- Compact and portable design for use with USB-C® smartphones, tablets, or laptops
- Power delivery passthrough provides can provide up to 100W to your computer
- Supports up to 4K resolution
- Plug and play – No need to install software or drivers
System Requirements:
-
-
- Available DisplayPort™ Alt Mode over USB-C® port for video output
- Available USB™ Power Delivery over USB-C® to support charging to a mobile device.
Special Notes:
-
-
-
DisplayPort™ Alternative mode is required to output to a display via the HDMI™ port.
- Power adapter not included. If applicable, please use your computer’s OEM power adapter.
- Your mobile device might require more power than your charger allows when using the adapter and charging your device simultaneously. To ensure the JCA152 powers and charges your mobile device while in use, a power adapter with a wattage rated higher than the OEM power adapter may be required.
Specifications
Hardware
Warranty
2 Year Limited
Host Connector
USB-C™
Video Output
HDMI™
USB-C™ Pass-Through
N/A
Power Source
Bus-powered, Self-powered
Audio Supported
Yes
Ports 1 - USB-C® 100W PD for upstream charging
1 - HDMI™ OutputPerformance
Maximum Display Resolution
3840 x 2160 @ 30 Hz
2560 x 1440 @ 144 Hz
1920 x 1080 @ 144 HzMaximum Display Refresh Rate
N/A
Displays Supported
1
Audio Channel
HDMI™ 2.1
Power
Power Delivery
Up to 100W via USB-C®
Power Consumption
≥ 350 mA
Input Current
Up to 20V
Input Voltage
Up to 5A
Output Current
Up to 20V
Output Voltage
UP to 4.75A
Physical Specifications
Color
White
Enclosure Type
ABS Plastic
Cable Length
3.23 in. (82 mm)
Product Height
0.43 in. (11 mm)
Product Width 1.97 in (50 mm)
Product Depth 1.38 in (35 mm)
Product Weight 0.69 oz / 19.5 g
Storage Temperature 14 to 140°F (-10 to 65°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 47°C)
Operating Humidity
< 85% non-condensing
Package Contents
- 1 - JCA152 USB-C® to 4K HDMI™ Adapter with Power Delivery
- 1 - Quick Installation Guide
-
