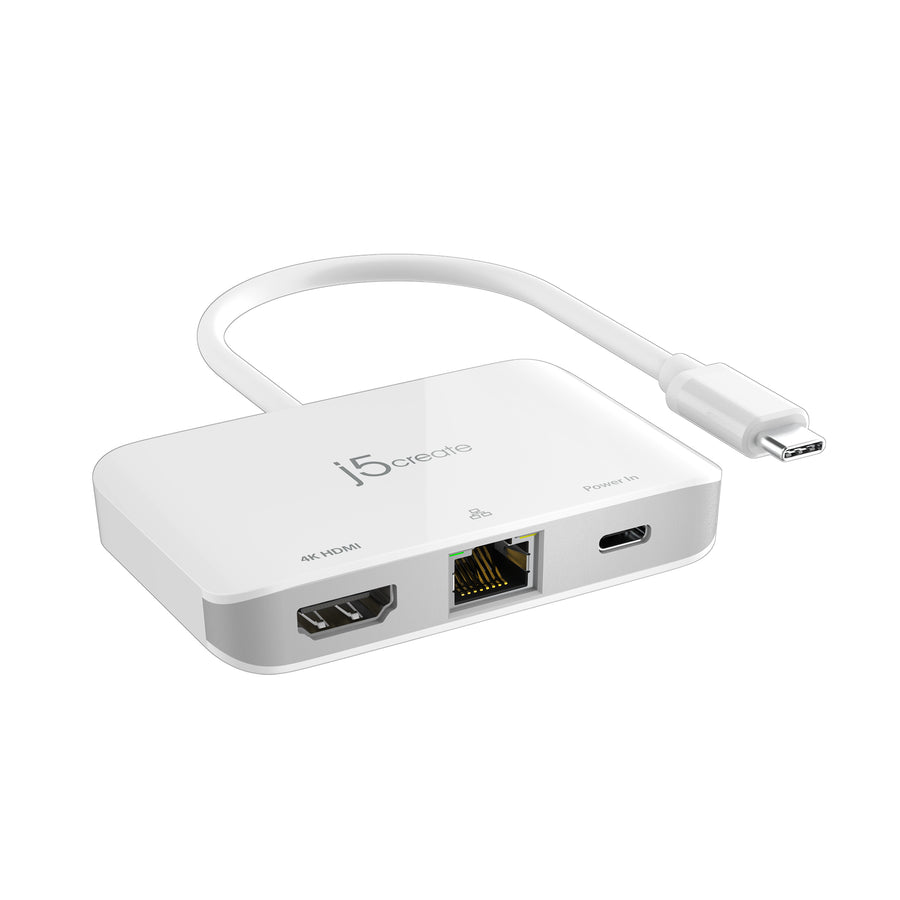

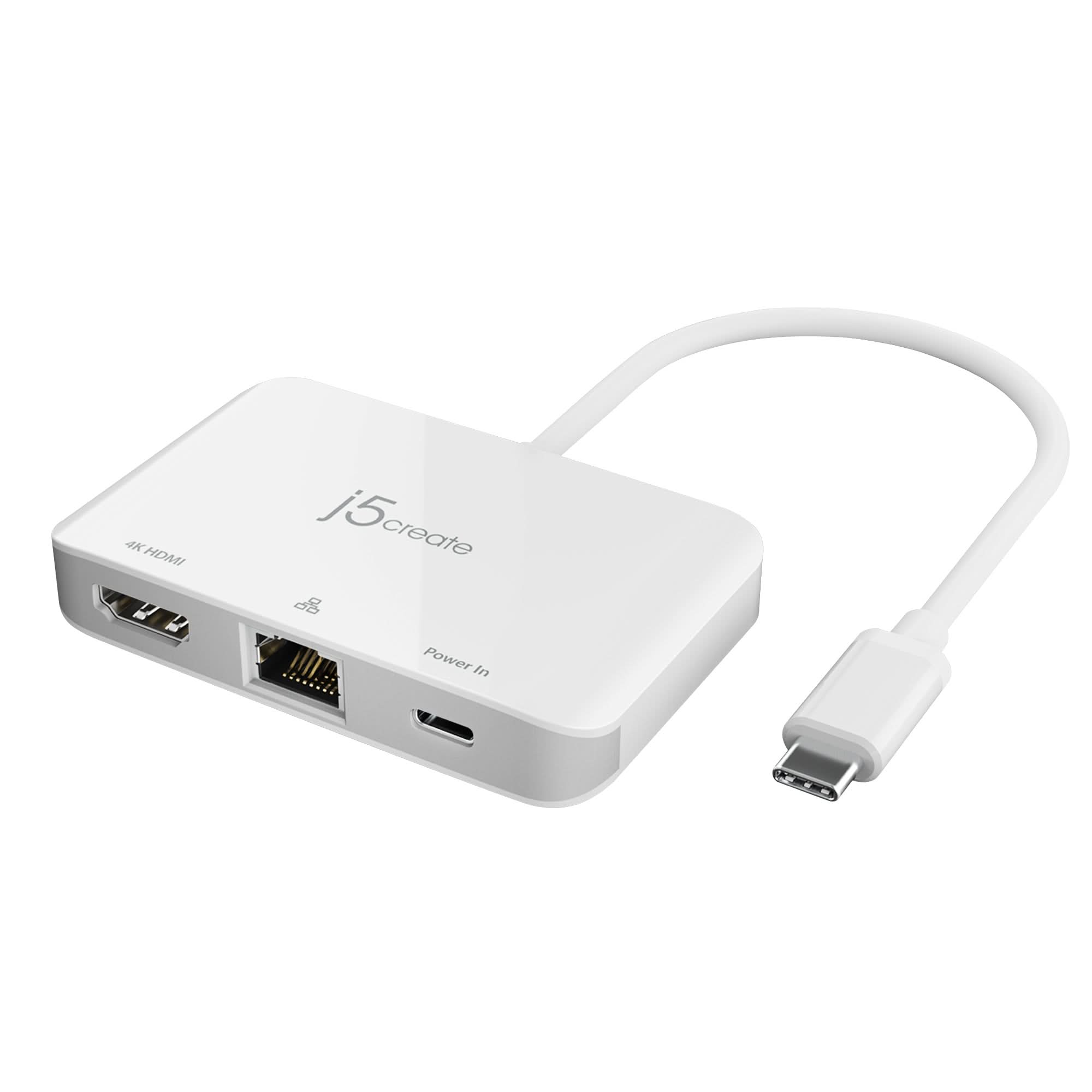

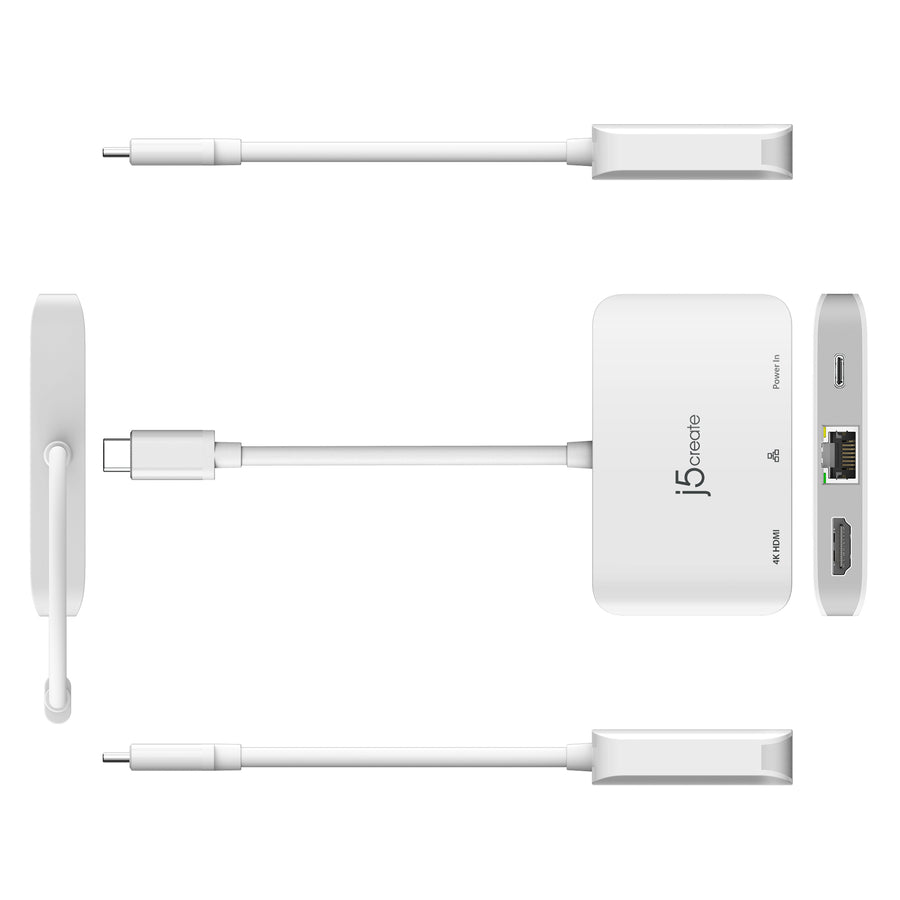

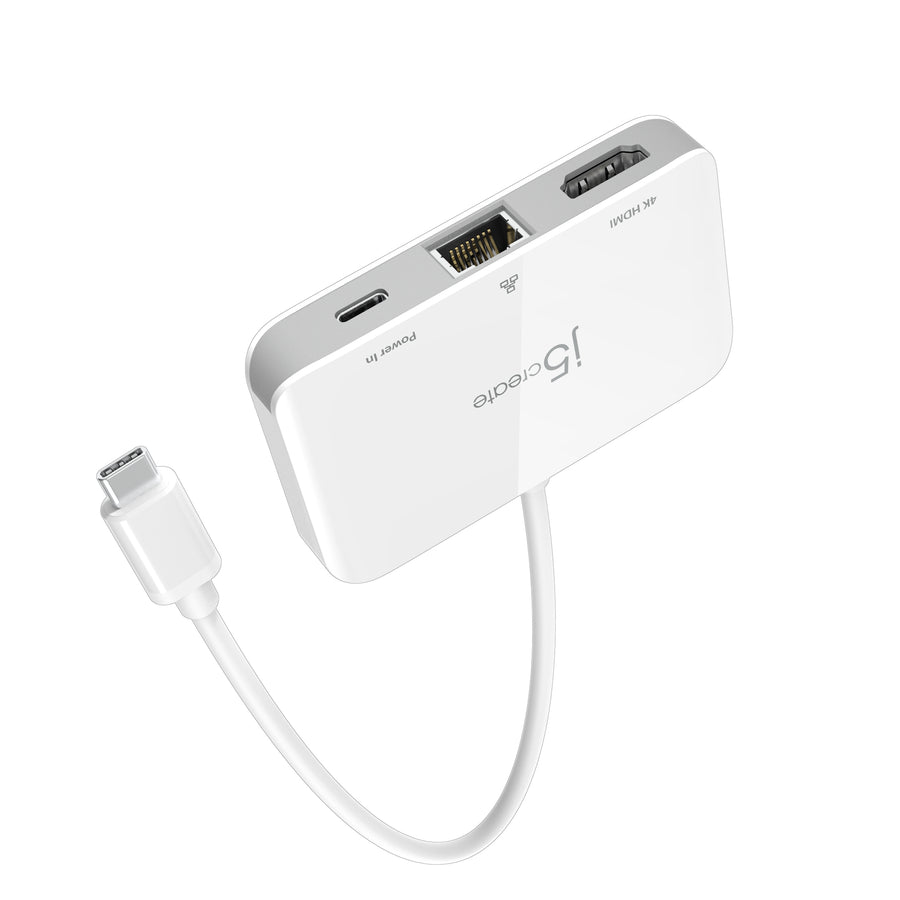

J5CREATE USB-C TO 4K HDMI ETHERNET ADAPTER
J5CREATE USB-C TO 4K HDMI ETHERNET ADAPTER
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The J5CREATE USB-C TO 4K HDMI ETHERNET ADAPTER offers a versatile, plug-and-play solution to expand your device's connectivity. Designed for efficiency, this adapter allows you to effortlessly connect to a 4K HDMI display and gain reliable Gigabit Ethernet access, all while powering your device.
Key Features at a Glance
- Plug and play functionality; no software or drivers needed.
- Power Delivery 3.0 with up to 100W passthrough.
- Reversible and symmetrical USB-C® connector.
- DisplayPort™ Alt Mode support for HDMI™ output.
- Supports resolutions up to 4K.
- Includes a Gigabit Ethernet port for reliable network access.
Seamless Display Expansion
Extend your visual workspace with support for up to 4K resolution via HDMI™. The integrated DisplayPort™ Alt Mode ensures a smooth and high-quality video output from your USB-C® device to an external display.
Reliable Network & Power
Experience stable and fast internet connections through the built-in Gigabit Ethernet port. Additionally, the Power Delivery 3.0 feature supports up to 100W of power passthrough, allowing you to charge your device while using the adapter.
Effortless Connectivity
Enjoy immediate functionality with this plug-and-play adapter, requiring no additional software or driver installations. Its reversible and symmetrical USB-C® connector ensures a hassle-free connection every time, simplifying your setup.
Technical Specifications
| Specification | Details |
|---|---|
| Hardware | |
| Audio Supported | Yes |
| Host Connector | USB-C® |
| Ports | 1 – USB-C® PD for upstream charging |
| 1 – 4K HDMI™ Output | |
| 1 – Gigabit Ethernet | |
| Power Source | Bus-Powered, Self-powered |
| USB Pass-Through | N/A |
| Video Output | HDMI™ |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Displays Supported | 1 |
| Max Data Transfer Rate | N/A |
| Max Display Refresh Rate | 30 Hz |
| Max Display Resolution | 3840 x 2160 |
| Power | |
| PD Input Current | Up to 20V |
| PD Input Voltage | Up to 5A |
| PD Output Current | Up to 20A |
| PD Output Voltage | Up to 4.5A |
| Power Consumption | ≤ 350 mA |
| Power Delivery | Up to 100W via USB-C® |
| Physical Specifications | |
| Cable Length | 7.87 in. (20 cm) |
| Color | White |
| Enclosure Type | ABS Plastic |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 47°C) |
| Product Depth | 0.55 in. (14 mm) |
| Product Height | 1.96 in. (50 mm) |
| Product Weight | 1.83 oz (52 g) |
| Product Width | 3.14 in. (80 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 140°F (-10 to 65°C) |
| Package Contents | |
| 1 - JCA351 USB-C® to 4K HDMI™ Ethernet Adapter | |
| 1 - Quick Installation Guide (QIG) |
Frequently Asked Questions
Q: Does this adapter require any special software or drivers to function?
A: No, this adapter is designed for plug-and-play operation, meaning no software or drivers are required for use.
Q: What is the maximum power delivery supported by this adapter?
A: The adapter features Power Delivery 3.0, providing up to 100W of power passthrough to your device.
Q: What is the maximum display resolution supported by this adapter?
A: This adapter supports display resolutions up to 4K via its HDMI™ port.
