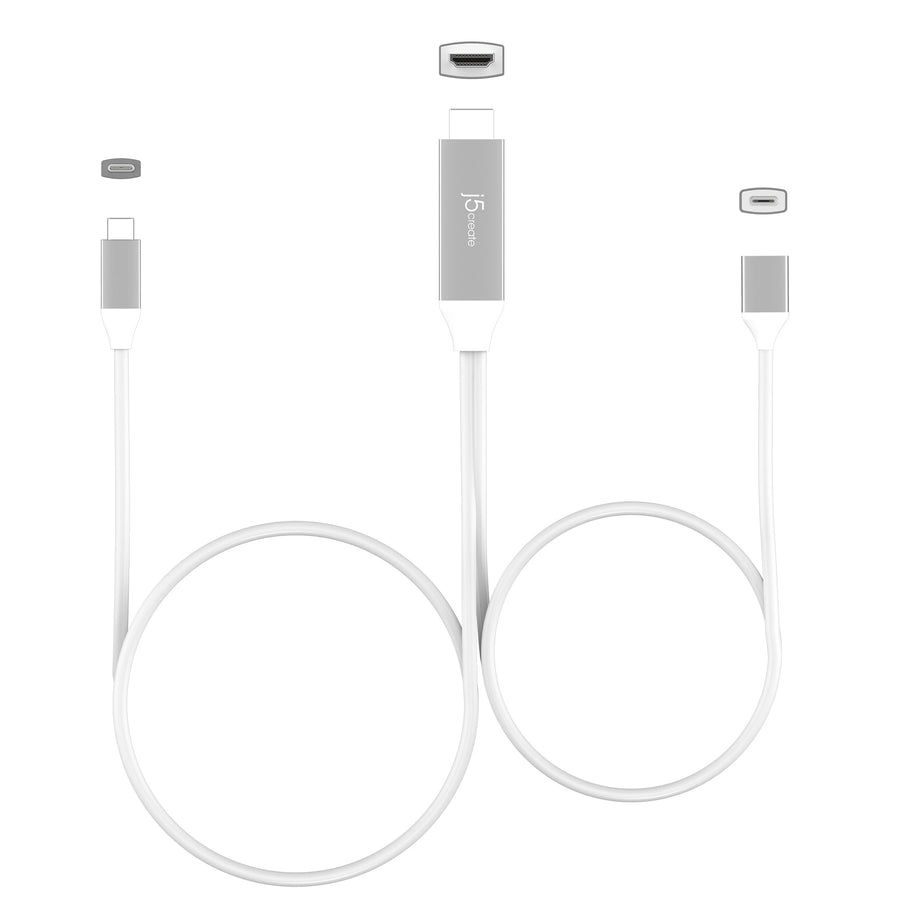

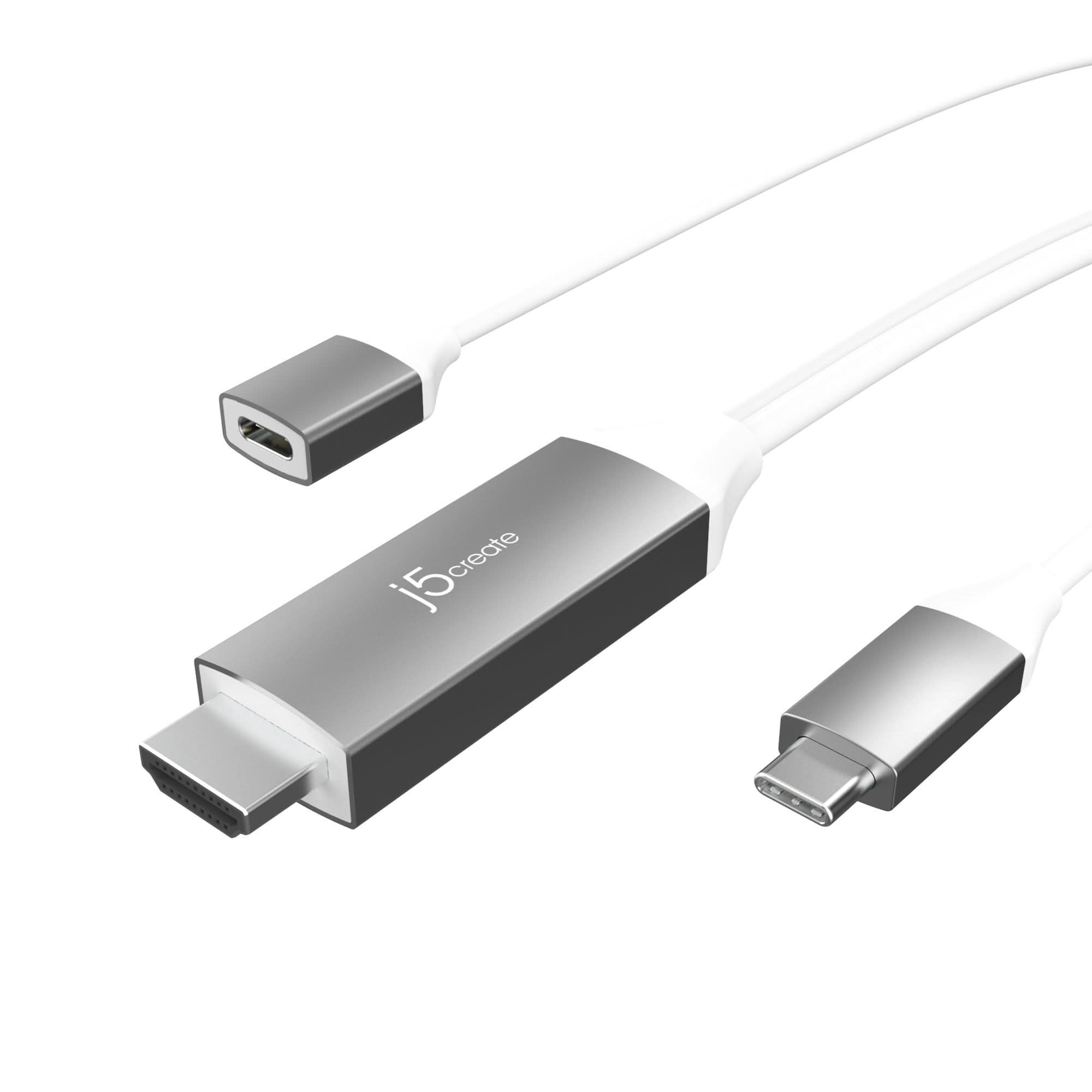

The J5CREATE USB-C TO 4K HDMI CABLE WITH PD100W PASS-THROUGH offers a seamless solution for expanding your device's capabilities. This versatile cable allows you to connect your USB-C® enabled laptop, tablet, or smartphone to a 4K HDMI display, all while providing essential pass-through charging.
Key Features at a Glance
- Plug-and-play functionality, no software required.
- HDMI™ 2.0 compliant for 4K @ 60 Hz video output.
- Features an additional USB-C® port for power delivery.
- Supports up to 100W of pass-through charging (with compatible PD charger).
- Ideal for USB-C® laptops, tablets, and smartphones.
Effortless Plug-and-Play Setup
Experience immediate connectivity without the need for additional software or drivers. Simply connect this cable to your USB-C® device and HDMI display to start extending your screen or mirroring content instantly.
Stunning 4K Visuals
Enjoy crystal-clear resolution with support for 4K @ 60 Hz video output, compliant with HDMI™ 2.0 specifications. This ensures a vibrant and smooth viewing experience for all your multimedia content, presentations, or gaming.
Simultaneous Power and Display
Keep your device charged while it's connected to an external display. The integrated USB-C® port allows you to connect a USB-C® Power Delivery (PD) charger, delivering up to 100W of charging power directly to your laptop, tablet, or smartphone.
Wide USB-C® Device Compatibility
Designed as an ideal accessory for a broad range of modern devices, including laptops, tablets, and smartphones equipped with a USB-C® port. It simplifies your setup by combining video output and power into a single, convenient cable.
Technical Specifications
| Specification | Details |
|---|---|
| Hardware | |
| Cable Jacket Type | PVC |
| Cable Shield Type | Aluminum |
| Connector A | 1 - USB-C® Male1 - USB-C® Female for Charging |
| Connector B | 1 - HDMI™ Male |
| Warranty | 1 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Displays Supported | 1 |
| Max Data Transfer Rate | 18 Gbps |
| Max Display Refresh Rate | 60 Hz |
| Max Display Resolution | 3840 x 2160 |
| Wide Screen Supported | Yes |
| Physical Specifications | |

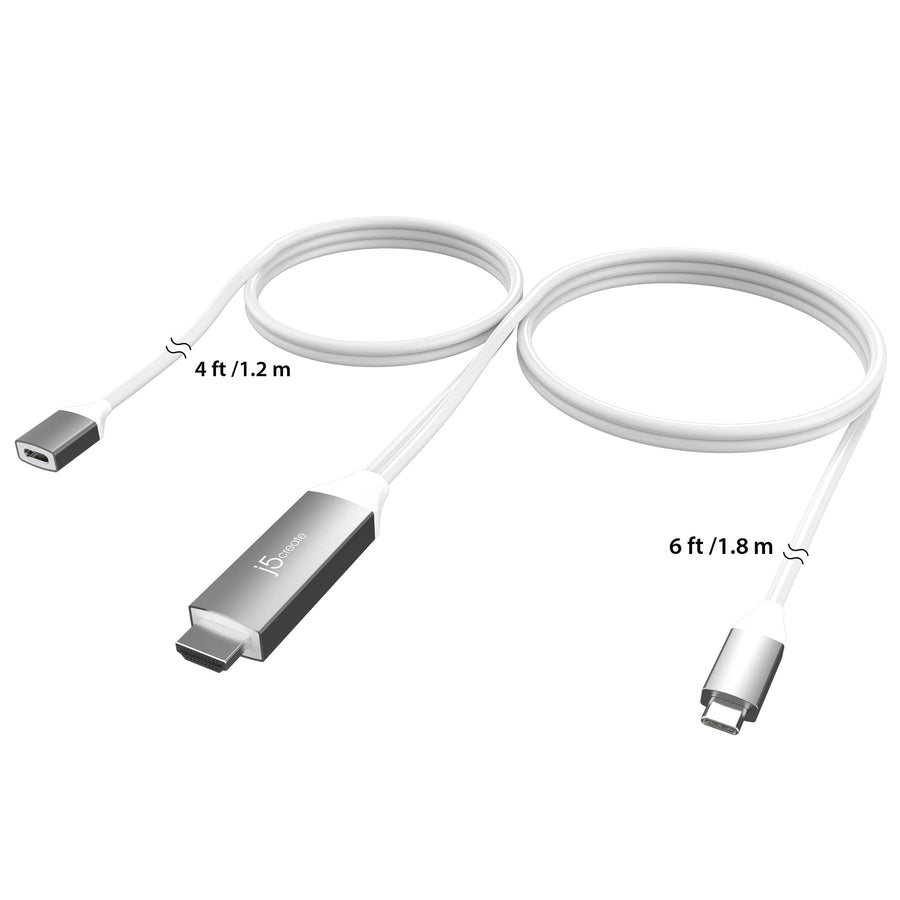

| Cable Length | USB-C® cable: 6 ft. (180 cm)USB-C® female cable: 4 ft. (120 cm) |
| Color | Gray & White |
| Connector Type | N/A |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Product Depth | 0.45 in (11.6 mm) |
| Product Height | 0.79 in (20.2 mm) |
| Product Weight | 2.20 oz (62.5 g) |
| Product Width | 2.58 in (65.6 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 160°F (-10 to 71°C) |
| Package Contents | |
| 1 - JCC155G USB-C® to 4K HDMI™ Cable with PD 100W Pass-Through | |
| 1 - Quick Installation Guide |
Frequently Asked Questions
Q: Is software required to use the J5CREATE USB-C TO 4K HDMI CABLE?
A: No, this cable is designed for plug-and-play functionality, meaning no additional software or drivers are required for operation.
Q: What is the maximum video resolution supported by this cable?
A: The cable supports 4K @ 60 Hz video output, compliant with HDMI™ 2.0 specifications.
Q: Can I charge my device while it's connected to a display using this cable?
A: Yes, the cable features an additional USB-C® port that allows you to connect a USB-C® PD charger for up to 100W of pass-through charging.
