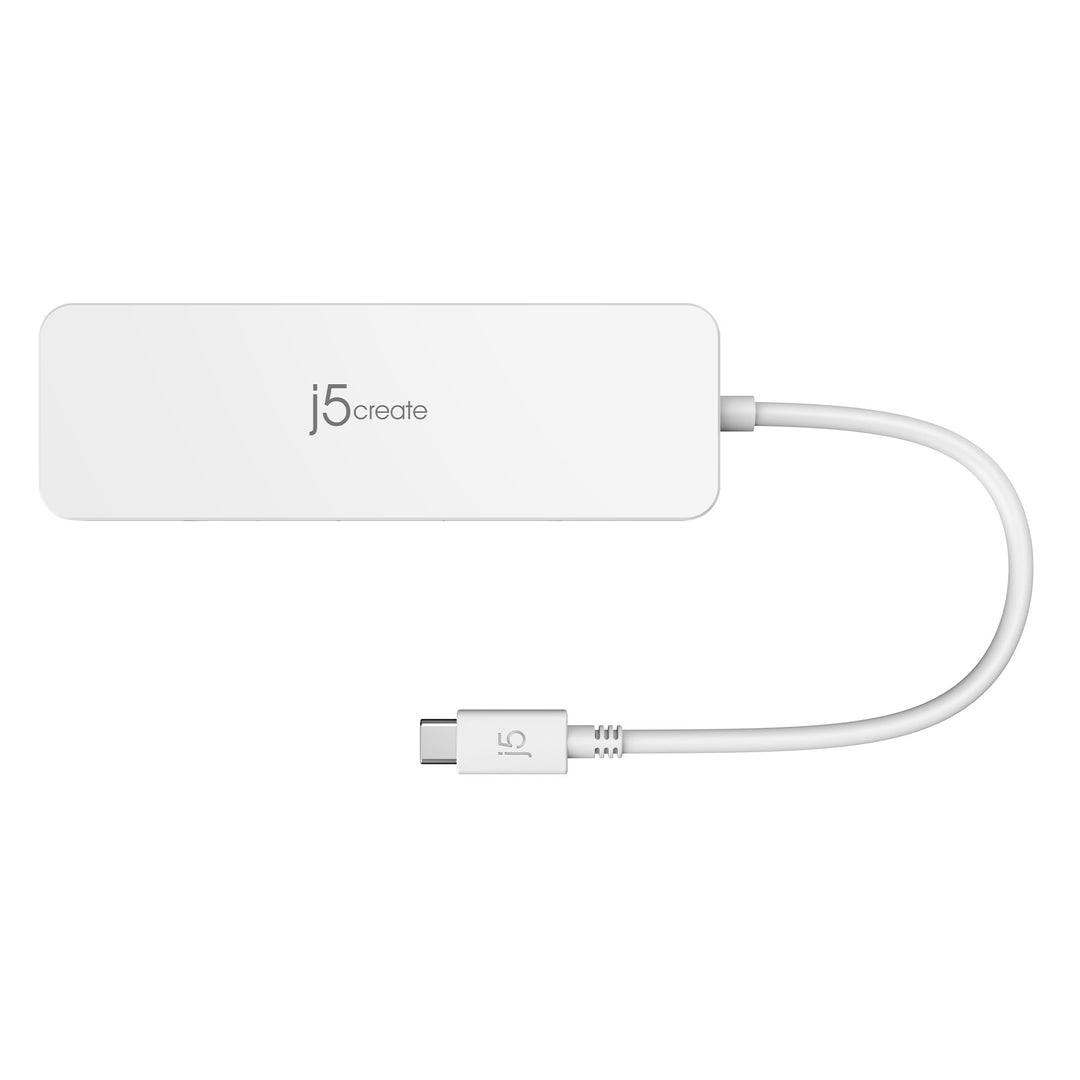

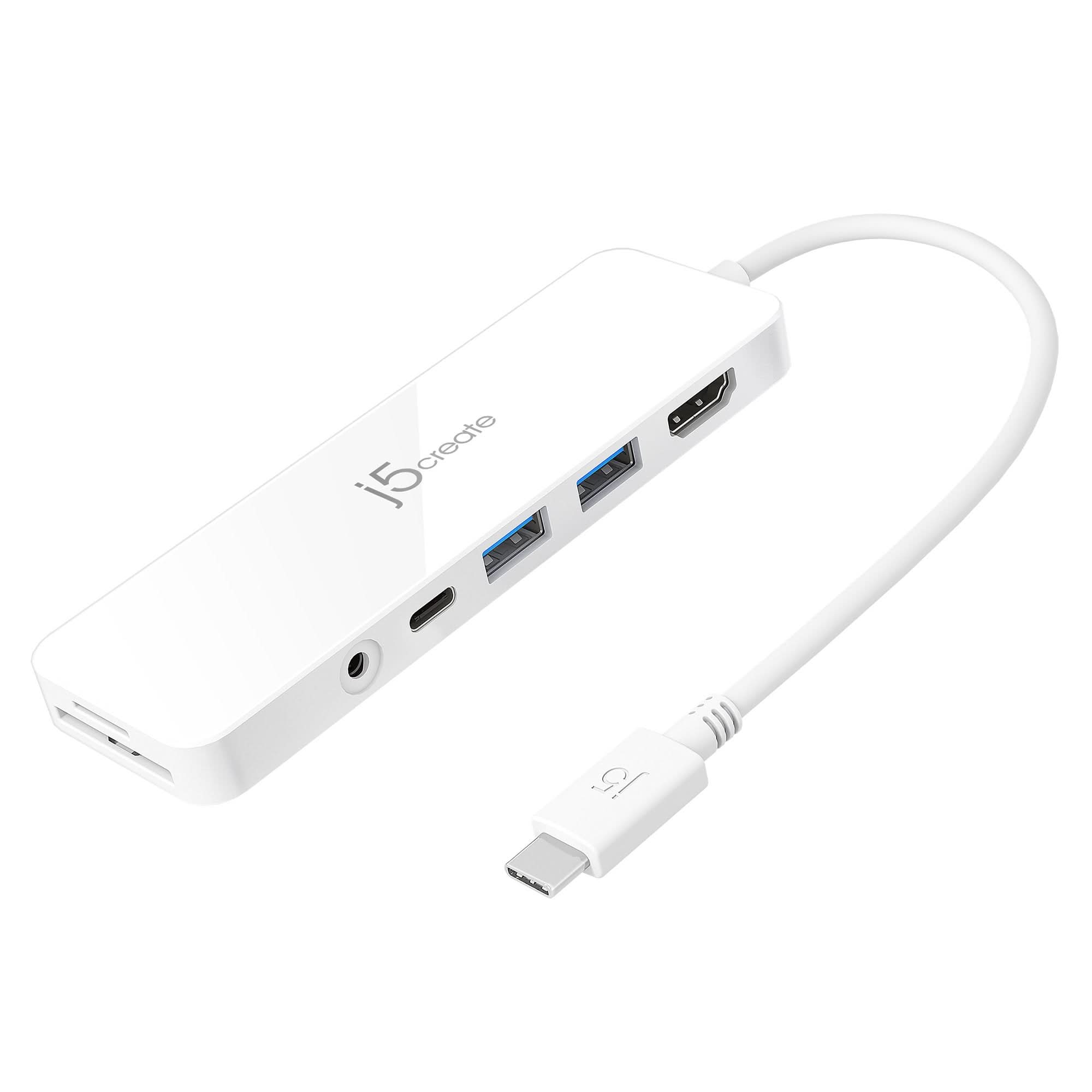

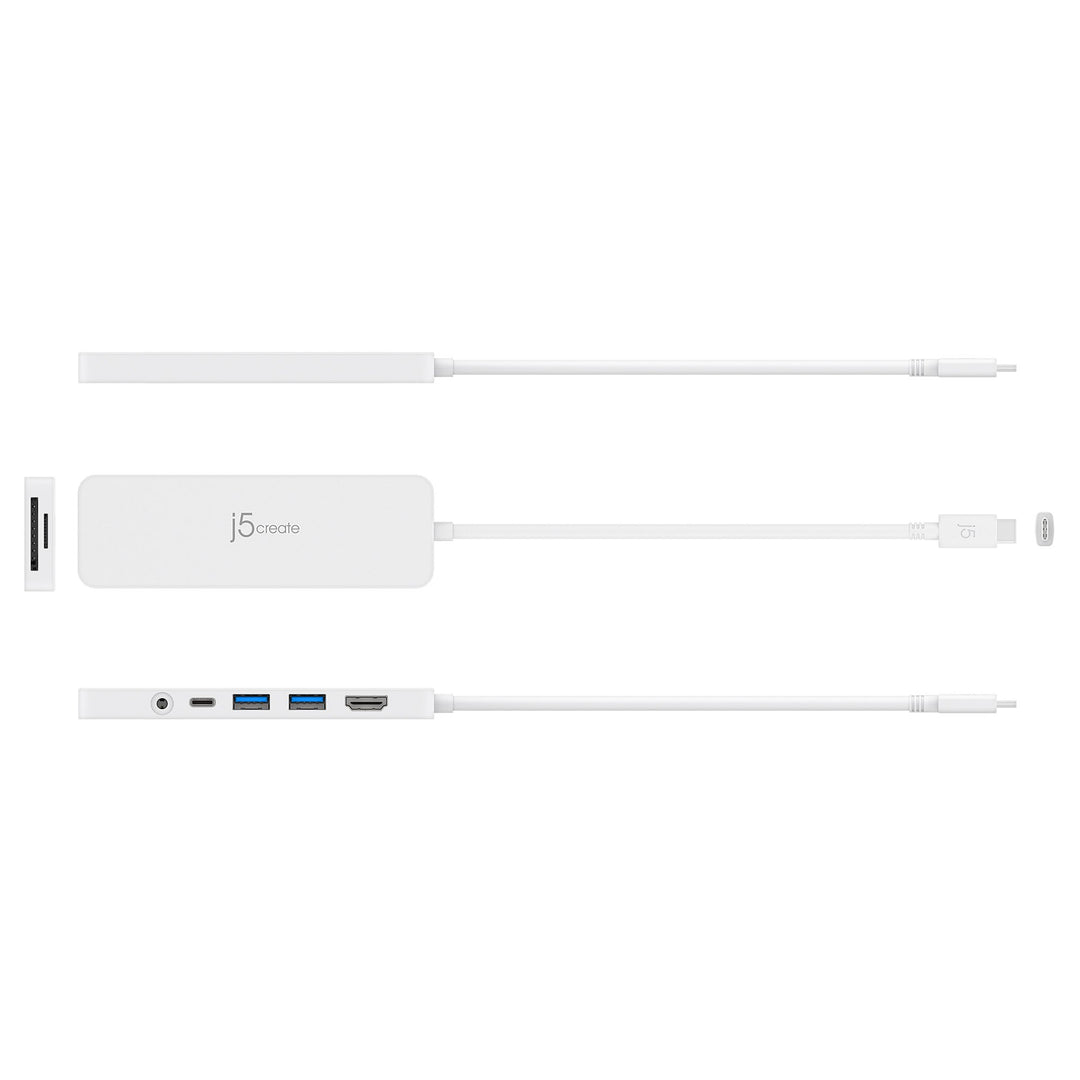

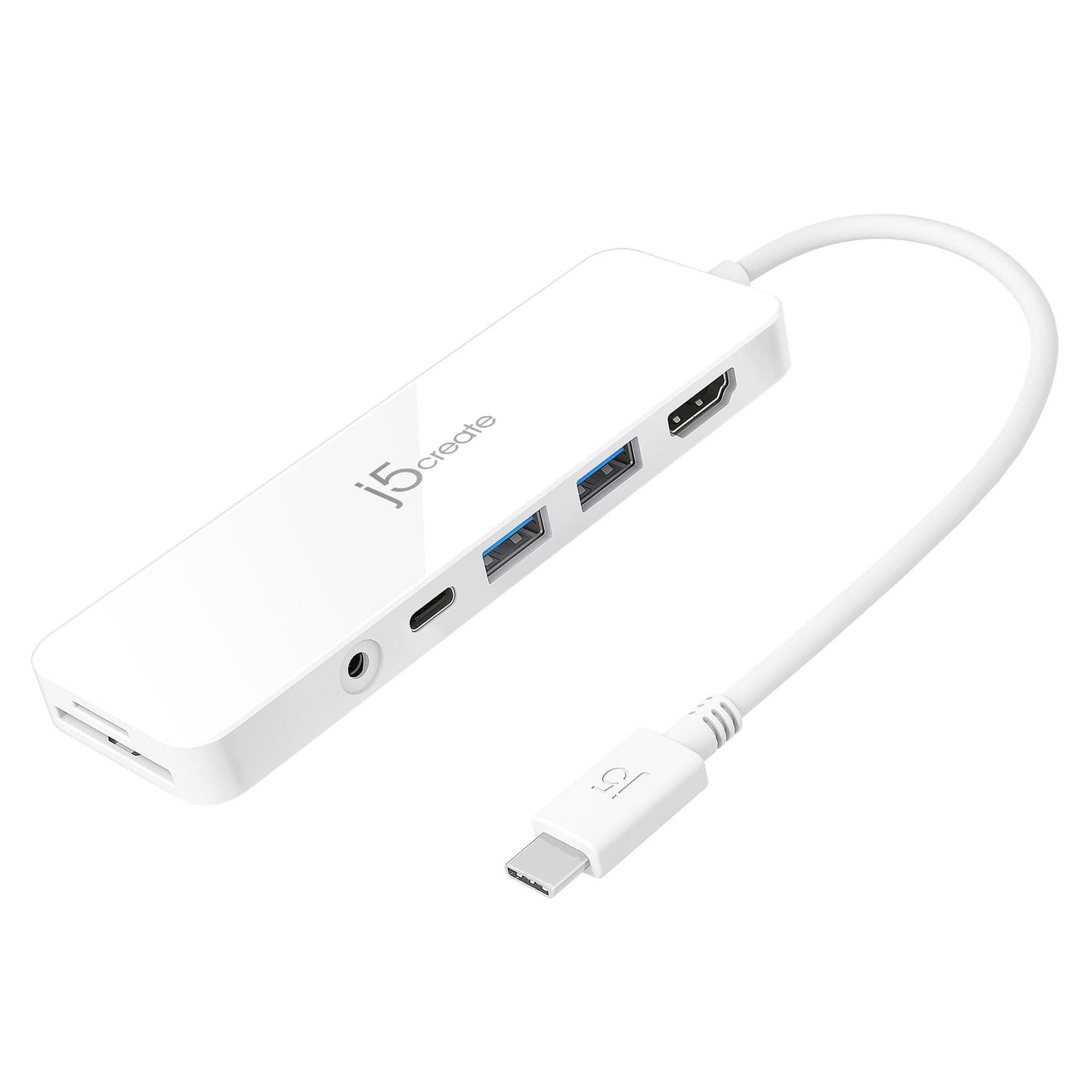

The J5CREATE USB-C MULTI-PORT HUB WITH POWER DELIVERY expands connectivity for your computer. This pocket-sized multi-adapter allows you to connect essential peripherals while providing charging capabilities and direct media access, all in a compact design.
Key Features at a Glance
- Ultra slim and lightweight design for portability.
- Features 2 x USB 3.1 Gen 1 ports with up to 5 Gbps transfer speed.
- HDMI port supports resolutions up to 4K @ 30 Hz.
- USB-C Power Delivery 3.0 offers up to 60W of charging power.
- Memory card reader/writer slots support SD and microSD up to 2 TB.
- Includes a 3.5 mm audio/mic combo jack.
- Plug-and-play functionality requires no driver installation.
Expand Your Connectivity
Connect an external keyboard, mouse, or USB flash drive using the two USB 3.1 Type-A ports, offering high-speed data transmission up to 5 Gbps for quick and easy file transfers.
Streamline Visuals and Power
Mirror or extend your screen with the HDMI port, directly outputting 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector. The equipped USB-C Power Delivery 3.0 port delivers up to 60W of charging power when connected to a USB-C power adapter.
Access Your Media and Audio
Gain direct access to your SD and microSD memory cards through the integrated reader/writer slots, with support for external memory up to 2 TB and data transfer speeds up to 104 MB/s for SD 3.0 UHS-I. The 3.5 mm audio/mic combo jack allows you to conveniently connect your headphone set or speakers.
Technical Specifications
| Hardware | |
|
Warranty |
2-Year Limited |
|
Host Connector |
1 - USB-C® 3.1 male |
|
Video Output |
1 - HDMI™ Female |
|
Power Source |
Bus-powered or self-powered |
|
Network Interface |
N/A |
|
Audio Supported |
Yes |
|
Ports |
2 - USB™ Type-A 3.1 Gen 1 |
|
Performance |
|
|
Maximum Display Resolution |
3840 x 2160 |
|
Maximum Display Refresh Rate |
30 Hz |
|
Maximum Data Transfer Rate |
5 Gbps |
|
Displays Supported |
1 |
|
Compatible Networks |
N/A |
|
Audio Channel |
3.5 mm audio/mic combo jack |
| Power | |
|
Power Delivery |
Up to 60W via USB-C® |
|
Power Consumption |
400 mA |
|
Input Current |
Up to 3A |
|
Input Voltage |
Up to 20V |
|
Output Current |
Up to 3A |
|
Output Voltage |
Up to 20V |
|
Physical Specifications |
|
|
Color |
White |
|
Enclosure Type |
ABS Plastic |
|
Cable Length |
5.9 in. (150 mm) |
|
Product Height |
4.8 in. (122 mm) |
|
Product Width |
1.53 in. (39 mm) |
|
Product Depth |
0.43 in. (11 mm) |
|
Product Weight |
1.8 oz (51g) |
|
Storage Temperature |
0 to 155°F (-17 to 68°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
30 to 116°F (-1 to 41°C) |
|
Operating Humidity |
< 85% non-condensing |
Frequently Asked Questions
Q: What are the system requirements for this hub?
A: An available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0 is required. Please refer to your hardware manufacturer for specific device information.
Q: What is included in the package?
A: The package includes one JCD373 USB-C Multi-Port Hub with Power Delivery and one Quick Installation Guide.
Q: Are there any special considerations for 4K resolution or high-powered USB devices?
A: A 4K-capable display is required to achieve the 3840 x 2160 resolution. If using high-powered USB devices, attach a USB-C power adapter to the power delivery port for maximum performance. For optimal file copying and performance, use a computer and USB-C power adapter equipped with PD 3.0, and do not remove the power adapter while copying files.
