J5CREATE USB-C DUAL 4K HDMI DOCK
J5CREATE USB-C DUAL 4K HDMI DOCK
Regular price
Rs. 10,797.00
Sale price
Rs. 10,797.00
Regular price
Rs. 14,690.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About the item

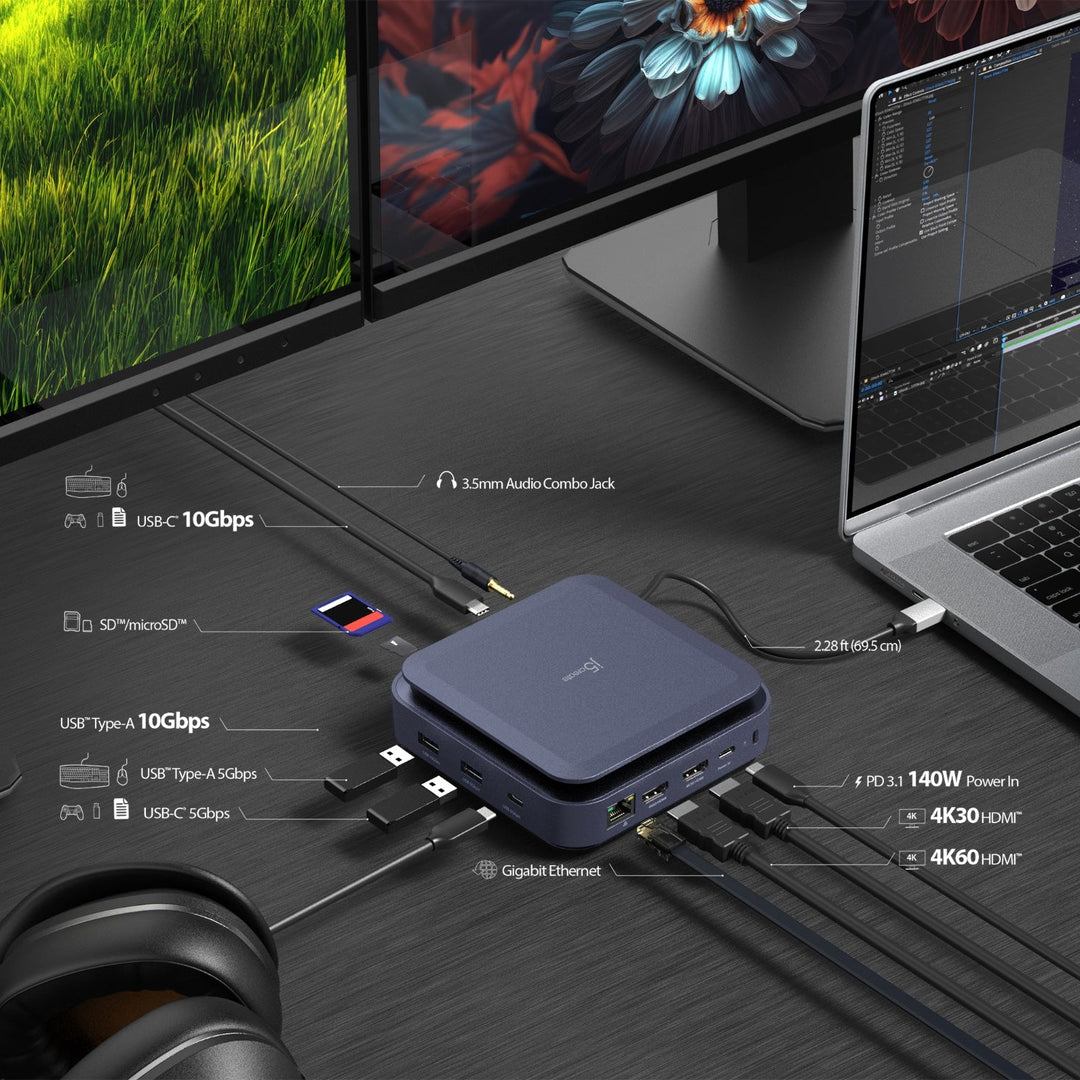

- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host.
- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
- Reliable network connectivity via the Gigabit Ethernet
- Includes SD™/microSD™ card reader
- Cable storage compartment
- Security lock
Specifications
| Specification | Details |
|---|---|
| Audio Supported | Yes |
| Host Connector | 1 - USB-C® Male (PD 3.1 130W, 28V / 4.65A) |
| Network Interface | Yes |
| Ports | 1 - USB-C® PD-in PD3.1 140W (28V/5A) |
| 2 - USB-C® 5Gbps & 10Gbps | |
| 2 - USB™ Type-A 5Gbps & 10Gbps | |
| 1 - Combo 3.5mm Audio Jack | |
| 1 - HDMI™ (USB™ display max resolution 4K@30Hz) | |
| 1 - HDMI™ (DP™-Alt max resolution 4K@60Hz) | |
| 1 - RJ45 Gigabit Ethernet | |
| 1 - SD™/microSD™ 3.0 | |
| Power Source | Bus-powered or self-powered |
| Video Output | 2 - HDMI™ Female |
| Warranty | 2 Year Limited |
| Performance | 2.1 Audio Channel via HDMI™ |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 2 |
| Max Data Transfer Rate | 10Gbps |
| Max Display Refresh Rate | 60 Hz |
| Max Display Resolution | 3840 x 2160 |
| Power | Input Current: Up to 5A |
| Input Voltage: Up to 28V | |
| Output Current: Up to 4.65A | |
| Output Voltage: Up to 28V | |
| Power Consumption: ≤ 900 mA | |
| Power Delivery: Up to 140W via USB-C® | |
| Physical Specifications | Cable Length: 2.28 ft (69.5 cm) |
| Color: Dark Blue | |
| Enclosure Type: Plastic | |
| Operating Humidity: < 85% non-condensing | |
| Operating Temperature: 30 to 116°F (-1 to 41°C) | |
| Product Depth: Body: 5.12 in. (130 mm) | |
| Holder: 3.15 in. (80 mm) | |
| Product Height: Body: 1.71 in. (43.5 mm) | |
| Holder: 1.3 in. (33 mm) | |
| Product Weight: Body: 14.7 oz (416 g) | |
| Holder: 0.8 oz (22 g) | |
| Product Width: Body: 5.12 in. (130 mm) | |
| Holder: 5.12 in. (130 mm) | |
| Storage Humidity: < 85% non-condensing | |
| Storage Temperature: 0 to 155°F (-17 to 68°C) | |
| Package Contents | 1 - JCD3196 Type-C Dock Dual 4K HDMI™ |

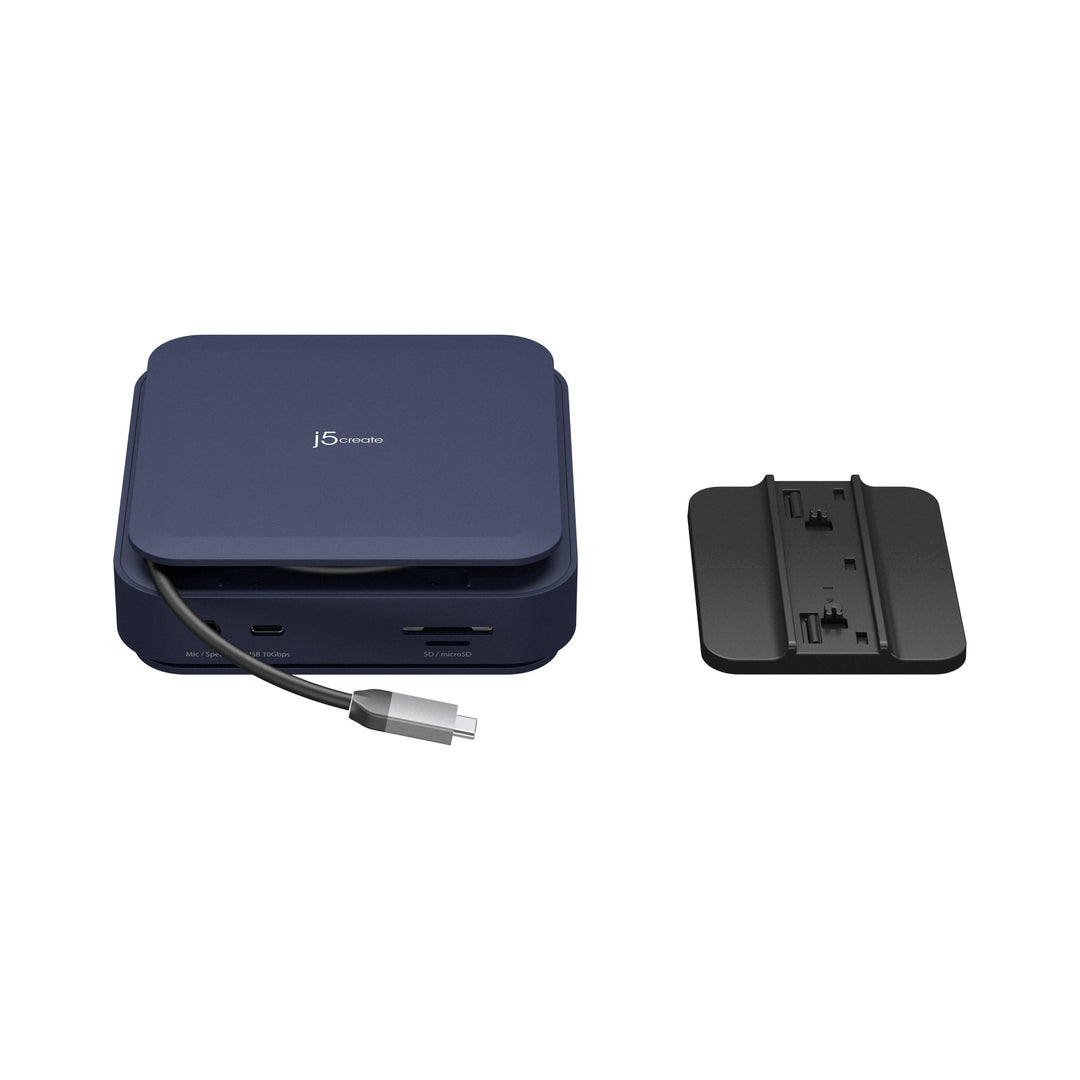

| 1 - Dock Holder | |
| 1 - Quick Installation Guide (QIG) |
