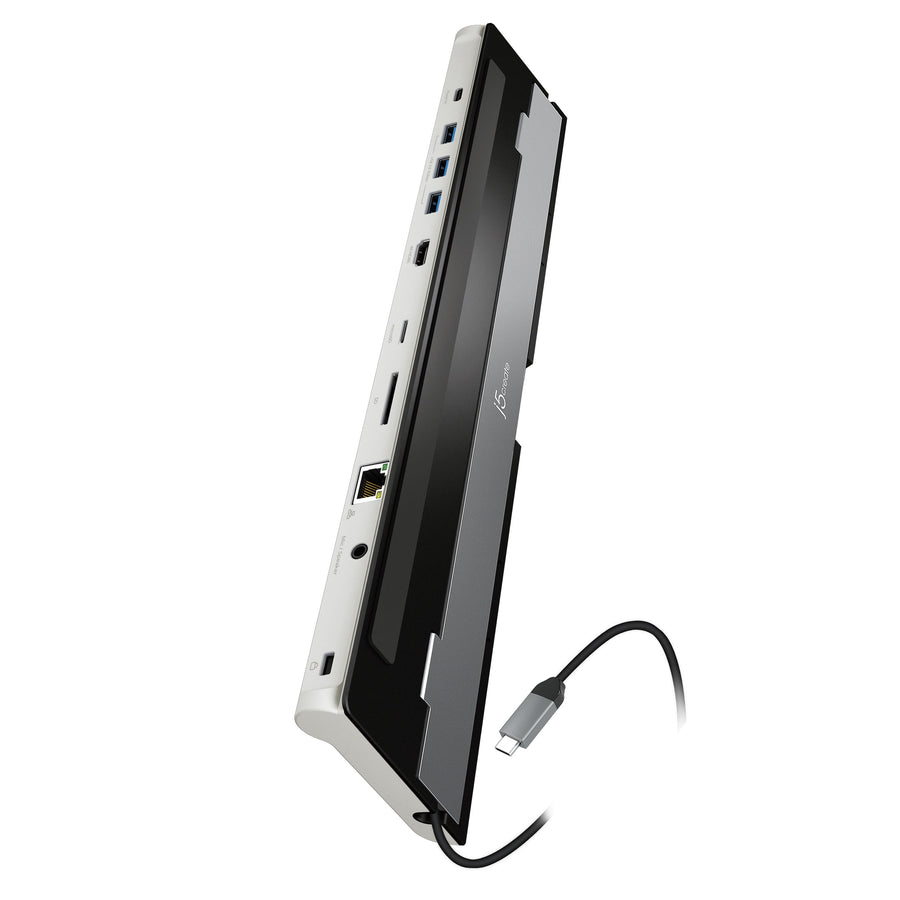

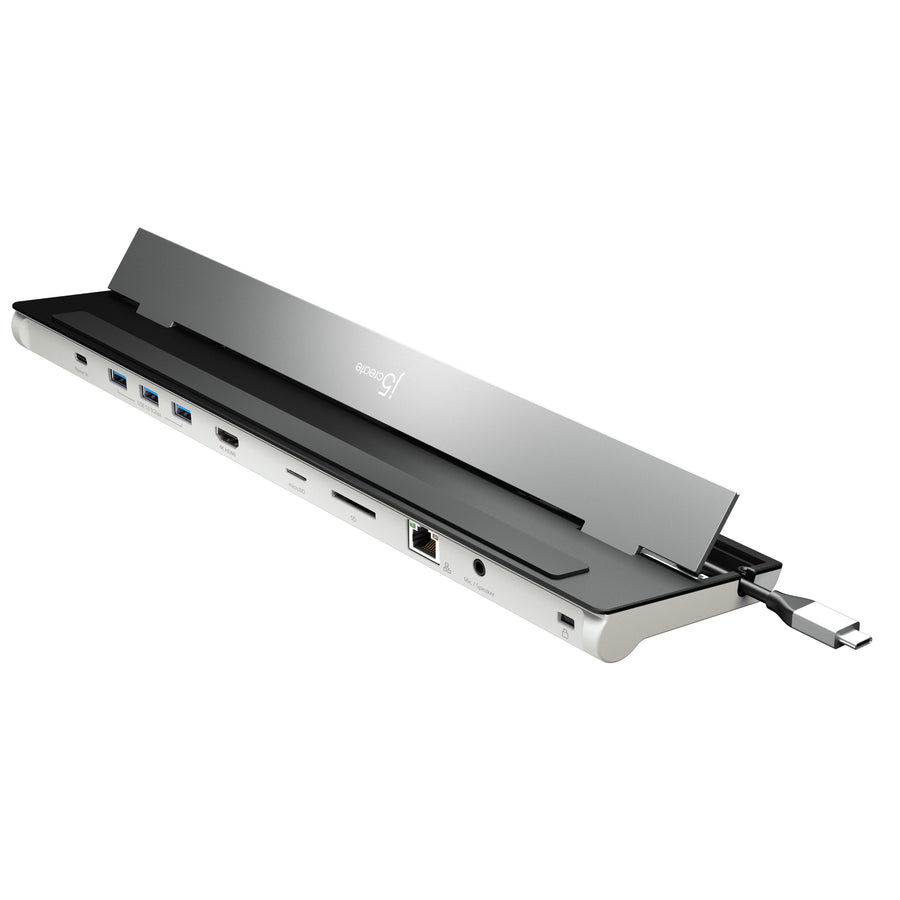

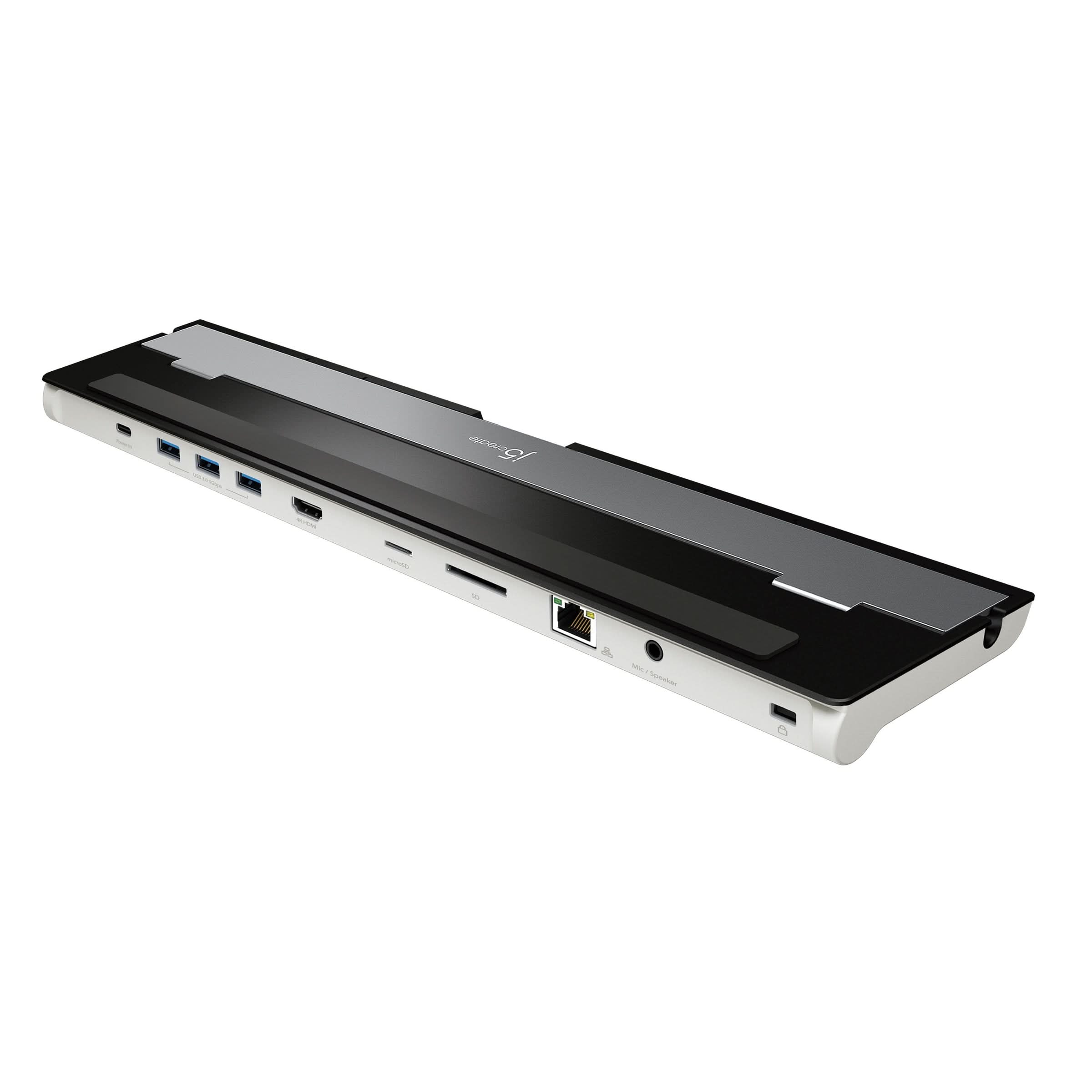

The J5CREATE USB-C 4K HDMI DOCKING STATION WITH POWER DELIVERY offers a comprehensive solution for expanding your laptop's capabilities. Easily connect to a 4K HDMI display, power your devices, and access essential peripherals all through a single USB-C connection, enhancing your productivity and workspace.
Key Features at a Glance
- Connects to a 4K HDMI™ display with DisplayPort™ Alt Mode over USB-C®.
- Up to 100W power pass-through to charge your laptop and power peripherals.
- Features 3 x USB™ ports for connecting and charging your devices.
- Reliable network connectivity through a Gigabit Ethernet port.
- Direct access to SD™ & microSD™ memory cards.
- Includes a 3.5mm audio jack for microphone/headphones.
Expanded Visuals
Experience stunning 4K visuals by easily connecting your laptop to an external HDMI display. This docking station supports DisplayPort™ Alt Mode over USB-C®, ensuring a crisp and clear viewing experience for presentations, streaming, or an extended workspace.
Power and Connectivity
Streamline your setup with robust power delivery and ample connectivity. Charge your laptop with up to 100W pass-through power while connecting and charging up to three USB™ devices simultaneously, eliminating the need for multiple adapters.
Data and Network Access
Quickly transfer files and ensure stable network access with integrated SD™ and microSD™ card slots, alongside a reliable Gigabit Ethernet port. A convenient 3.5mm audio jack also allows for easy connection of your headphones or microphone.
Technical Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Audio Supported | Yes |
| Host Connector | USB-C® Male |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 - USB-C® Power Delivery 3.0 |
| 3 - USB™ 3.0 Type-A | |
| 1 - 4K HDMI™ | |
| 1 - SD™ & microSD™ Memory Card Reader/Writer | |
| 1 - RJ45 Gigabit Ethernet | |
| 1 - 3.5 mm Combo Audio Jack | |
| Power Source | Bus-powered |
| Video Output | 1 - HDMI™ Female |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ / 3.5 mm Aux |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 1 |
| Max Data Transfer Rate | 5 Gbps |
| Max Display Refresh Rate | 30 Hz |
| Max Display Resolution | 3840 x 2160 |
| Power | |
| Input Current | 5A |
| Input Voltage | 20V |
| Output Current | 5A |
| Output Voltage | 20V |
| Power Consumption | ≤ 900 mA |
| Power Delivery | Up to 100W via USB-C® |
| Physical Specifications | |
| Cable Length | 1.48 ft (45 cm) |
| Color | Grey & Black |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Product Depth | 13.79 in. (350.18 mm) |
| Product Height | 0.87 in. (21.98 mm) |
| Product Weight | 10.58 oz (300 g) |
| Product Width | 3.25 in. (82.46 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Package Contents | |
| 1 - JCD533 USB-C® 4K HDMI™ Docking Station with Power Delivery | |
| 1 - Quick Installation Guide (QIG) |
Frequently Asked Questions
Q: Does this docking station support 4K resolution?
A: Yes, it supports connecting to a 4K HDMI™ display with DisplayPort™ Alt Mode over USB-C®.
Q: Can I charge my laptop through this docking station?
A: Yes, it offers up to 100W power pass-through to charge your laptop when used with a compatible USB-C® power adapter (not included).
Q: What types of memory cards can I use with this device?
A: The docking station provides direct access to both SD™ & microSD™ memory cards for data storage and transfer.
