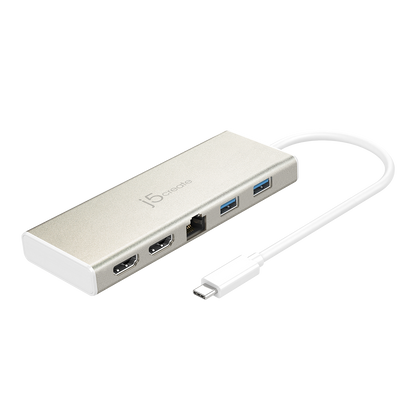

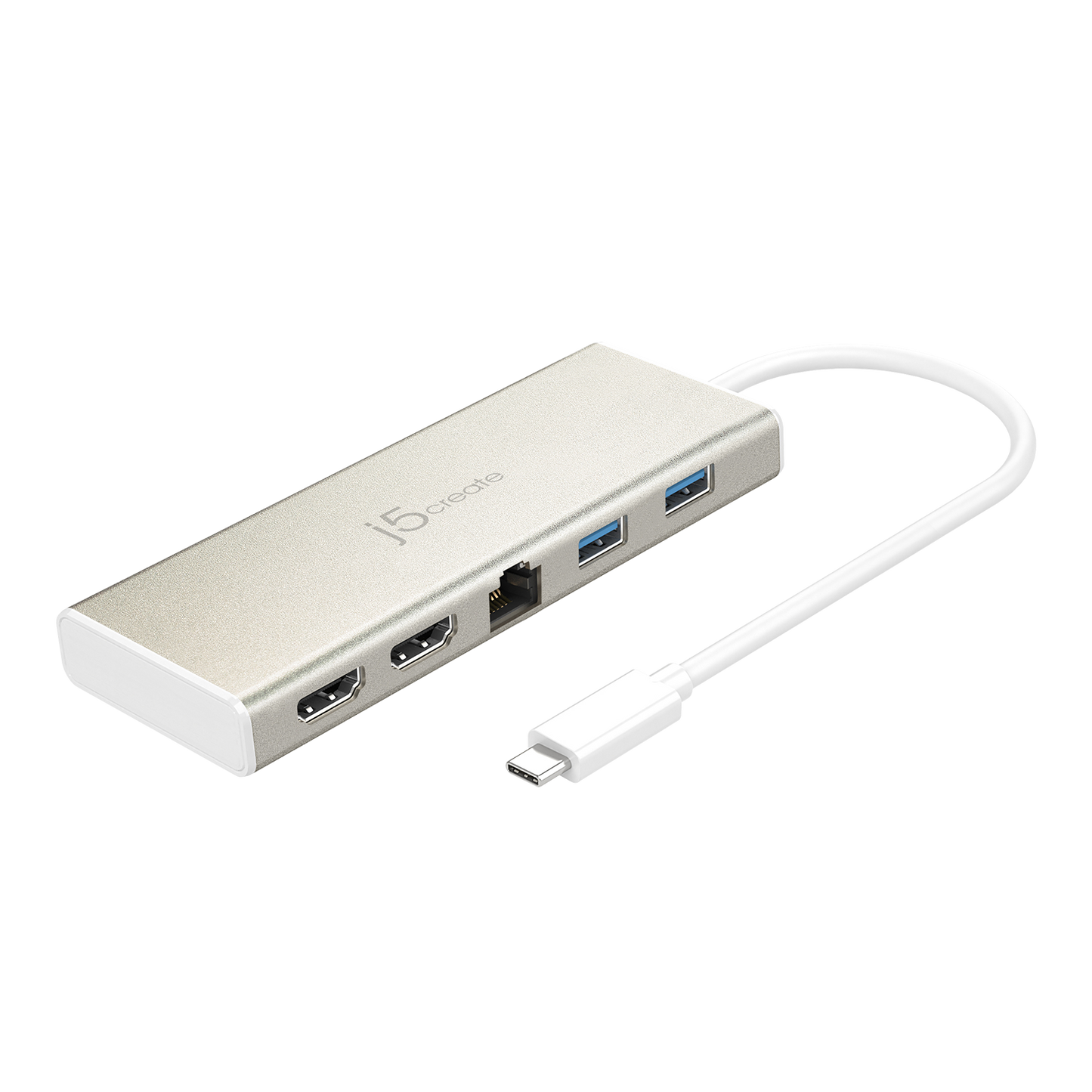

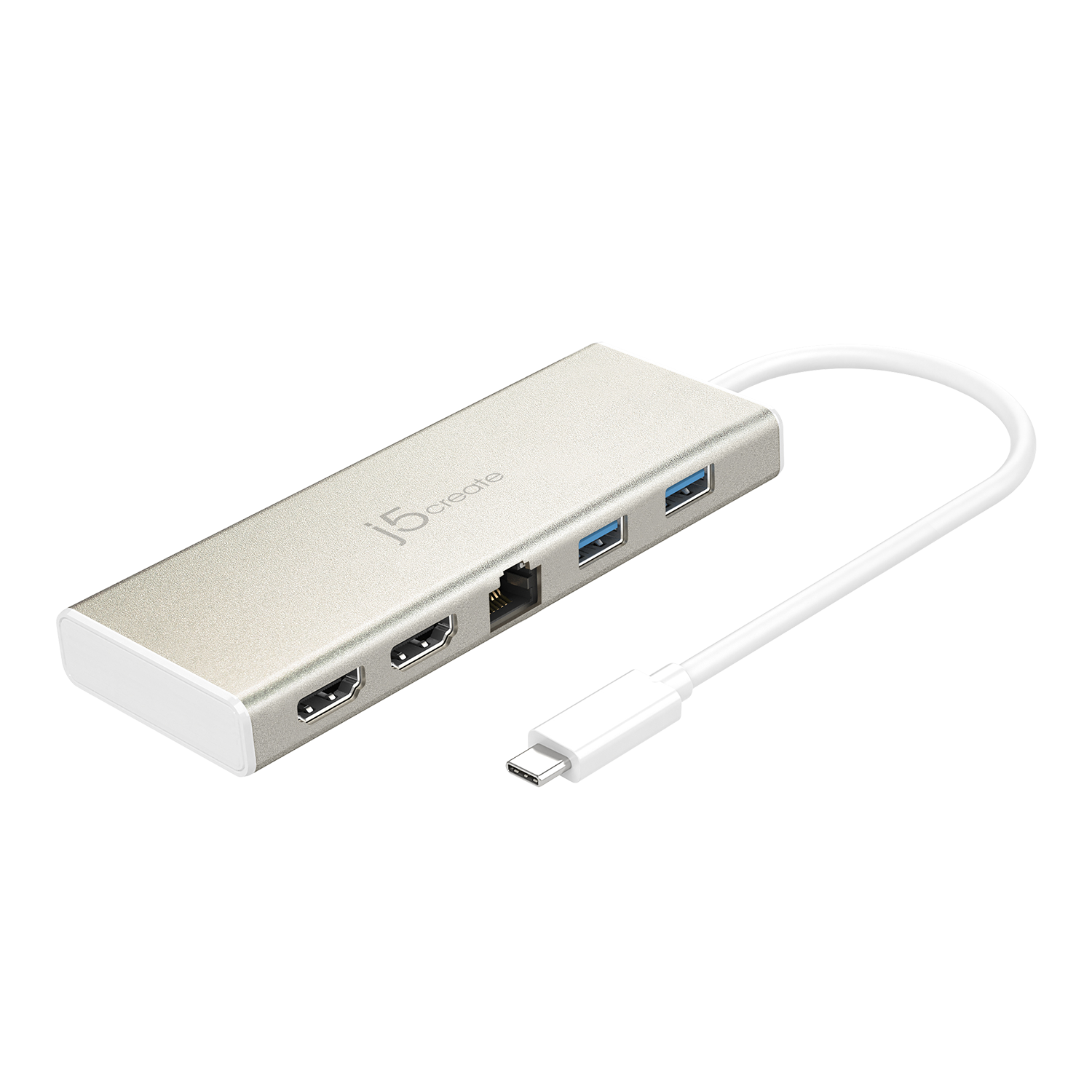

The J5CREATE ULTRADRIVE KIT USB-C Multi-Display Modular Dock 11 IN 1 provides comprehensive connectivity for your USB-C computer. This compact USB-C® Dual HDMI™ Mini Dock allows you to easily expand your display options, add essential peripherals, and ensure reliable network access, all while supporting power delivery for your devices on the go.
Key Features at a Glance
- Dual HDMI™ outputs for adding a 4K or two 2K displays.
- USB-C® Power Delivery 2.0 provides charging power to connected devices.
- Two SuperSpeed USB™ 3.0 ports offering 5 Gbps transfer rates.
- Reliable Gigabit Ethernet port for stable network connectivity.
- Compact and lightweight design for enhanced portability.
- Hot-swappable USB™ ports allow adding or removing monitors without system reboot.

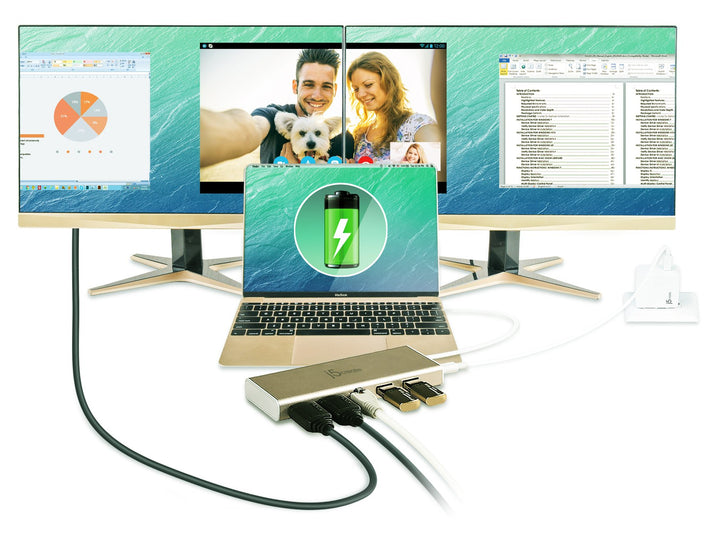

Expand Your Visual Workspace
Effortlessly connect up to two HDMI™ monitors to your USB-C® computer. Add a single 4K display or expand to two 2K displays, with one port supporting resolutions up to 4K and the other up to 1080p or 2K (2048 x 1152) when both are in use. This multi-display capability enhances productivity for any task.
Seamless Peripheral & Network Integration
Integrate your essential USB™ computer peripherals with two available USB™ ports, featuring SuperSpeed USB™ 3.0 for rapid data transfer rates up to 5 Gbps, which is 10 times faster than USB™ 2.0. Ensure reliable and fast internet access with the built-in Gigabit Ethernet port, providing a stable connection for streaming, downloads, and online work.
Power Your Devices On-The-Go
Utilize the USB-C® Power Delivery 2.0 feature to charge your connected devices, including your laptop or smartphone, directly through the dock when connected to a power source. Its compact and lightweight design makes it an ideal travel companion, providing essential connectivity wherever you work.
Technical Specifications
System Requirements:
- Operating Systems: Windows® 10 or later, macOS® 10.14 or later.
- Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0 (USB™ 3.0 is recommended).
Minimum System Recommendations for Performance:
- For office applications / web browsing: Intel® Core™ i3 Dual Core 2.8 GHz CPU, 2 GB RAM or higher.
- For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback: Intel® Core™ i5 Quad Core CPU, 4 GB RAM or higher.
- For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback: Intel® Core™ i7 Quad Core CPU, 8 GB RAM or higher.
|
Hardware |
|
|
Warranty |
2-Year Limited |
|
Host Connector |
1 - USB-C™ Male |
|
Video Output |
2 - HDMI™ Female |
|
Power Source |
Bus-powered or self-powered |
|
Network Interface |
Yes |
|
Audio Supported |
Yes |
| Ports |
1 - USB-C® Power Delivery 2.0 |
|
Performance |
|
|
Maximum Display Resolution |
Dual Displays: Single Display: |
|
Maximum Display Refresh Rate |
4K @ 30 Hz |
|
Maximum Data Transfer Rate |
5 Gbps |
|
Displays Supported |
2 |
|
Compatible Networks |
10/100/1000 Mbps |
|
Audio Channel |
HDMI™ 2.1 |
|
Power |
|
|
Power Delivery |
Up to 60W via USB-C® |
|
Power Consumption |
≤ 450mA |
|
Input Current |
Up to 3A |
|
Input Voltage |
Up to 20V |
|
Output Current |
Up to 3A |
|
Output Voltage |
Up to 20V |
|
Physical Specifications |
|
|
Color |
Champagne Metallic |
|
Enclosure Type |
Aluminum |
|
Cable Length |
7.8 in. (198.12mm) |
|
Product Height |
2.1 In. (54 mm) |
| Product Width |
5.1 In. (130 mm) |
| Product Depth |
0.6 In. (15 mm) |
| Product Weight |
4.00 oz (113.5 g) |
| Storage Temperature |
14 to 140°F (-10 to 65°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
32 to 98°F (0 to 37°C) |
|
Operating Humidity |
< 85% non-condensing |
Frequently Asked Questions
Q: Do I need to install drivers for this dock?
A: Yes, driver installation is required for macOS® and Windows® systems. If your computer has network access and administrative rights, Windows® can often automatically install the driver when the device is plugged in.
Q: Will this dock provide power to my laptop?
A: When connected to a power source, the USB-C® input charging port supports USB-C® Power Delivery 2.0, allowing you to charge your laptop or smartphone. The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device. For maximum performance with high-powered USB devices, attach a USB-C® power adapter.
Q: What display resolutions are supported by the HDMI ports?
A: One of the HDMI™ ports can output resolutions up to 4K (3840 x 2160). The other HDMI™ port can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use. A 4K-capable display is required to achieve the highest resolution.
