About This Product
Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.
Features
• Wirelessly cast full HD content from your mobile device to a larger TV or display
• With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon Prime Video™, Hulu™, DISNEY+™, and more
• Supports 1080p HD video
• Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience
• Includes an USB™ Type-A extension cable for added convenience
• Compact design is ideal for home, office, school, or on-the-go
• Supports multiple wireless standards including Miracast™, AirPlay®, and Google™ Chromecast™
System Requirements
- Available USB-C® port that supports DisplayPort™ Alt Mode
| Hardware | |
|
Warranty |
1 Year Limited |
|
Host Connector |
USB-C® with DisplayPort™ Alt-mode |
|
Power Source |
USB™ Type-A male |
|
LED Indicator |
N/A |
|
Ports |
N/A |
|
IR |
N/A |
| Performance | |
|
HDMI™ Compliance |
HDMI™ v1.3 |
|
HDCP Compliance |
HDCP 1.4 |
|
Audio Channel |
2.1 via HDMI™ |
|
Display Output Supported Resolutions |
1920 × 1080 |
|
RF Output Power |
N/A |
|
Security (Encryption) |
WPA2 |
|
IR Return Frequency |
N/A |
|
ESD Protection |
N/A |
|
OVP Protection |
N/A |
| Wireless Protocols | |
|
Standard |
IEEE 802.11ac |
|
Frequency |
2.4 GHz, 5 GHz |
|
Range |
Up to 10 - 15 meters |
|
Channel Width |
20 MHz, 40 MHz |
|
Antenna Type |
Internal antenna |
| Physical Specifications | |
|
Color |
White |
|
Enclosure Type |
Plastic |
|
Cable Length |
USB-C® Transmitter (TX): 3.34 in. (85 mm) |
|
Product Height |
USB-C® Transmitter (TX): 2.56 in. (65 mm) |
|
Product Width |
USB-C® Transmitter (TX): 2.56 in. (65 mm) |
|
Product Depth |
USB-C® Transmitter (TX): 0.66 in. (17 mm) |
|
Product Weight |
USB-C® Transmitter (TX): 1.9 oz (54g) |
|
Operating Temperature |
+14 to +104 °F (-10 to +40 °C) |
|
Operating Humidity |
< 85% non-condensing |
|
Storage Temperature |
-4 to +122°F (-20 to +50°C) |
|
Storage Humidity |
< 85% non-condensing |
Package Contents

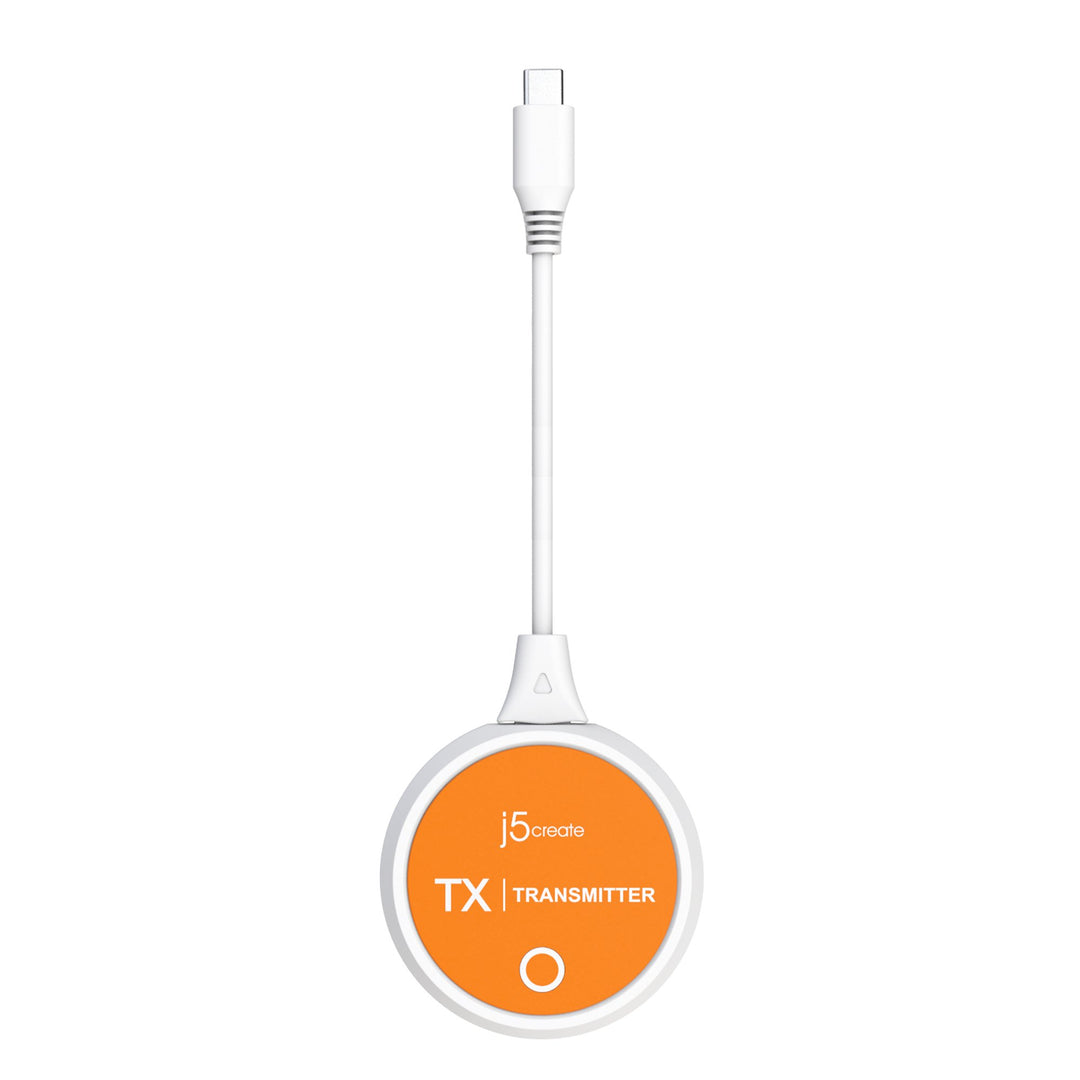

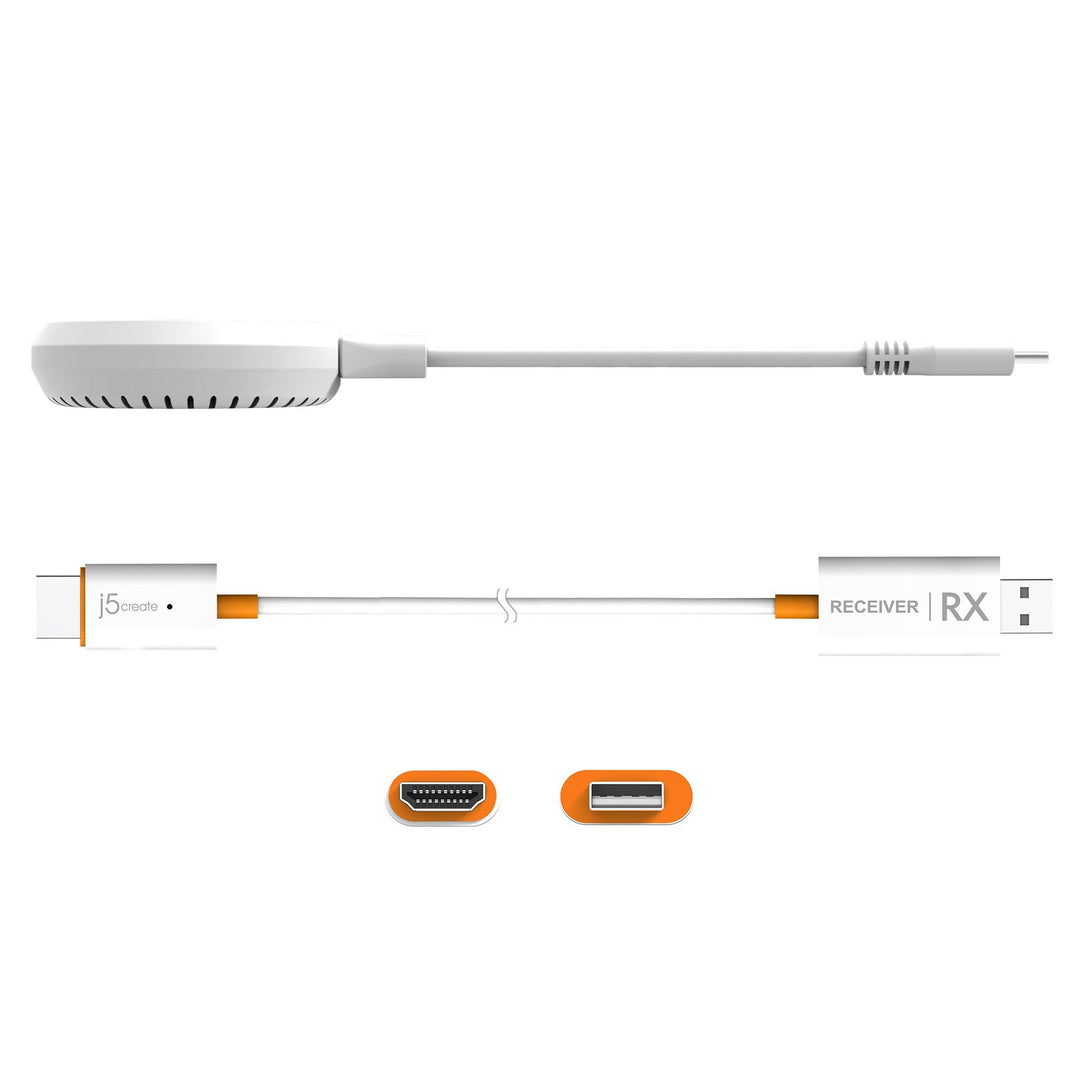

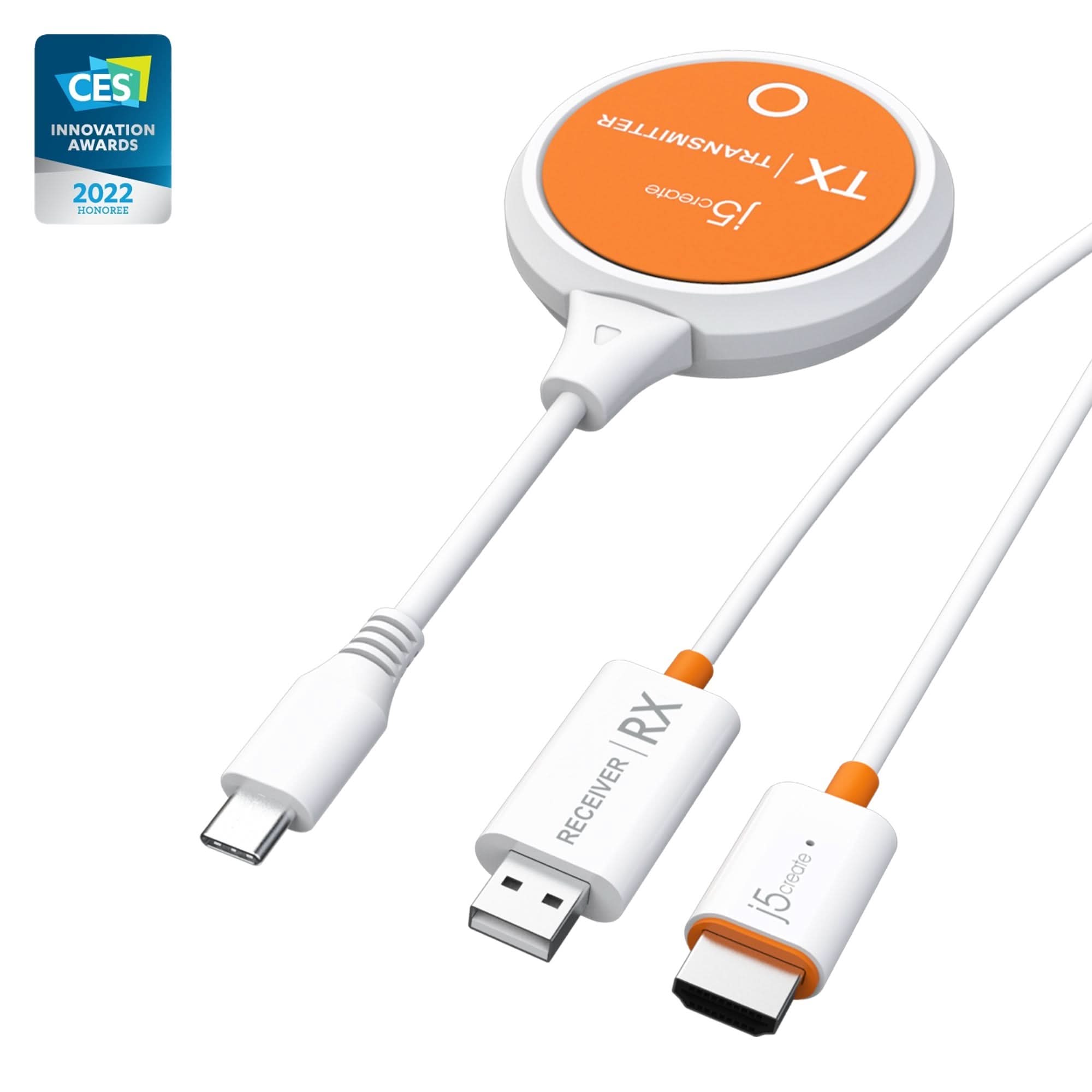

- 1 - JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver)
- 1 - USB™ Type-A extension cable (23.6”)
- 1 - Quick Installation Guide (QIG)
