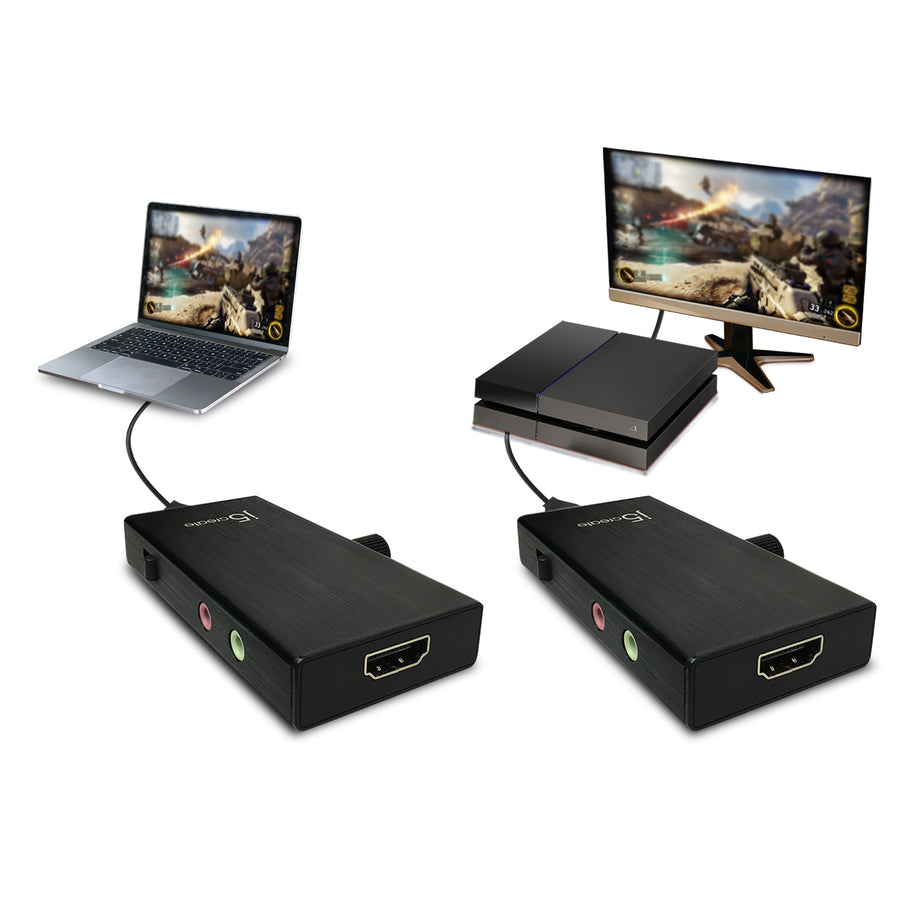

The J5CREATE LIVE CAPTURE ADAPTER HDMI TO USB-C WITH POWER DELIVERY is designed to enhance your live streaming and recording setup. This versatile adapter offers robust features for capturing and mixing audio and video with ease, making it an essential tool for content creators and professionals alike.
Key Features at a Glance
- Uncompressed 1080p60 video capture.
- Power Delivery 3.0 for uninterrupted streaming.
- Built-in audio mixer for professional audio control.
- Full HD video and audio record/playback via USB-C 3.1.
- Cold shoe adapter for easy camera mounting.
- UVC standard, requiring no driver installation.
- Compact size for easy field production.
Seamless High-Definition Capture
Experience superior video quality with uncompressed 1080p60 capture, significantly reducing CPU load during your live streams or recordings. This ensures smooth, high-fidelity visuals for your audience.
Stream and Record with Confidence
Utilize Power Delivery 3.0 to maintain continuous power, ensuring your live streams run without interruption. Enjoy full HD video and audio high-performance record/playback capabilities through its USB-C 3.1 connection.
Professional Audio and Camera Integration
Achieve professional-grade sound with the built-in audio mixer, allowing for precise listening and live audio mixing. Easily integrate your preferred camera using the convenient cold shoe adapter, streamlining your setup for any production.
Effortless Setup and Portability
The J5CREATE LIVE CAPTURE ADAPTER operates on the UVC standard, meaning no driver installation is required, allowing for quick plug-and-play functionality. Its compact size also makes field production simple and highly portable.
Technical Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Audio Input | 1 - 3.5mm AUX |
| Audio Output | 1 - 3.5mm AUX |
| Audio Switcher | Yes |
| Host Connector | 1 - USB-C® 3.1 Female |
| Ports | 1 - USB-C® 3.1 Gen 1 (Host) |
| 1 - USB-C® PD 3.0 | |
| 1 - HDMI™ Input | |
| 1 - 3.5mm AUX Audio Out | |
| 1 - 3.5mm AUX Mic In | |
| Power Source | Bus-powered or self-powered (USB-C® PD power) |
| Video Input | 1 - HDMI™ Female |
| Video Output | N/A |
| Video Switcher | N/A |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Compressions | USB™ 3.0: MJPEG/YUV 4:2:2 |
| USB™ 2.0: MJPEG | |
| Encode Format | MP4, MJPEG, H.264 / AVC + AACX |
| HDR Supported | N/A |
| Headset | 2.1 Stereo |
| Max Display Refresh Rate | 60 Hz |
| Microphone | Stereo microphone supported |
| 24-bit sigma-delta ADC | |
| Supported Resolution - Input | 1920 x 1080 |
| Supported Resolution - Output | N/A |
| Power | |
| Input Current | 3A |
| Input Voltage | 20V |
| Output Current | 3A |
| Output Voltage | 20V |
| Power Consumption | ≤ 280 mA |
| Power Delivery | Up to 60W via USB-C® |
| Physical Specifications | |
| Cable Length | 3.3 ft (1m) |
| Color | Black |
| Enclosure Type | Aluminum |
| Operating Humidity | < 80% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Depth | 0.69 in (17.5 mm) |
| Product Height | 2.54 in (64.5 mm) |
| Product Weight | 5.03 oz (142.5 g) |
| Product Width | 5.27 in (133.8 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Package Contents | |
| 1 - JVA02 Live Capture Adapter | |
| 1 - USB-C® 2.0 to USB-C® cable | |
| 1 - USB-C® 3.0 to USB™ Type-A cable | |
| 2 - Cold shoe adapters | |
| 1 - Quick Installation Guide |
Frequently Asked Questions
Q: Does this adapter require driver installation?
A: No, the J5CREATE LIVE CAPTURE ADAPTER operates on the UVC standard, meaning no driver installation is required for use.
Q: What video capture quality does this device support?
A: It supports uncompressed 1080p60 video capture, designed to reduce CPU load.
Q: Can I stream for extended periods without interruption?
A: Yes, with Power Delivery 3.0, you can stream live without interruption, ensuring continuous operation.
