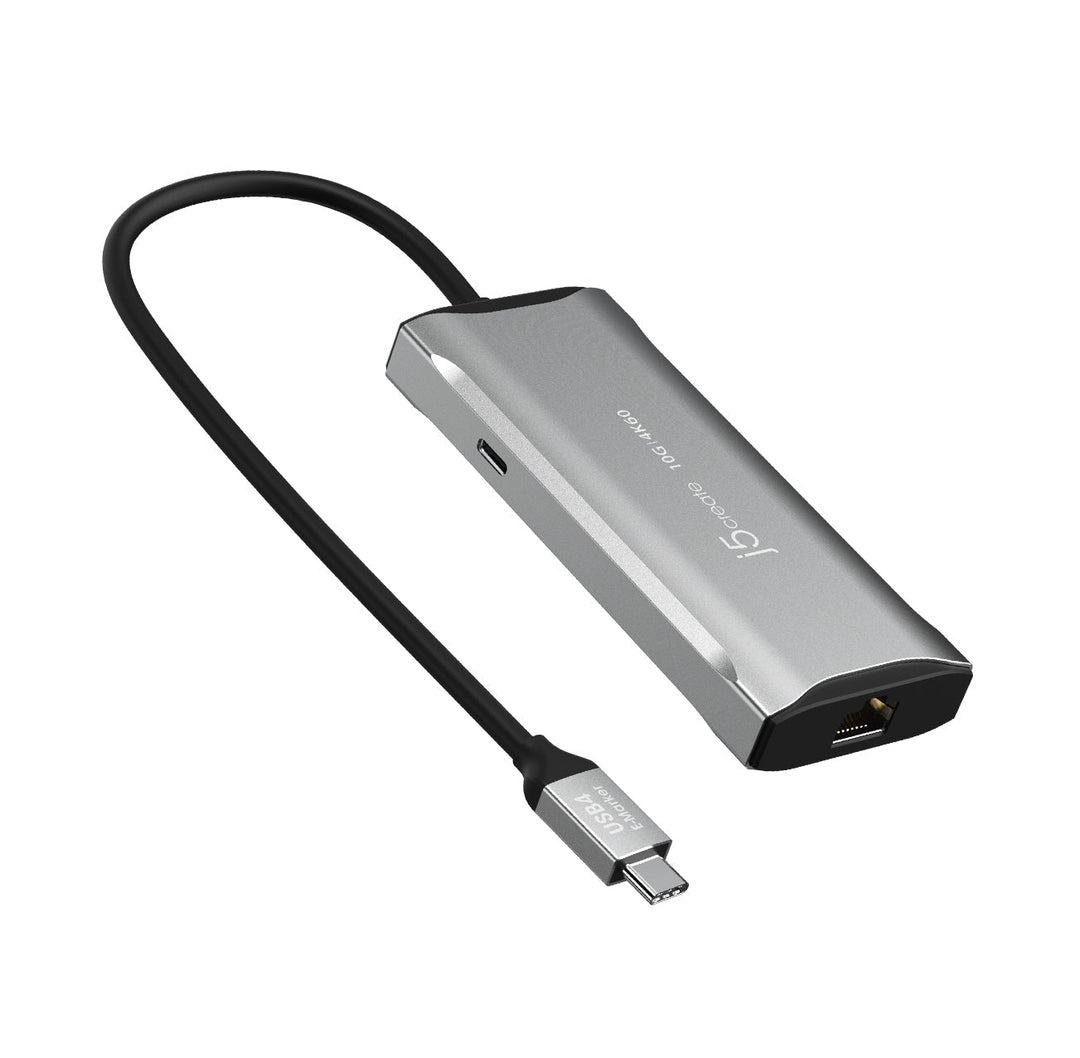

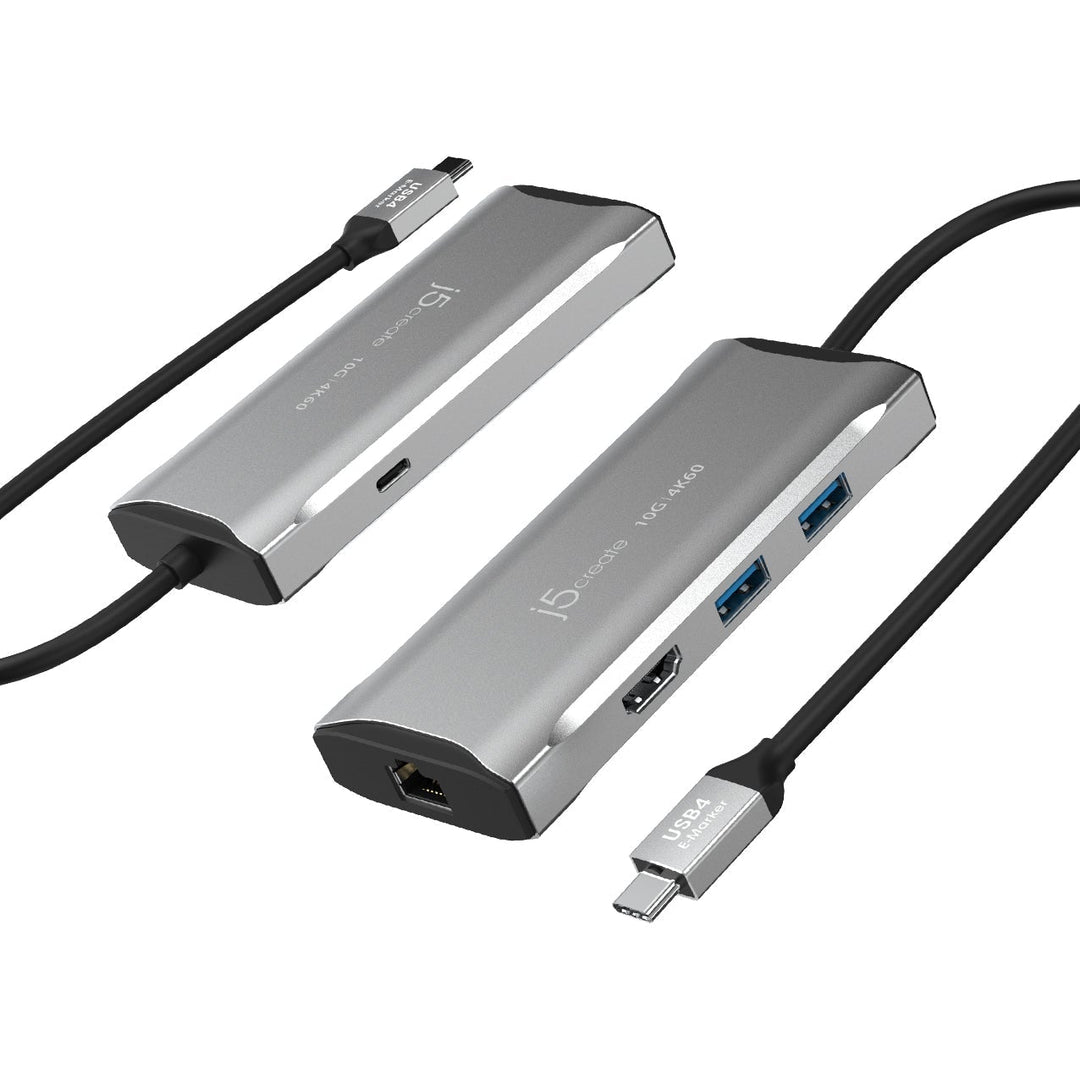

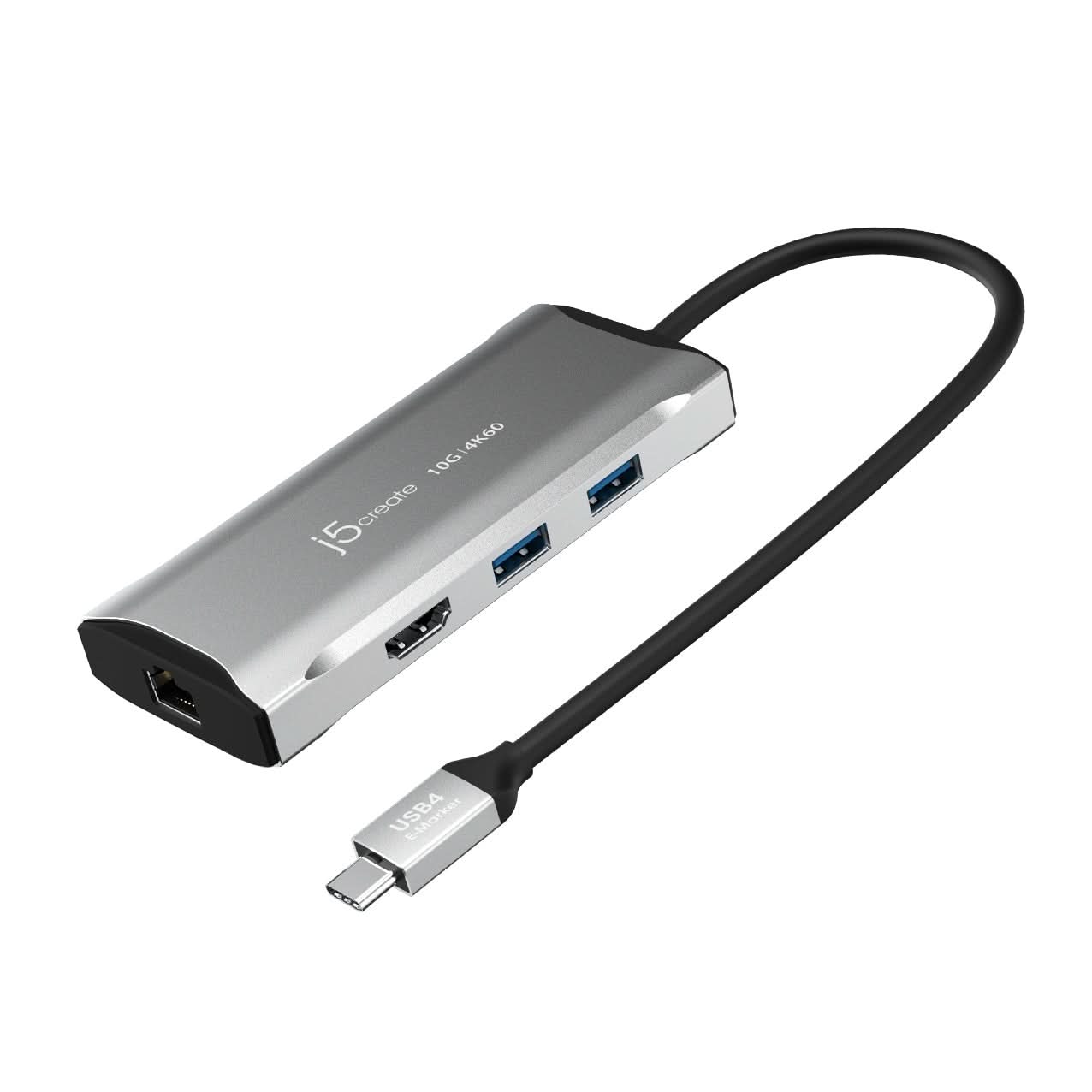

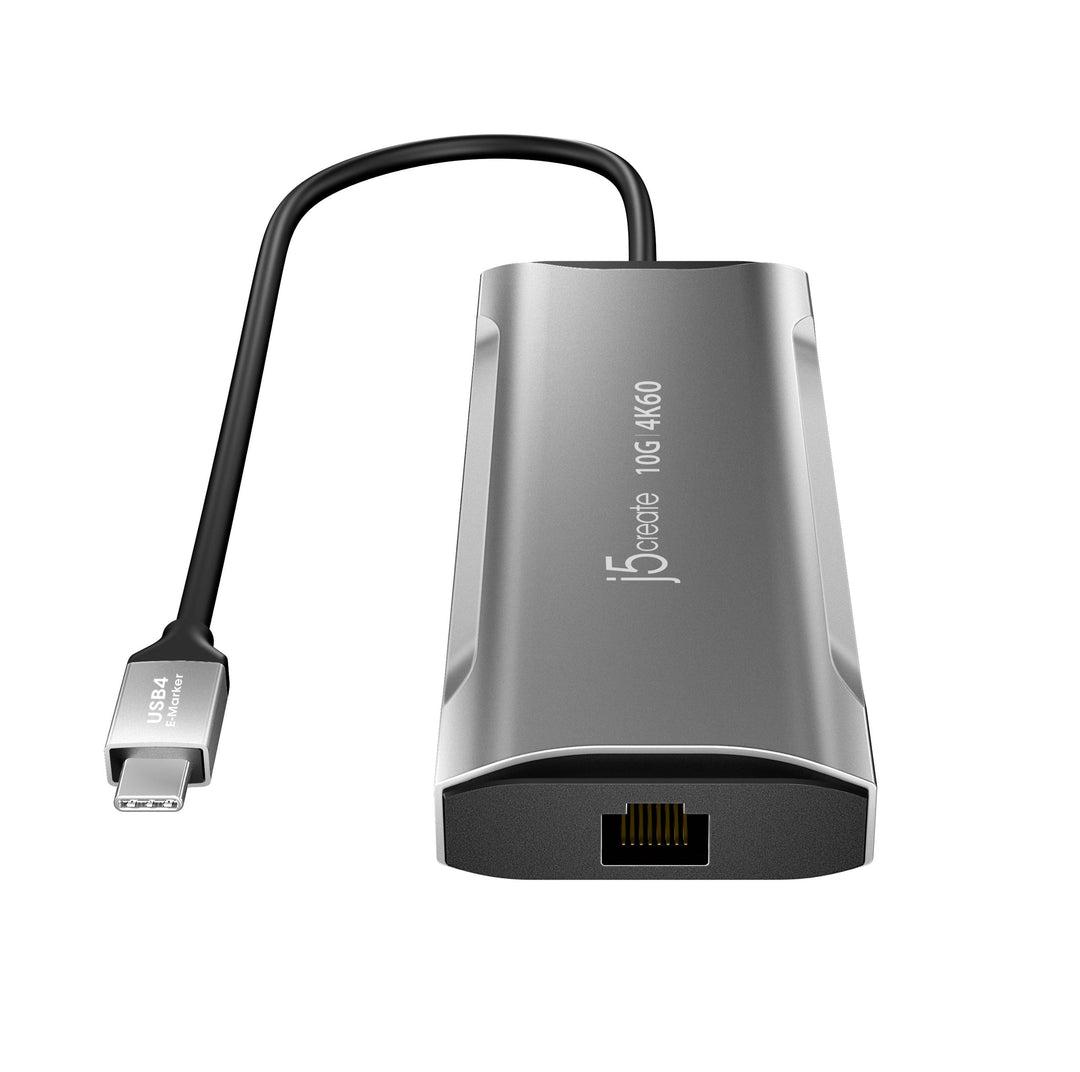

The J5CREATE GEN 2 4K60 ELITE USB-C 10GBPS TRAVEL DOCK is a versatile solution for expanding your device's connectivity. Equipped with an advanced USB-C E-Mark chip, this travel dock ensures broad compatibility with USB4, Thunderbolt 3, and Thunderbolt 4 hosts. It allows you to connect an external 4K 60Hz HDMI display and offers a Gigabit Ethernet port for reliable wired network access, making it ideal for both productivity and gaming.
Key Features at a Glance
- Advanced USB-C E-Mark chip for USB4, Thunderbolt 3, and Thunderbolt 4 compatibility.
- Supports DisplayPort 1.4 for 4K 60Hz HDMI output (up to 3840 x 2160 @ 60 Hz).
- Three SuperSpeed USB 10Gbps downstream ports (1 USB-C, 2 Type-A) for peripherals.
- Up to 100W Power Delivery pass-through via the USB-C port.
- Includes a Gigabit Ethernet port for wired network connectivity.
- Plug-and-play design requires no driver installation.
Expand Your Visuals and Network
Connect an external 4K 60Hz HDMI display to enhance your workspace or gaming setup. The dock supports DisplayPort 1.4, enabling high-resolution video output up to 3840 x 2160 at 60 Hz. Additionally, a Gigabit Ethernet port provides a stable, high-speed wired network connection, essential for uninterrupted streaming, downloads, and online gaming.
High-Speed Data and Power Delivery
Experience rapid data transfers with three SuperSpeed USB 10Gbps ports, including one USB-C and two USB Type-A. These ports are perfect for connecting peripherals or downstream charging. The USB-C port also supports up to 100W of Power Delivery, allowing you to charge your connected laptop and accessories simultaneously through the dock.
Broad Device Compatibility
Designed with an advanced USB-C E-Mark chip, this travel dock is compatible with USB4, Thunderbolt 3, and Thunderbolt 4 hosts and devices. It also offers backwards compatibility with USB 3.2/3.1, ensuring seamless integration with a wide range of modern and older USB-C enabled computers.
Technical Specifications
| Hardware | |
|
Warranty |
2 Year Limited |
|
Host Connector |
1 - USB-C® Male |
|
Video Output |
1 - HDMI™ Female |
|
Power Source |
Bus-powered or self-powered |
|
Network Interface |
RJ45 (Gigabit Ethernet) |
|
Audio Supported |
Yes |
|
Ports |
|
| Performance | |
|
Maximum Display Resolution |
3840 x 2160 |
|
Maximum Display Refresh Rate |
3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz (Windows®) |
|
Maximum Data Transfer Rate |
10Gbps |
|
Displays Supported |
1 |
|
Compatible Networks |
10/100/1000 |
|
Audio Channel |
2.1 via HDMI™ |
| Power | |
|
Power Delivery |
Up to 100W via USB-C® |
|
Power Consumption |
≤ 400 mA |
|
Input Current |
Up to 5A |
|
Input Voltage |
Up to 20V |
|
Output Current |
Up to 4.5A |
|
Output Voltage |
Up to 20V |
| Physical Specifications | |
|
Color |
Space Grey |
|
Enclosure Type |
Aluminum |
|
Cable Length |
5.9 in. (150 mm) |
|
Product Height |
0.62 in. (16 mm) |
|
Product Width |
4.33 in. (110 mm) |
|
Product Depth |
1.85 in. (47 mm) |
|
Product Weight |
3.06 oz (87g) |
|
Storage Temperature |
0 to 155°F (-17 to 68°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
30 to 116°F (-1 to 41°C) |
|
Operating Humidity |
< 85% non-condensing |
Frequently Asked Questions
Q: What are the system requirements for this travel dock?
A: An available USB-C port that supports DisplayPort alternate mode and USB Power Delivery 2.0 or 3.0 is required. For 4K 60Hz resolution, the host device must specifically support DisplayPort 1.4.
Q: Can I achieve 4K resolution at 60Hz with any display?
A: A 4K-capable display is required for obtaining the 3840 x 2160 resolution. If connected to a DisplayPort 1.2 device, performance will be limited to 3840 x 2160 at 30 Hz.
Q: Are there any specific recommendations for optimal performance?
A: For maximum performance with high-powered USB devices, attach a USB-C power adapter to the power delivery port. Performance may be limited if connected to a USB 2.0 host port or using a USB 2.0 host cable. We advise connecting no more than one bus-powered external hard disk drive at a time to the adapter.
