Save 40%

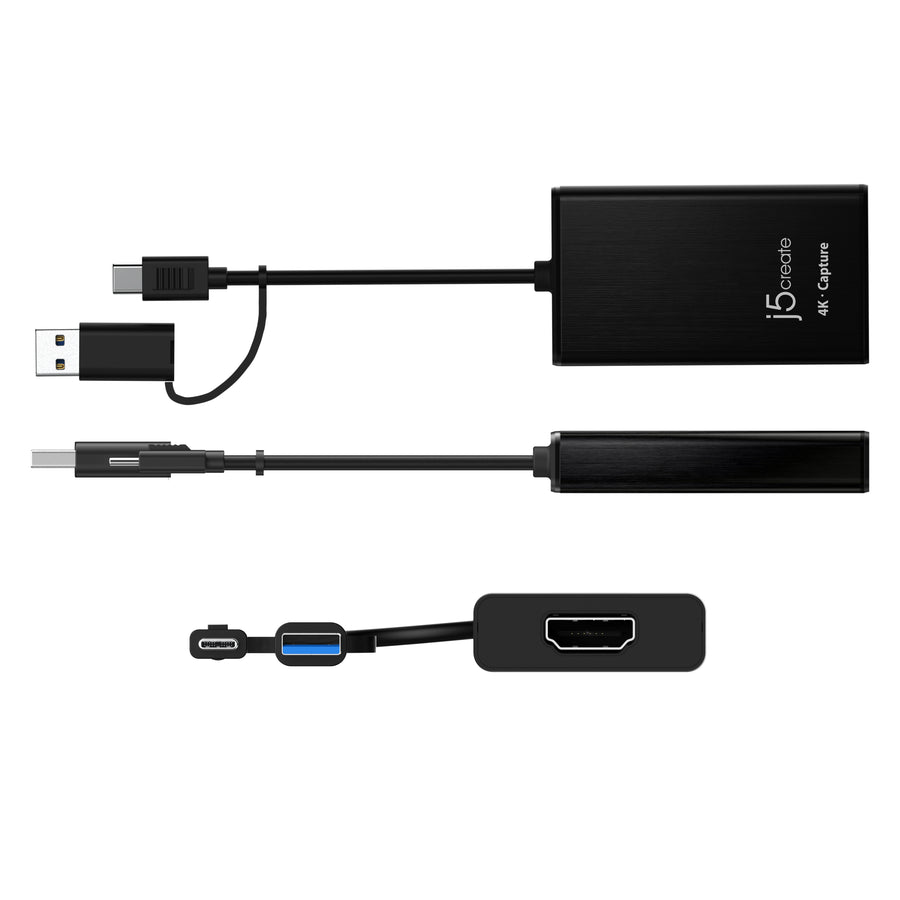

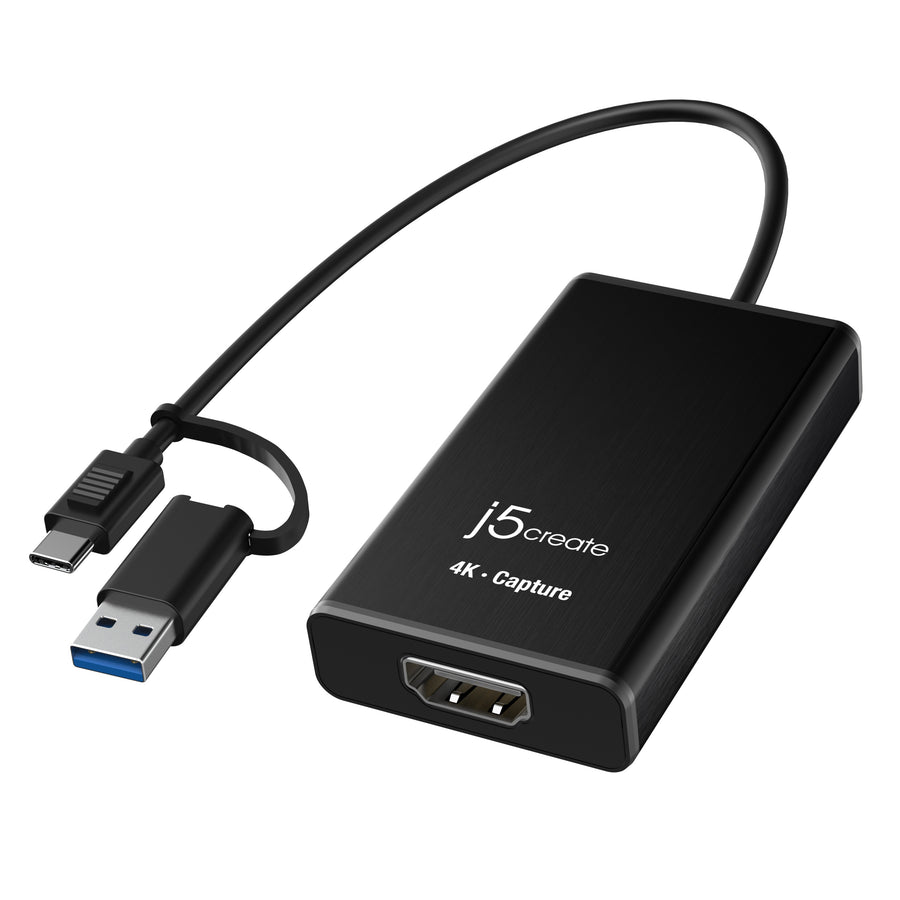

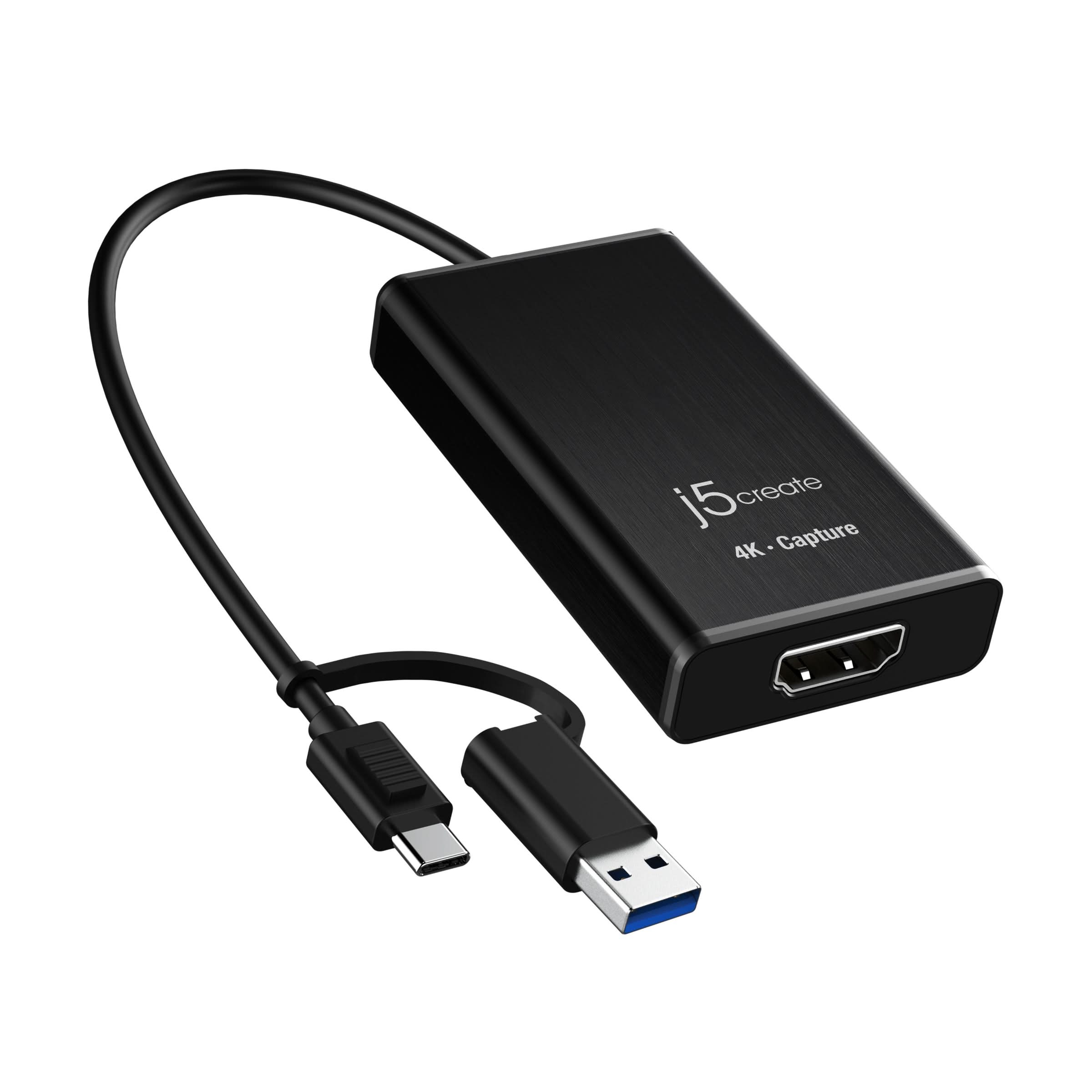

J5CREATE 4K HDMI CAPTURE ADAPTER
Sale priceRs. 6,664.00Regular price
Rs. 11,190.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
About the item

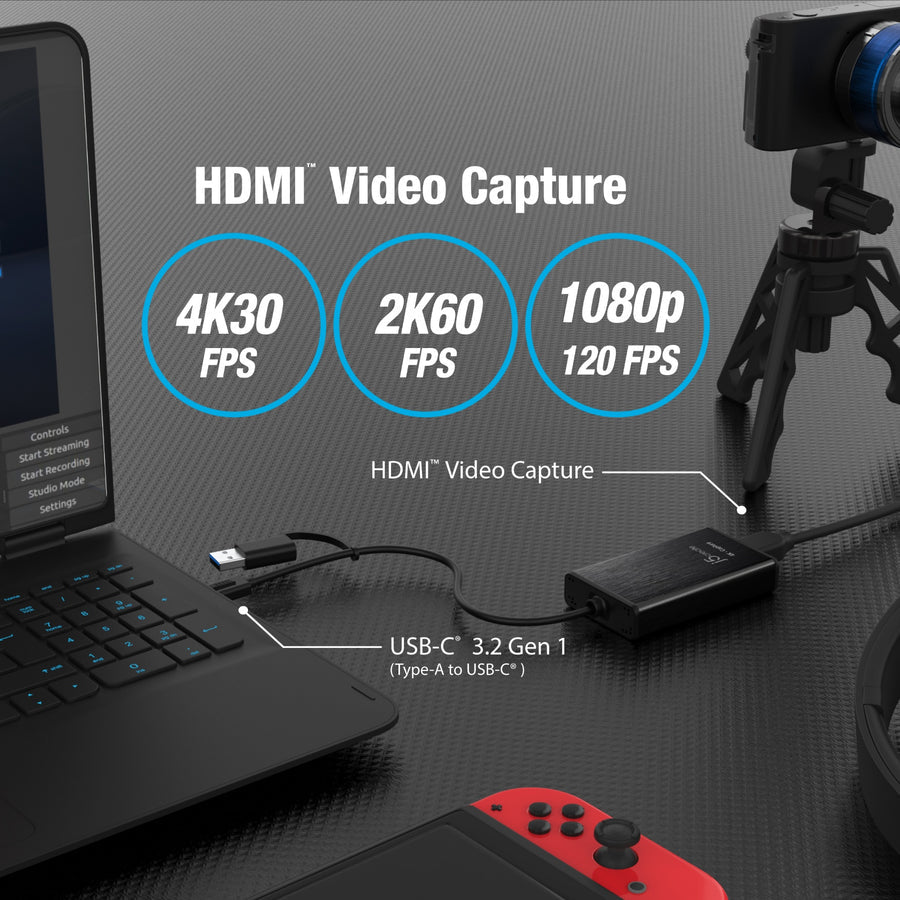

- HDMI™ input for capturing
- 4K video and audio high-performance record through USB-C® 3.2 Gen 1
- UVC standard - No driver installation required
- Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
- Field production made easy with its compact size
Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Audio Input | 1 - HDMI™ Female |
| Audio Output | N/A |
| Audio Switcher | N/A |
| Host Connector | 1 - USB-C® 3.2 Gen 1 Female (Type-A to USB-C®) |
| Ports | 1 - USB-C® 3.2 Gen 1 (Host) |
| 1 - HDMI™ Input | |
| Power Source | N/A |
| Video Input | 1 - HDMI™ Female |
| Video Output | N/A |
| Video Switcher | N/A |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Compressions | USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0 |
| USB™ 2.0: YUV4:2:0 | |
| HDMI Input Resolutions | 3840 x 2160 @ 30 |
| HDR Supported | No |
| Headset | N/A |
| Maximum Capture Capability | USB™ 3.0: 3840 x 2160 @ 30 |
| USB™ 2.0: 1280 x 720 @ 30 | |
| Maximum Capture Refresh Rate | 4K30 fps, 2K60 fps, 1080p120 fps |
| Max Display Refresh Rate | N/A |
| Microphone | N/A |
| Power | |
| Input Current | 1.5A |
| Input Voltage | 5V |
| Output Current | N/A |
| Output Voltage | N/A |
| Power Consumption | ≤ 530 mA |
| Power Delivery | N/A |
| Physical Specifications | |
| Cable Length | 7.87 in. (20 cm) |
| Color | Black |
| Enclosure Type | Aluminum |
| Operating Humidity | < 80% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Depth | 0.56 in. (14.14 mm) |
| Product Height | 2.83 in. (72 mm) |
| Product Weight | 1.94 oz (55 g) |
| Product Width | 1.61 in. (41 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Package Contents | |
| 1 - JVA11 4K HDMI™ Capture Adapter | |
| 1 - Quick Installation Guide (QIG) |
