About This Product

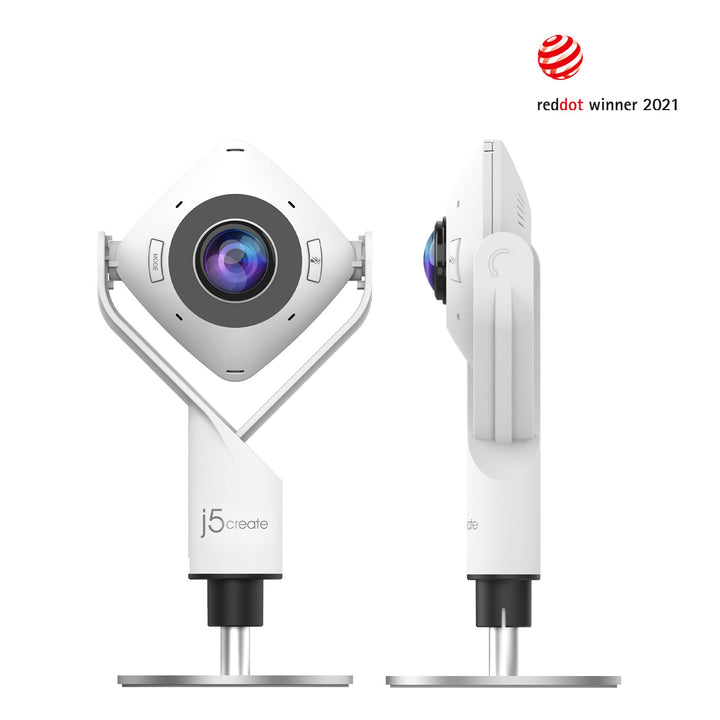

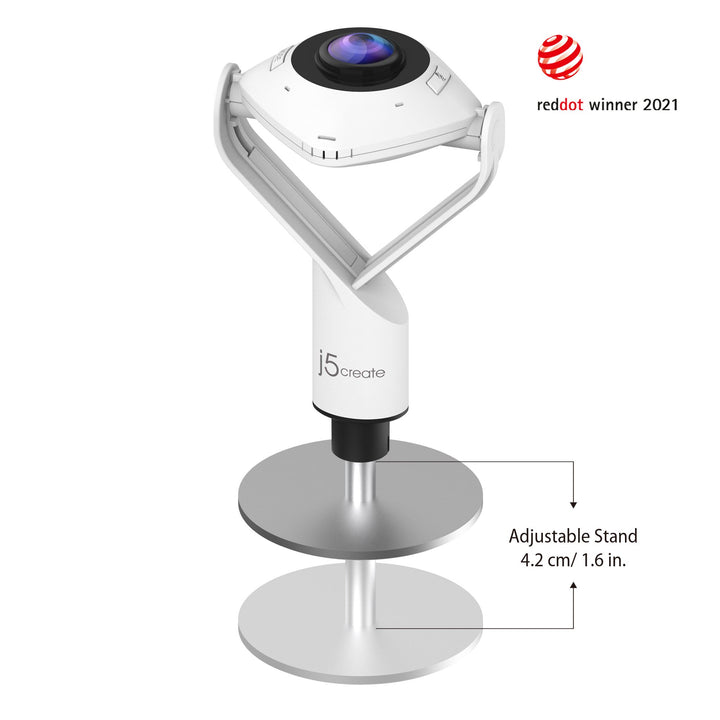

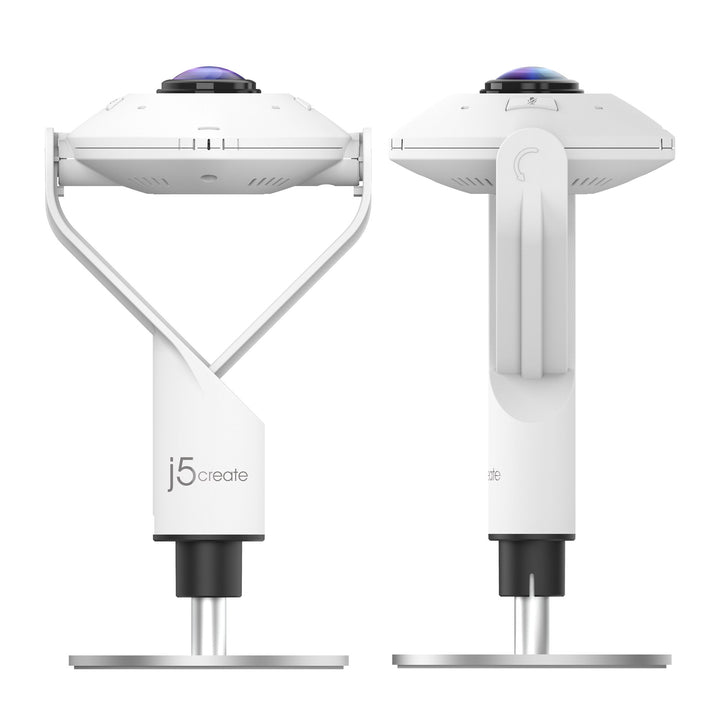

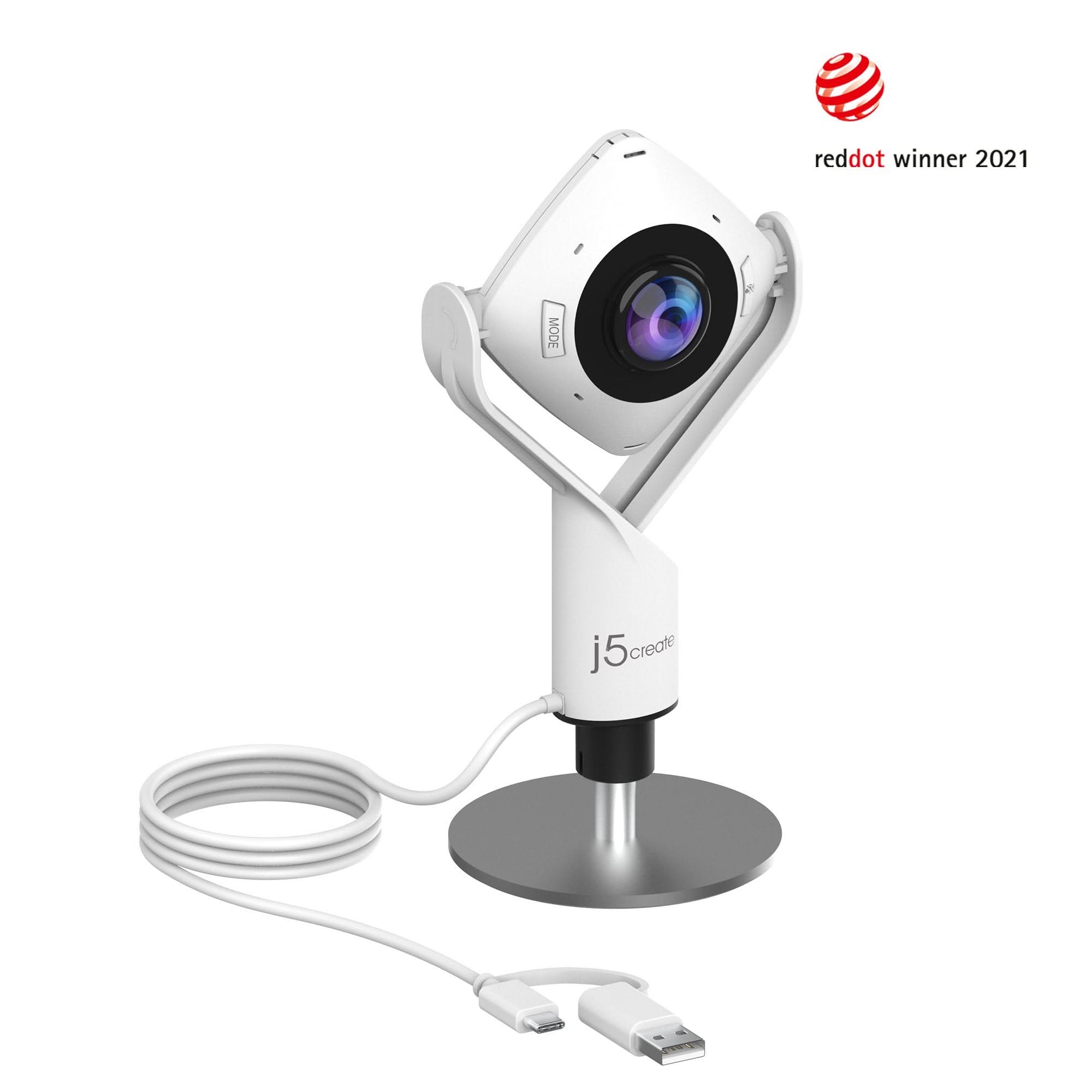

Enhance your conference calls with the 360° All Around Webcam. This all-in-one virtual meeting device combines HD video with business-grade audio clarity, to help run your video conferences smoothly. This high-definition, plug-and-play webcam, is ideal for any space. Capture a 360° panoramic view of the room or focus on specific presenters with the various display modes. The 360° All Around Webcam is equipped with a USB-C® cable and a USB™ Type-A connector to work with both your older and newer devices.

For the best image quality, we recommend downloading the JVCU360 firmware update from our downloads page which you can navigate to by clicking here.

Key Features

• 360° video conferencing camera
• Built-in omnidirectional microphone
• Six display modes deliver exceptional viewing angles with flexibility and versatility
• Adjustable fields of view
• Full HD 1080p video playback @ 30 Hz
• USB™ UVC plug-and-play
• Touch bar to specify participants’ location
• Built-in reverse feature to flip mirrored image
• Wide Compatibility: Zoom™, Facebook™ Messenger, Skype™, Microsoft Teams™, etc.

• System Requirements



  • • Available USB-C™ or USB™ Type-A port
  • • UVC 1.1 & UAC 1.0 support
  • • Windows® 10 / 8.1
  • • macOS® 10.14.11 or later with UVC support
  • • Chrome OS™ with UVC support
  • • Linux® (special configuration required)






  Hardware
  Warranty	1-year limited warranty
  Host Connector	USB-C® / USB™ 2.0 Type-A
  Image Sensor	1/2.9” CMOS Sensor
  Shutter Style	N/A
  Privacy Cover	No
  Protocol	UVC 1.1 & UAC
  Operating Voltage & Current	DC5V/500 mA ±15 mA
  Mounting Style	N/A
  LED Indicator	Red: Muted Blue: Power on
  Performance
  Effective Pixels	Full Screen Mode: 1920(H) x 540(V) 360° All Around View Mode: 1920(H) x 720(V) Host Mode: 1920(H) x 270(V), 1920(H) x 810(V) Dual Host Mode: 1920(H) x 270(V), 960(H) x 810(V) Single View Mode: 1920(H) x 1080(V) Wide Angle View Mode: 120°(H), 88.6°
  Megapixels	2 million pixels (2MP)
  Output Format	MJPEG
  Frame Rate	30 FPS
  Display Output Supported Resolutions	1920 x 1080 1280 x 720 640 x 480 / 360
  Display FOV	Full Screen Mode: 2 - 180°(H), 53°(V) 360° All Around View Mode: 360°(H), 53°(V), Host Mode: 360°(H) , 120°(H), 53°(V) Dual Host Mode: 360°(H) , 60°(H), 53°(V) Single View Mode: 90°(H), 58.5°(V) Wide Angle View Mode: 120°(H), 88.6°
  Maximum Display Refresh Rate	30 Hz
  Microphone	Built-in omnidirectional microphone
  Physical Specifications
  Color	White, Black
  Enclosure Type	ABS
  Lens Kit	N/A
  Cable Length	9.84 ft. (300 cm)
  Product Height	7.6 in. (19.3 cm)
  Product Width	3.68 in. (9.35 cm)
  Product Depth	1.46 in. (3.7 cm)
  Product Weight	≒12.35 oz (350g)
  Storage Temperature	–4°F to 140°F (-20°C to 60°C)
  Storage Humidity	< 90% non-condensing
  Operating Temperature	41°F to 104°F (0°C to 40°C)
  Operating Humidity	< 90% non-condensing


  Package Contents

  • • 1 - JVCU360 360° All Around Webcam
  • • 1 - Quick Installation Guide
