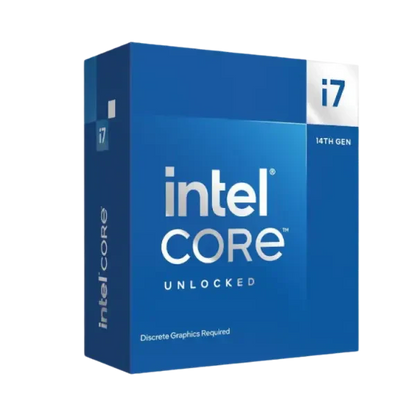

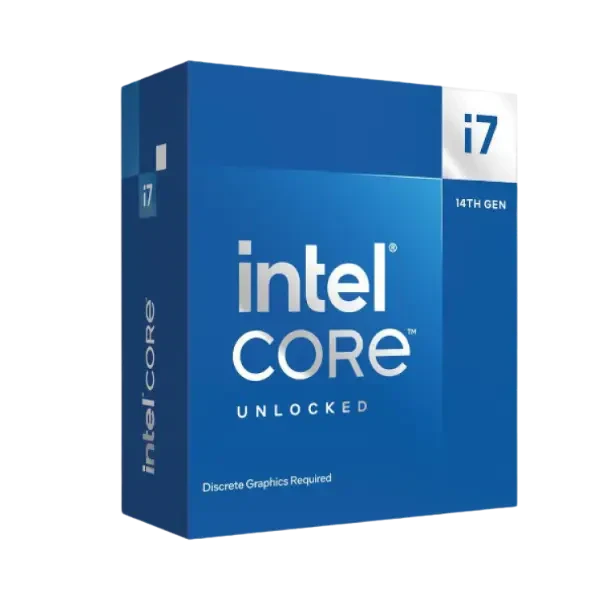

INTEL CORE I7-14700F 14TH GEN 20 CORES UPTO 5.4 GHZ LGA1700 PROCESSOR
INTEL CORE I7-14700F 14TH GEN 20 CORES UPTO 5.4 GHZ LGA1700 PROCESSOR
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Elevate your computing experience with the INTEL CORE I7-14700F 14th Gen Processor. Designed for the LGA-1700 socket, this powerful CPU features 20 cores and 28 threads, capable of reaching speeds up to 5.4 GHz for demanding tasks and efficient multitasking. With a generous 30 MB L3 cache, it delivers robust performance for a wide range of applications.
Key Features at a Glance
- Total of 20 Cores and 28 Threads
- Max Turbo Frequency of up to 5.4 GHz
- Base Clock Frequency of 2.1 GHz
- 30 MB L3 Cache for faster data access
- Designed for LGA-1700 Socket Compatibility
- Requires a dedicated graphics card (No integrated GPU)
Unleash Multitasking Power
Experience seamless performance even under heavy loads. With 20 cores and 28 threads, the INTEL CORE I7-14700F processor efficiently handles multiple applications simultaneously, making it ideal for content creation, intensive productivity, and complex computing tasks.
Exceptional Speed and Responsiveness
Achieve superior speed with a Max Turbo Frequency of up to 5.4 GHz. This high clock speed ensures quick application launches, smooth operations, and rapid processing for all your computing needs, from gaming to professional software.
Boosted Data Handling with 30MB L3 Cache
The substantial 30 MB L3 cache accelerates data retrieval, significantly reducing latency. This large cache size contributes to improved overall system responsiveness and faster execution of frequently accessed instructions.
Optimized for Dedicated Graphics Systems
Built without integrated graphics, the INTEL CORE I7-14700F is an excellent choice for systems utilizing a dedicated graphics card. This design ensures that all processor resources are focused on CPU-intensive tasks, complementing high-performance discrete GPUs.
Technical Specifications
| Model | i7-14700F |
| Product Collection | Intel® Core™ i7 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.4 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Cache | 33 MB Intel® Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What socket does the INTEL CORE I7-14700F processor use?
A: This processor is designed for compatibility with the LGA-1700 socket.
Q: Does the INTEL CORE I7-14700F include integrated graphics?
A: No, the INTEL CORE I7-14700F does not feature integrated graphics and requires a dedicated graphics card.
Q: What is the maximum speed this processor can reach?
A: The INTEL CORE I7-14700F processor can achieve a Max Turbo Frequency of up to 5.4 GHz.
