Elevate your desktop computing experience with the INTEL CORE I5-14400 DESKTOP PROCESSOR 10 CORES UP TO 4.7 GHZ. Engineered for efficiency and power, this processor brings advanced architecture to your system, featuring a robust core count and integrated graphics for everyday tasks and more.
Key Features at a Glance
- 10 Cores (6 P-cores + 4 E-cores) and 16 Threads
- Integrated Intel UHD Graphics 730
- Performance hybrid architecture for optimized workload distribution
- Up to 4.7 GHz max frequency and 20MB Cache
- Supports PCIe 5.0 & 4.0 and Intel Optane Memory
- Includes Intel Laminar RM1 Cooler
Hybrid Architecture for Smart Performance
Harness the power of Intel's innovative performance hybrid architecture. This design intelligently integrates two core microarchitectures, effectively prioritizing and distributing your system's workloads to deliver optimized performance where and when you need it most, ensuring smooth multitasking and responsiveness.
Integrated Graphics & Broad Compatibility
The included Intel UHD Graphics 730 provides crisp visuals for daily computing and light media tasks, eliminating the need for a separate graphics card in many setups. Enjoy broad compatibility with Intel 600-series (potential BIOS update required) and 700-series chipset motherboards, alongside support for cutting-edge PCIe 5.0 & 4.0 standards.

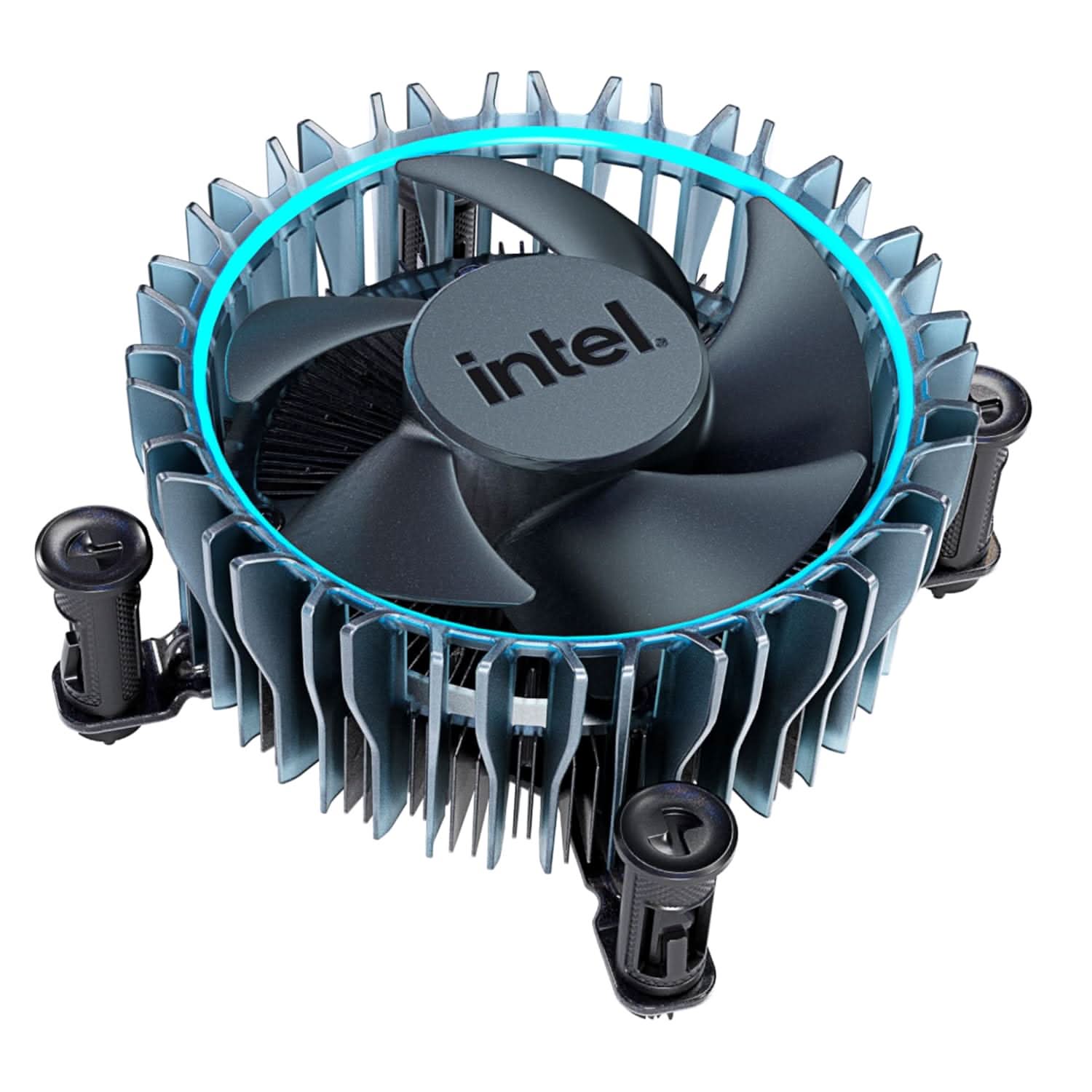

Cool and Ready Out of the Box
Get your system up and running with ease thanks to the included Intel Laminar RM1 Cooler. This thermal solution is designed to keep your processor operating efficiently, providing reliable cooling performance right out of the box.
Technical Specifications
| Model | i5-14400 |
| Product Collection | Intel® Core™ i5 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Base Frequency | 2.5 GHz |
| Efficient-core Base Frequency | 1.8 GHz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 9.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| GPU Specifications | |
| GPU Name‡ | Intel® UHD Graphics 730 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 1 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4682/0xA782 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What is the core configuration of this processor?
A: The INTEL CORE I5-14400 DESKTOP PROCESSOR features 10 cores, consisting of 6 P-cores and 4 E-cores, along with 16 threads.
Q: Does this processor include integrated graphics?
A: Yes, the Intel Core i5-14400 Desktop Processor includes integrated Intel UHD Graphics 730.
Q: Which motherboards are compatible with this processor?
A: It is compatible with Intel 600-series (potentially requiring a BIOS update) and 700-series chipset-based motherboards.
