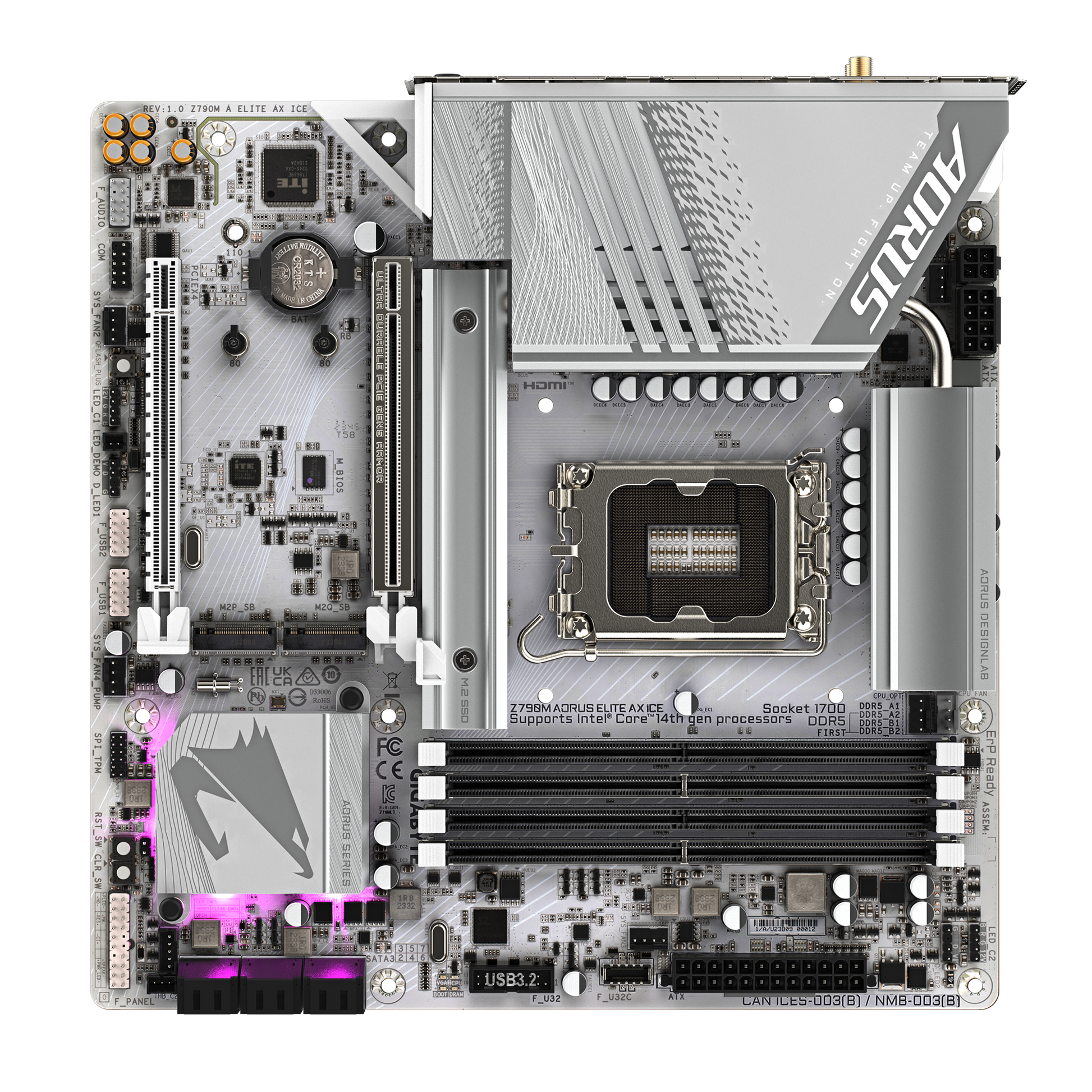

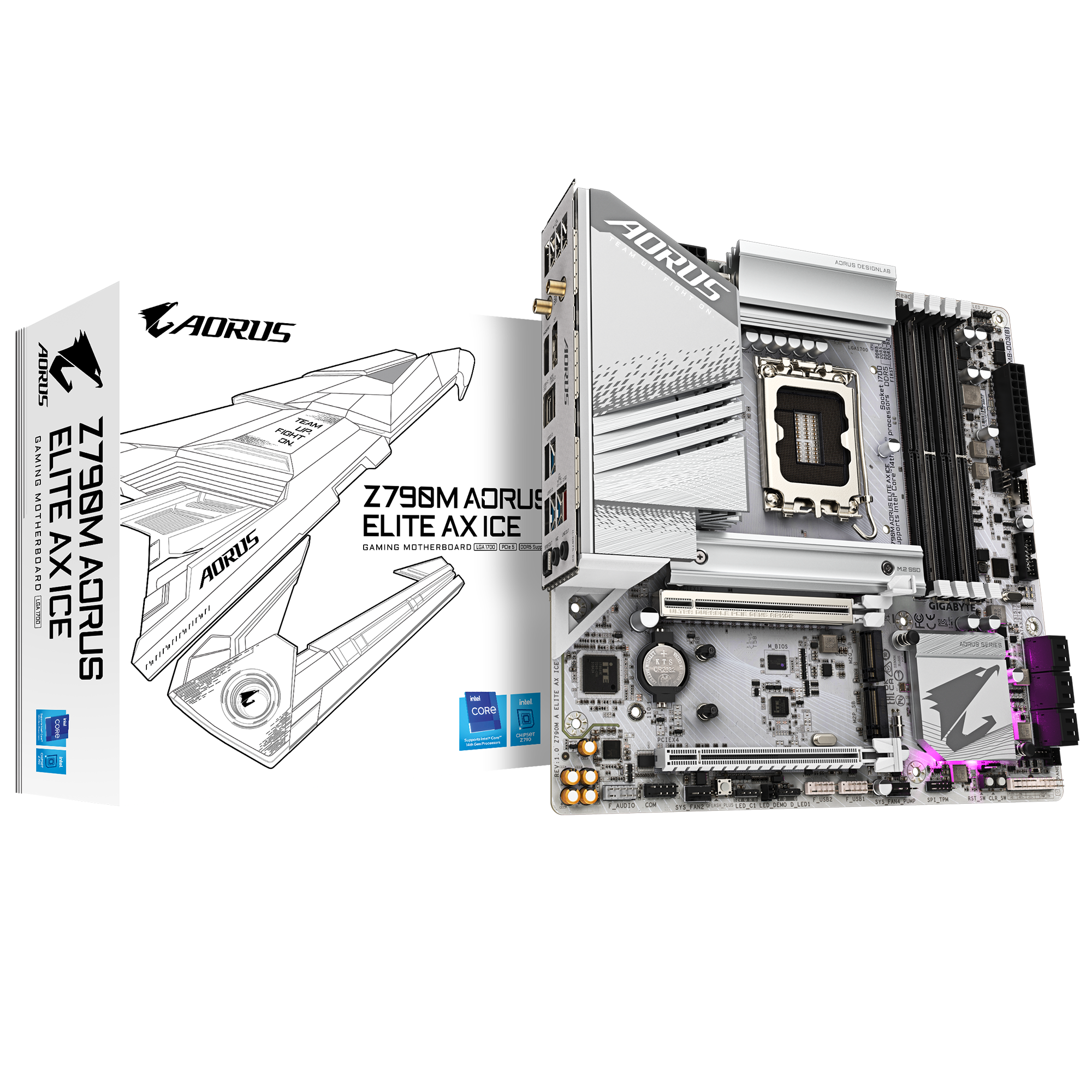

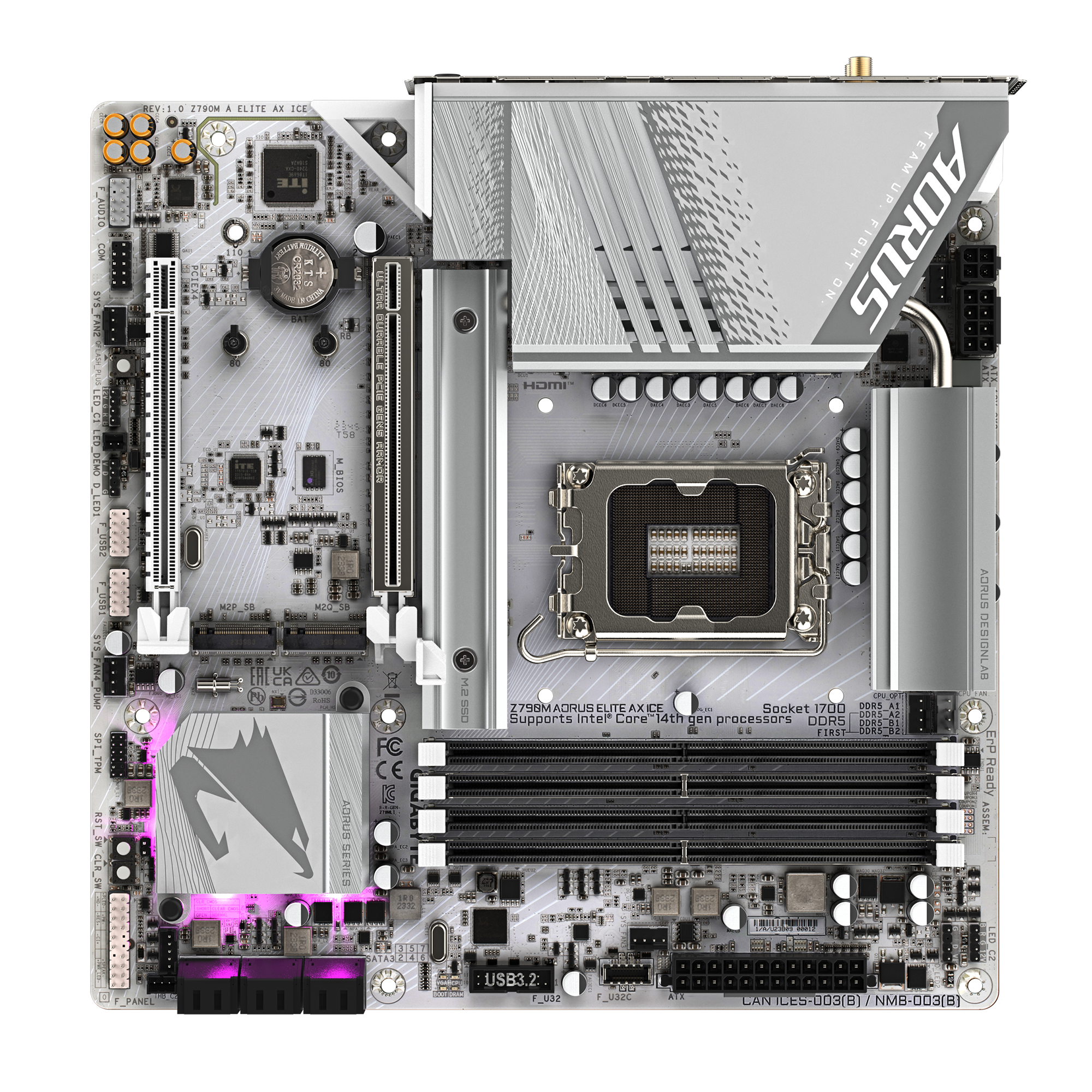

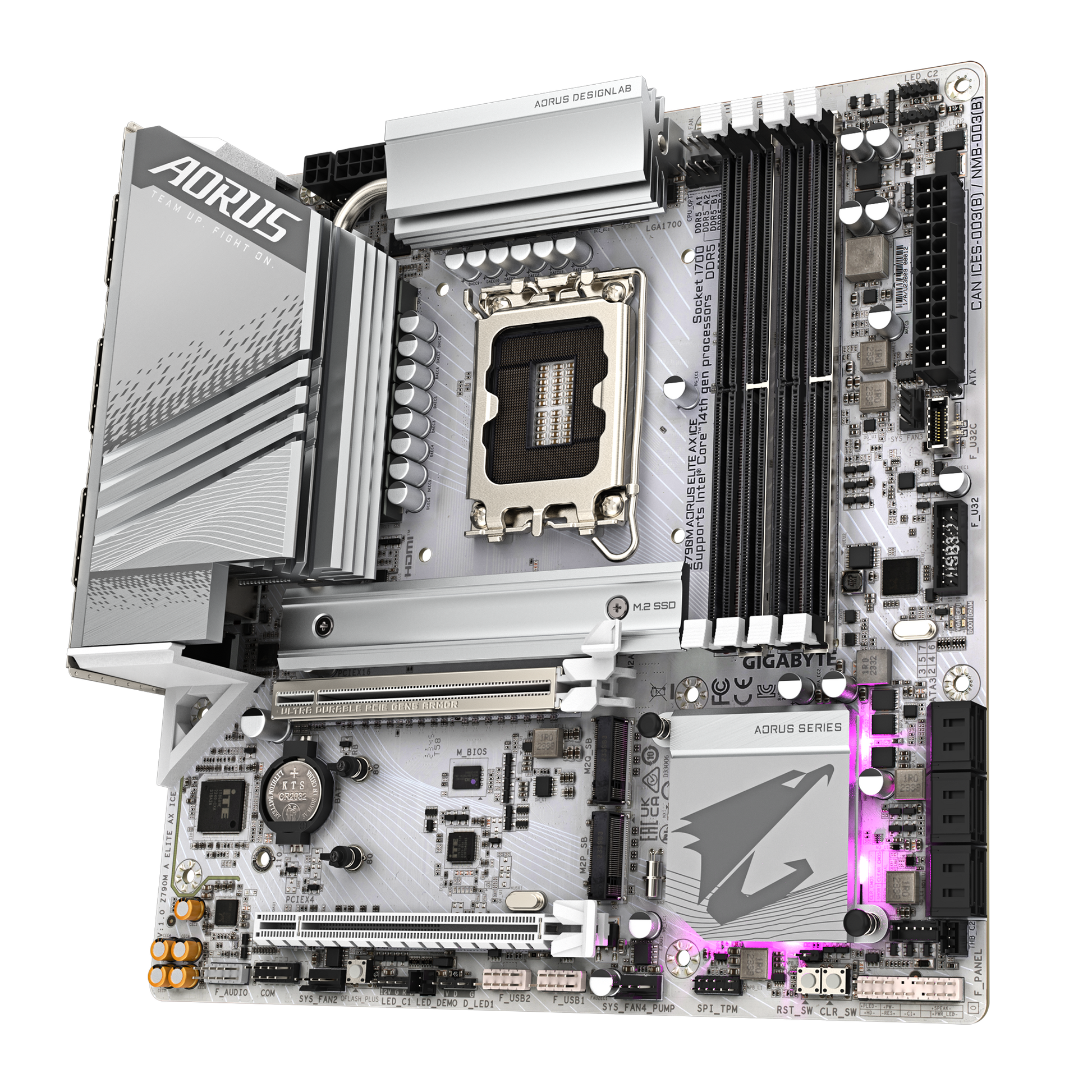

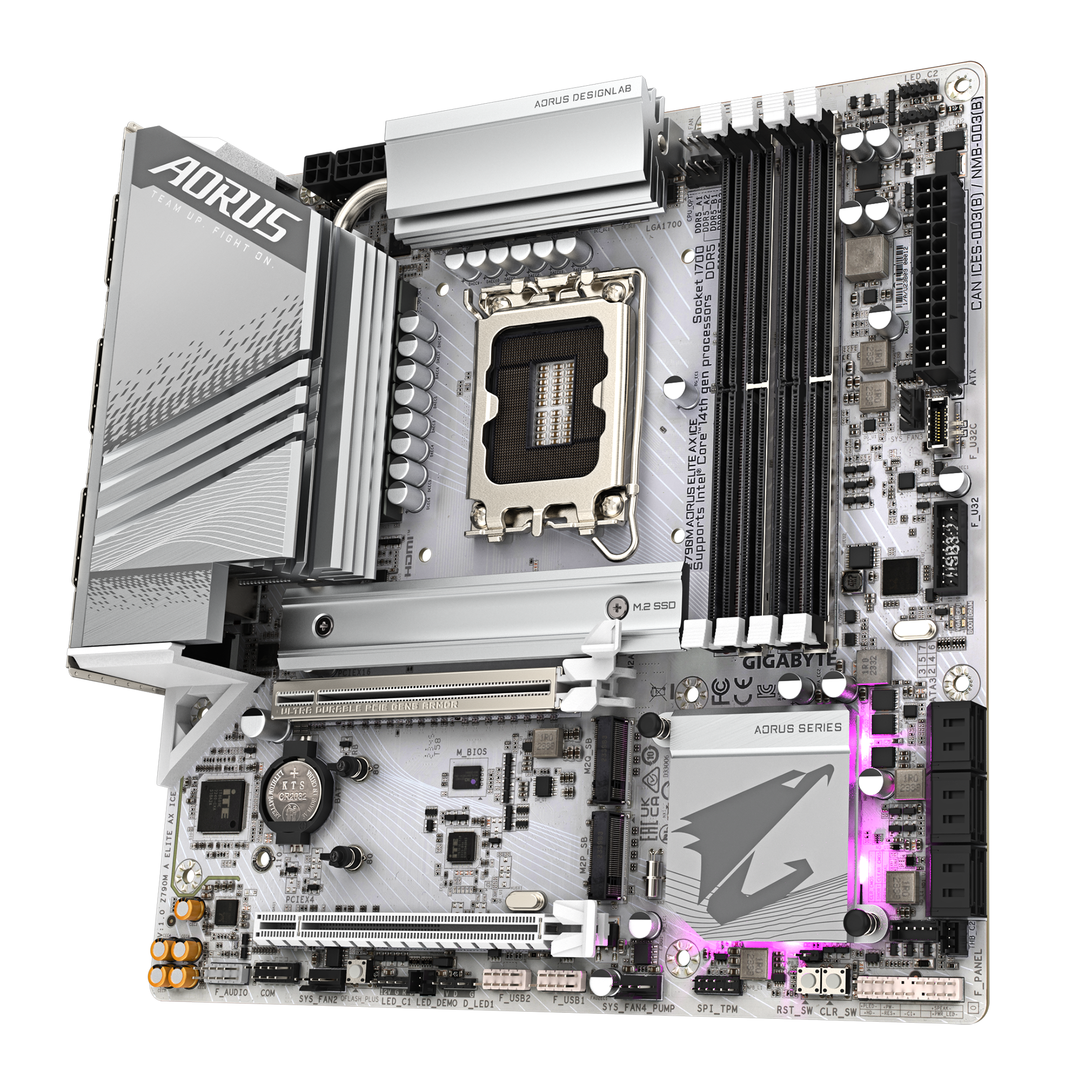

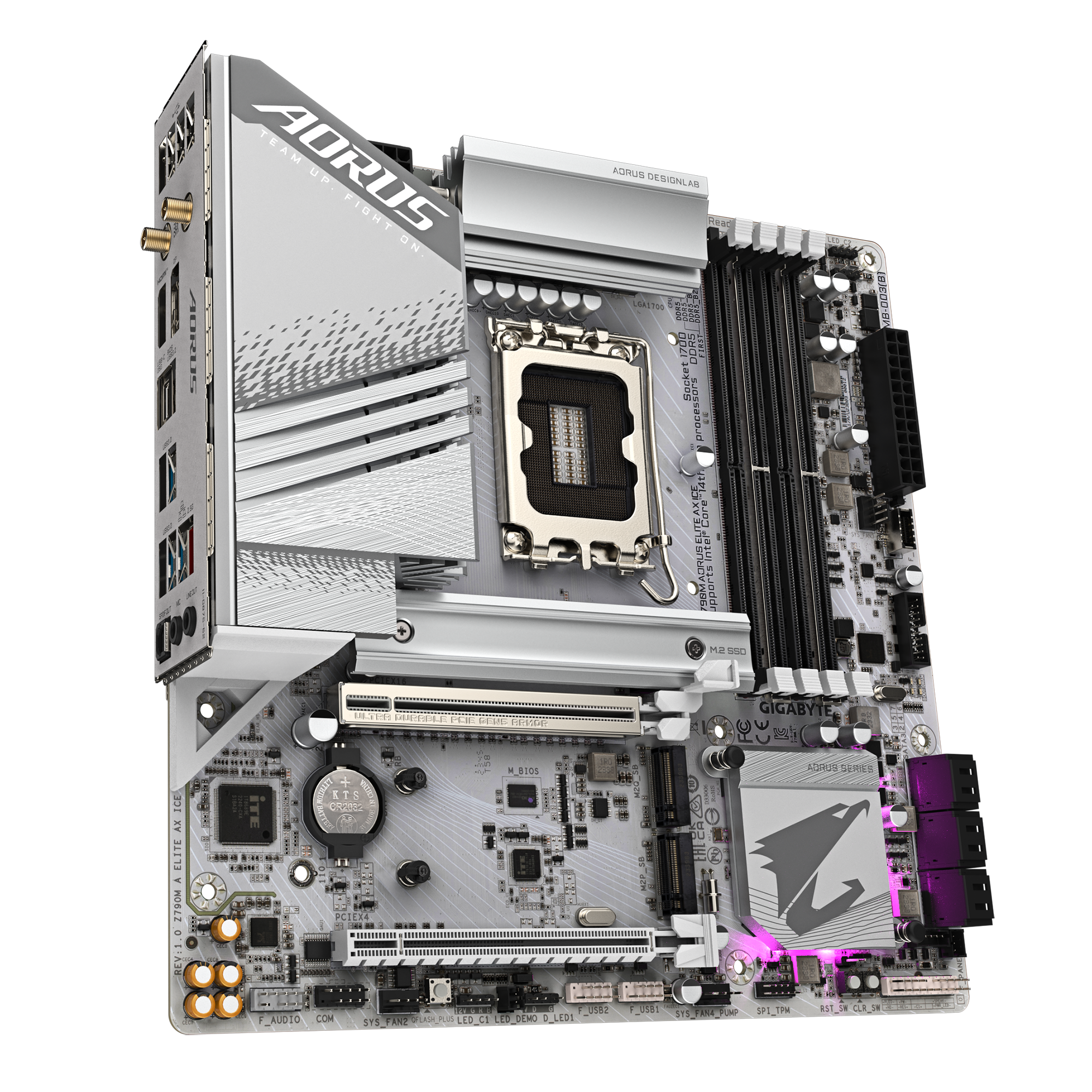

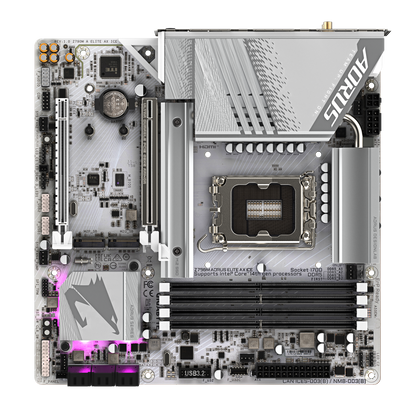

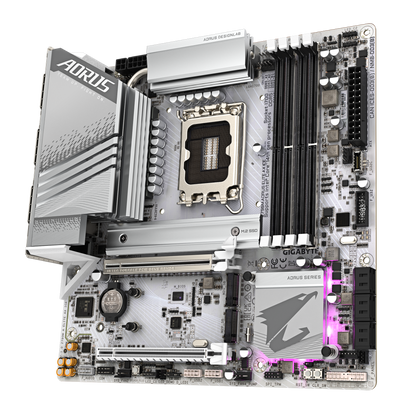

GIGABYTE Z790M AORUS ELITE AX ICE DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

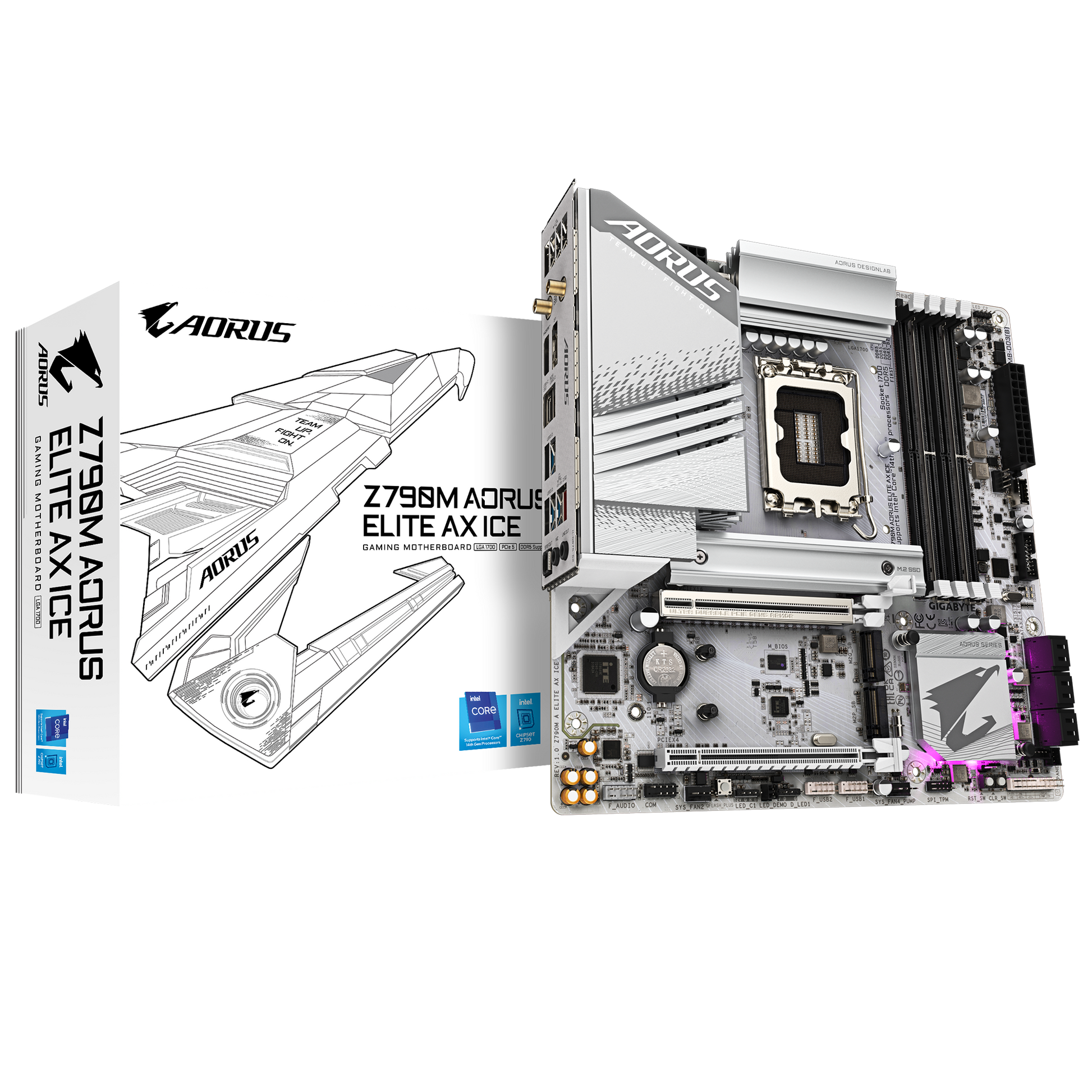

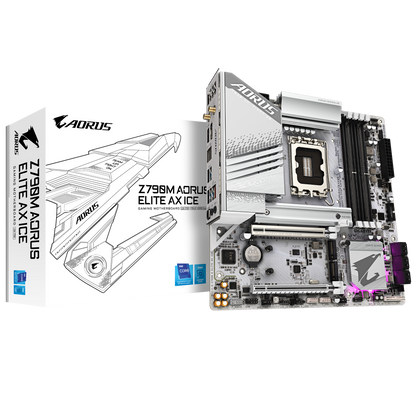

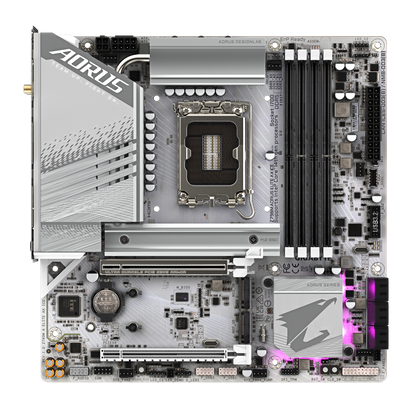

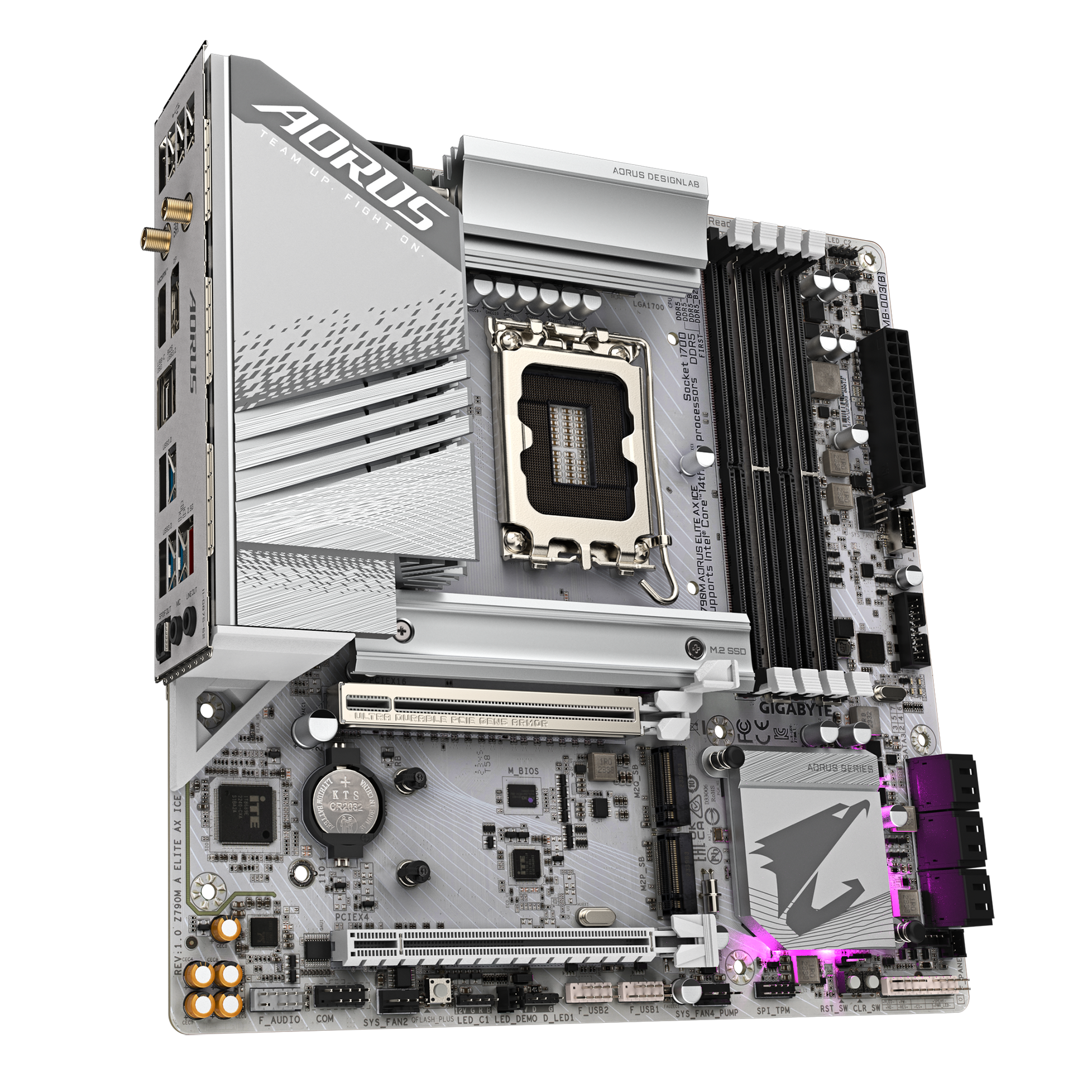

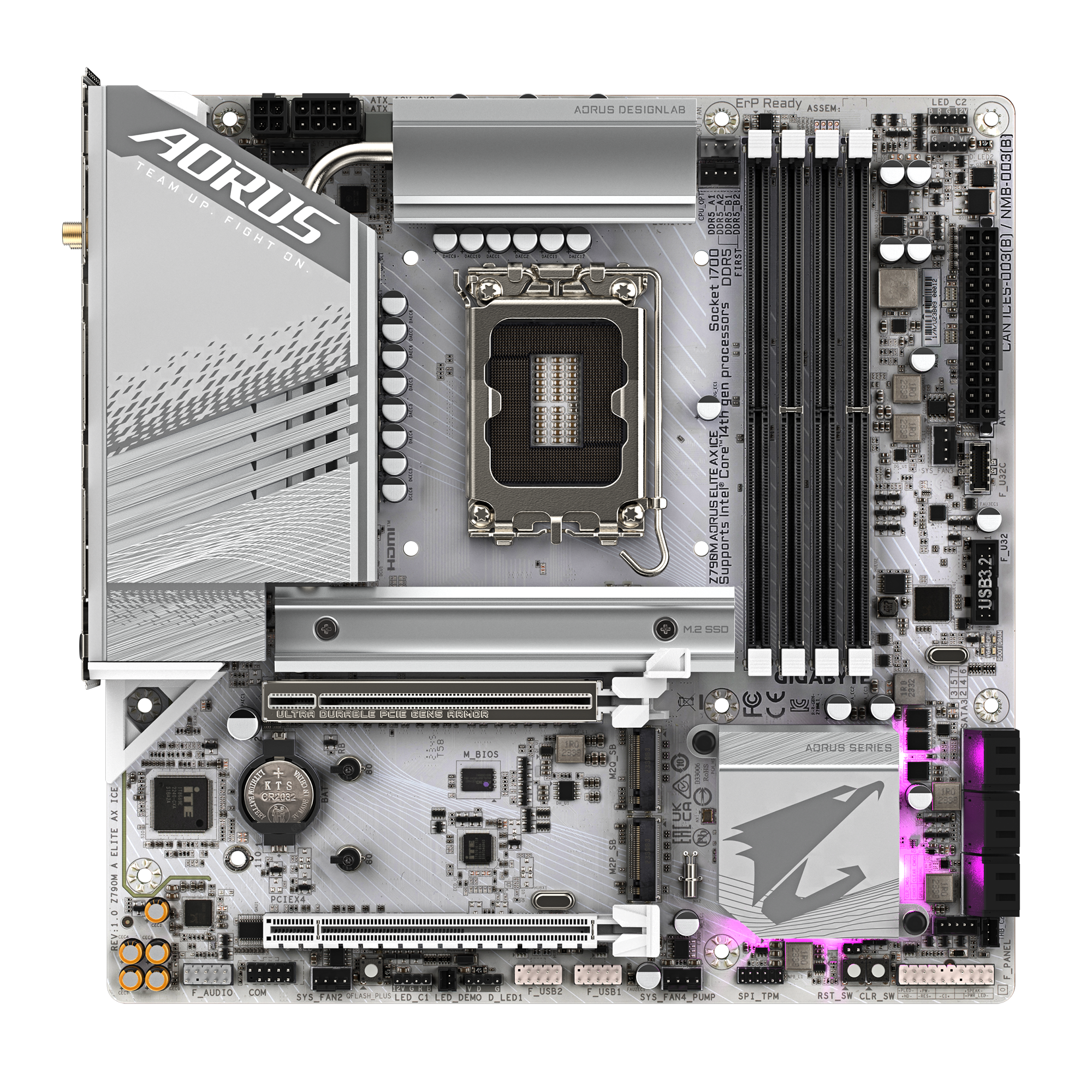

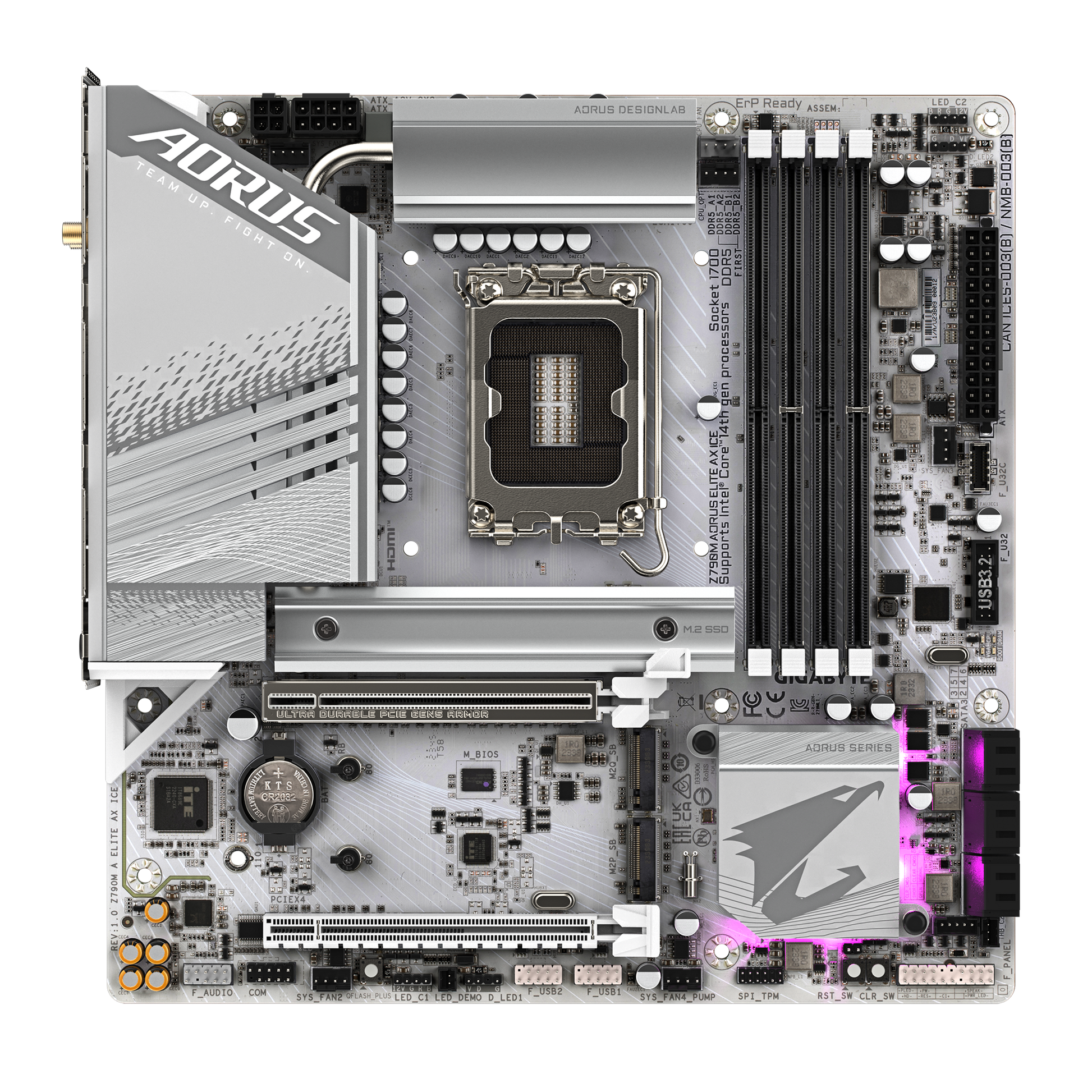

Discover the GIGABYTE Z790M AORUS ELITE AX ICE DDR5 MOTHERBOARD, an essential component for building a high-performance system. This motherboard supports advanced DDR5 memory and is designed for modern computing needs, offering a robust foundation for your next PC build.
Key Features at a Glance
- Supports Z790 Chipset
- DDR5 Memory Compatibility
- AORUS Elite Series Design
- Integrated AX Connectivity
- Distinctive Ice-themed Aesthetic
Enhanced System Foundation
The GIGABYTE Z790M AORUS ELITE AX ICE DDR5 Motherboard provides a solid foundation for your high-performance PC. Supporting the Z790 chipset and the latest DDR5 memory, it is engineered to meet demanding computing requirements.
Advanced Connectivity Options
Experience fast and reliable network performance with integrated AX connectivity, suitable for both wireless and wired setups. This ensures seamless online experiences and data transfer capabilities.
Signature AORUS Aesthetic
Featuring the AORUS ELITE AX ICE design, this motherboard combines robust performance with a distinctive visual style. The 'ICE' designation suggests a unique aesthetic, enhancing the overall look of your custom PC build.
Technical Specifications
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Onboard Graphics | Integrated Intel HD Graphics, 1 x HDMI (4096x2160@60Hz), 1 x DisplayPort (4096x2304@60Hz), support for HDMI 2.1 and DisplayPort 1.2 |
| Audio | Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel Wi-Fi 6E AX211 (PCB rev. 1.0) and Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1), Bluetooth 5.3, support for 2.4/5/6 GHz bands, 11ax 160MHz wireless standard |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 1 x M.2 PCIe 4.0 x4 (CPU), 2 x M.2 PCIe 4.0 x4/SATA (Chipset), 6 x SATA 6Gb/s, RAID 0, RAID 1, RAID 5, and RAID 10 support |
| USB Ports | 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 (including internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V, 3 x system fan headers, 3 x M.2 connectors, 6 x SATA 6Gb/s, USB headers, and more |

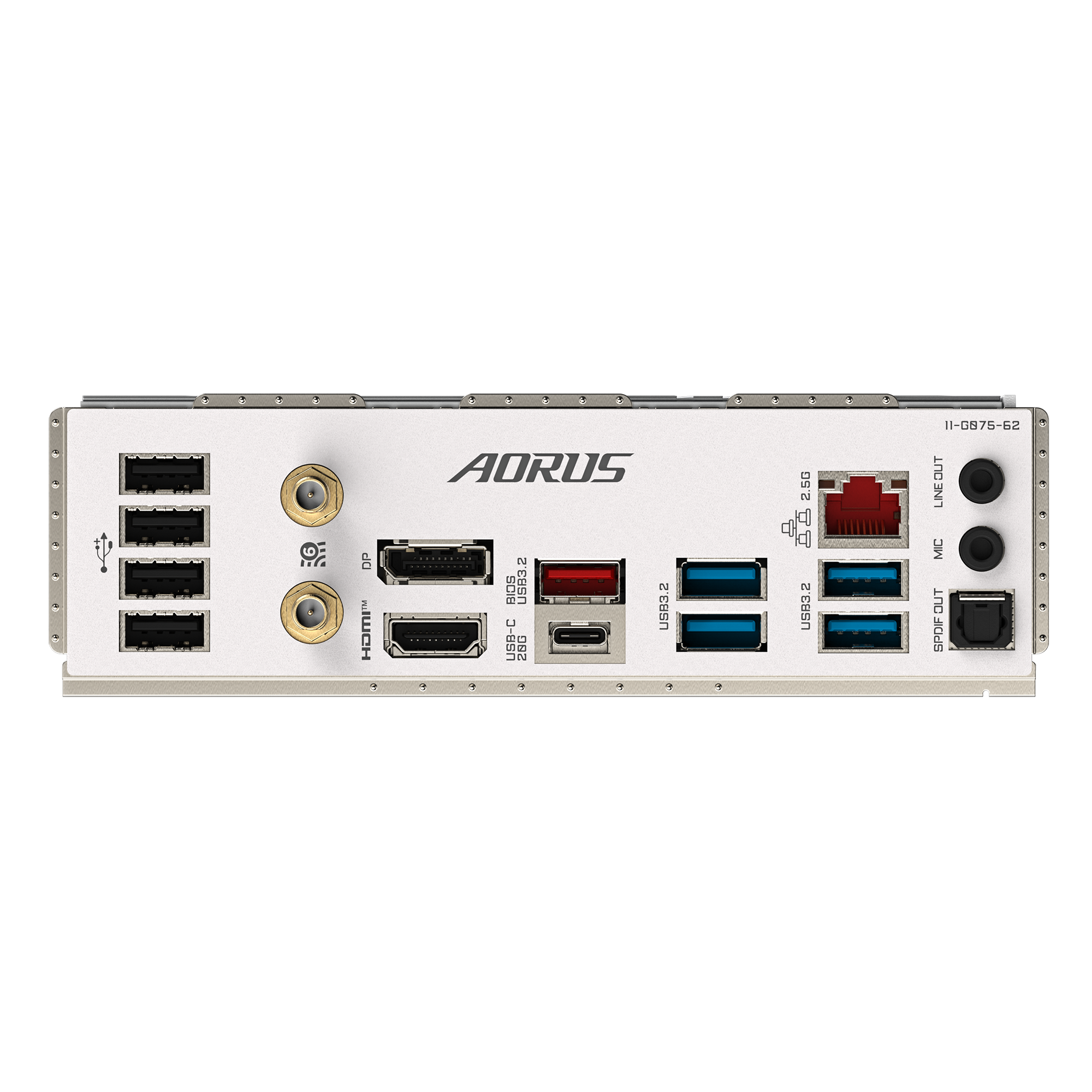

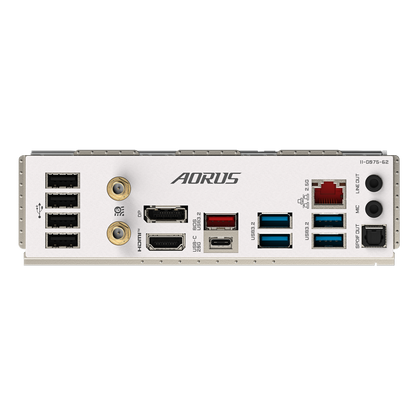

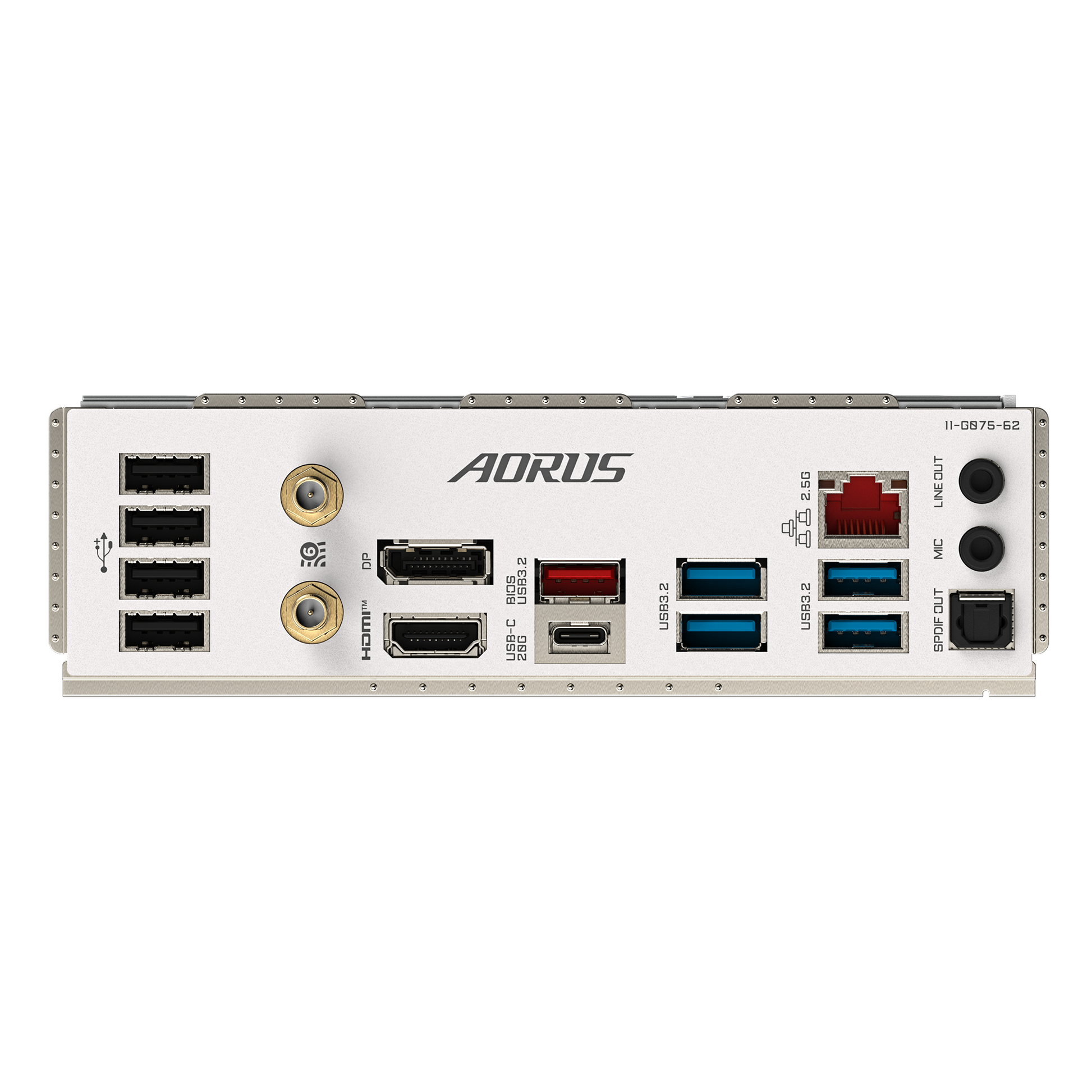

| Back Panel Connectors | 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 2 x SMA antenna connectors, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 1 x optical S/PDIF Out, 2 x audio jacks |
| Operating System Support | Windows 10 64-bit, Windows 11 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup, Norton Internet Security, LAN bandwidth management software |
Frequently Asked Questions
Q: What chipset does this motherboard use?
A: The GIGABYTE Z790M AORUS ELITE AX ICE DDR5 Motherboard features the Z790 chipset.
Q: What type of memory does this motherboard support?
A: This motherboard is designed to support DDR5 memory modules.
Q: Where can I find detailed specifications for this motherboard?
A: Detailed specifications for the GIGABYTE Z790M AORUS ELITE AX ICE DDR5 Motherboard can be found in the Technical Specifications section above.
