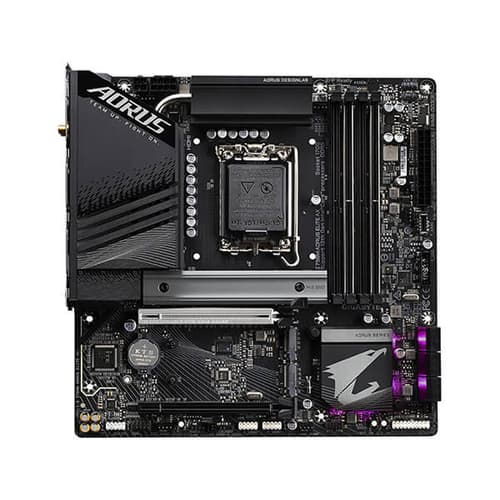

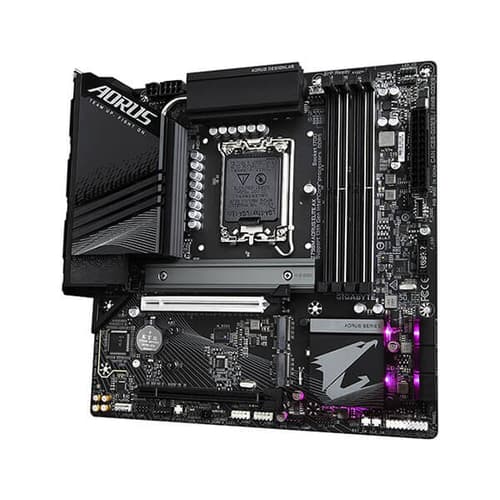

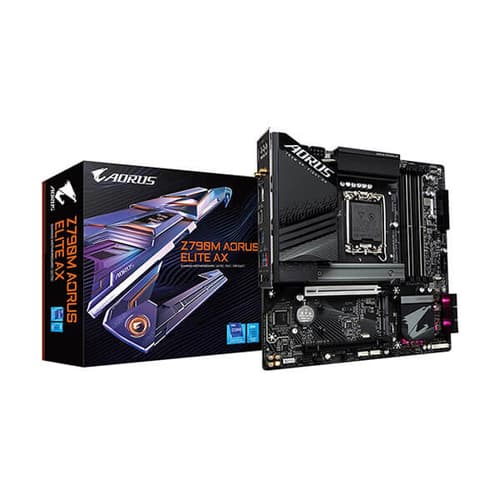

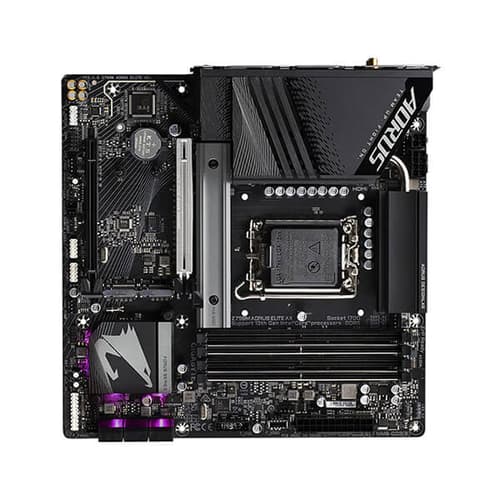

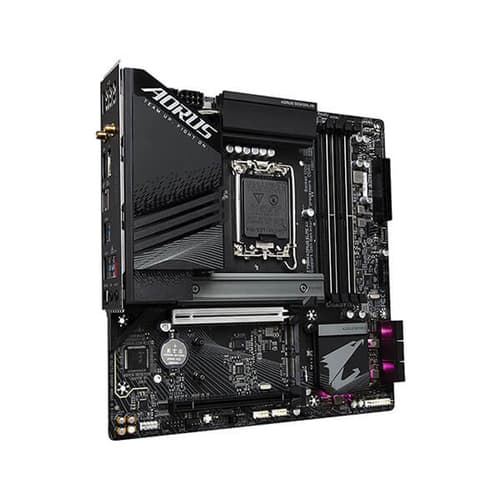

Elevate your PC build with the GIGABYTE GA-Z790M AORUS ELITE AX DDR5 INTEL LGA1700 MOTHERBOARD. Designed to support modern Intel LGA1700 processors and harness the power of DDR5 memory, this motherboard provides a robust foundation for your computing needs. Experience the engineering of the GIGABYTE AORUS ELITE AX series, crafted for reliable operation.
Key Features at a Glance
- GIGABYTE GA-Z790M model.
- Part of the AORUS ELITE AX series.
- Features DDR5 memory support.
- Compatible with Intel LGA1700 processors.
Next-Generation DDR5 Memory Support
Built to leverage the capabilities of DDR5 memory, this motherboard ensures compatibility with the latest memory modules, contributing to efficient system performance.
Optimized for Intel LGA1700 Processors
The GIGABYTE GA-Z790M AORUS ELITE AX is engineered to pair seamlessly with Intel processors utilizing the LGA1700 socket, offering a stable platform for your CPU.
Reliable AORUS ELITE AX Engineering
As part of the AORUS ELITE AX series, this motherboard embodies GIGABYTE's commitment to quality and design, providing a dependable component for your computer system.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 192 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Graphics Port | 1 x HDMI port,1 x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |
| Back Panel I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What CPU socket does the GIGABYTE GA-Z790M AORUS ELITE AX motherboard support?
A: This motherboard is designed to support Intel LGA1700 processors.
Q: What type of memory does this motherboard support?
A: The GIGABYTE GA-Z790M AORUS ELITE AX motherboard features DDR5 memory support.
Q: What is the specific model name of this GIGABYTE motherboard?
A: The specific model name is GIGABYTE GA-Z790M AORUS ELITE AX.
