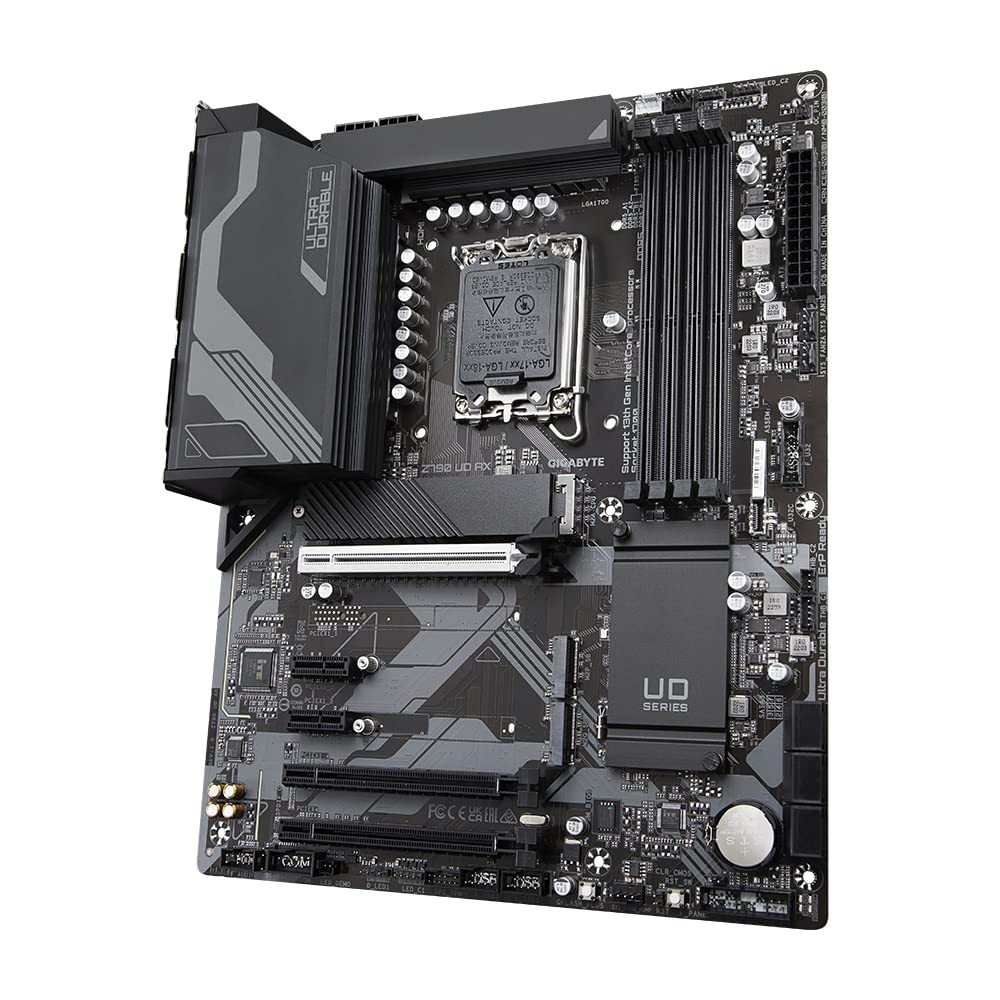

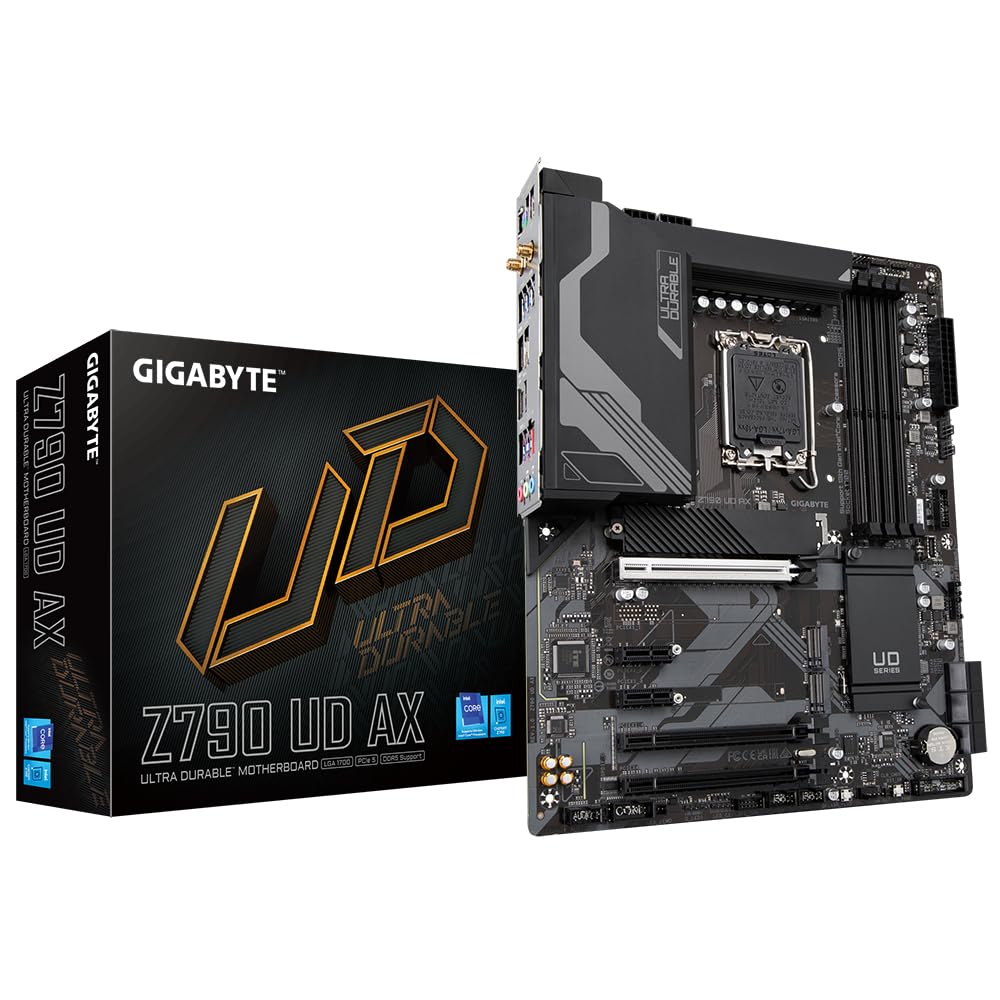

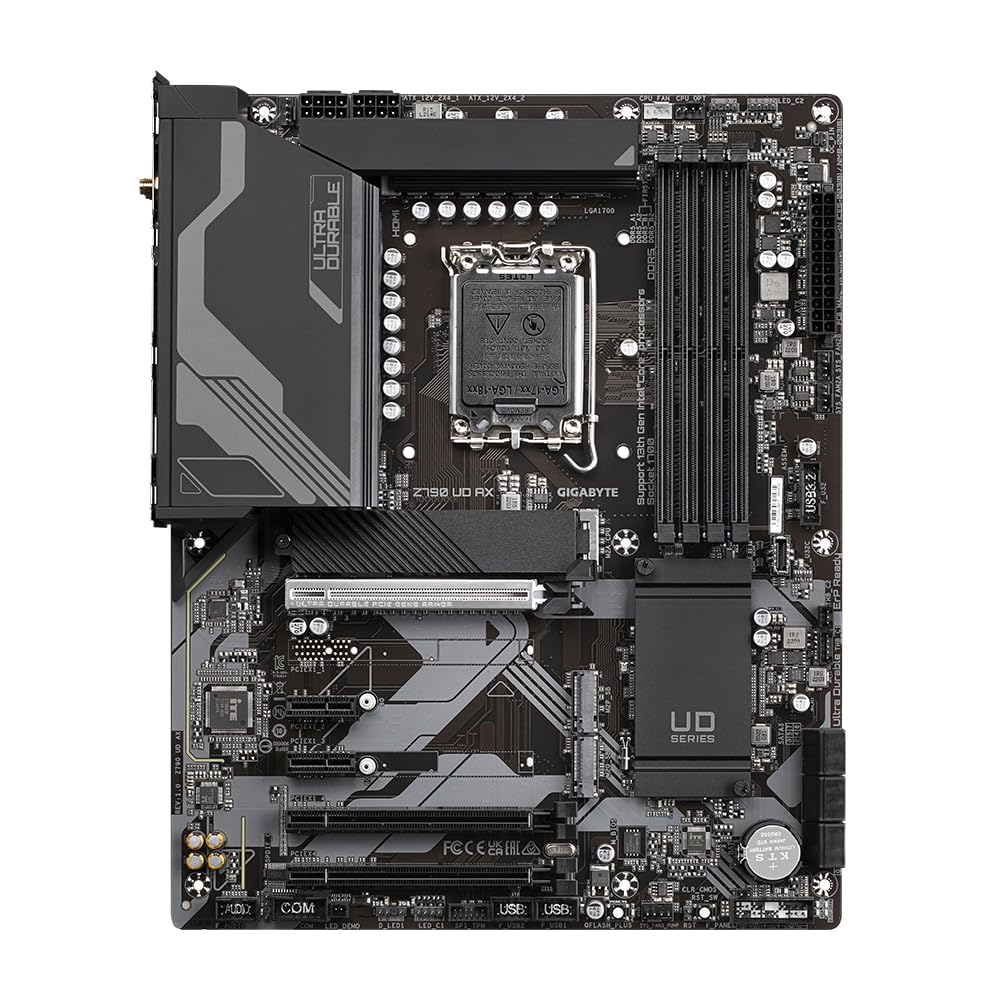

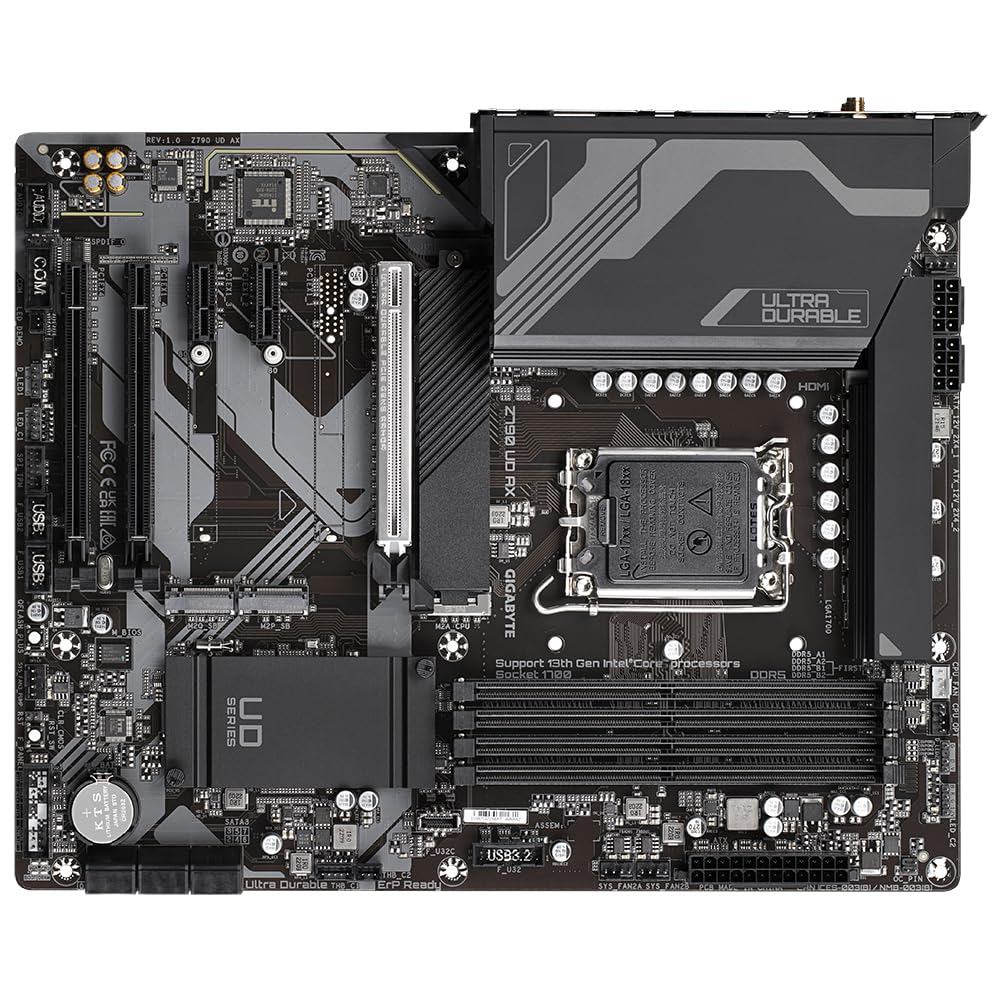

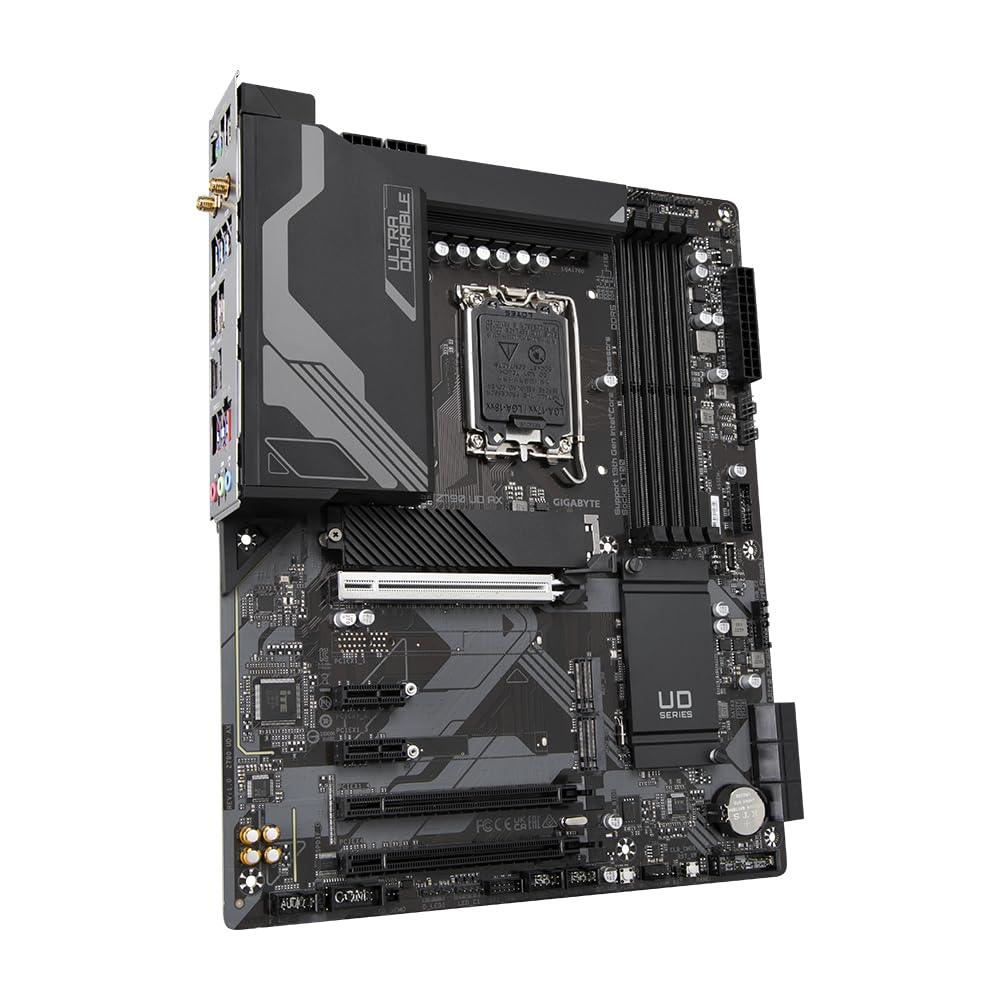

GIGABYTE GA-Z790 UD AX DDR5 INTEL LGA1700 MOTHERBOARD
GIGABYTE GA-Z790 UD AX DDR5 INTEL LGA1700 MOTHERBOARD
Regular price
Rs. 20,531.00
Sale price
Rs. 20,531.00
Regular price
Rs. 39,000.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About the Item
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance Twin 16*+1+? Phases Digital VRM Solution
- Dual Channel DDR5?4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage?3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
Technical Details
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Wireless Networking | Wi-Fi 6E, BLUETOOTH 5.3 |

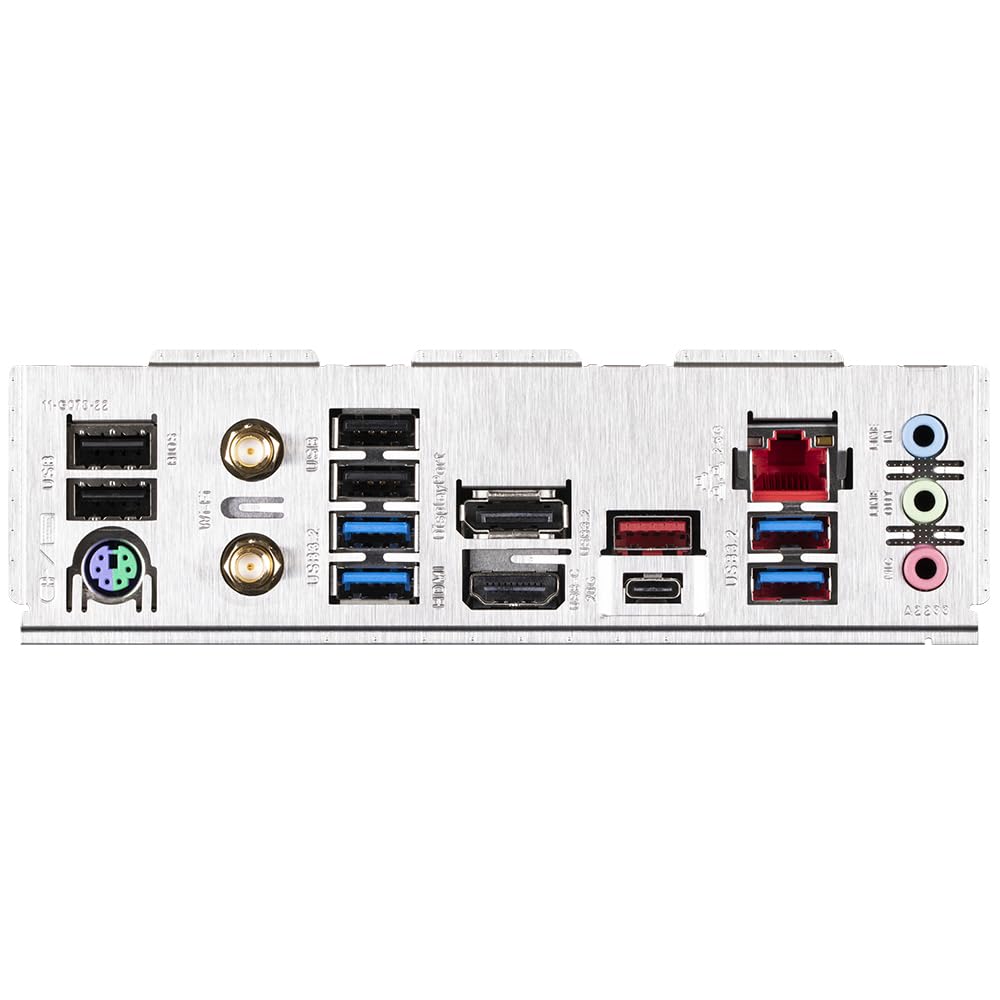

| Back Panel I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
