Elevate your PC build with the GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 Motherboard, engineered to support Intel Core 14th, 13th, and 12th generation processors. This motherboard delivers robust power delivery, high-speed storage, and advanced thermal management for a stable and efficient system, designed to meet the demands of modern computing.

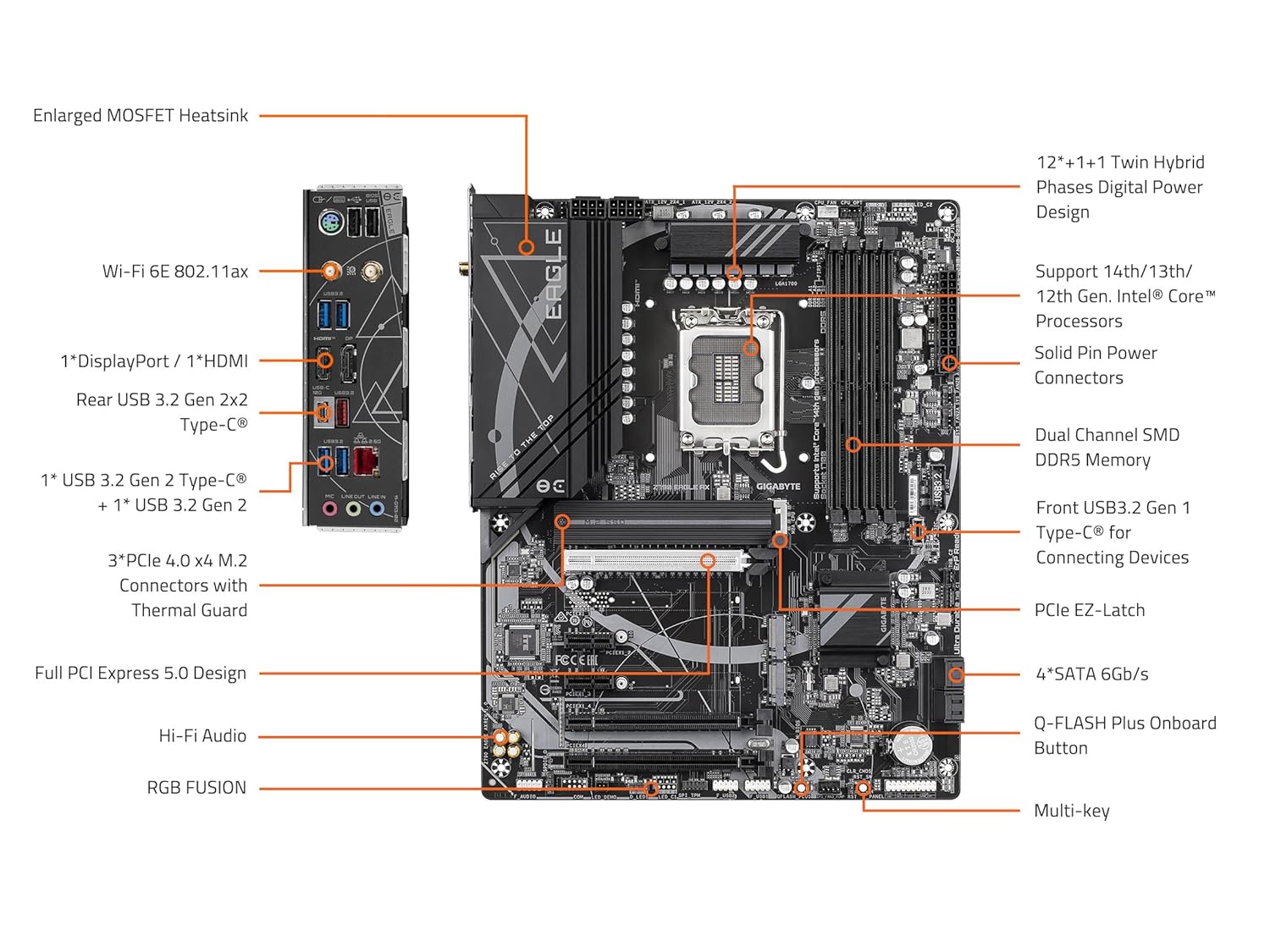

Key Features at a Glance
- Supports Intel Core 14th, 13th, and 12th Gen processors.
- Twin 12*+1+1 Phases Digital VRM Solution for stable power delivery.
- Dual Channel DDR5 with 4 DIMMs and XMP 3.0 Memory Module Support.
- Three PCIe 4.0 x4 M.2 Connectors for next-generation storage.
- Advanced Thermal Design and M.2 Thermal Guard.
- EZ-Latch PCIe 5.0x16 Slot with Quick Release Design.
- Fast 2.5GbE LAN and Wi-Fi 6E 802.11ax networking.
- Extended connectivity via DP, HDMI, and Rear USB-C® 10Gb/s.
Optimized Power & Memory Performance
Benefit from a Twin 12*+1+1 Phases Digital VRM Solution, ensuring stable and reliable power delivery to your components. The Dual Channel DDR5 architecture, with four DIMMs and XMP 3.0 support, allows for high-speed memory configurations, maximizing your system's potential for demanding applications and gaming.
Next-Gen Storage & Connectivity
Equip your system with rapid storage capabilities using three PCIe 4.0 x4 M.2 connectors, ideal for quick boot times and fast data transfer. Enjoy extended connectivity options including DisplayPort, HDMI, and a rear USB-C® 10Gb/s port, providing versatile peripheral support and multi-display setups.
Advanced Cooling & Easy Upgrades
Maintain optimal operating temperatures with an Advanced Thermal Design and M.2 Thermal Guard, crucial for VRM power stability and M.2 SSD performance. The EZ-Latch PCIe 5.0x16 slot features a quick release design for effortless component installation, while Q-Flash Plus simplifies BIOS updates without needing a CPU, memory, or graphics card.
High-Speed Networking
Experience lightning-fast online performance with integrated 2.5GbE LAN and Wi-Fi 6E 802.11ax. This combination provides reliable and high-bandwidth internet access for seamless gaming, high-definition streaming, and productive online tasks.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Visit Brand website for more information.) |
| Graphics Port | 1 x HDMI port,1 x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |

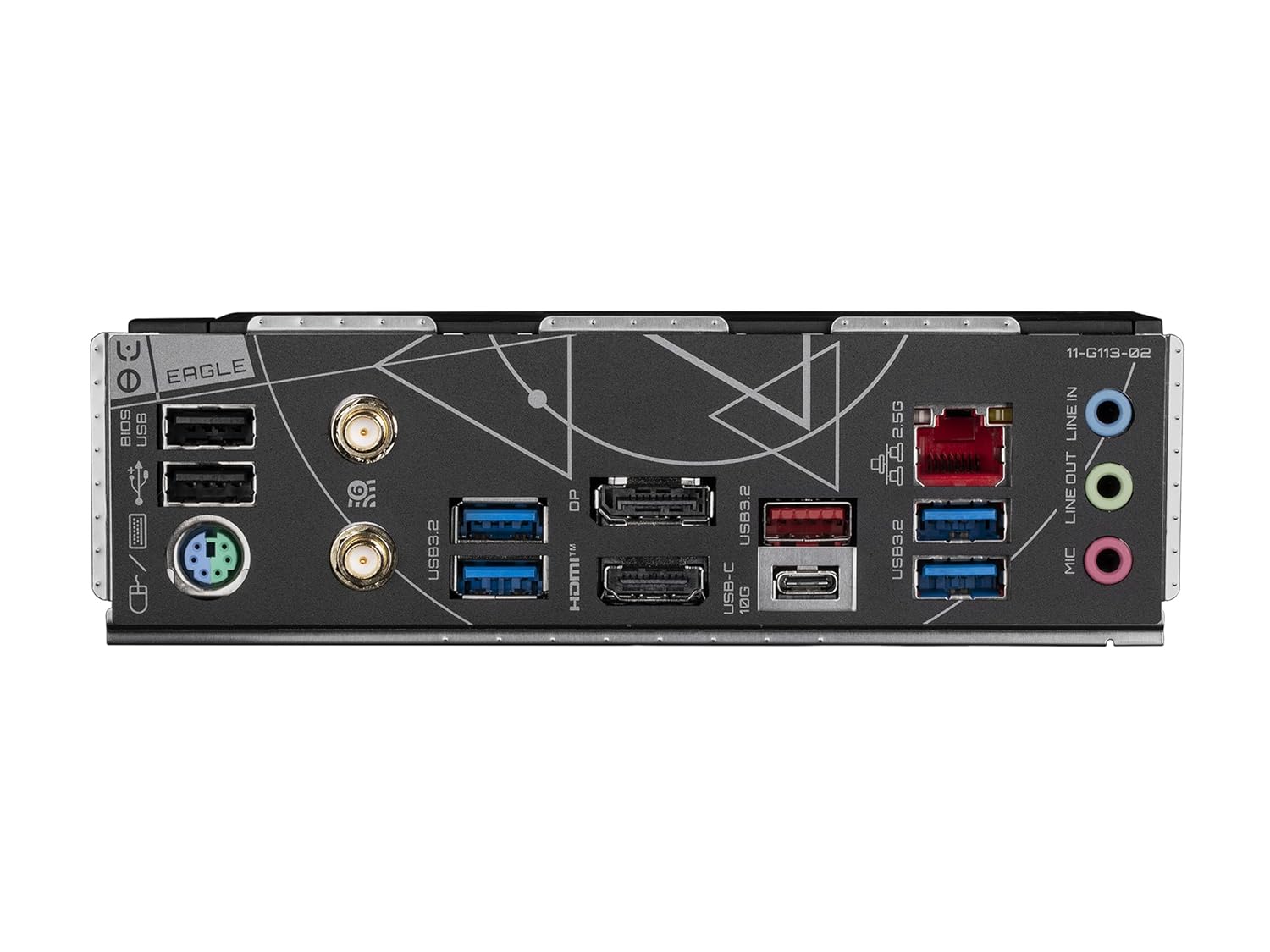

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors does this motherboard support?
A: The GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 Motherboard supports Intel Core 14th, 13th, and 12th generation processors.
Q: What type of memory does it use?
A: It features Dual Channel DDR5 memory support with four DIMMs and XMP 3.0 compatibility.
Q: Does this motherboard have Wi-Fi?
A: Yes, it includes Wi-Fi 6E 802.11ax for high-speed wireless networking, alongside 2.5GbE LAN.
