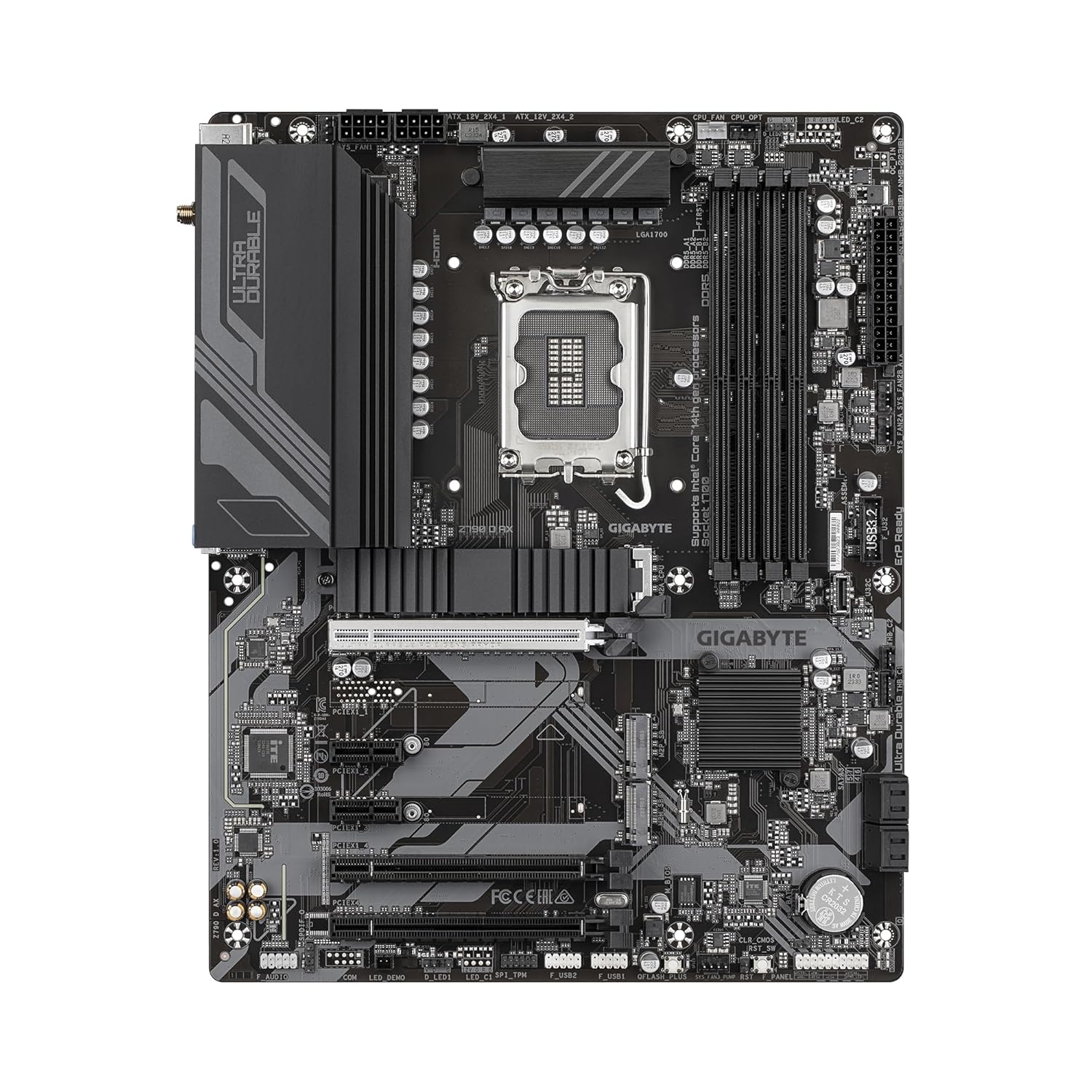

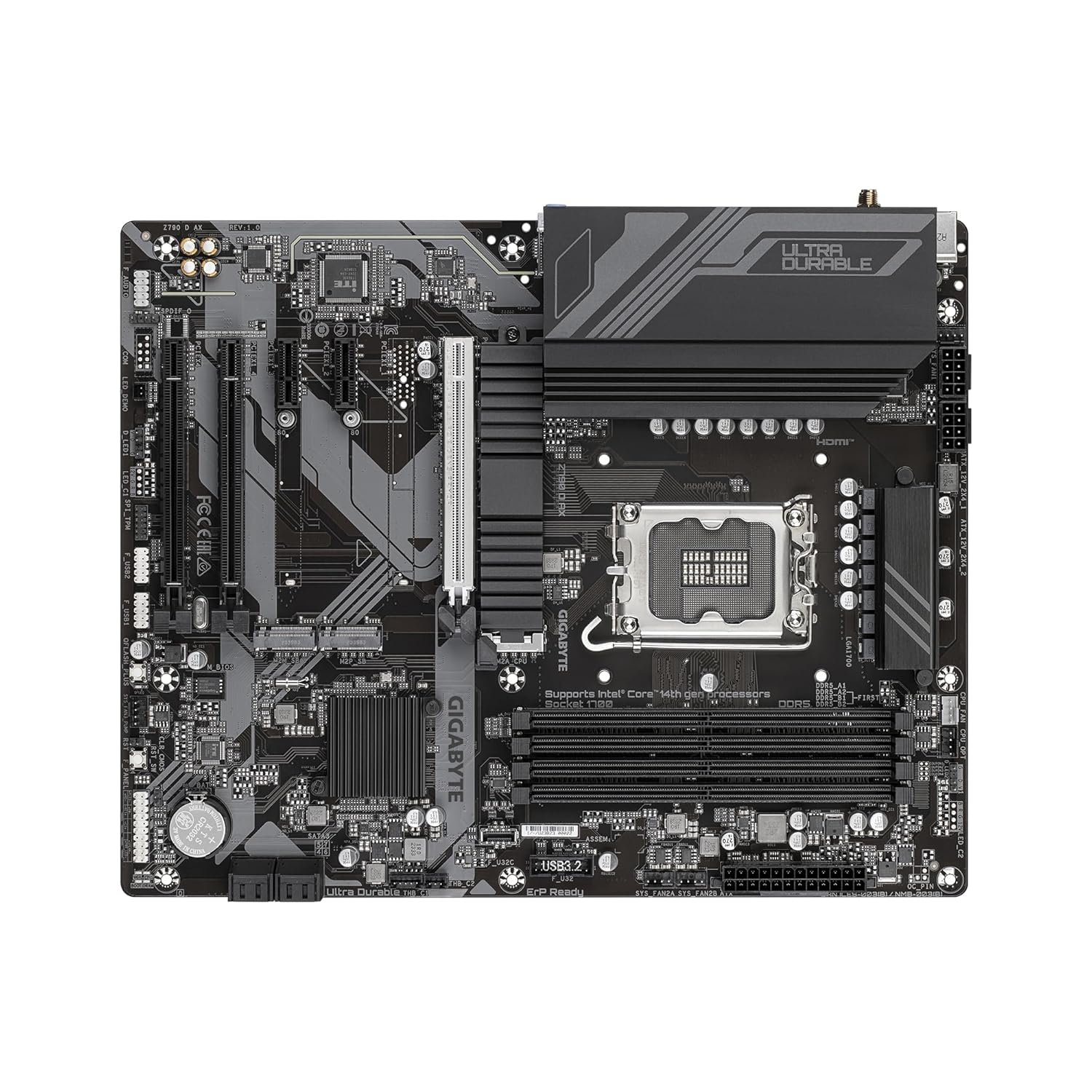

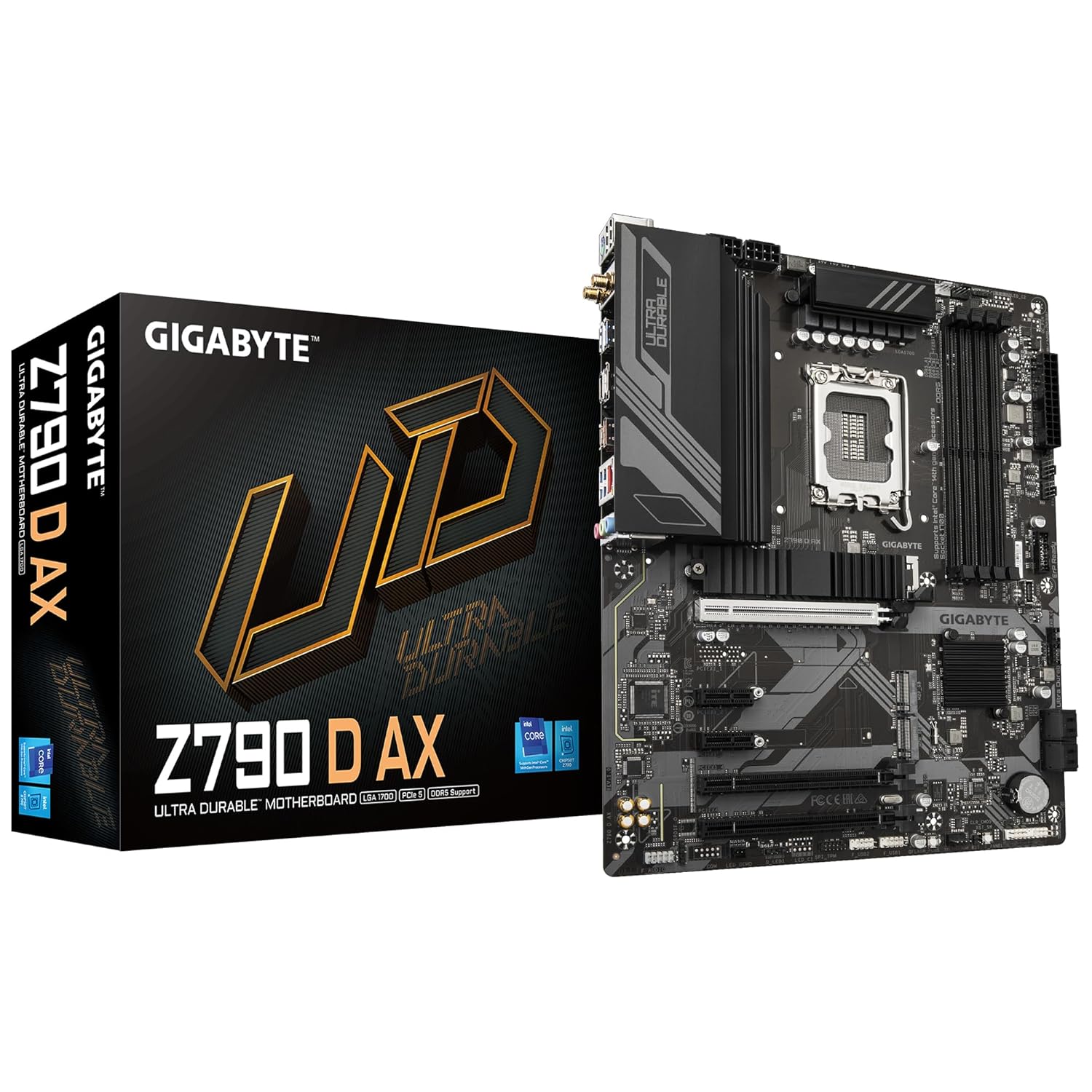

GIGABYTE Z790 D AX DDR5 (WI-FI) MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Elevate your computing experience with the GIGABYTE Z790 D AX DDR5 (WI-FI) MOTHERBOARD. Designed to support Intel Core 14th, 13th, and 12th generation processors, this motherboard offers a robust foundation for high-performance builds, combining advanced power delivery, next-gen memory support, and comprehensive connectivity for demanding users.
Key Features at a Glance
- Supports Intel Core 14th, 13th, and 12th generation processors.
- Features a Twin 12+1+1 Phases Digital VRM Solution for stable power.
- Equipped with 4 DIMMs for Dual Channel DDR5 memory with XMP 3.0 support.
- Includes three PCIe 4.0 x4 M.2 connectors for high-speed storage.
- Integrated 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast network access.
- Offers convenient Q-Flash Plus for BIOS updates without CPU, memory, or graphics card installation.
Unleash Next-Gen Performance
The GIGABYTE Z790 D AX DDR5 (WI-FI) MOTHERBOARD supports the latest Intel Core 14th, 13th, and 12th generation processors, providing a powerful platform for demanding applications and gaming. Paired with Dual Channel DDR5 memory across 4 DIMMs, including XMP 3.0 support, it delivers exceptional speed and responsiveness for your system.
Advanced Storage and Cooling Solutions
Benefit from lightning-fast data access with three PCIe 4.0 x4 M.2 connectors. To ensure sustained performance, an advanced thermal design with M.2 Thermal Guard maintains VRM power stability and optimal M.2 SSD performance, even under heavy loads.
Robust Connectivity and User-Friendly Design
Stay connected with fast 2.5GbE LAN and Wi-Fi 6E 802.11ax for reliable wired and wireless networking. The EZ-Latch feature on the PCIe 4.0x16 slot simplifies component installation with its quick-release design, while Q-Flash Plus allows for BIOS updates without needing a CPU, memory, or graphics card.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Visit Brand website for more information.) |
| Graphics Port | 1 x HDMI port,1 x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |

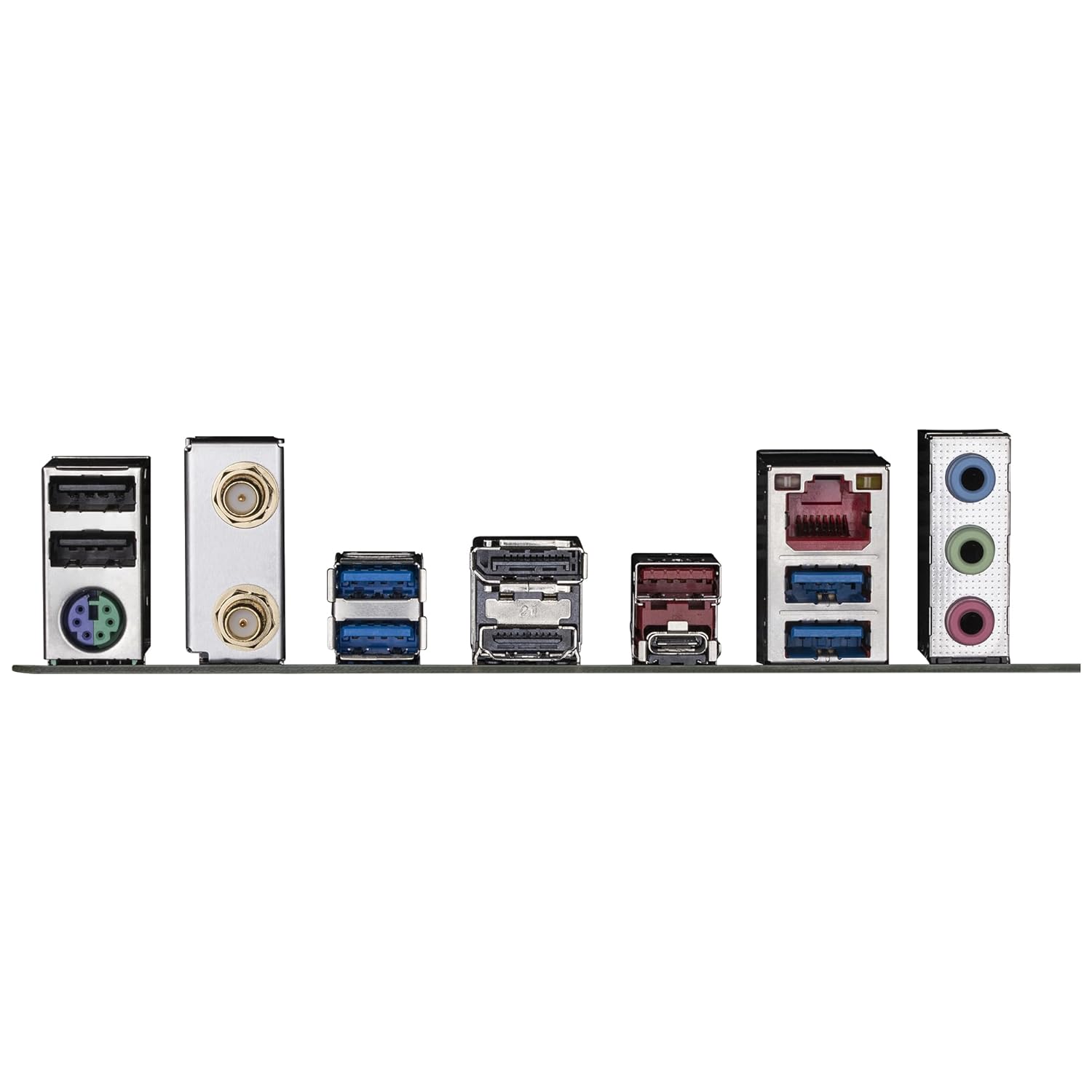

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which Intel processors are supported by this motherboard?
A: The GIGABYTE Z790 D AX DDR5 (WI-FI) MOTHERBOARD supports Intel Core 14th, 13th, and 12th generation processors.
Q: Does this motherboard support DDR5 memory?
A: Yes, it supports Dual Channel DDR5 memory across four DIMM slots, including XMP 3.0 memory modules.
Q: How does this motherboard handle network connectivity?
A: It features fast 2.5GbE LAN for wired connections and Wi-Fi 6E 802.11ax for advanced wireless networking.
