GIGABYTE GA-Z690 AORUS PRO DDR4 INTEL LGA1700 MOTHERBOARD

Sale priceRs. 22,550.00Regular price Rs. 36,624.00
Out of stock

The GIGABYTE GA-Z690 AORUS PRO DDR4 INTEL LGA1700 MOTHERBOARD provides a robust foundation for your computing needs. This GIGABYTE AORUS PRO motherboard is designed to support Intel LGA1700 processors and DDR4 memory, making it suitable for a range of system builds.

Key Features at a Glance

  • GIGABYTE AORUS PRO series
  • Supports Intel LGA1700 CPUs
  • Compatible with DDR4 memory
  • Functions as a core motherboard component

Optimized for Intel LGA1700 Processors

This motherboard is specifically engineered to accommodate Intel LGA1700 processors, providing the necessary platform for your CPU to operate. It ensures compatibility for systems built around this processor socket type.

DDR4 Memory Support

Equipped to support DDR4 memory, this GIGABYTE motherboard allows for efficient data handling within your system. DDR4 compatibility provides flexibility in selecting your preferred memory modules for system performance.

Reliable GIGABYTE AORUS PRO Design

As a GIGABYTE AORUS PRO series motherboard, it represents a core component for building a stable and functional computer system. Its design serves as the central hub for all your PC components.

Technical Specifications

CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors (Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
Chipset Intel Z690 Express Chipset
Memory
  • DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  • Realtek ALC4080 CODEC
  • High Definition Audio
  • 2-channel analog output
  • Support for S/PDIF Out
    7.1-channel digital signals
    * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6 AX200:
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
  • 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 2 x temperature sensor headers
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

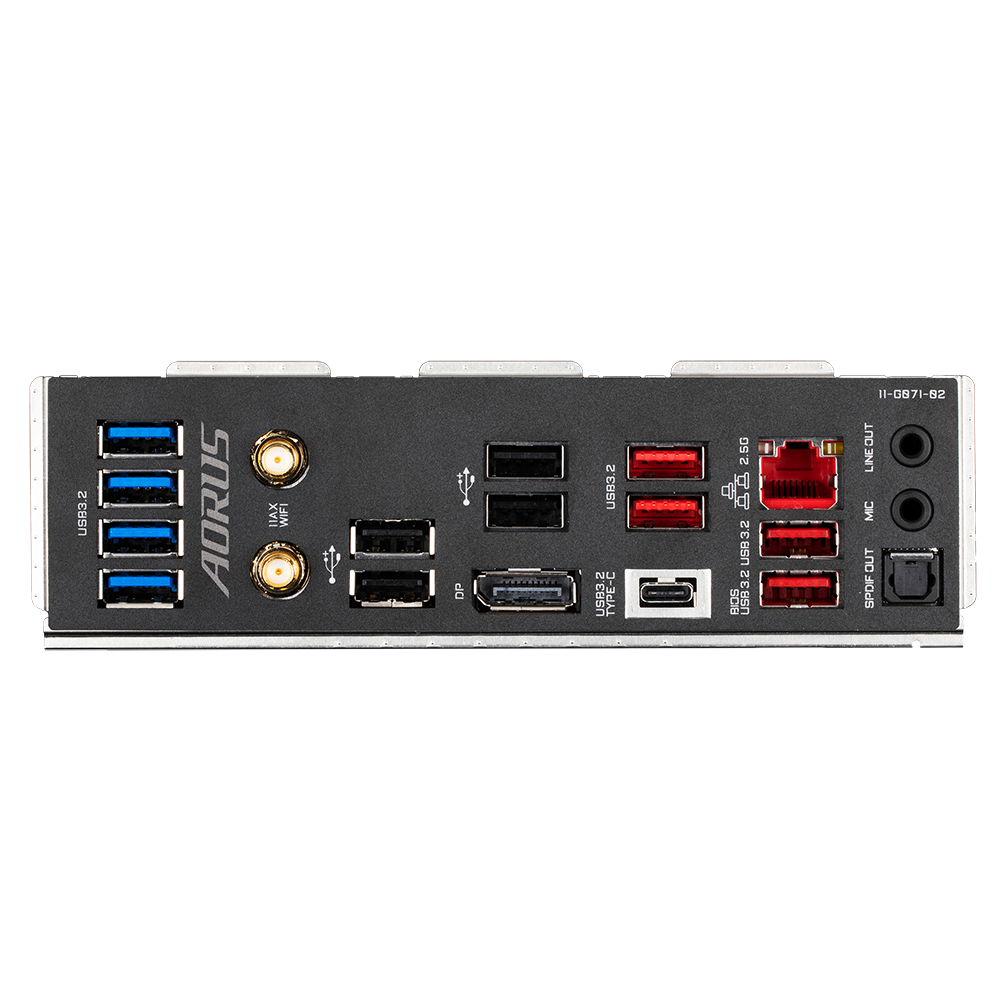

Back Panel Connectors
  • 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years

Frequently Asked Questions

Q: What CPU socket does this GIGABYTE motherboard support?

A: The GIGABYTE GA-Z690 AORUS PRO motherboard supports Intel LGA1700 processors.

Q: What type of memory is compatible with this motherboard?

A: This GIGABYTE motherboard is designed to work with DDR4 memory modules.

Q: What is the model name of this GIGABYTE motherboard?

A: The model name of this motherboard is GA-Z690 AORUS PRO.
