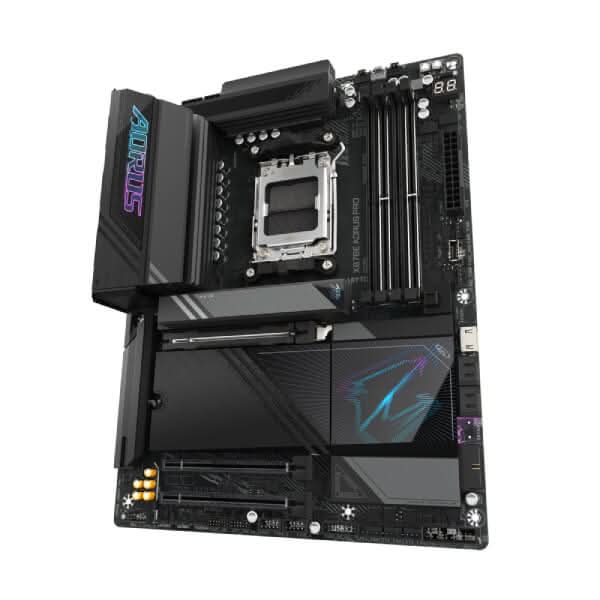

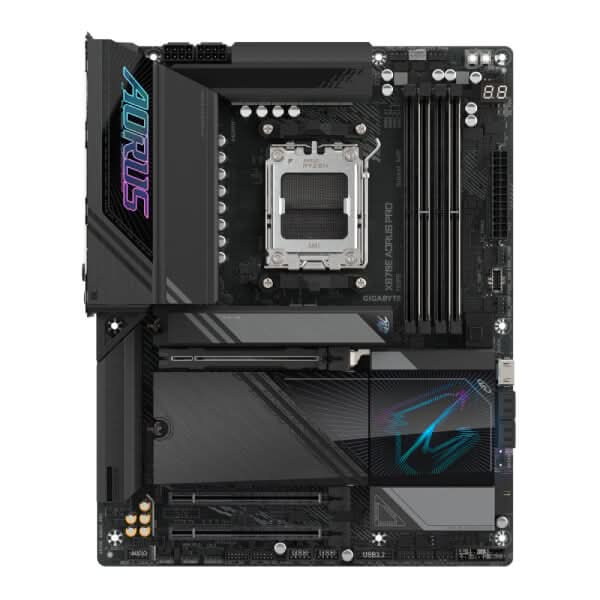

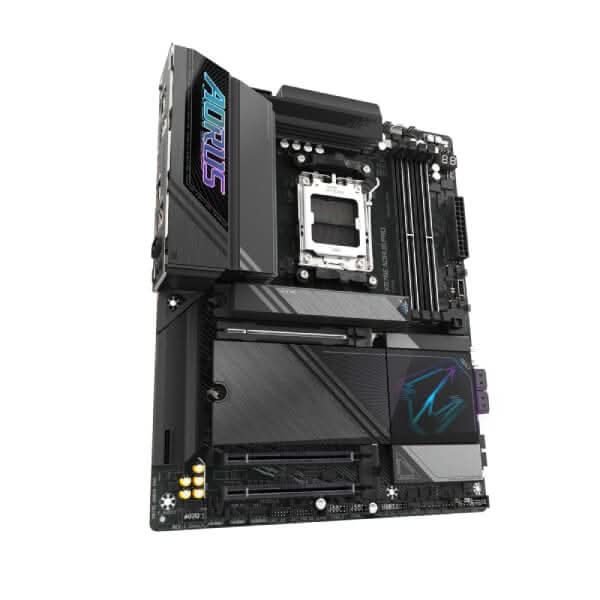

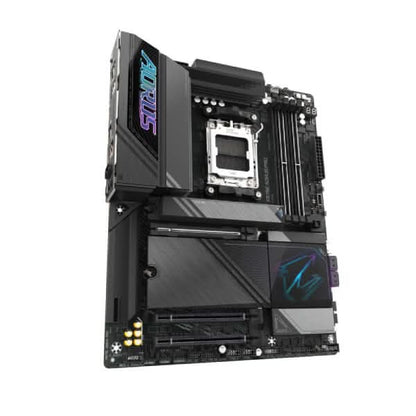

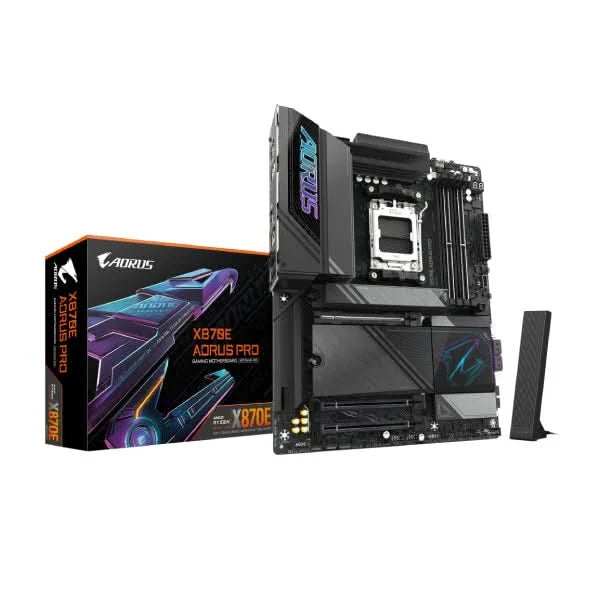

The Gigabyte X870E Aorus Pro WIFI ATX Motherboard provides a robust foundation for your high-performance AMD Ryzen build. Designed for AM5 processors and DDR5 memory, this motherboard integrates advanced features like PCIe 5.0, Wi-Fi 7, and multiple M.2 slots for exceptional speed and connectivity.
Key Features at a Glance
- AMD Socket AM5 supports Ryzen 7000, 8000, and 9000 Series Processors.
- Dual Channel DDR5 with 4 DIMMs and AMD EXPO™ Memory Module Support.
- Ultra-Fast Storage with 4 M.2 slots, including 3 PCIe 5.0 x4.
- Fast Networking featuring 2.5GbE LAN and Wi-Fi 7 with a directional antenna.
- EZ-Latch Plus and EZ-Latch Click for quick and screwless component installation.
- Extended Connectivity with dual USB4 Type-C (DP-Alt) and HDMI.
Next-Gen AMD Ryzen Performance
Built with AMD Socket AM5, the Gigabyte X870E Aorus Pro WIFI motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 Series Processors. Coupled with a digital twin 16+2+2 phases VRM solution, it delivers stable power for demanding tasks and high-performance computing.
Advanced Memory and Storage
Experience rapid data transfer and multitasking with Dual Channel DDR5 memory support across 4 DIMM slots, compatible with AMD EXPO™ memory modules. The motherboard also offers Ultra-Fast Storage with four M.2 slots, three of which are PCIe 5.0 x4, providing incredible speed for your SSDs.
Seamless Connectivity and Ease of Use
Stay connected with Fast Networking, including 2.5GbE LAN and Wi-Fi 7, featuring a directional ultra-high gain antenna for improved signal. Installation is simplified with WIFI EZ-Plug for quick antenna setup, and EZ-Latch Plus on PCIe and M.2 slots, along with EZ-Latch Click for M.2 heatsinks, offering quick release and screwless designs. Extended connectivity is provided by dual USB4 Type-C ports with DP-Alt, and an HDMI output.
Durable Design and Intuitive Monitoring
The Gigabyte X870E Aorus Pro WIFI is engineered for durability, featuring Ultra Durable PCIe Armor with a metal back plate for the PCIe x16 slot, and a PCIe UD Slot X offering 10X strength for graphics cards. Efficient Thermal solutions like VRM Thermal Armor Advanced and M.2 Thermal Guard L keep components cool. Monitor your system with the New Power Monitor in HWinfo for real-time CPU power phase tracking, and enjoy a Friendly UI with Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and software.
Technical Specifications
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8200 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 2 x USB4,1x HDMI,1 x front HDMI |
| Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

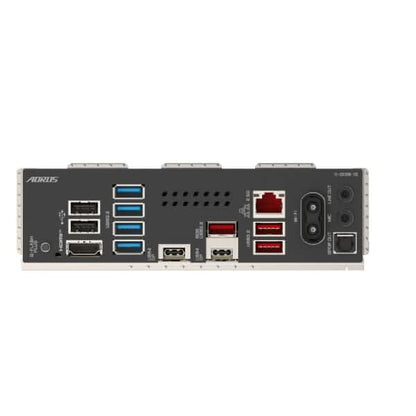

| Back Panel I/O Ports | 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What processors are supported by this motherboard?
A: The Gigabyte X870E Aorus Pro WIFI motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Processors with its AMD Socket AM5.
Q: What kind of storage options does this motherboard offer?
A: It features Ultra-Fast Storage with 4 M.2 slots, including 3 that are PCIe 5.0 x4 compatible for high-speed SSDs.
Q: Does this motherboard have integrated Wi-Fi?
A: Yes, it includes Wi-Fi 7 with a directional ultra-high gain antenna and a WIFI EZ-Plug design for quick antenna installation.
