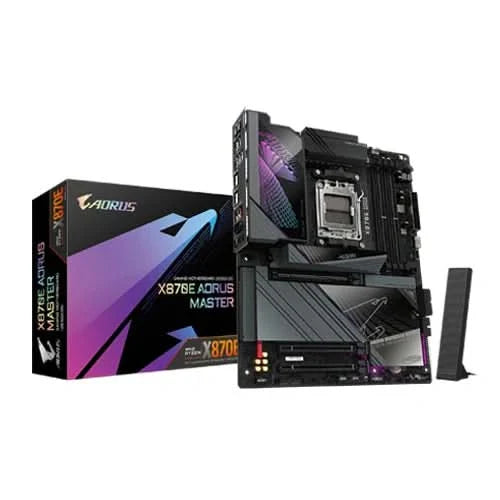

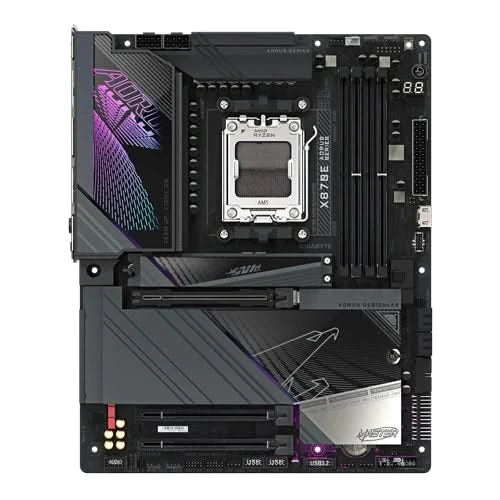

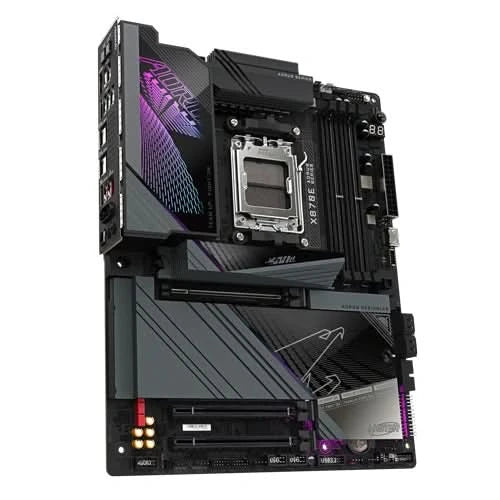

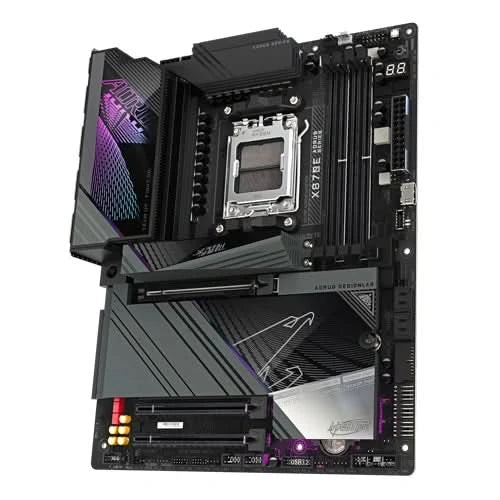

Elevate your PC build with the GIGABYTE X870E AORUS Master WIFI ATX Motherboard, engineered to support AMD Ryzen™ 9000, 8000, and 7000 Series Processors. This ATX motherboard combines robust power delivery, advanced thermal solutions, and ultra-fast connectivity, making it an ideal foundation for high-performance computing and gaming.
Key Features at a Glance
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors on Socket AM5.
- Features DDR5 OC up to 8600MT/s across 4 DIMM slots with AMD EXPO™ support.
- Equipped with 4 M.2 slots, including 3 PCIe 5.0 x4, for ultra-fast storage.
- Includes 5GbE LAN and Wi-Fi 7 with a directional ultra-high gain antenna for superior networking.
- Enhanced cooling with VRM Thermal Armor Advanced and M.2 Thermal Guard XL.
- Offers EZ-Latch Plus and EZ-Latch Click for tool-free installation of PCIe, M.2 SSDs, and heatsinks.
Unleash Next-Gen Performance
Designed for the latest AMD Ryzen™ 9000, 8000, and 7000 Series Processors, the GIGABYTE X870E AORUS Master WIFI Motherboard provides a formidable platform for demanding applications and gaming. Benefit from an advanced digital twin 16+2+2 phases VRM solution, ensuring stable power delivery even under extreme loads, and support for DDR5 memory with overclocking capabilities up to 8600MT/s.
Effortless Installation and Robust Connectivity
Experience streamlined PC building with GIGABYTE's EZ-Latch Plus and EZ-Latch Click features, allowing for quick, screwless installation of PCIe components, M.2 SSDs, and their heatsinks. The motherboard also boasts a WIFI EZ-Plug design for easy antenna setup. Connectivity is expansive, featuring 5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI, ensuring you stay connected at top speeds and have versatile peripheral support.
Advanced Thermal Management and Durability
Maintain optimal system temperatures with the Efficient Thermal design, including VRM Thermal Armor Advanced, I/O ZONE AORUS LIGHTING, and M.2 Thermal Guard XL. The innovative DDR Wind Blade provides enhanced active cooling for memory modules. For long-term reliability, the Ultra Durable PCIe Armor and PCIe UD Slot X—a PCIe 5.0 x16 slot with 10X strength—offer robust support for heavy graphics cards, ensuring your system performs reliably for years.
Technical Specifications
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC and non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 2 x USB4 USB Type-C,1 x HDMI,1 x Front HDMI |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

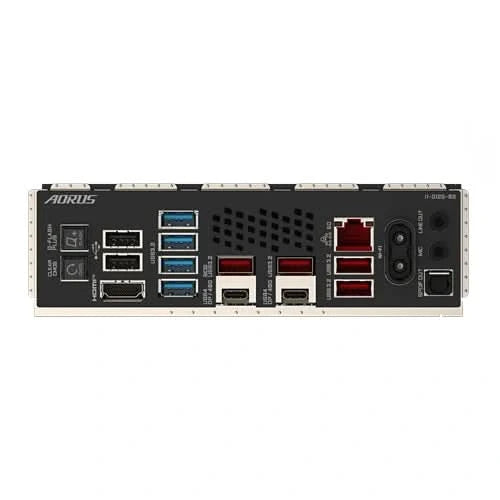

| Back Panel I/O Ports | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: Which AMD Ryzen processors are compatible with this motherboard?
A: The GIGABYTE X870E AORUS Master WIFI ATX Motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors on the AMD Socket AM5.
Q: What type of memory does this motherboard support and at what speeds?
A: It supports Dual Channel DDR5 memory across 4 DIMM slots, with overclocking capabilities up to 8600MT/s and AMD EXPO™ Memory Module Support.
Q: What networking options are available on this motherboard?
A: The motherboard features fast networking with 5GbE LAN and Wi-Fi 7, complemented by a directional Ultra-high gain antenna.
