Features:

• AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

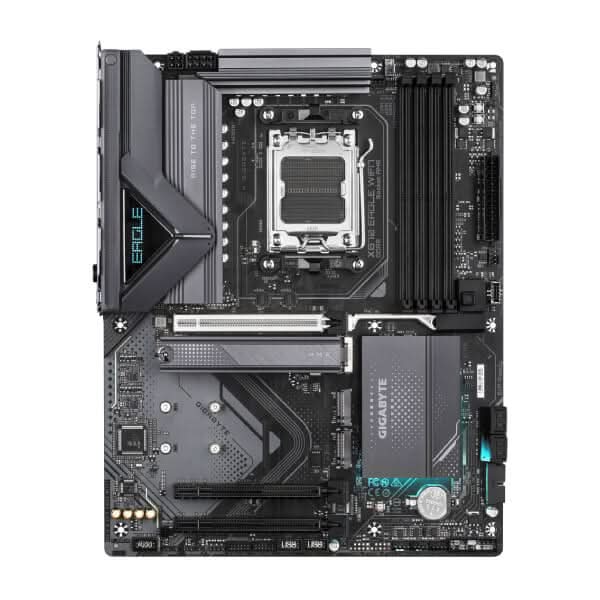

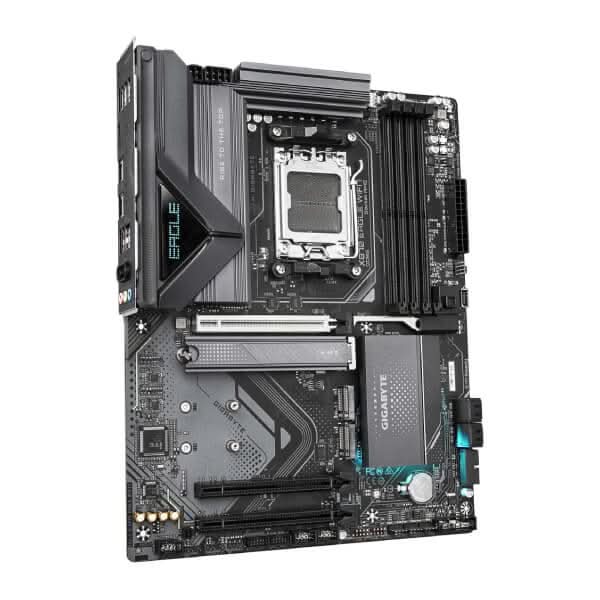

  Motherboard
  Platform	AMD
  Socket	AM5
  Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
  Chipset	X870
  Memory Speed	up to 8200
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  Graphics Port	2 x USB4,1 x HDMI
  Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  Wireless Networking	WiFi 7,Bluetooth 5.4

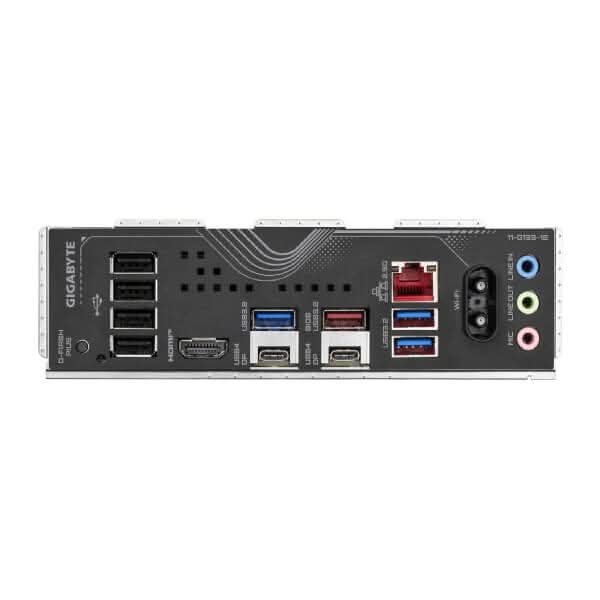

  Back Panel I/O Ports	1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port* 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
  Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
