Experience robust gaming with the Gigabyte RX 7600 Gaming OC 8GB Graphics Card. This card is built with an 8GB GDDR6 128-bit memory interface and features the advanced WINDFORCE cooling system, designed for efficient operation.
Technical Specifications
| GRAPHICS | |
| Model | GV-R76GAMING-OC-8GD |
| Chipset | AMD RADEON |
| GPU | RX 7600 |
| Engine Clock | Boost Clock : up to 2755 MHz (Reference card: 2655 MHz) Game Clock : up to 2355 MHz (Reference card: 2250 MHz) |
| PCI EXPRESS | 4.0 |
| MEMORY CLOCK | 18 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Triple Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 2048 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Key Features at a Glance
- Powered by Radeon RX 7600
- Integrated 8GB GDDR6 128-bit memory interface
- WINDFORCE cooling system with three 80mm unique blade fans
- RGB Fusion lighting
- Protection metal back plate
- Boost Clock up to 2755 MHz and Game Clock up to 2355 MHz

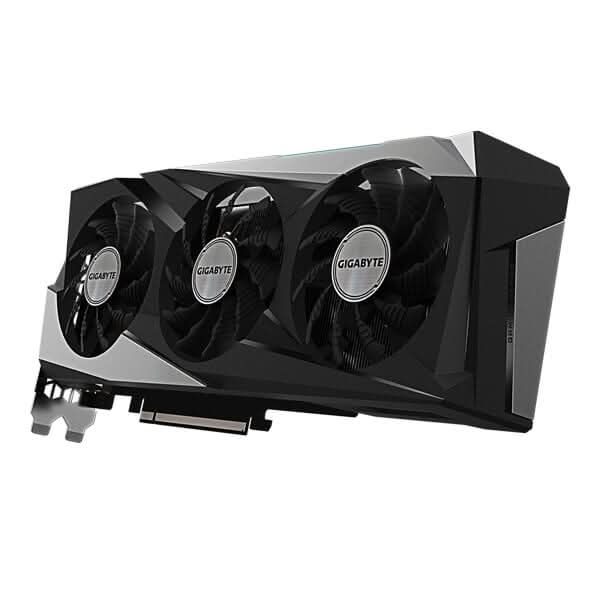

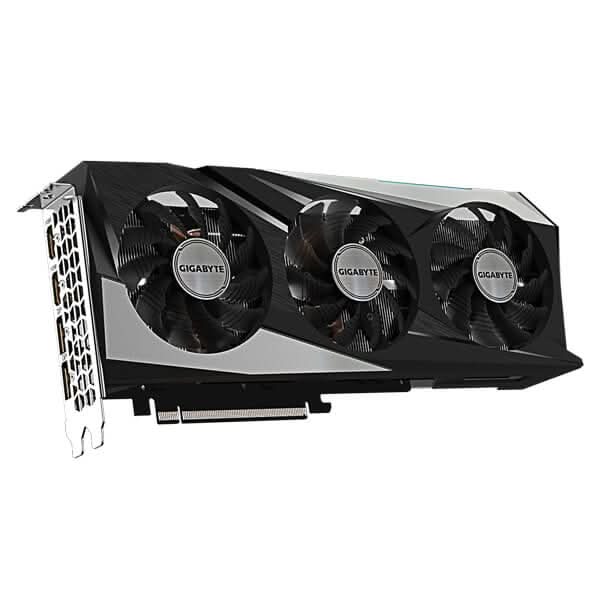

Efficient WINDFORCE Cooling
The WINDFORCE cooling system ensures high efficiency heat dissipation. It features three 80mm unique blade fans with alternate spinning, five composite copper heat pipes that directly touch the GPU, 3D active fan technology, and Screen Cooling for optimal thermal management.
Optimized Airflow and Quiet Operation
Benefit from reduced turbulence and increased airflow pressure thanks to alternate spinning fans. The 3D Active Fan provides semi-passive cooling, keeping fans off during low-load scenarios for quieter operation, while unique blade fan design guides airflow smoothly through a 3D stripe curve.

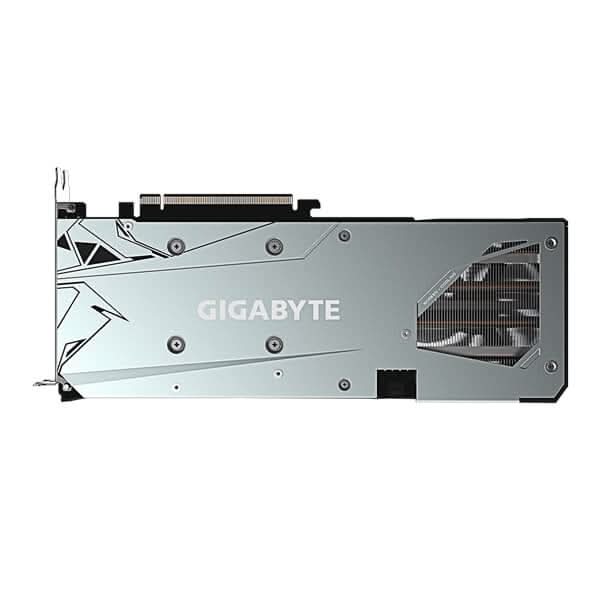

Enhanced Durability and Aesthetics
A protection metal back plate adds structural rigidity and a sleek finish to the graphics card, safeguarding components. Integrated RGB Fusion technology allows for customizable lighting, personalizing your gaming setup.
Advanced Heat Pipe Design
The pure copper heat pipe design maximizes direct contact with the GPU for effective heat transfer. This design also covers the VRAM through a large metal plate contact, ensuring proper cooling for critical memory components.
Frequently Asked Questions
Q: What memory configuration does this graphics card feature?
A: The Gigabyte RX 7600 Gaming OC is integrated with 8GB GDDR6 128-bit memory.
Q: How does the WINDFORCE cooling system work?
A: The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touching the GPU, a 3D active fan, and Screen cooling for high-efficiency heat dissipation.
Q: What are the core clock speeds of the Gigabyte RX 7600 Gaming OC?
A: The Boost Clock is up to 2755 MHz, and the Game Clock is up to 2355 MHz.
