GIGABYTE GA-H81M-S INTEL LGA1150 MOTHERBOARD
GIGABYTE GA-H81M-S INTEL LGA1150 MOTHERBOARD
Regular price
Rs. 6,321.00
Sale price
Rs. 6,321.00
Regular price
Rs. 7,500.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
CPU
| Support for IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1150 package |
| L3 cache varies with CPU |
Chipset
| IntelÃH81 Express Chipset |
Memory
| 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| Dual channel memory architecture |
| Support for DDR3 1600/1333 MHz memory modules |
| Support for non-ECC memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics
| Integrated Graphics Processor - IntelÃHD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200 |
| Maximum shared memory of 1 GB |
Audio
| RealtekÃALC887 codec |
| High Definition Audio |
| 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN
| RealtekÃGbE LAN chip (10/100/1000 Mbit) |
Expansion Slots
| 1 x PCI Express x16 slot, running at x16 |
| 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 2.0 standard.) |
Storage Interface
Chipset:
|
USB
Chipset:
|
Internal I/O Connectors
| 1 x 24-pin ATX main power connector |
| 1 x 4-pin ATX 12V power connector |
| 2 x SATA 6Gb/s connectors |
| 2 x SATA 3Gb/s connectors |
| 1 x CPU fan header |
| 1 x system fan header |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x speaker header |
| 2 x USB 2.0/1.1 headers |
| 1 x chassis intrusion header |
| 1 x Clear CMOS jumper |

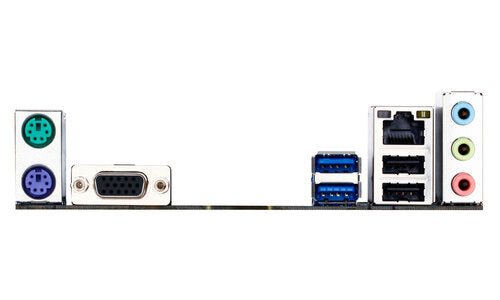

Back Panel Connectors
| 1 x PS/2 keyboard port |
| 1 x PS/2 mouse port |
| 1 x D-Sub port |
| 2 x USB 3.0/2.0 ports |
| 2 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 3 x audio jacks (Line In, Line Out, Mic In) |
I/O Controller
| iTEÃI/O Controller Chip |
H/W Monitoring
| System voltage detection |
| CPU/System temperature detection |
| CPU/System fan speed detection |
| CPU/System overheating warning |
| CPU/System fan fail warning |
| CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS
| 1 x 32 Mbit flash |
| Use of licensed AMI EFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
| Support for Q-Flash |
| Support for Xpress Install |
| Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker |
| Support for ON/OFF Charge |
Bundle Software
| NortonÃInternet Security (OEM version) |
Operating System
| Support for Windows 10/8.1/8/7 |
Form Factor
| Micro ATX Form Factor; 19.0cm x 17.0cm |
