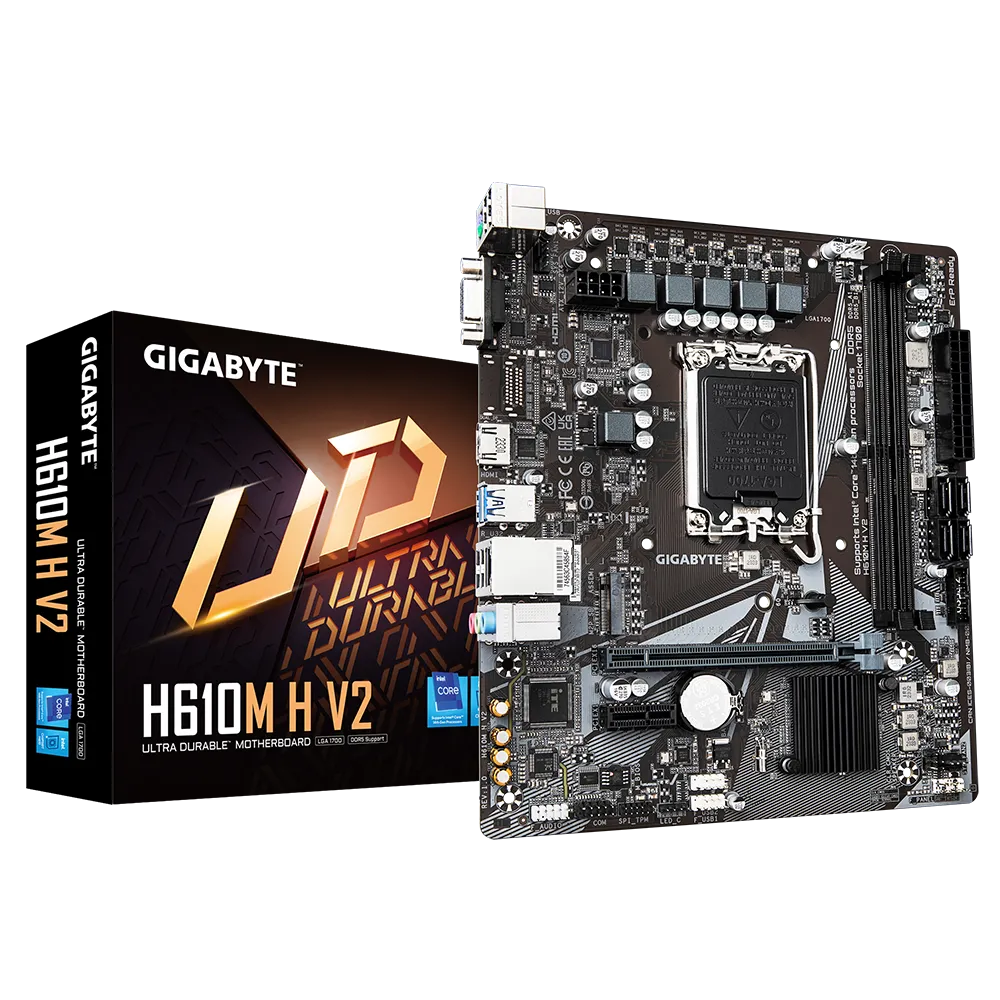

GIGABYTE H610M H V2 DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The GIGABYTE H610M H V2 DDR5 Motherboard provides a robust and reliable platform for your system build. Designed to support DDR5 memory, this motherboard from GIGABYTE is engineered for foundational computing tasks.
Key Features at a Glance
- GIGABYTE brand motherboard.
- Model: H610M H V2.
- Equipped for DDR5 memory support.
- Features the H610 chipset.
DDR5 Memory Ready
The GIGABYTE H610M H V2 DDR5 Motherboard is specifically designed to accommodate DDR5 memory modules, offering essential compatibility for systems built around this memory standard.
GIGABYTE Engineering
As a product from GIGABYTE, this motherboard upholds the brand's established manufacturing standards, providing a solid base for your computing needs.
Technical Specifications
| Category | Details |
|---|---|
| CPU | LGA1700 socket: - Supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. - L3 cache varies with CPU. Refer to "CPU Support List" for more information. |
| Chipset | Intel H610 Express Chipset |
| Memory | 14th & 13th Gen Intel Core i9/i7 Processors: - DDR5 5600/5200/4800/4400 MT/s memory modules. 13th Gen Intel Core i5/i3 and 12th Gen Intel Core, Pentium Gold, Celeron Processors: - DDR5 4800/4400 MT/s memory modules. - 2 x DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM). - Dual-channel memory architecture. - Support for ECC and non-ECC Un-buffered DIMMs. - Support for Extreme Memory Profile (XMP) modules. Refer to "Memory Support List" on GIGABYTE's website for details. |
| Onboard Graphics | Integrated Graphics Processor - Intel HD Graphics: - 1 x D-Sub port (1920x1200@60Hz). - 1 x HDMI port (4096x2160@60Hz, HDMI 2.1, HDCP 2.3). (Graphics specifications vary depending on CPU.) |
| Audio | Realtek Audio CODEC, High Definition Audio. Supports 2/4/5.1/7.1 channels (configured via software). |
| LAN | Realtek GbE LAN chip (1Gbps/100Mbps/10Mbps). |
| Expansion Slots | - CPU: 1 x PCIe x16 slot (PCIe 4.0, x16). - Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1). |
| Storage Interface | - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD). - 4 x SATA 6Gb/s connectors. |
| USB | - Chipset: 4 x USB 3.2 Gen 1 (2 rear, 2 internal header). 4 x USB 2.0/1.1 (rear). - Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 (internal header). |
| Internal I/O Connectors | - 24-pin ATX main power, 8-pin ATX 12V power. - CPU/system fan headers, 1 x M.2 connector. - 4 x SATA 6Gb/s connectors. - 1 x RGB LED strip header. - Front panel/audio headers. - USB 3.2 Gen 1 and USB 2.0/1.1 headers. - TPM, speaker, serial port, chassis intrusion headers. - Clear CMOS jumper. |
| Back Panel Connectors | - PS/2 keyboard/mouse port. - 1 x D-Sub port. - 1 x HDMI port. - 2 x USB 3.2 Gen 1 ports. - 4 x USB 2.0/1.1 ports. - RJ-45, 3 x audio jacks. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, and water cooling flow rate detection. Fan fail warning, fan speed control. (Fan speed control depends on the fan installed.) |
| BIOS | 1 x 128 Mbit flash, licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features | - Support for APP Center: @BIOS, EasyTune, Smart Backup, System Information Viewer. - Q-Flash support. (Available features vary by motherboard model.) |
| Bundled Software | Norton Internet Security (OEM). LAN bandwidth management software. |
| Operating System | Windows 11/10 64-bit. |
| Form Factor | Micro ATX, 22.3cm x 19.6cm. |
Frequently Asked Questions
Q: What type of memory does the GIGABYTE H610M H V2 motherboard support?
A: This motherboard is designed to support DDR5 memory modules.
Q: Who manufactures the H610M H V2 motherboard?
A: The GIGABYTE H610M H V2 DDR5 Motherboard is manufactured by GIGABYTE.
Q: What is the specific model name of this product?
A: The model name of this motherboard is H610M H V2.
