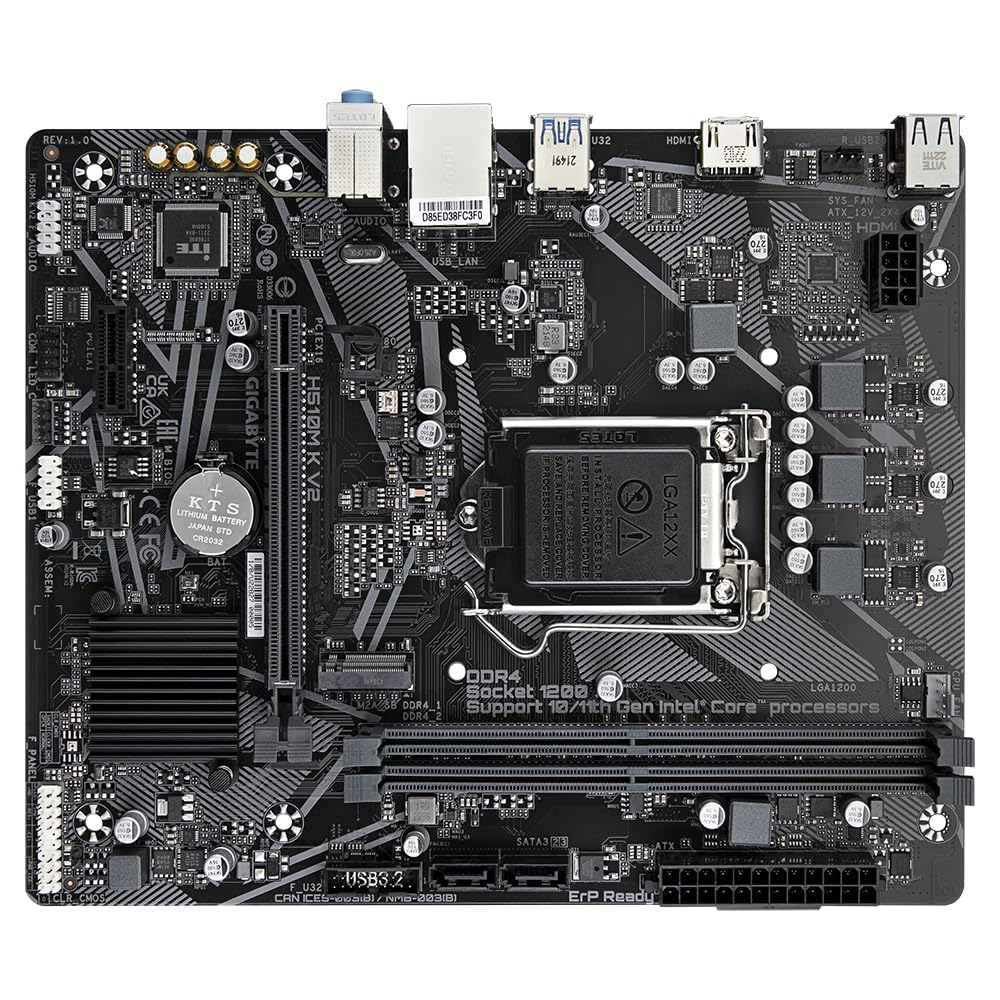

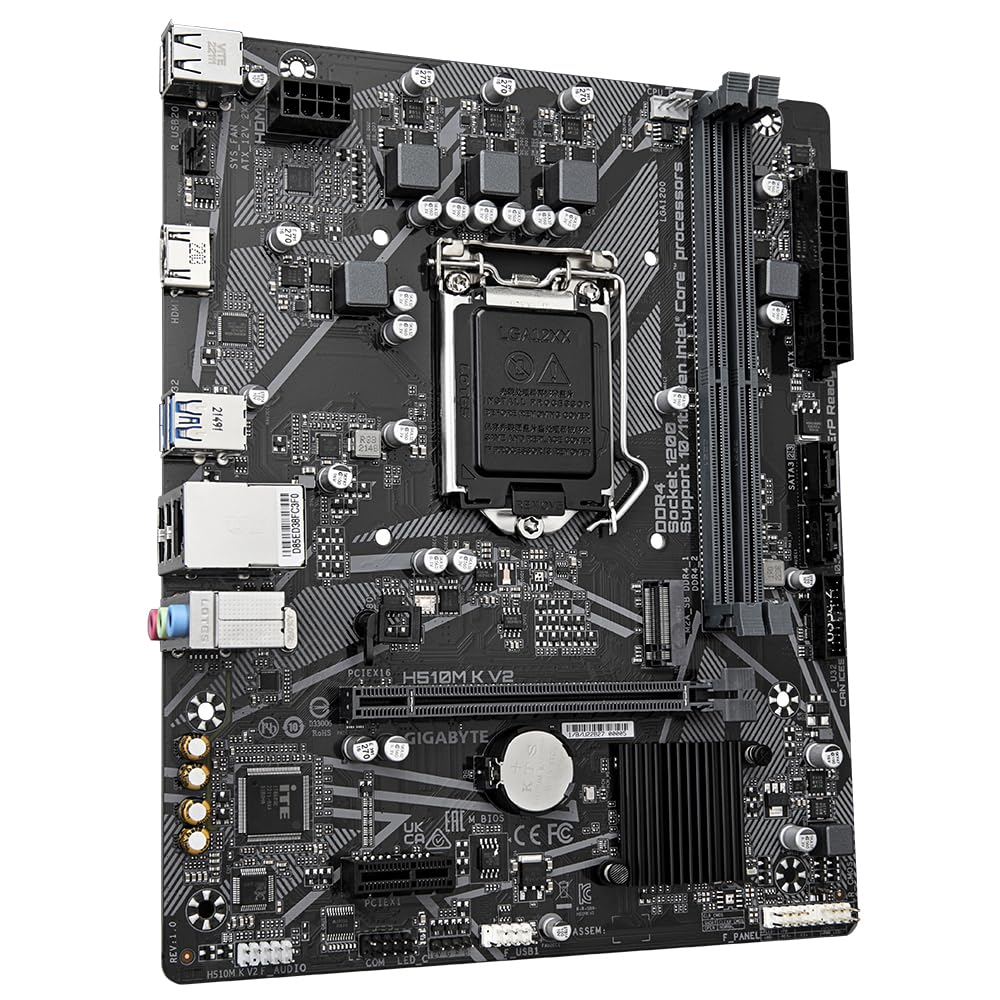

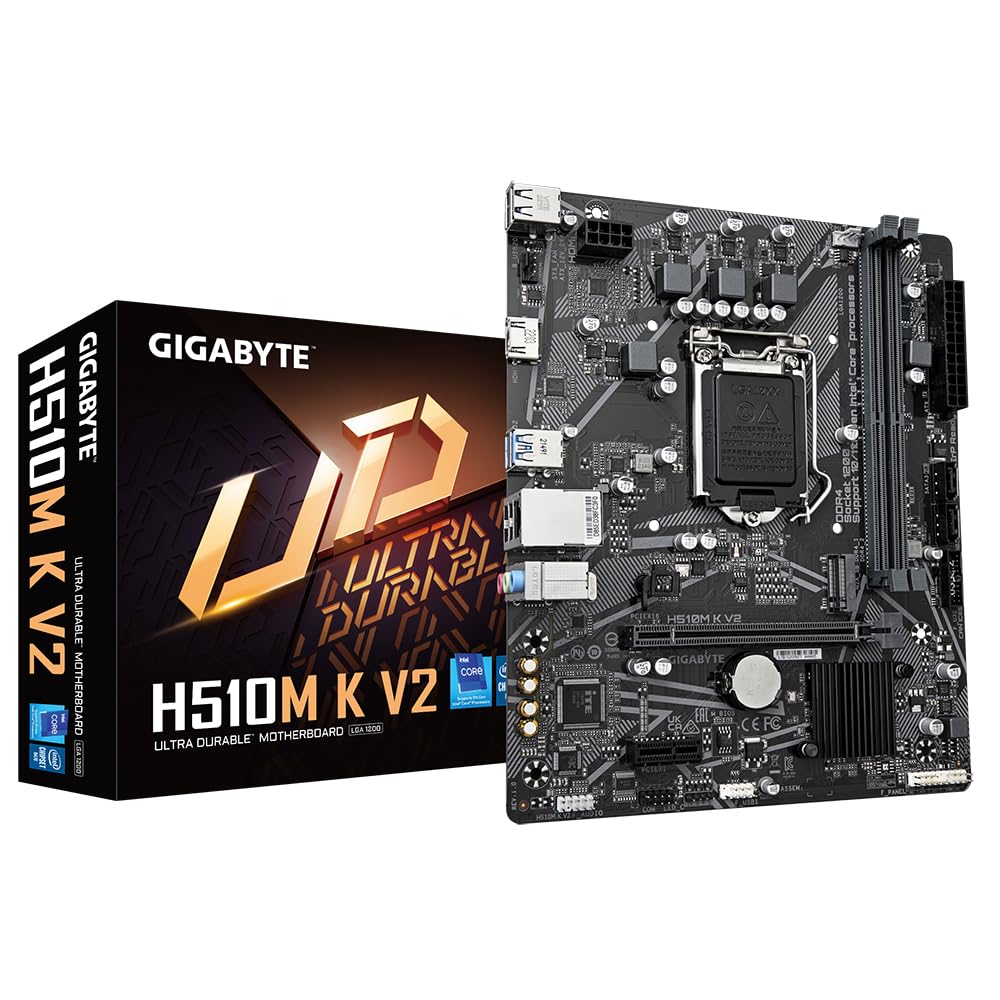

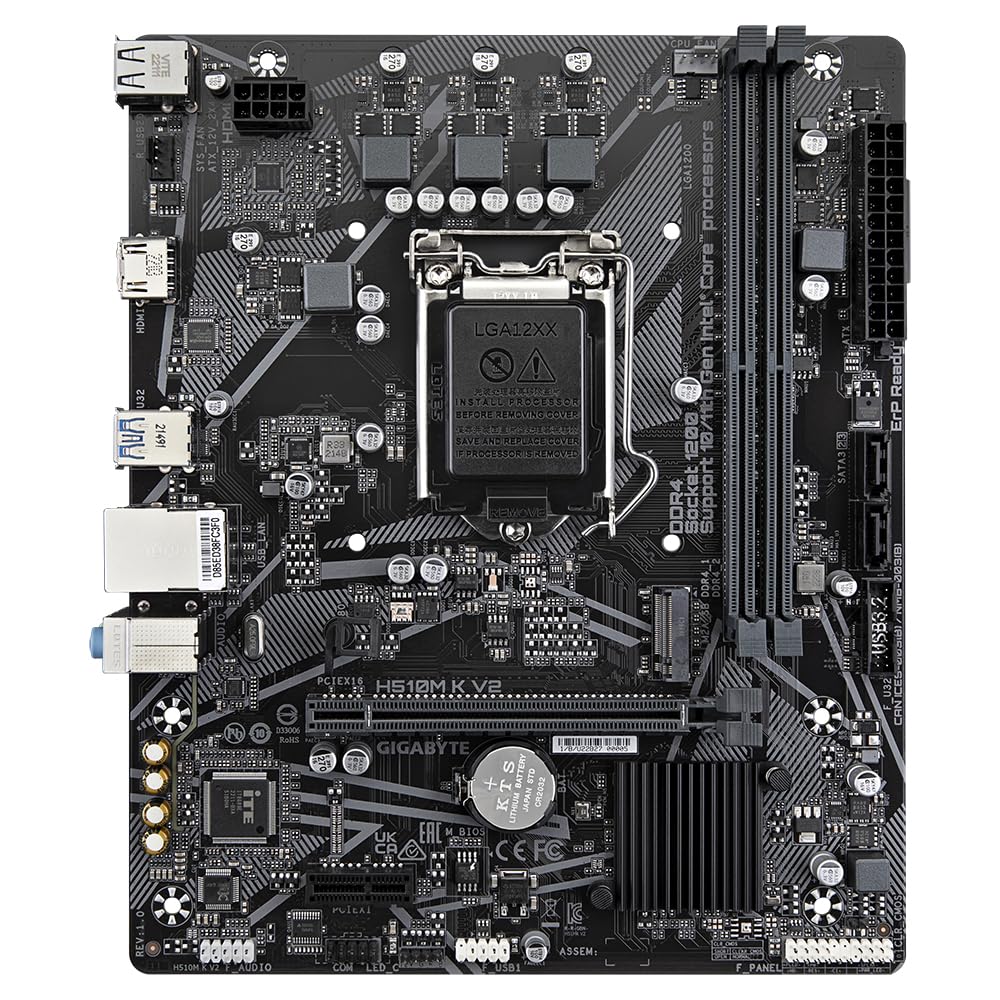

Build a solid foundation for your desktop PC with the GIGABYTE H510M K V2 MOTHERBOARD. Designed to support 10th and 11th Gen Intel Core Processors, this motherboard offers reliable performance and essential features for everyday computing and beyond.
Key Features at a Glance
- Supports 11th/10th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- 8-Channel HD Audio with High Quality Audio Capacitors
- GbE LAN with Bandwidth Management
- Smart Fan 5 with Multiple Temperature Sensors and FAN STOP
Optimized Processor Support
Experience robust performance with support for both 10th and 11th Generation Intel Core Processors, providing compatibility for a wide range of CPUs to suit your computing needs.
Enhanced Audio and Networking
Enjoy clear sound quality thanks to 8-Channel HD Audio with high-quality audio capacitors. The integrated GbE LAN with bandwidth management ensures stable and fast network connectivity for online activities.
Efficient Cooling and Durability
Maintain optimal system temperatures with Smart Fan 5, featuring multiple temperature sensors and hybrid fan headers with FAN STOP functionality. The Anti-Sulfur Resistors Design also contributes to the motherboard's long-term reliability.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1200 |
| CPU Type | 11th Gen,10th Gen, Pentium |
| Chipset | H510 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

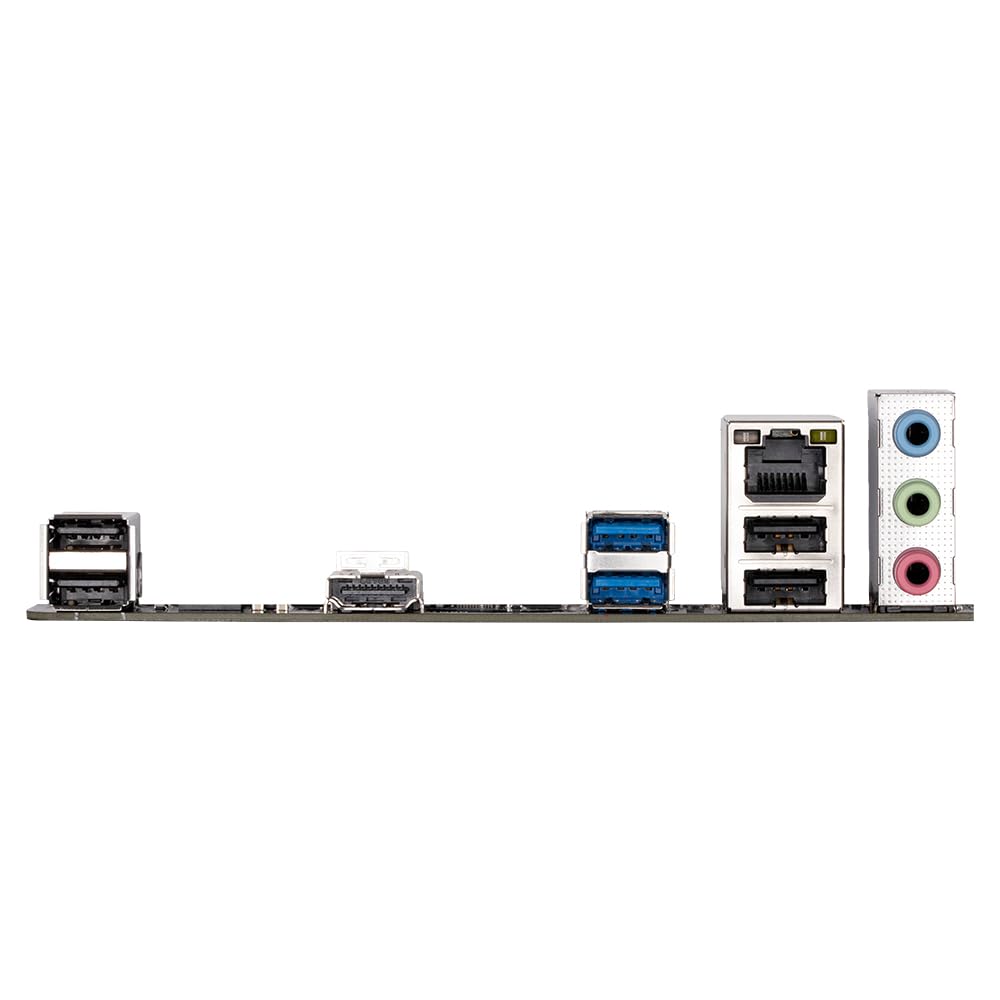

| Back Panel I/O Ports | 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which Intel processors does this motherboard support?
A: It supports 11th and 10th Gen Intel Core Processors.
Q: What type of memory does this motherboard use?
A: It uses Dual Channel Non-ECC Unbuffered DDR4 memory across 2 DIMMs.
Q: Does this motherboard have an M.2 slot for storage?
A: Yes, it features an NVMe PCIe Gen3 x4 2280 M.2 Connector.
