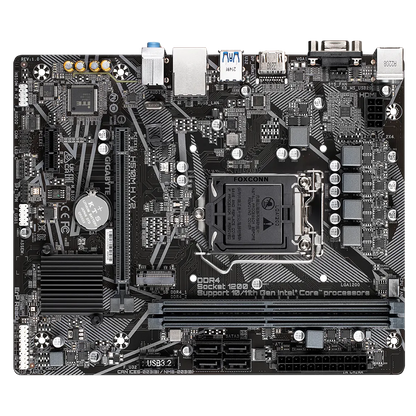

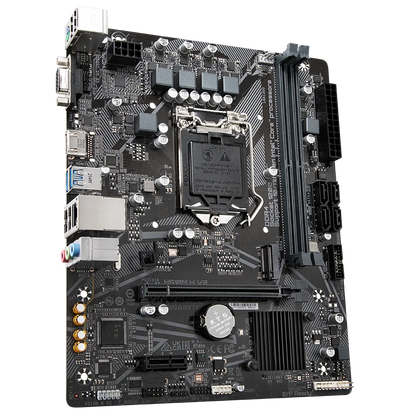

GIGABYTE H510M H V2 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

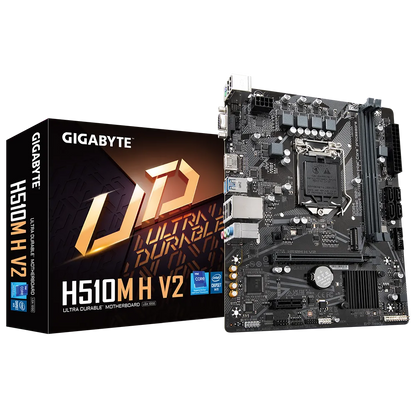

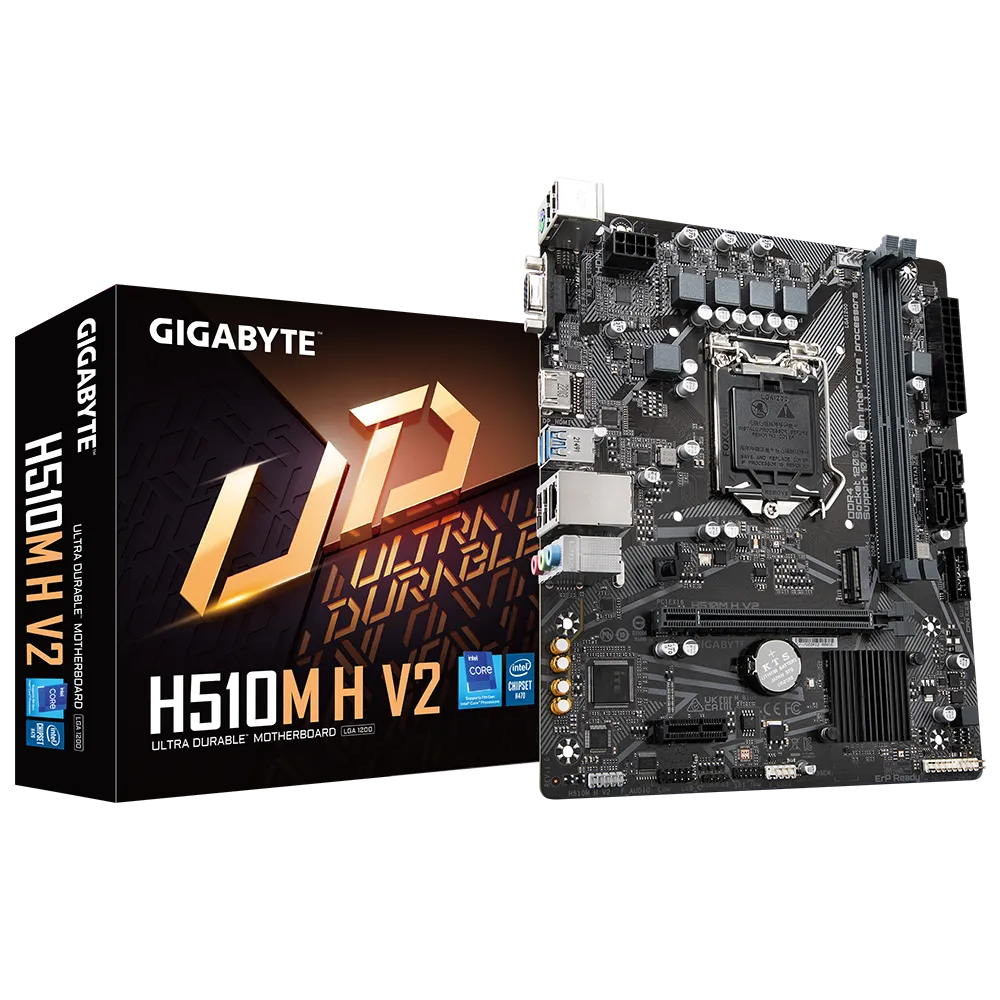

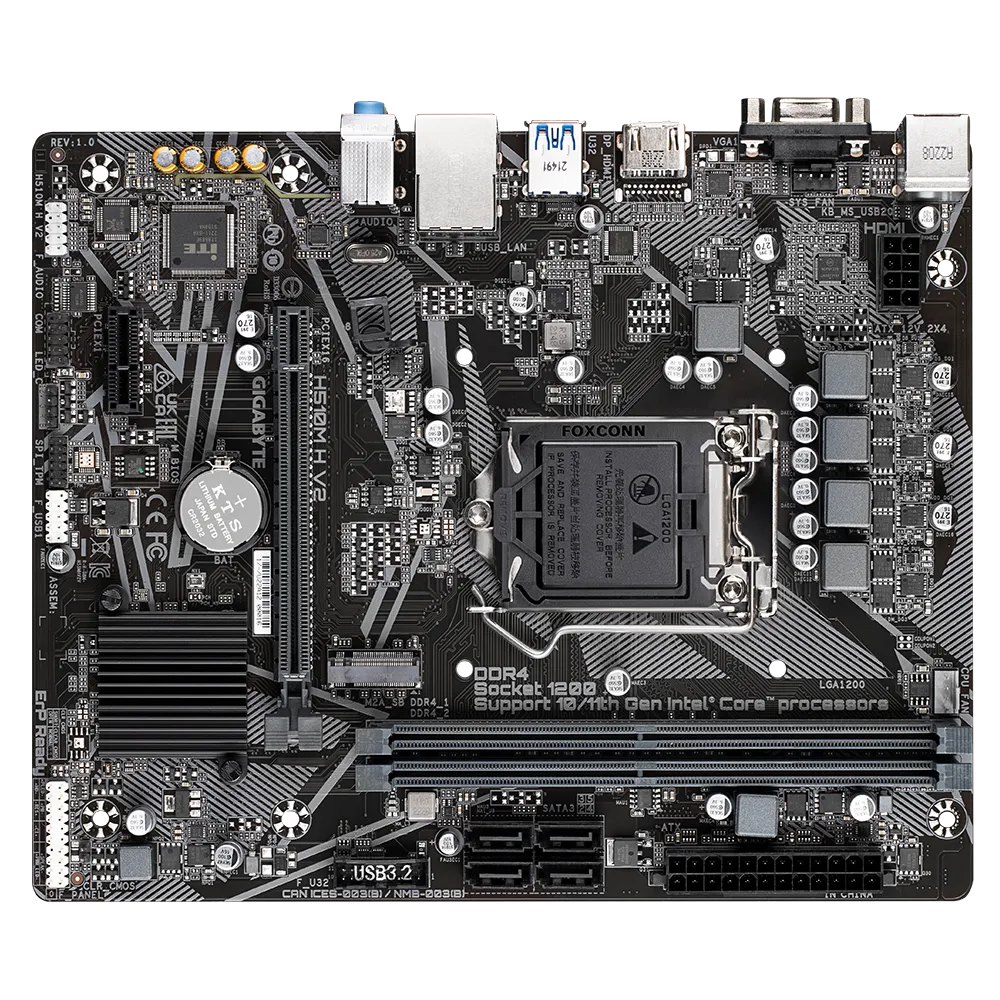

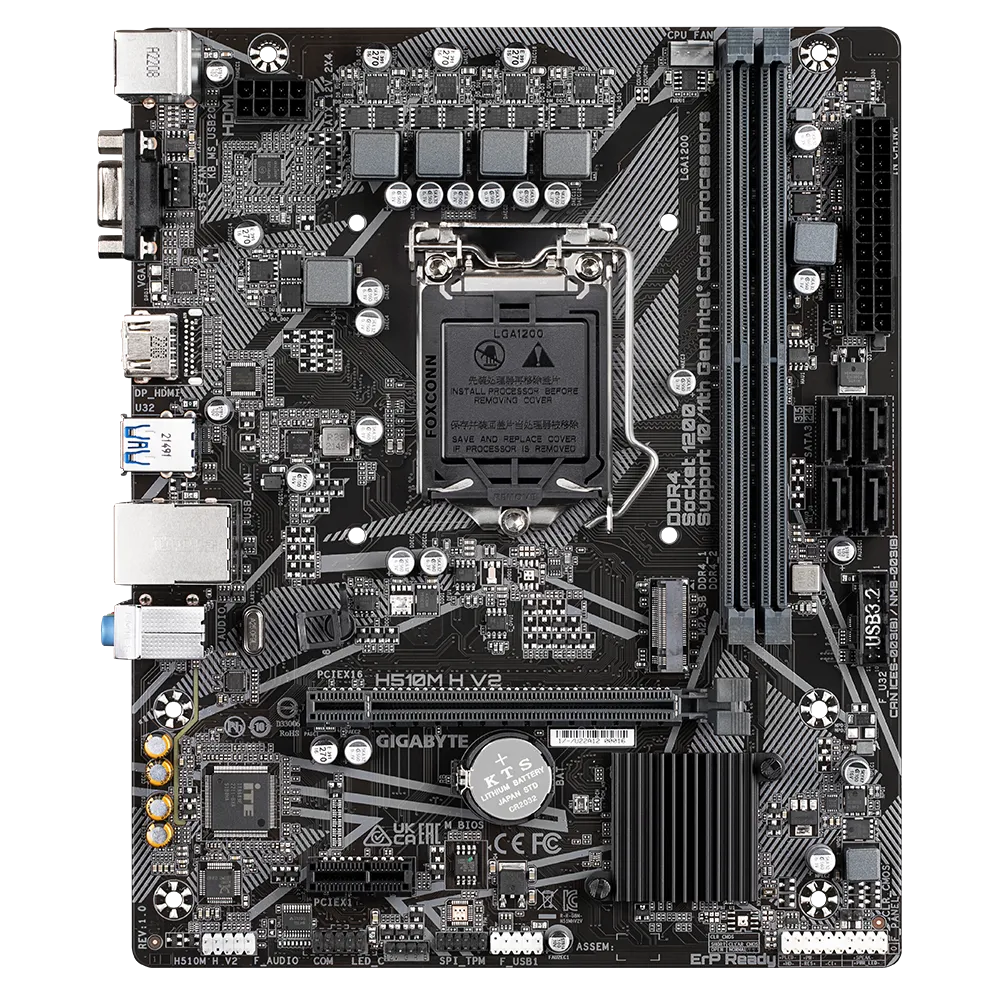

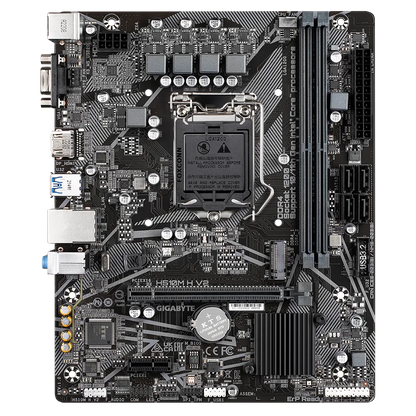

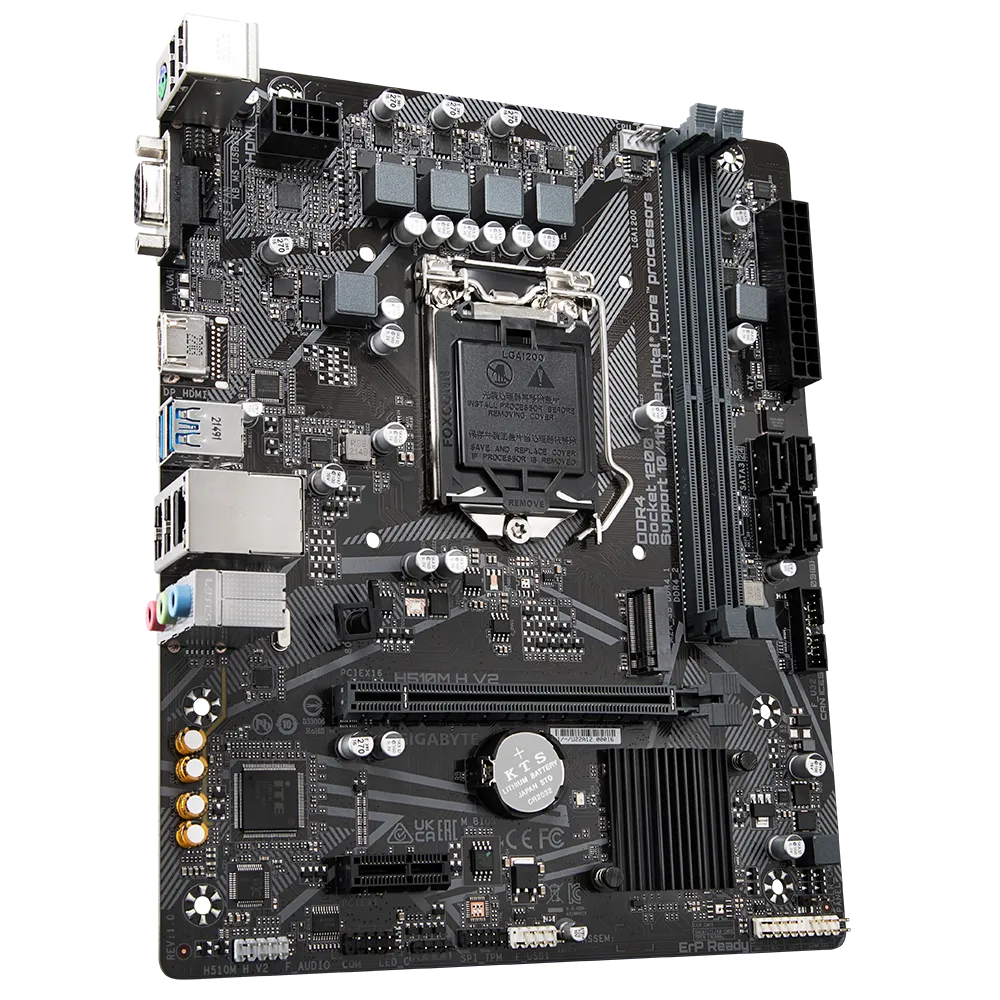

The GIGABYTE H510M H V2 Motherboard is an Intel Ultra Durable board engineered to support both 11th and 10th Generation Intel® Core™ Processors. This robust motherboard integrates essential features like GbE LAN and Smart Fan 5, providing a reliable and efficient foundation for your system.
Key Features at a Glance
- Supports 11th/10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features FAN STOP
- Anti-Sulfur Resistors Design
Enhanced Processor Compatibility
Designed for optimal performance, this motherboard provides broad compatibility, supporting both 11th and 10th Generation Intel® Core™ Processors. This ensures a versatile and powerful computing experience for your setup.
Reliable Networking & Audio
Experience stable and fast network connectivity with the integrated GbE LAN, featuring intelligent bandwidth management. Immerse yourself in clear audio thanks to the 8-Channel HD Audio, complemented by high-quality audio capacitors for an enhanced sound experience.
Efficient Cooling with Smart Fan 5
Maintain optimal system temperatures with Smart Fan 5 technology. This system incorporates multiple temperature sensors and hybrid fan headers, alongside the FAN STOP feature, which intelligently halts fans during low-load scenarios to reduce noise and extend component lifespan.
Durable & User-Friendly Design
Built with an Intel Ultra Durable design, this motherboard includes Anti-Sulfur Resistors to enhance longevity and reliability. Managing your system is made simple and easy with the intuitive GIGABYTE APP Center.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1200 |
| CPU Type | 11th Gen,10th Gen |
| Chipset | H510 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI,1 x D-Sub |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

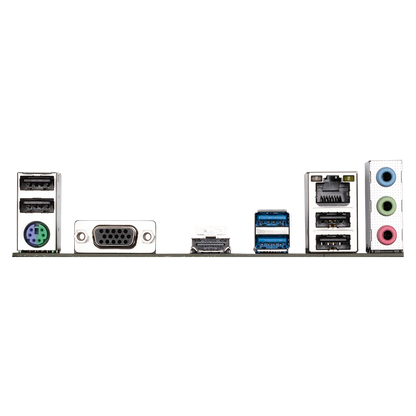

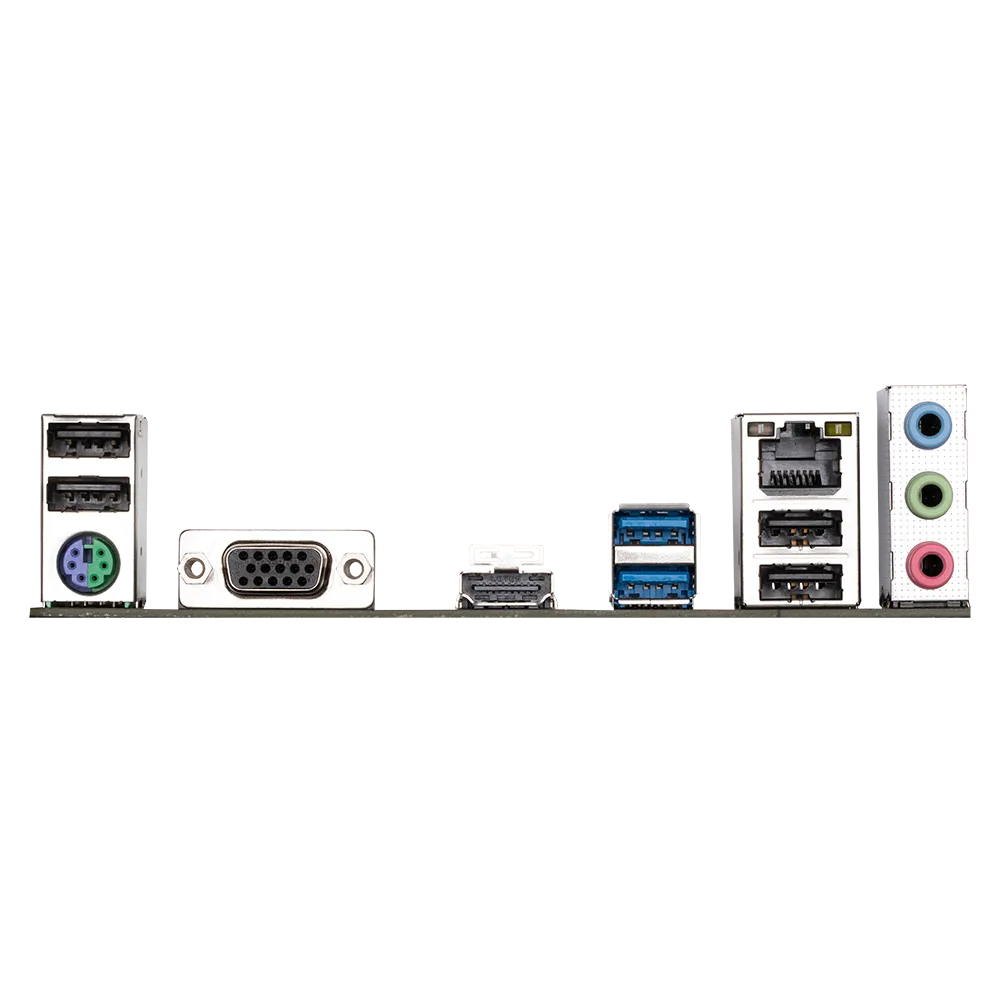

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
Frequently Asked Questions
Q: What types of processors does the GIGABYTE H510M H V2 Motherboard support?
A: This motherboard supports both 11th and 10th Generation Intel® Core™ Processors.
Q: Does this motherboard include an M.2 slot for storage?
A: Yes, it features an NVMe PCIe Gen3 x4 2280 M.2 Connector for fast storage solutions.
Q: What memory configuration does the GIGABYTE H510M H V2 support?
A: It supports Dual Channel Non-ECC Unbuffered DDR4 across 2 DIMM slots.
